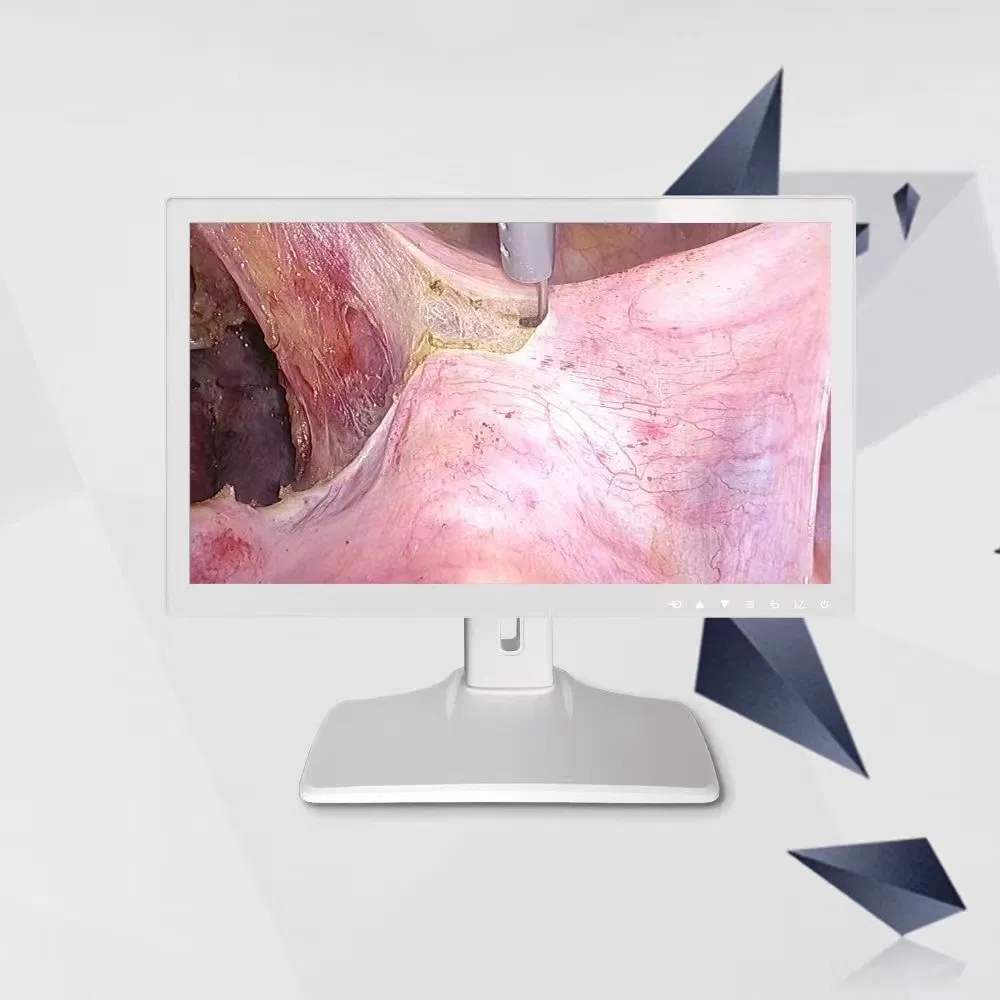

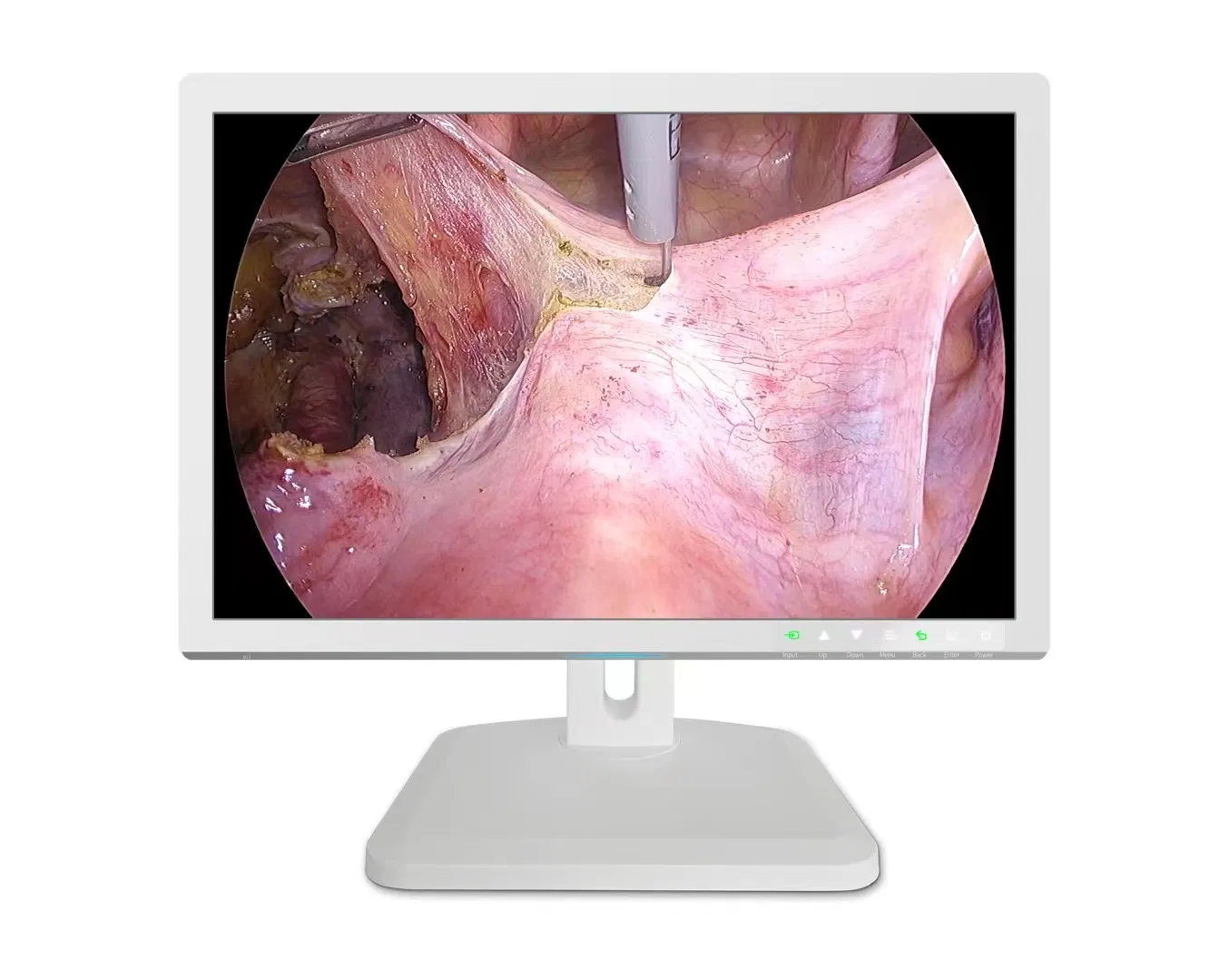

27 Inch 4K Medical Display

📋 Basic Information

Model NO.	PRO273
Appearance	Ar+Af Glass, Touch Buttons
Fit Method	Full Lamination
Power Supply	External Power Supply 24V/5A
Backlight Type	LED
Apply	Endoscopy/Electronic Gastrointestinal Scopy, Laparoscopy
Medical Curve	Gamma2.0/Gamma2.2/Gamma2.4/Gamma2.6/Dicom Curves
Input Interface	DVI/HDMI2.0/Dp/3G-SDI
Output Interface	DVI/3G-SDI
Monitor Weight	7.2kg (Without Base)
Base Weight	4kg
Installation	Vesa Standard 100*100mm
Resolution	3840x2160 (4K)

🩺 Product Description

The display has been designed specifically for endoscopy imaging and the integrated operating room. It features a wide color gamut and offers advanced color calibration algorithms to ensure clinical precision.

✔

Accurate color reproduction for real-time medical imaging.

✔

High-resolution 4K output for superior clarity.

✔

Designed for professional surgical environments.

⚙️ Technical Specifications

Size	27"
Physical Resolution	3840x2160 PX
Screen Ratio	16:9
Display Color	1.07B colors
Viewing Angle	178°H / 178°V
Maximum Brightness	800 cd/m² (Typ.)
Contrast Ratio	1000:1
Response Time	12ms (G to G)
Applications	Endoscopy, Laparoscopy, Hysteroscopy, Arthroscopy, Surgical field display

📦 Packaging & Logistics

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided using reinforced carton boxes or wooden cases.

🏢 Manufacturing & Capabilities

Professional Manufacturer Advantages:

12 Years Experience: Specializing in operating room equipment and medical devices.
Advanced Technology: In-house design and engineering teams for cutting-edge medical products.
Product Uniqueness: Holding over 100 design and innovation patents.
One-Stop Service: Comprehensive solutions from modular operating rooms to ICU pendants.

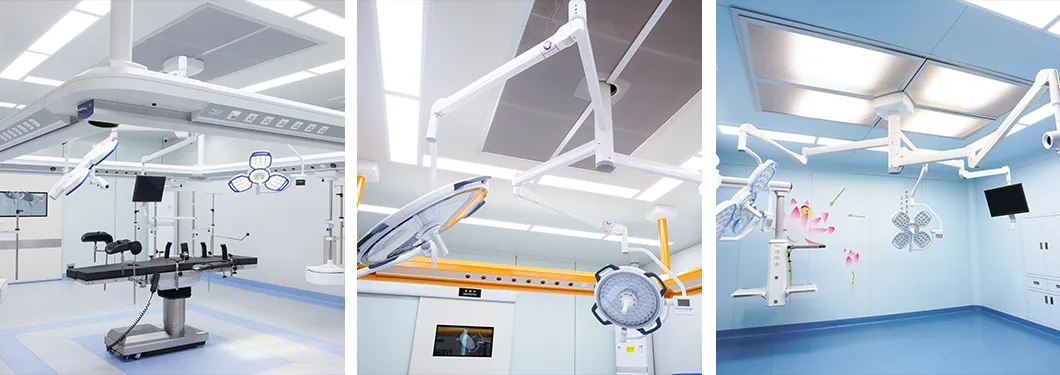

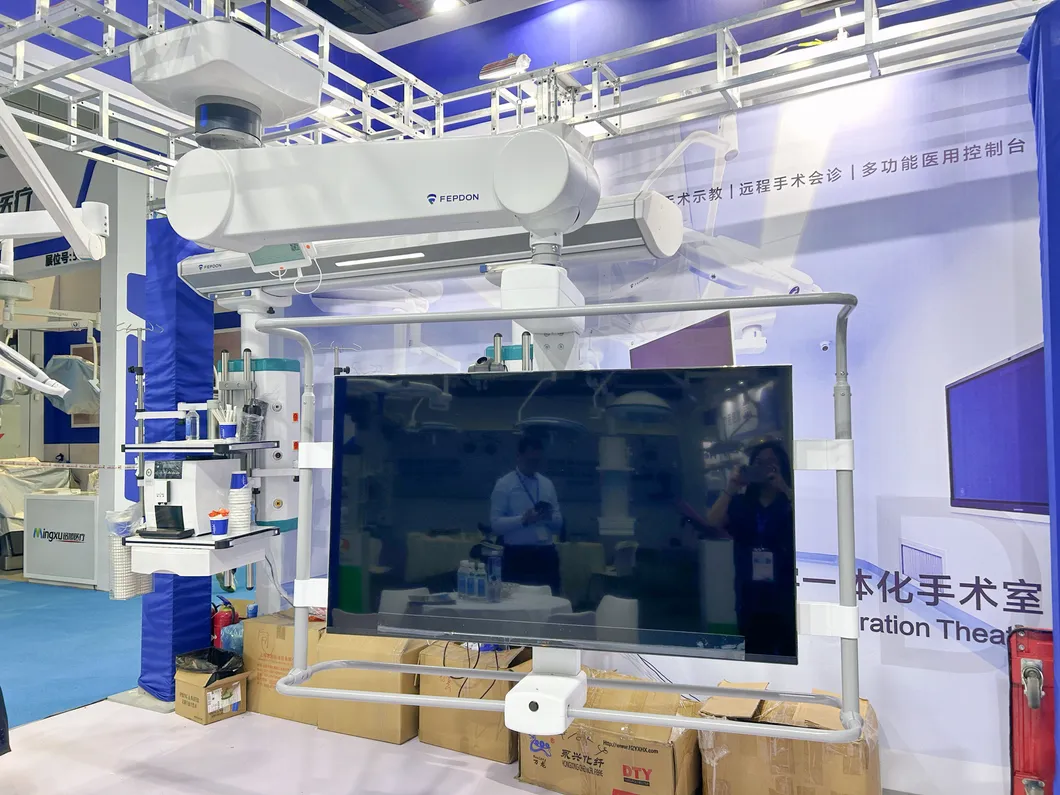

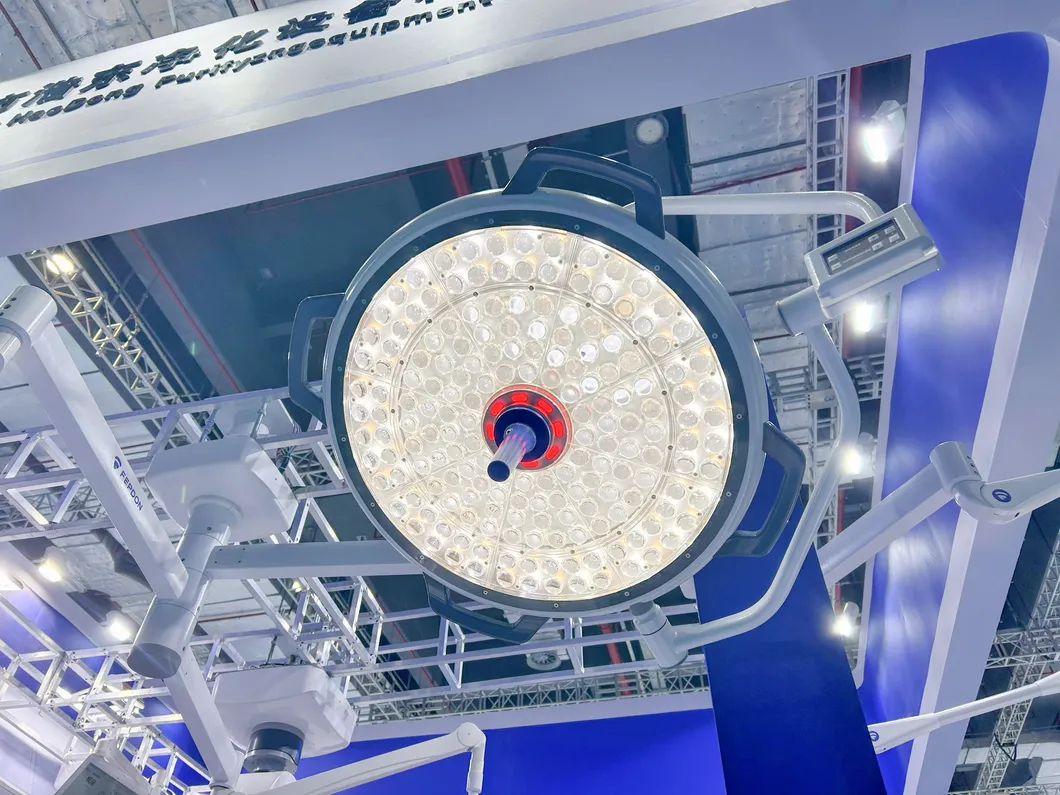

Exhibition & Showroom

Certifications & Patents

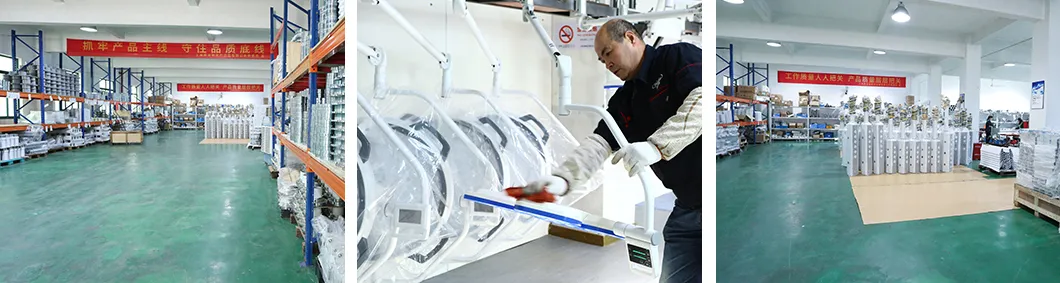

Factory & Global Presence

❓ Frequently Asked Questions

1. What is the expertise of the manufacturer?

We have 12 years of experience in manufacturing operating room equipment and medical devices, providing professional OEM and ODM services with a focus on advanced technology and product innovation.

2. How is product quality guaranteed?

We ensure quality through a strict process including pre-production samples before mass production and a final inspection conducted before every shipment.

3. What types of medical equipment are available?

The product range includes medical pendants, operating lights, ICU bridges, surgical tables, and specialized 4K medical displays.

4. Why choose us over other suppliers?

We hold over 100 patents, reflecting our R&D capability. Located in a major medical research hub, we offer cost advantages and high-quality one-stop medical solutions.

5. What logistics and payment services are provided?

We accept various delivery terms including FOB, CIF, EXW, and DDP. Payment can be made via T/T, L/C, Western Union, and other flexible methods in multiple currencies.

6. Is technical support available for installation?

Yes, our products follow international standards (like VESA 100*100mm) for easy installation, and our experienced staff provides prompt and thoughtful technical guidance.
