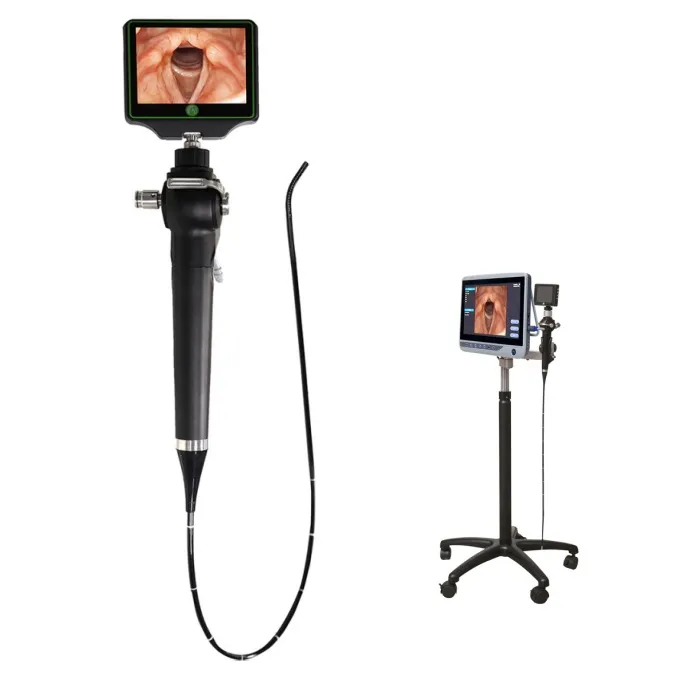

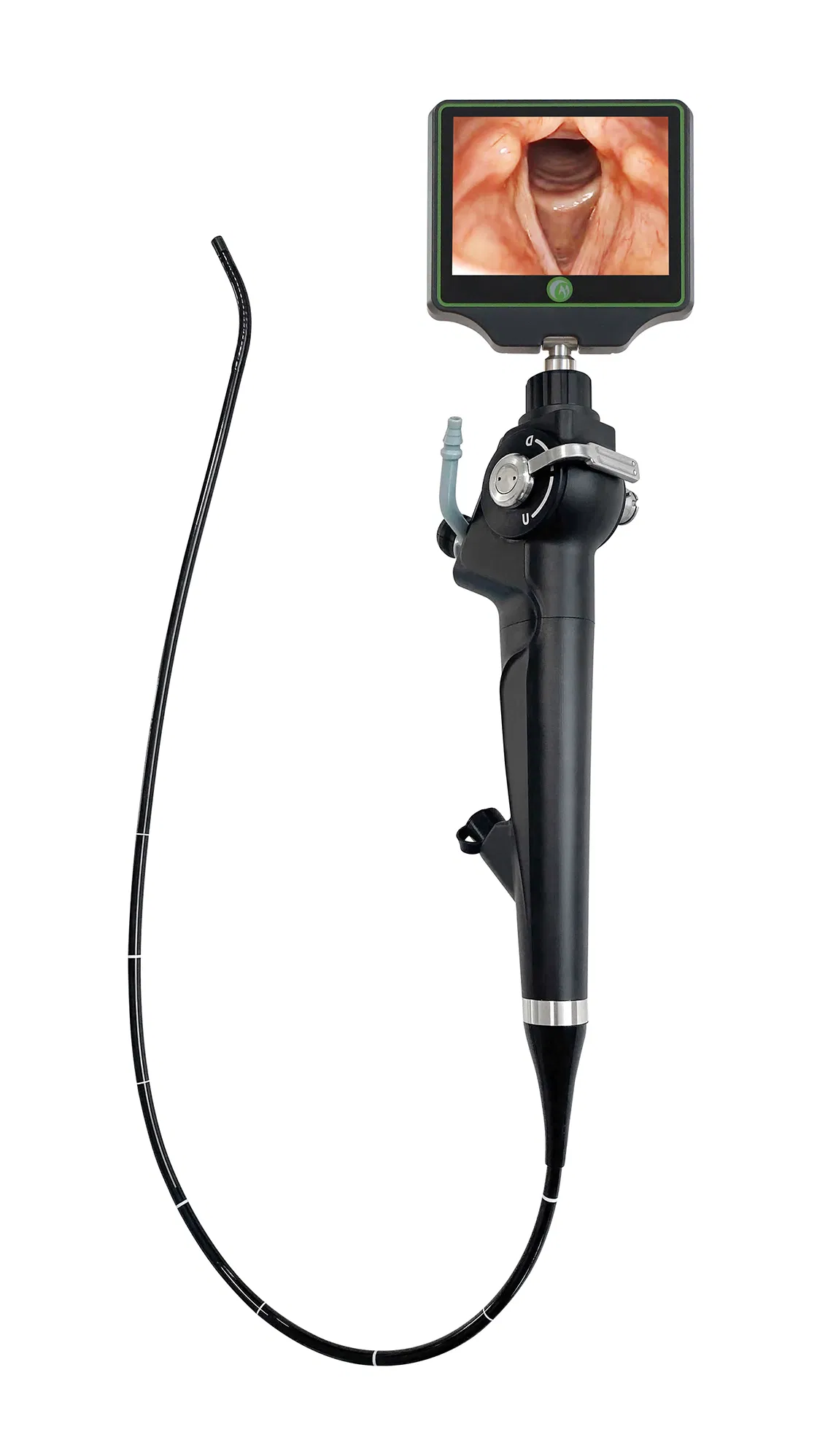

This portable fiberoptic bronchoscope is specifically designed for respiratory endoscopy procedures. It is suitable for clinical departments to carry out airway management, especially difficult tracheal intubation, nasal tracheal intubation, and placement of bronchial occluder, enabling physicians to accurately complete procedures under direct vision.
Main Applications: Department of Anesthesiology, ICU Intensive Medicine, Emergency Department, Respiratory Department, Facial Department.
| Parameter | Specifications | ||||
|---|---|---|---|---|---|
| Visual Field | 90°± 10% | ||||
| Observe Depth | 3-100mm | ||||
| Intubation Diameter | 3.2mm | 3.8mm | 4.8mm | 5.2mm | 5.8mm |
| Suction Channel | 1.2mm | 1.4mm | 2.4mm | 2.6mm | 2.8mm |
| Effective Length | 600mm | ||||

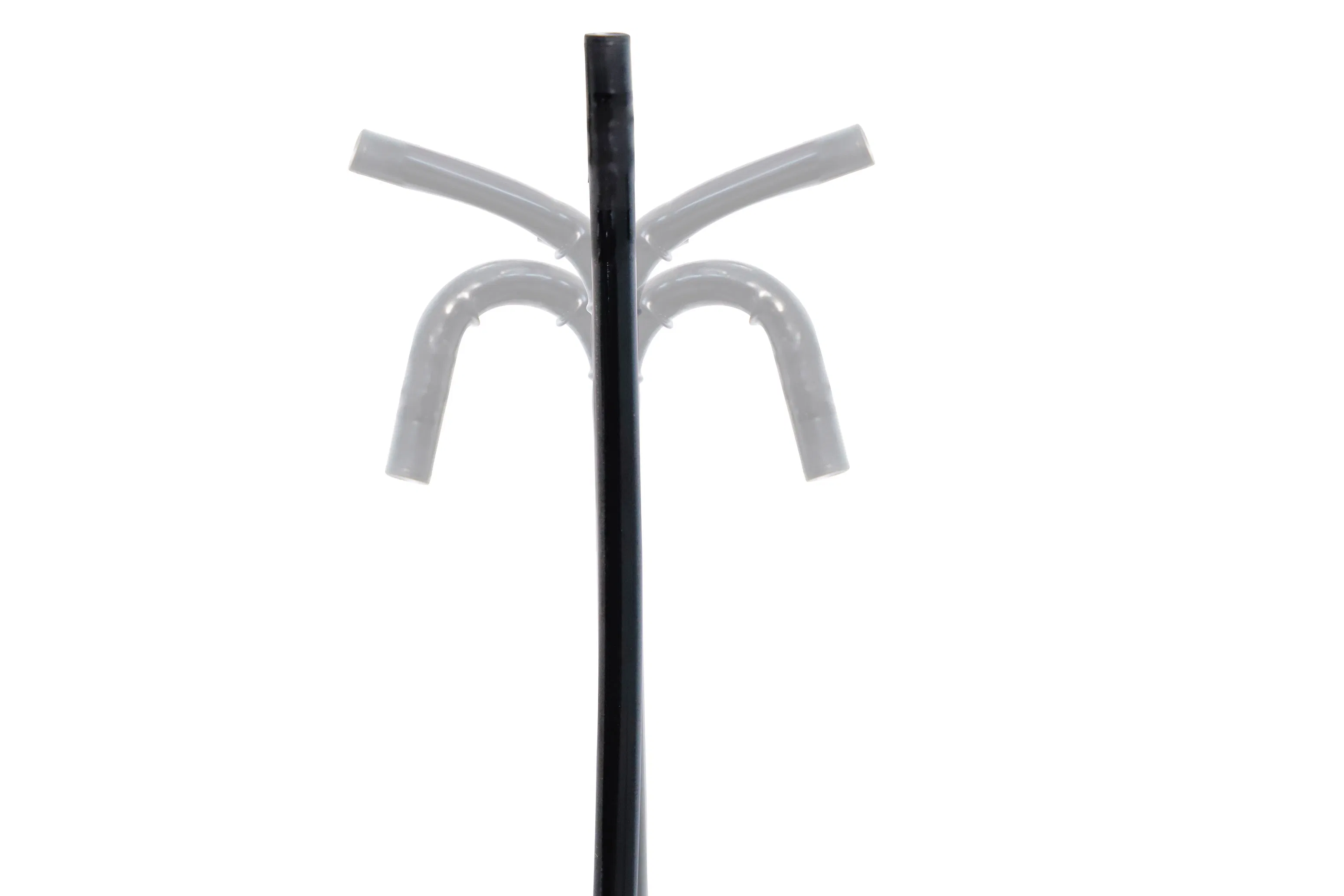

| Curved Angle | Upward 150°, Downward 130° | ||||
| Illuminance | ≥800lux | ||||
| Pixels | 2,000,000 pixels | ||||
| Revolve Angle | Up/Down: 0-180°, Left/Right: 0-330° | ||||

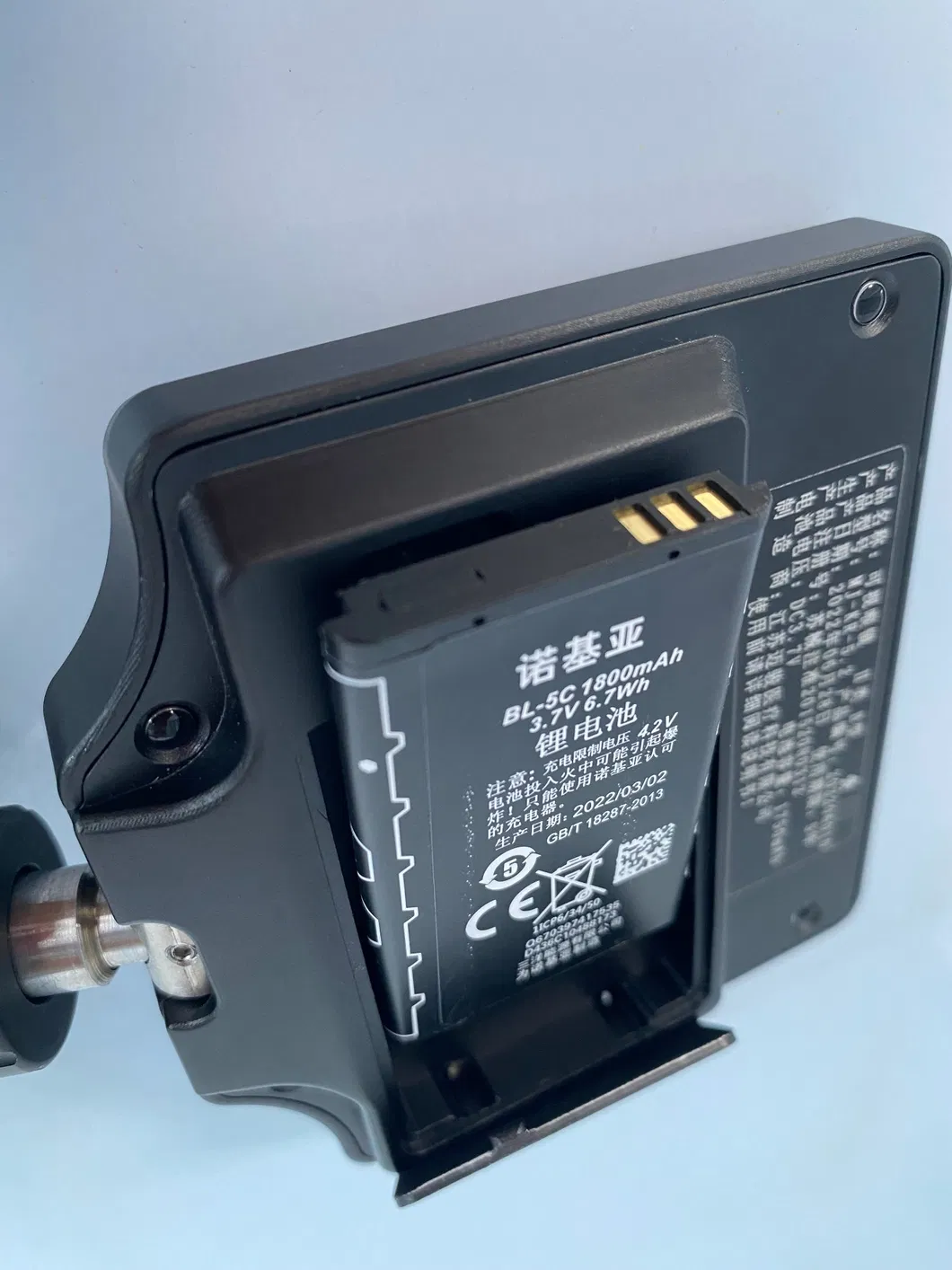

| Battery | Built-in 3.7V polymer lithium battery (1850mA) | ||||
| Discharge Time | > 2.5 hours | ||||

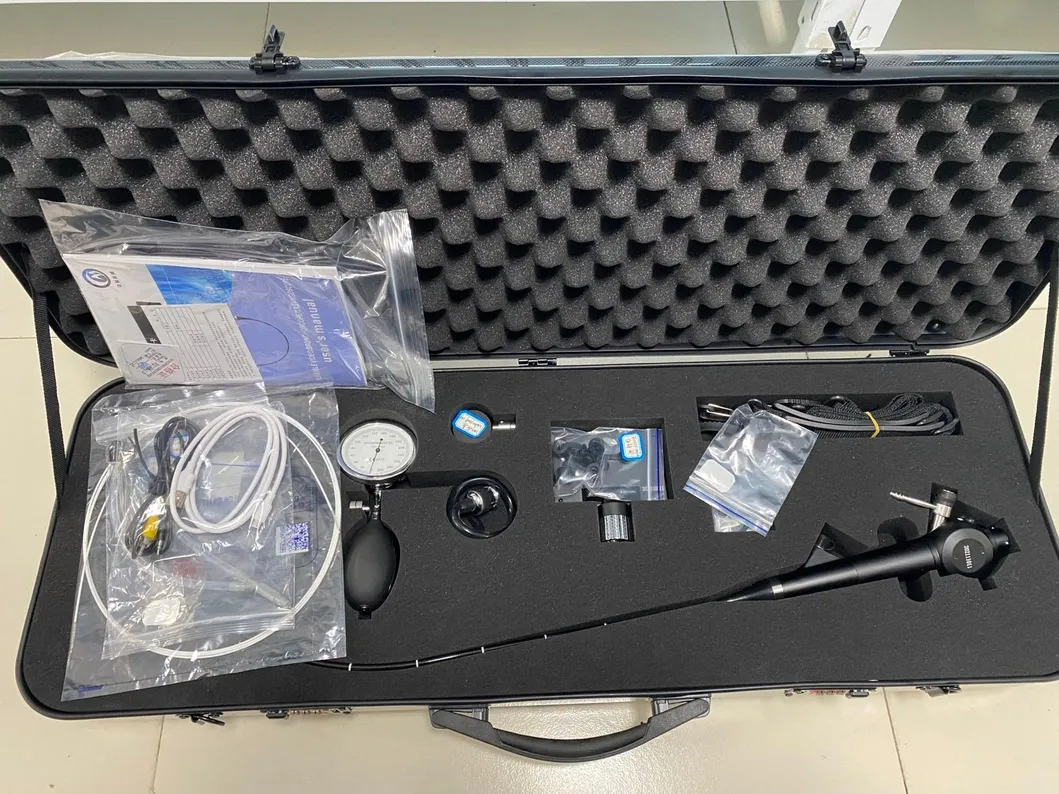

| Item Description | Quantity |
|---|---|

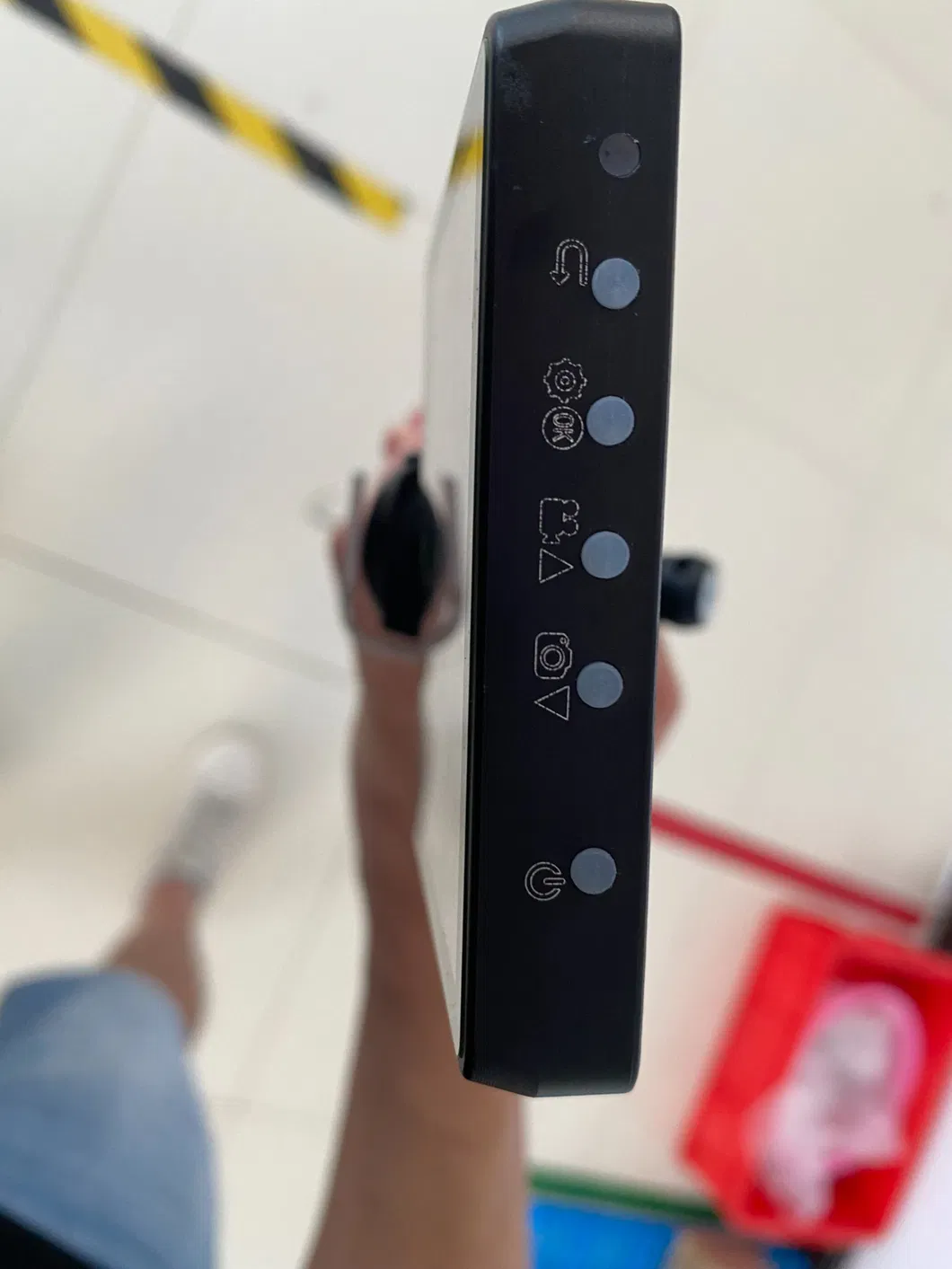

| 3.5inch display | 1 set |
| Operative section | 1 pc |
| Recharger battery | 1 pc |
| Pressure compensation cap | 2 pcs |
| Waterproof cap | 2 pcs |
| Reusable biopsy valve | 2 pcs |
| Suction button | 2 pcs |
| Leak detector | 1 pc |
| Cleaning brush | 1 pc |
| SD save card | 1 pc |

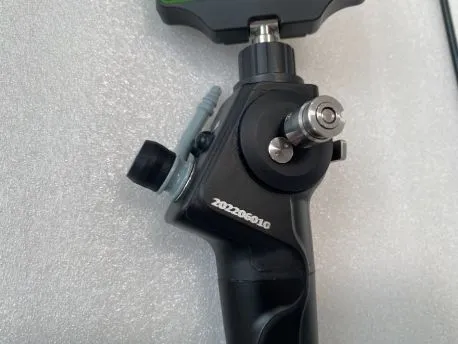

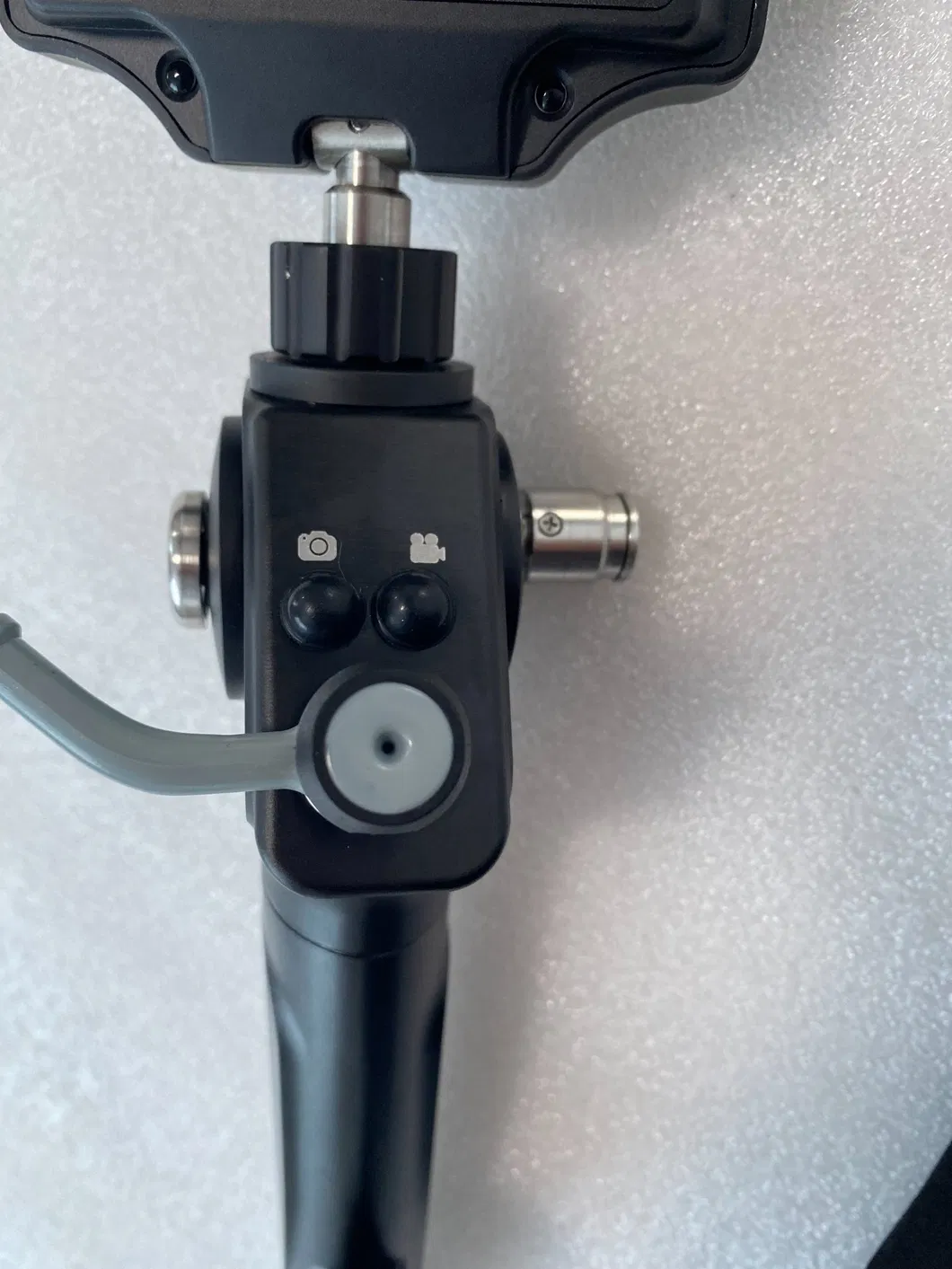

Operation part: The operating wrench connects to a circular drum with a traction wire. Turning the wrench drives the wire to achieve precise bending of the curved tip.

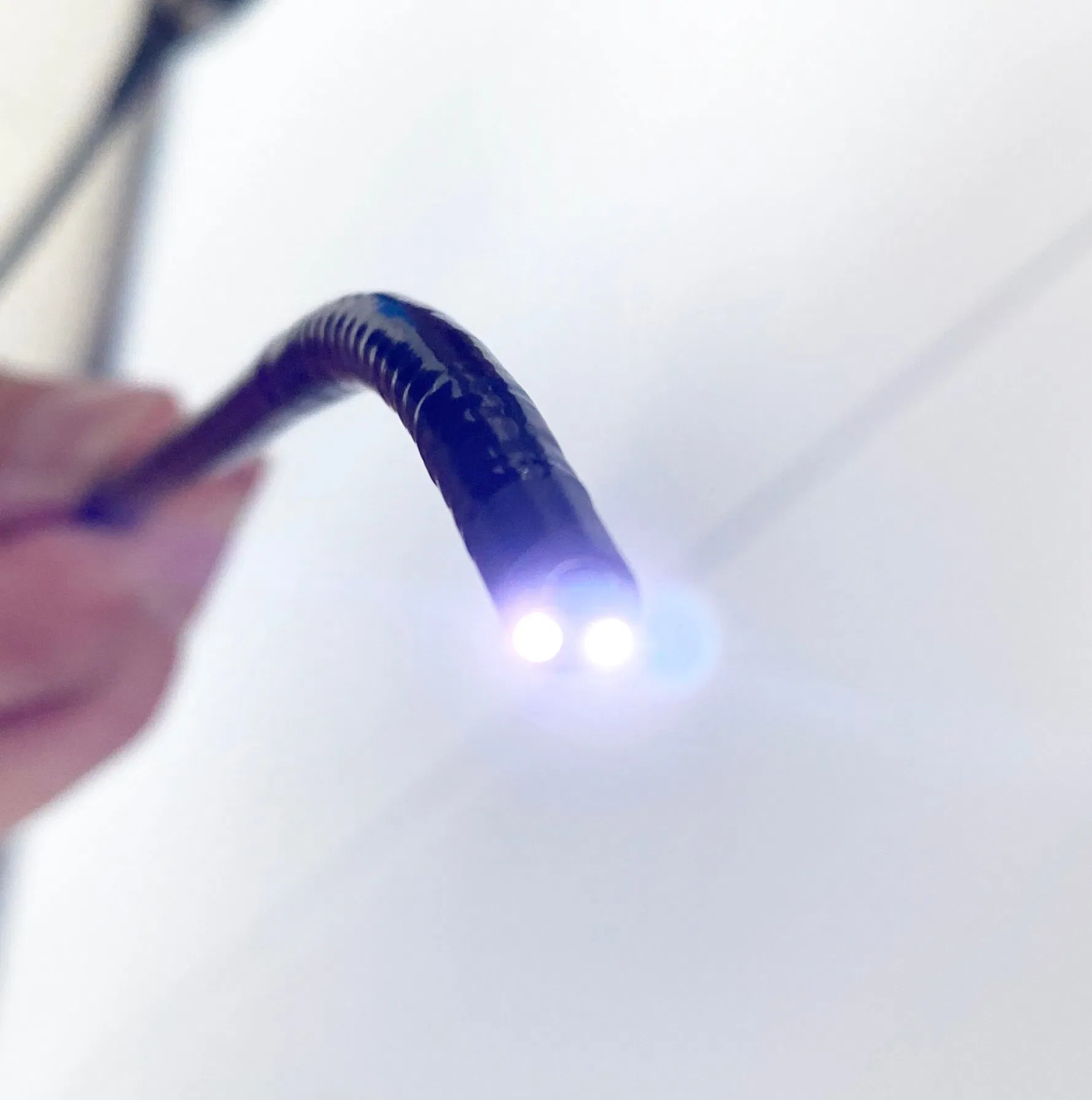

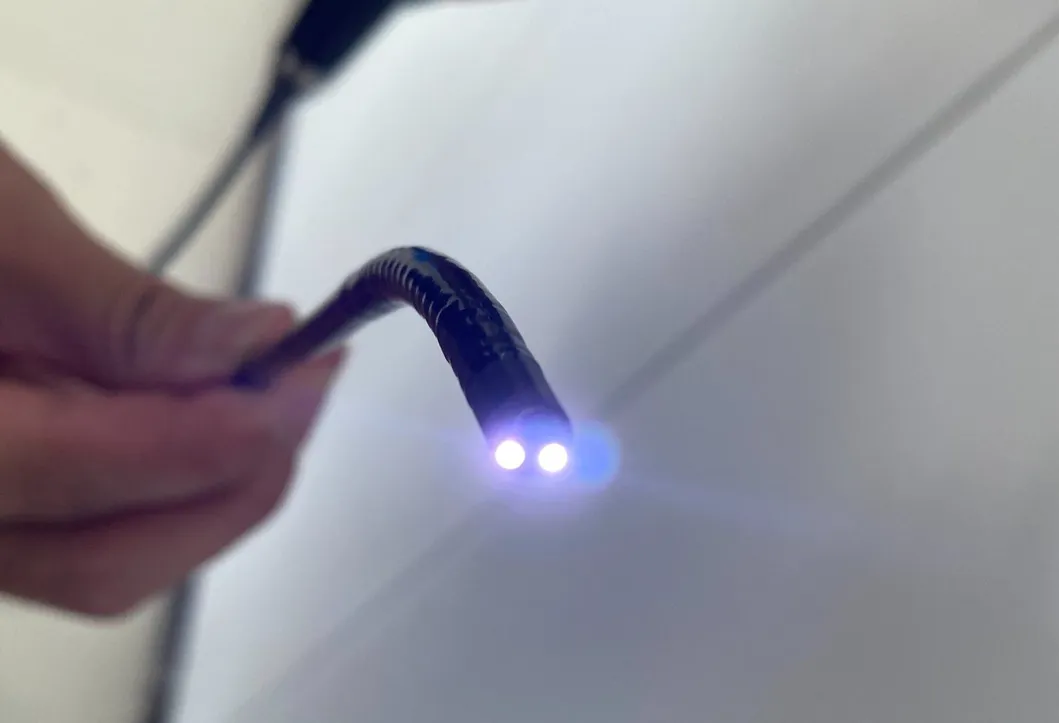

LED Illumination: White light illumination ≥800lux with nano anti-fog technology for a durable, clear view.

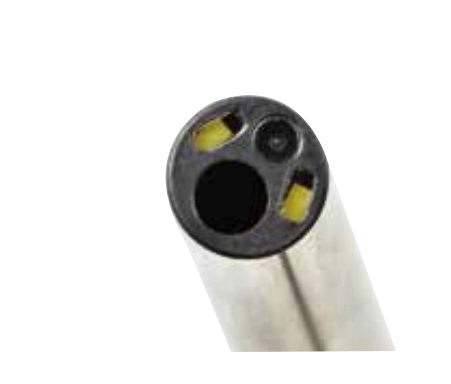

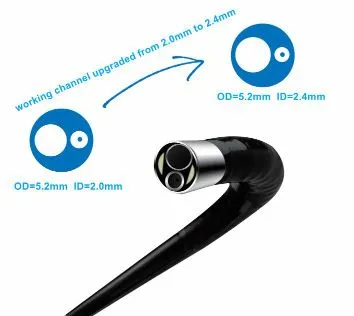

* Working channel upgraded up to 2.8mm for greatly improved work efficiency.
