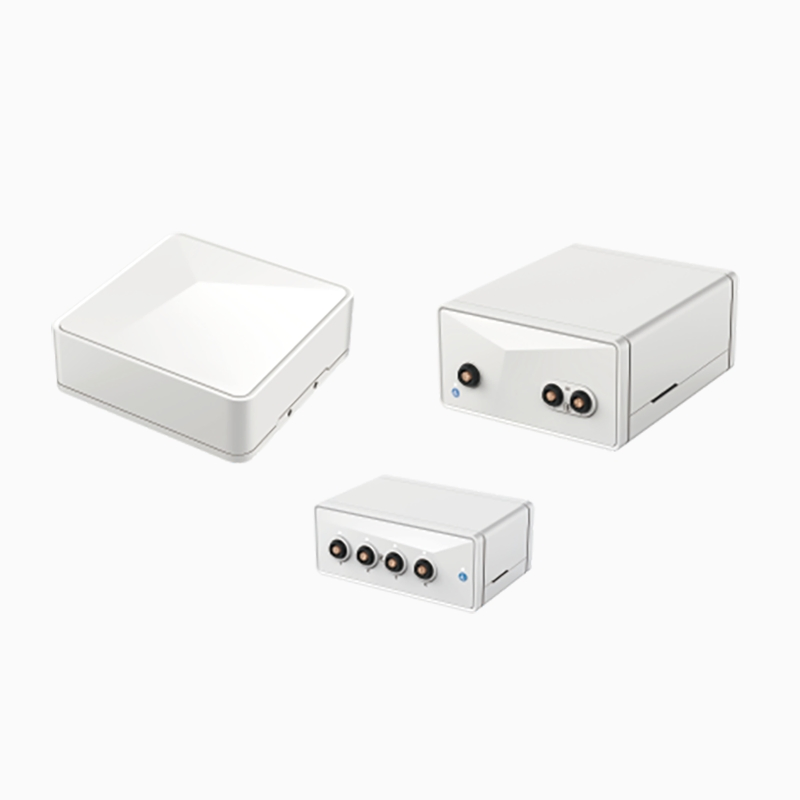

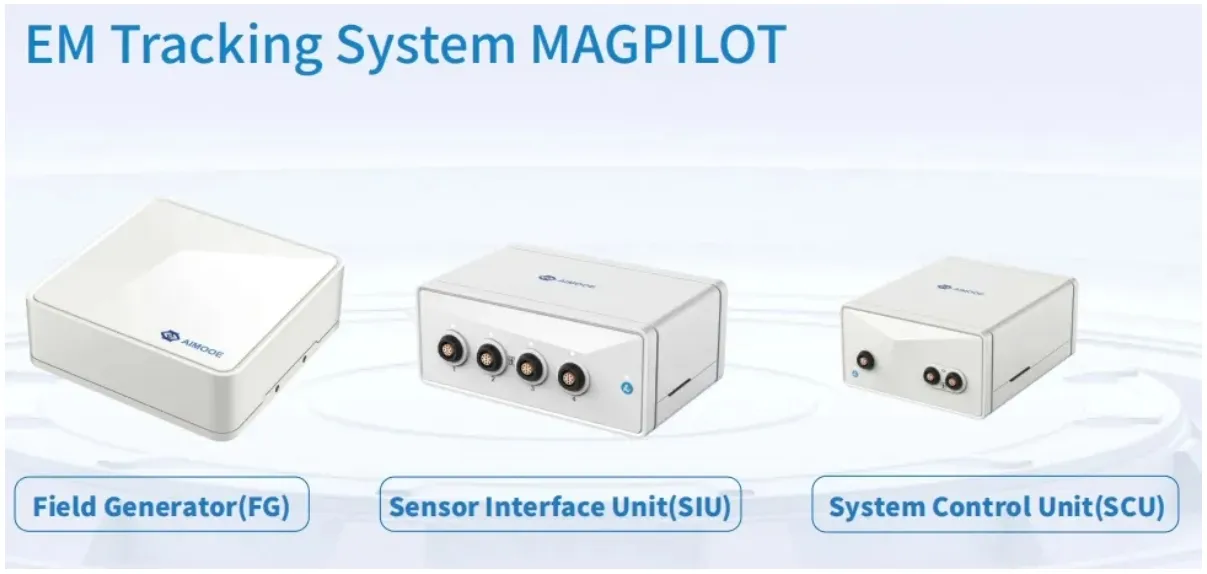

Electromagnetic Tracking Systems Field Generator (FG)
Electromagnetic (EM) Tracking Systems complement optical solutions, excelling in environments with line-of-sight obstacles (e.g., deep tissue procedures).
Calibration Tools: Probes, reference frames, and test fixtures to ensure system accuracy during setup and maintenance.
| Key Features | Details |
|---|---|
| Multi-Sensor Capability | Supports up to 16×5 DOF or 8×6 DOF sensors simultaneously, enabling tracking of multiple surgical targets. |

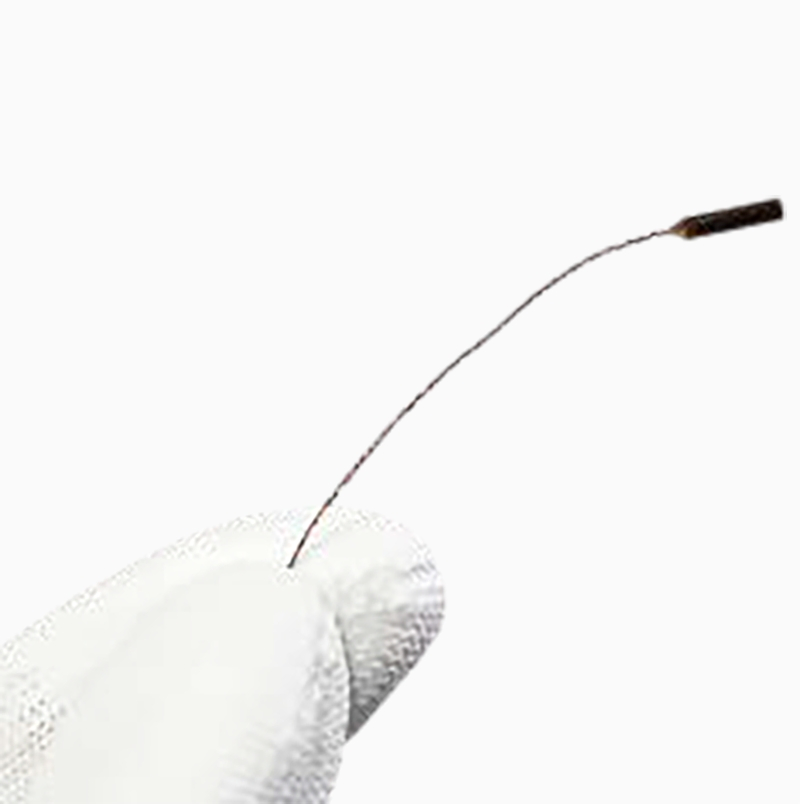

| Seamless Integration | Compact, implantable sensors (as small as 0.45 mm diameter) integrate into instruments via custom design. |

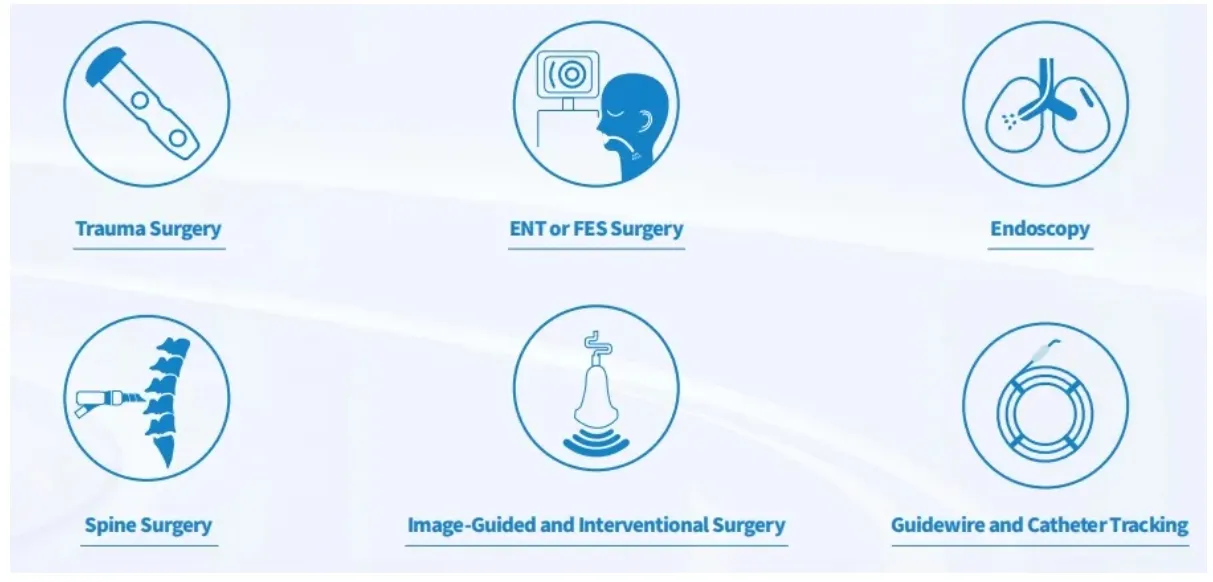

| High Robustness | Operates reliably in electromagnetic environments, ideal for neurosurgery and deep tissue interventions. |

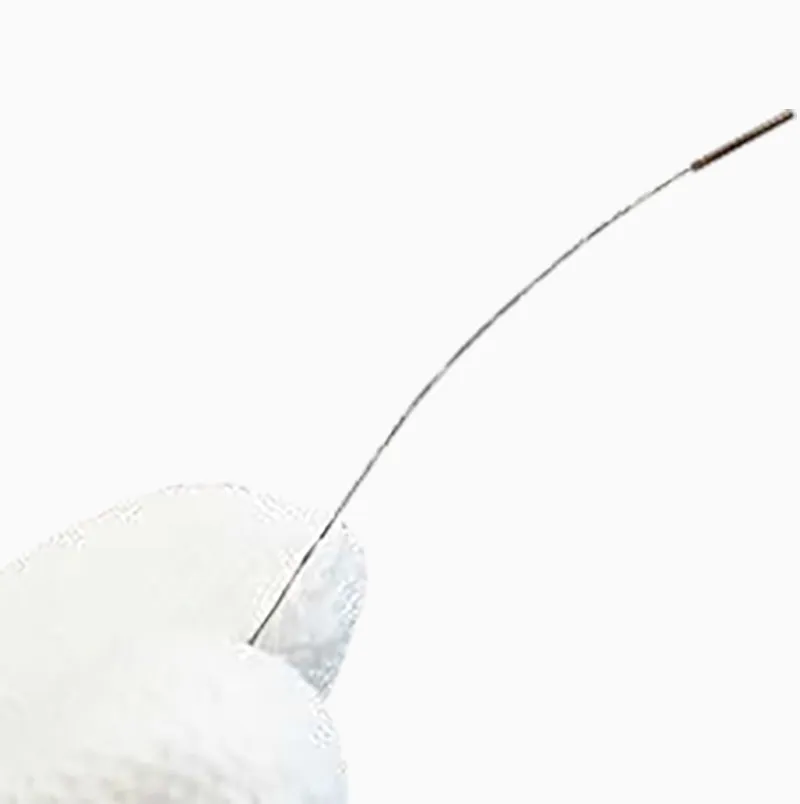

Dimensions: 0.45 mm (diam) × 8.0 mm (length)
Lead Length: 2.0 m
DOF: 5/6

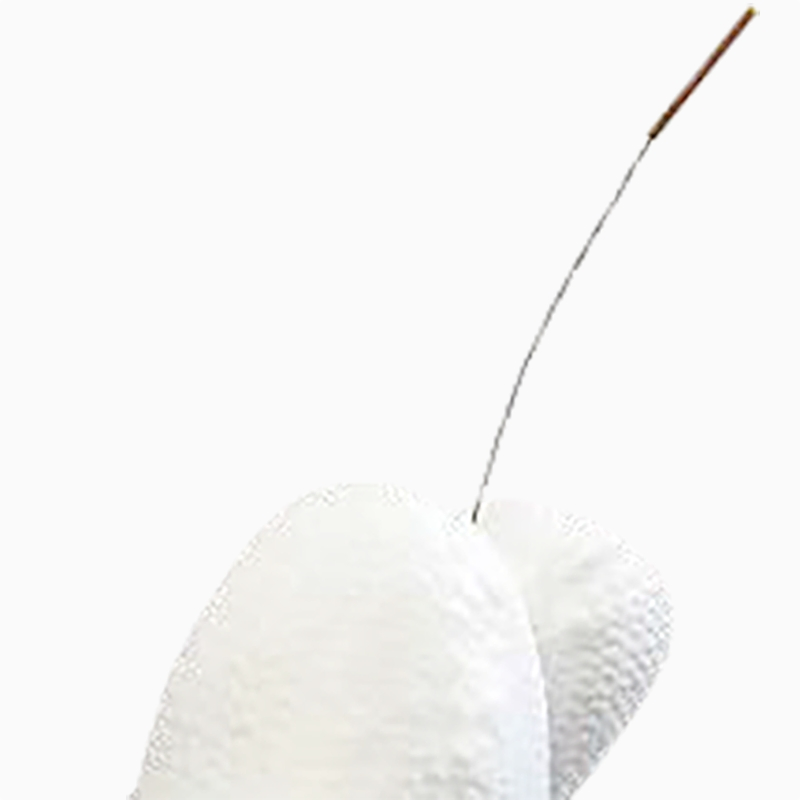

Dimensions: 0.45 mm × 5.0 mm
Lead Length: 3.0 m
DOF: 5/6

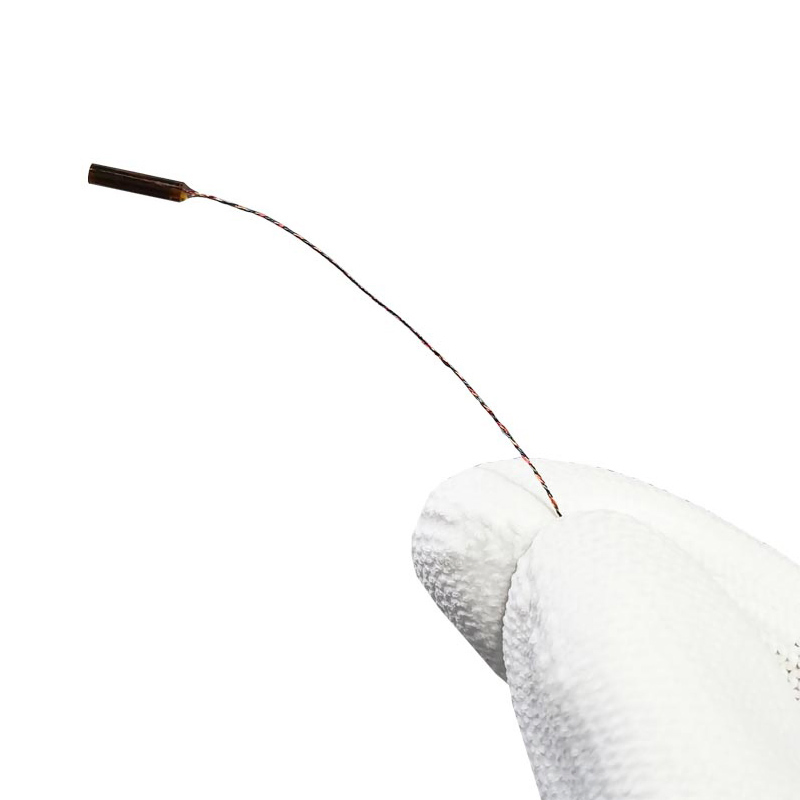

Dimensions: 1.0 mm × 8.0 mm
Lead Length: 2.0 m
DOF: 5/6

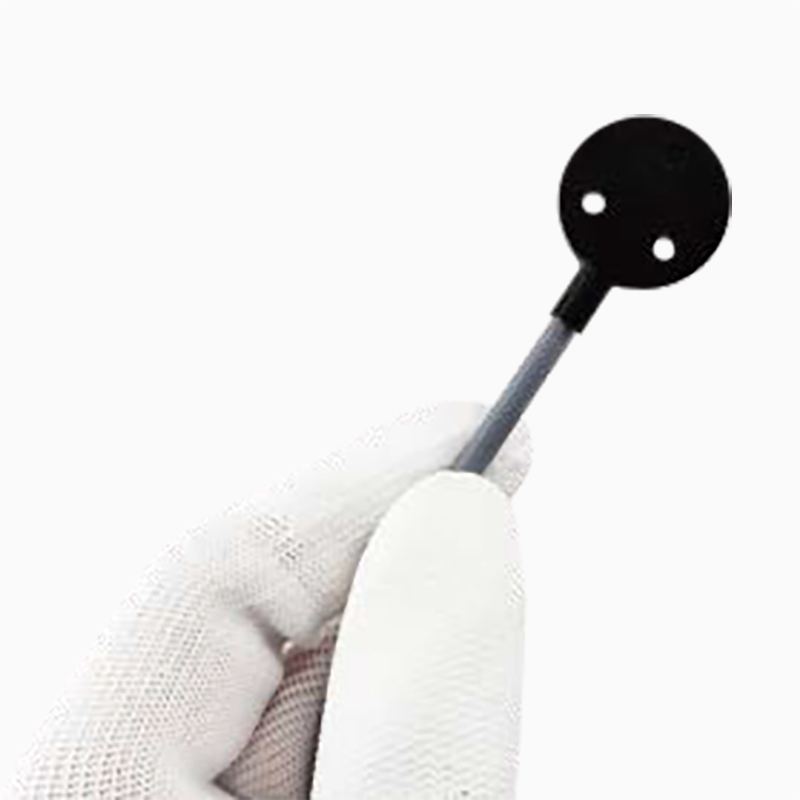

Dimensions: 20.0 mm × 4.4 mm
Lead Length: 2.0 m
DOF: 5/6
