Sy-P033-1video Flexible Gastrointestinal Endoscopy Veterinary Video Gastroscopy with Processor

1 / 5

Sy-P033-1video Flexible Gastrointestinal Endoscopy Veterinary Video Gastroscopy with Processor

Customization:	Available
Type:	Endoscope
Animal Anesthesia Machine Control Method:	Anesthesia Machine

Send Inquiry

Product Description

📋 Basic Information

Model NO.

SY-P033-1

Warranty

1 Year

Materials

Metal, Plastic, Steel

Product Name

Veterinary Video Gastroscope Colonscope

Insertion Tube Diameter

6.3mm, 8.3mm, 12.9mm

Field of View

120°

Image Definition

1080P

Application

Animal Use

Transport Package

Carton Box

Origin

China

Production Capacity

200 Set/Month

🔍 Product Description

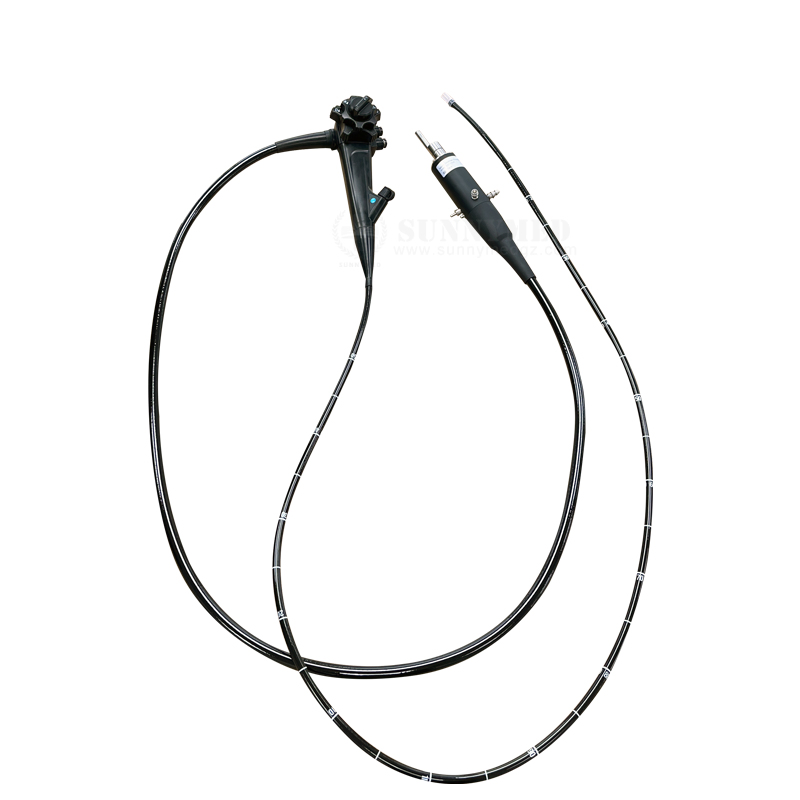

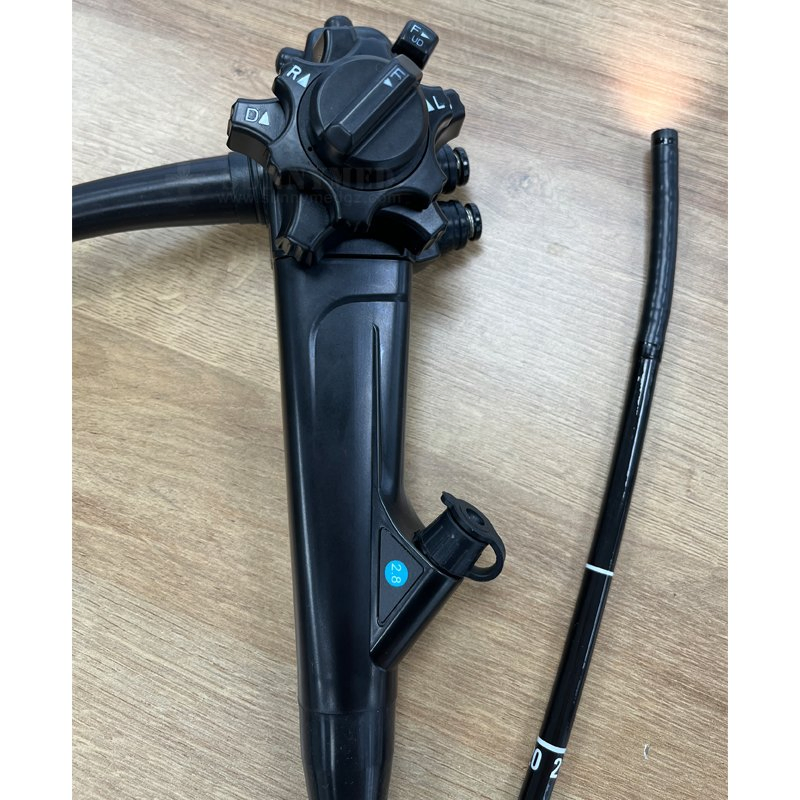

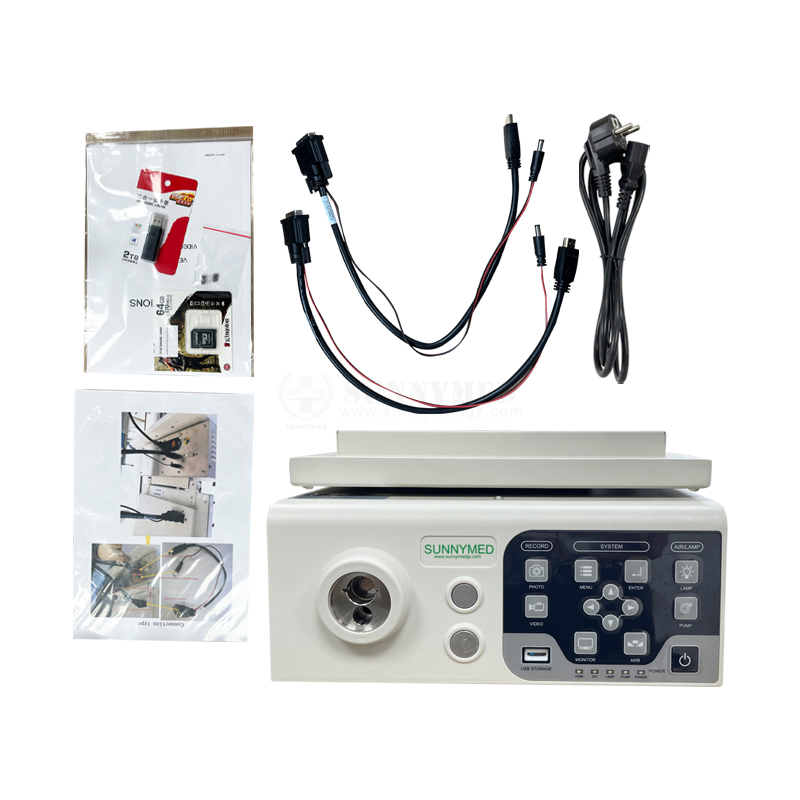

SY-P033-1 Video Flexible Gastrointestinal Endoscopy Veterinary Video Gastroscopy with Processor

Video Gastroscope	Standard	Optional
Type	VET-1508	VET-1206	VET-3313
Insertion tube diameter	Φ8.3mm	Φ6.3mm	Φ12.9mm
Working channel	Φ2.8mm	Φ2.0mm	Φ3.7mm
Working length	1500mm	1200mm	3300mm
Tip Deflection	U210°D90°L100°R100°		U180°D180°L160°R160°
Field of view	120°
Depth of field	3-100mm
Image definition	1080P

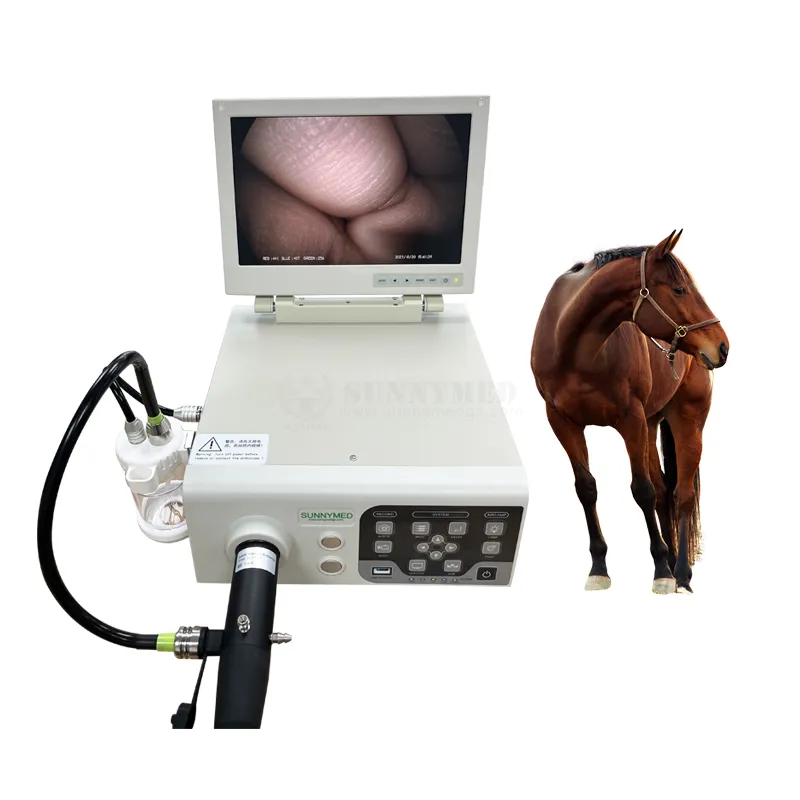

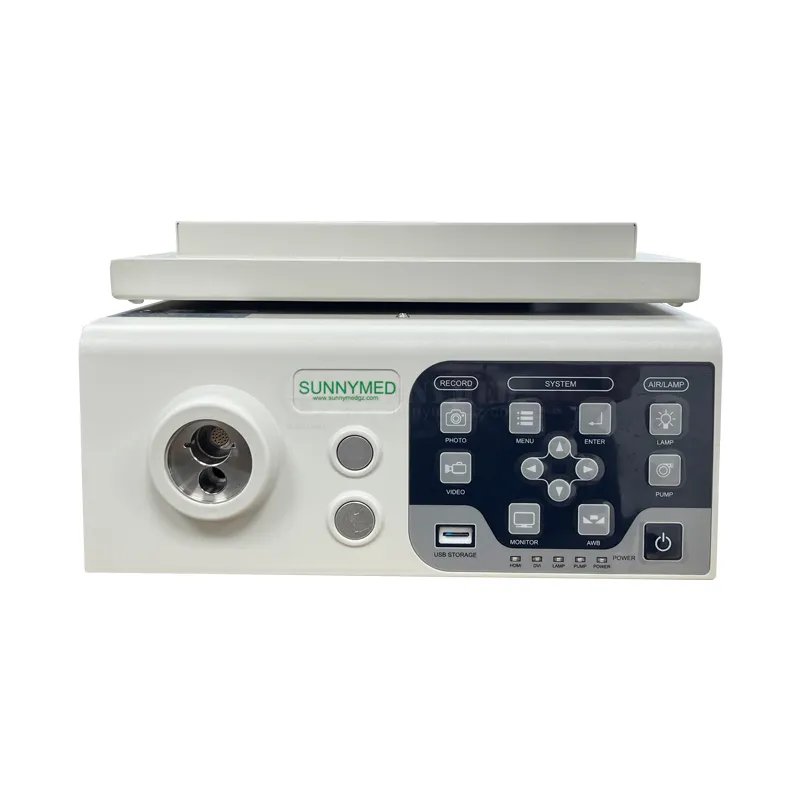

Endoscope Processor Specifications
TYPE	VET-300F
White balance	Automatic
RGB adjustment	-50~+50
Cold light	LED 40W
Luminance	>800Lm
Air/Flow	0.05MPa, 0.75m³/n
Snap/Record	1080P/30Fps
Voltage	~100V-240, 50HZ/60HZ

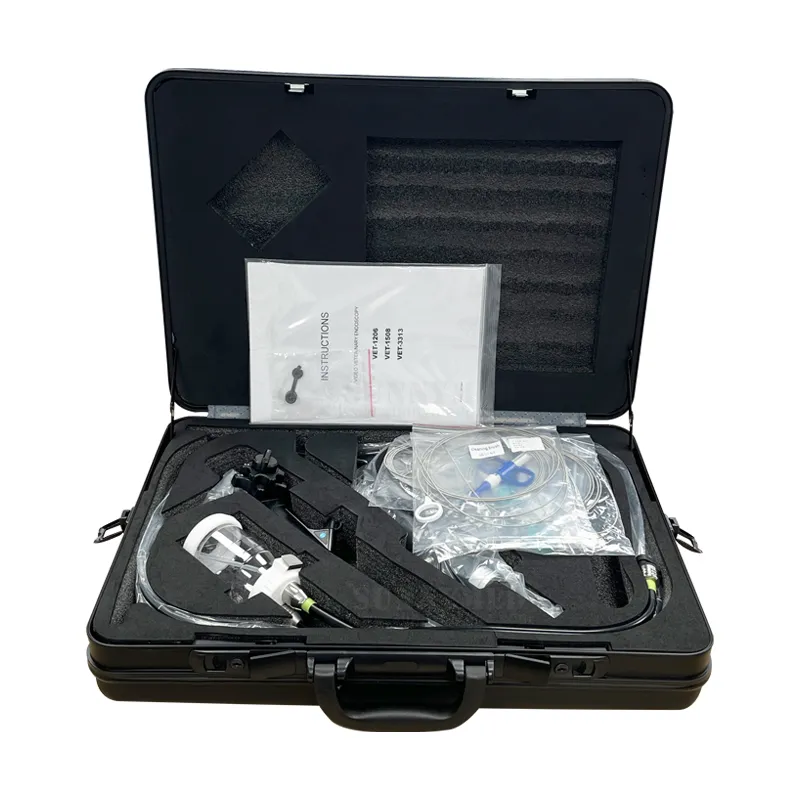

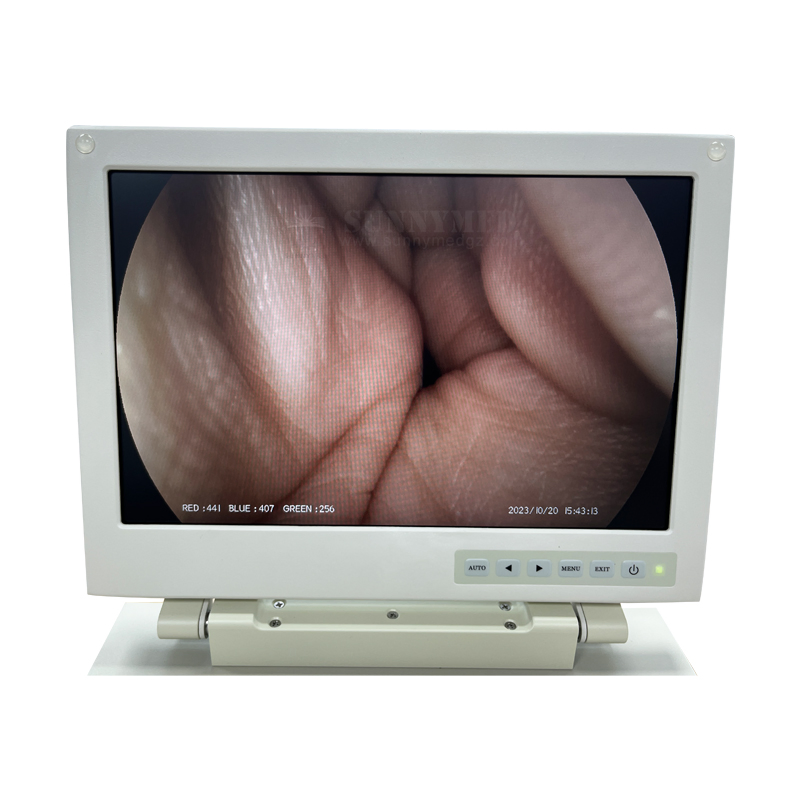

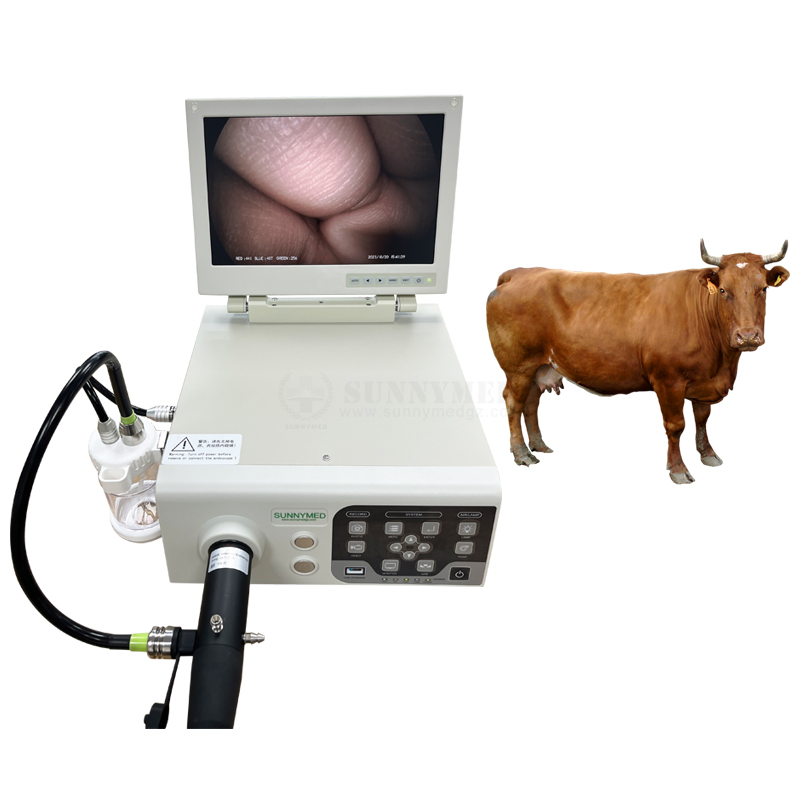

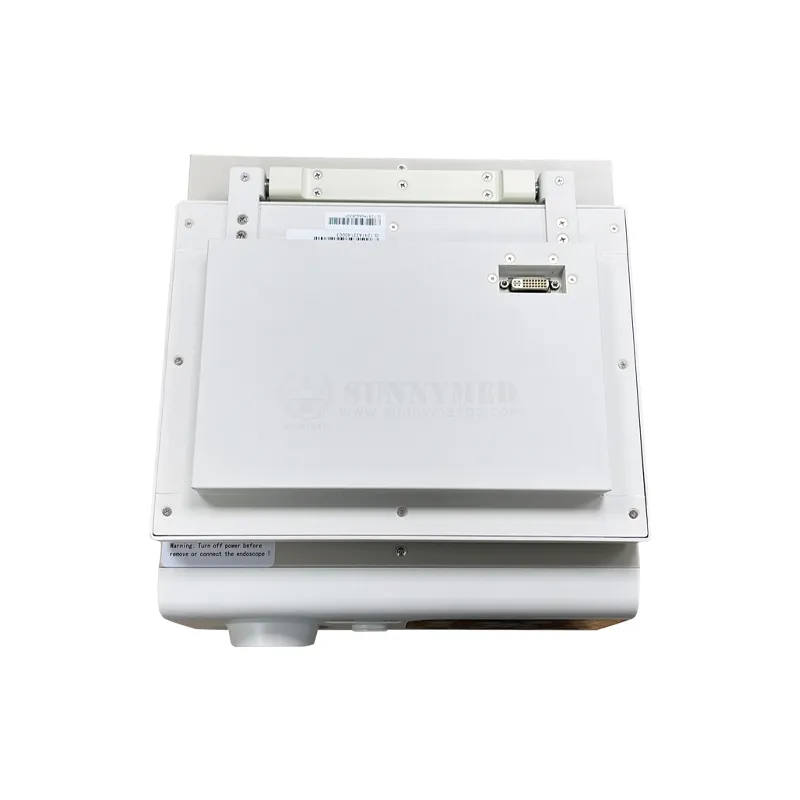

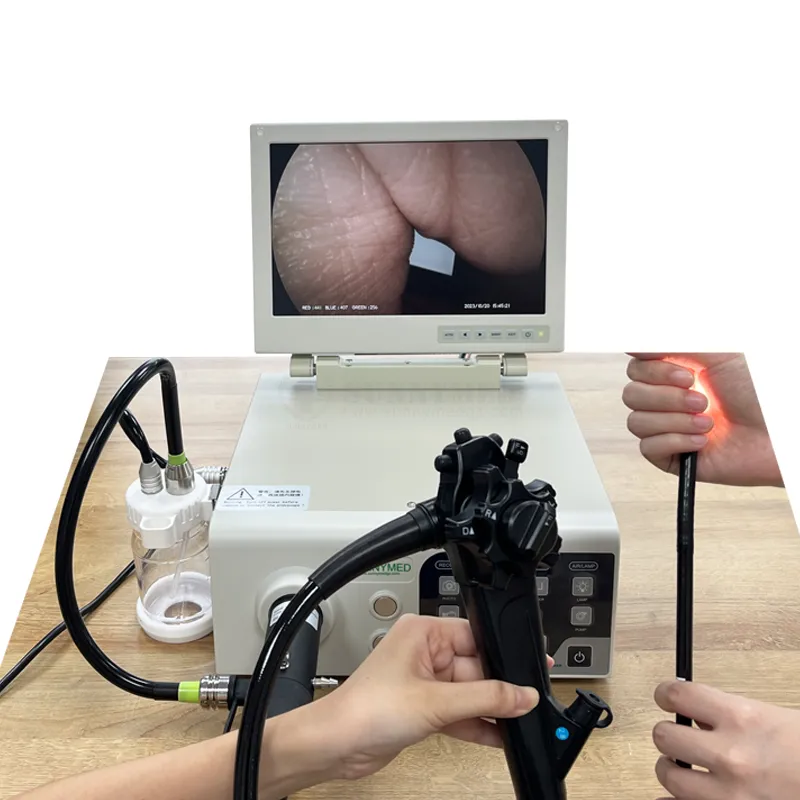

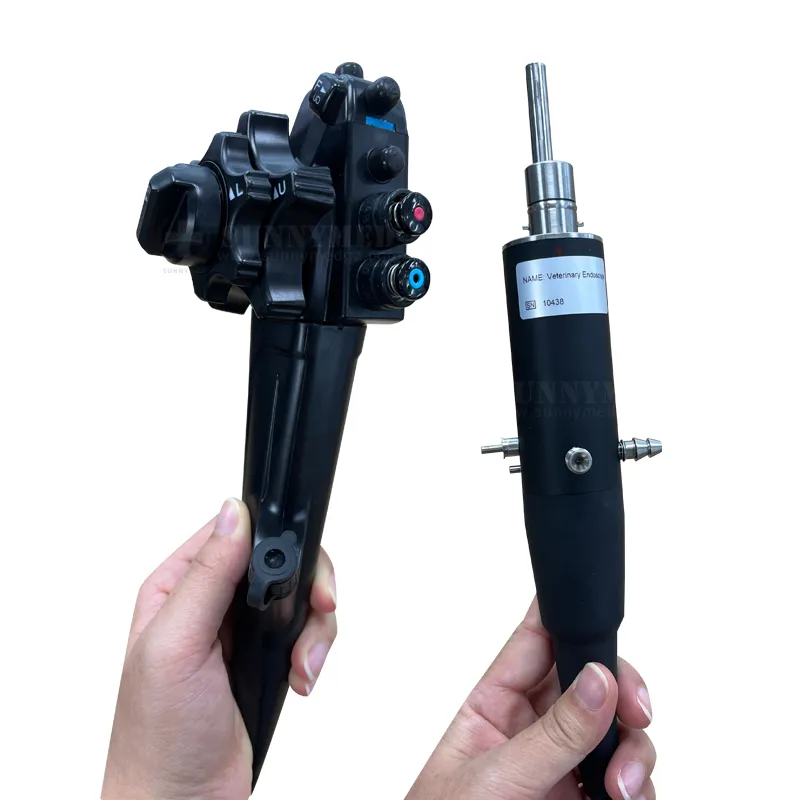

📸 Detailed Photos

🏭 Production & Quality Control

❓ Frequently Asked Questions

What animals can this gastroscope be used for?

This equipment is specifically designed for veterinary use, suitable for a wide range of animals including pets (dogs, cats) and larger animals depending on the chosen insertion tube length and diameter.

What is the image resolution of the system?

The system provides high-definition 1080P image quality, ensuring clear and detailed visualization for accurate diagnosis.

Are there different tube diameters available?

Yes, we offer three standard diameters to meet different clinical needs: 6.3mm, 8.3mm, and 12.9mm.

Does the system support video recording?

Yes, the processor supports both image snapping and video recording at 1080P resolution at 30 frames per second.

What is the field of view for the endoscope?

The gastroscope features a wide 120° field of view, providing a comprehensive perspective during examinations.

How is the lighting handled in this system?

The system uses a powerful 40W LED cold light source with a luminance of over 800 Lumens, providing bright and consistent illumination.
