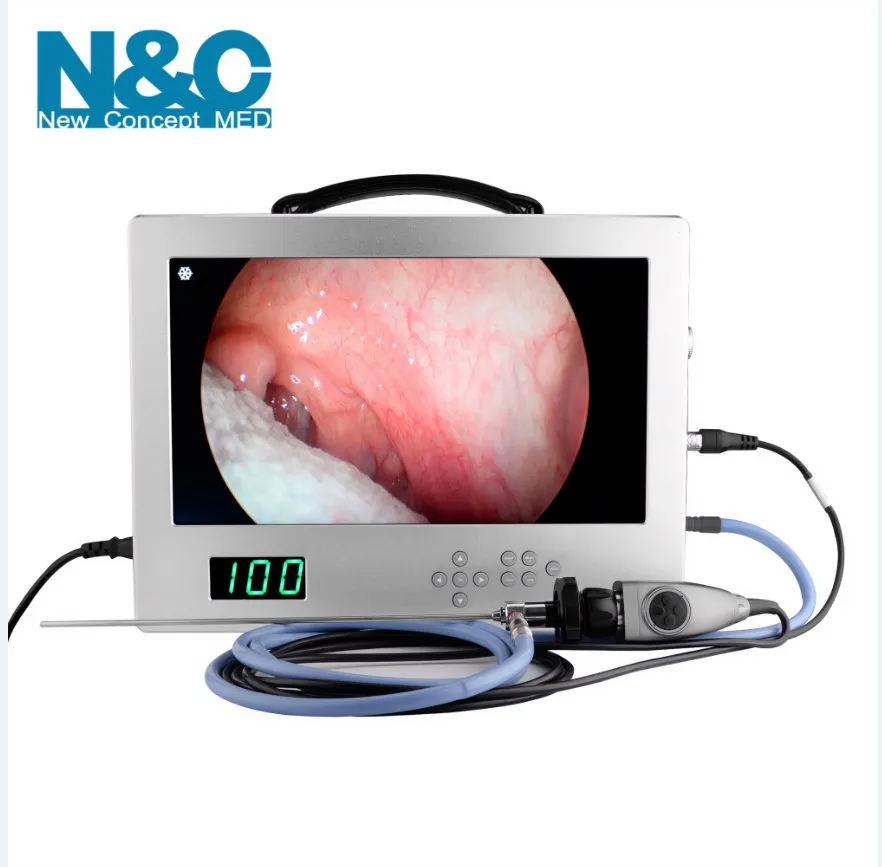

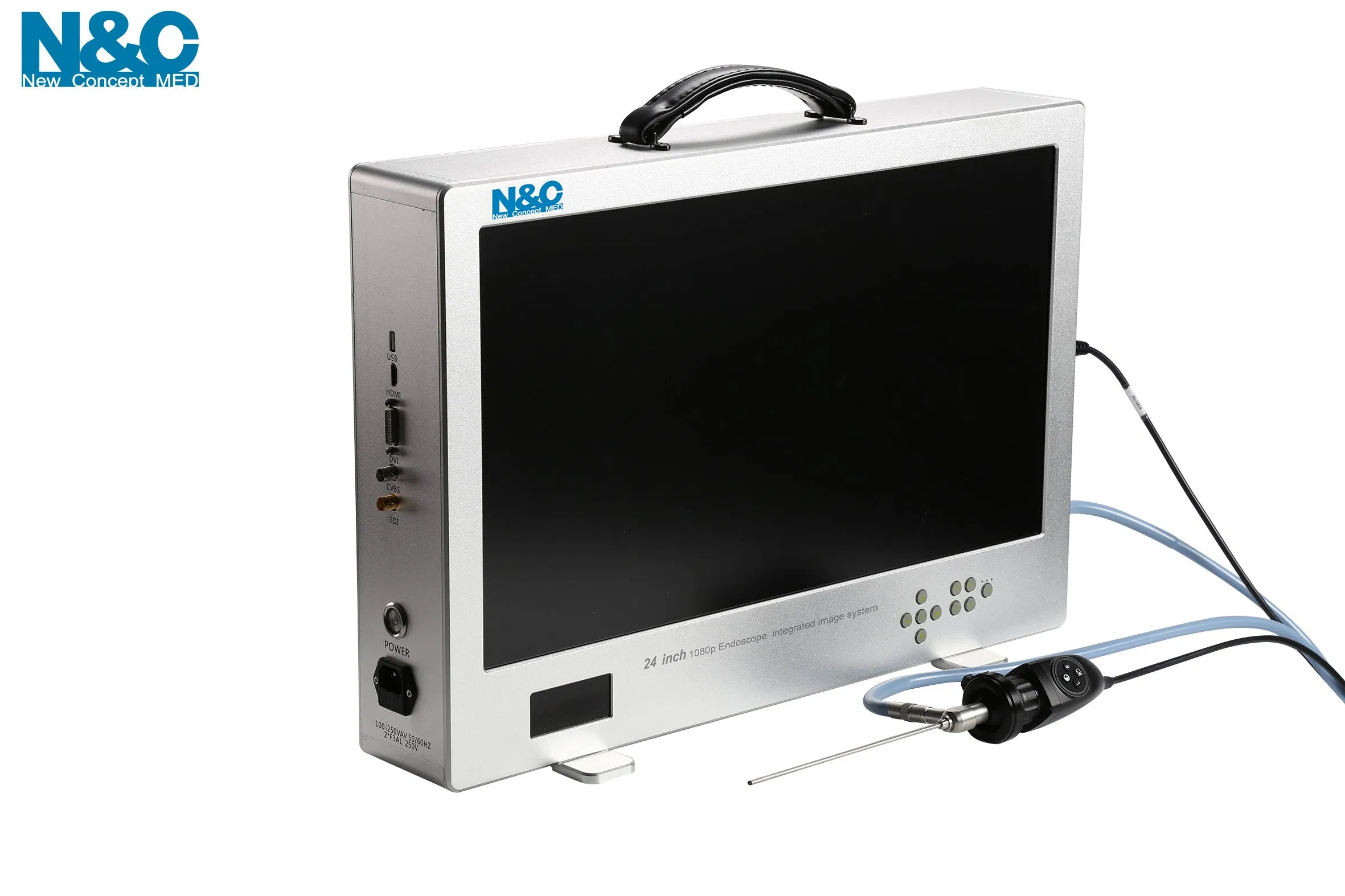

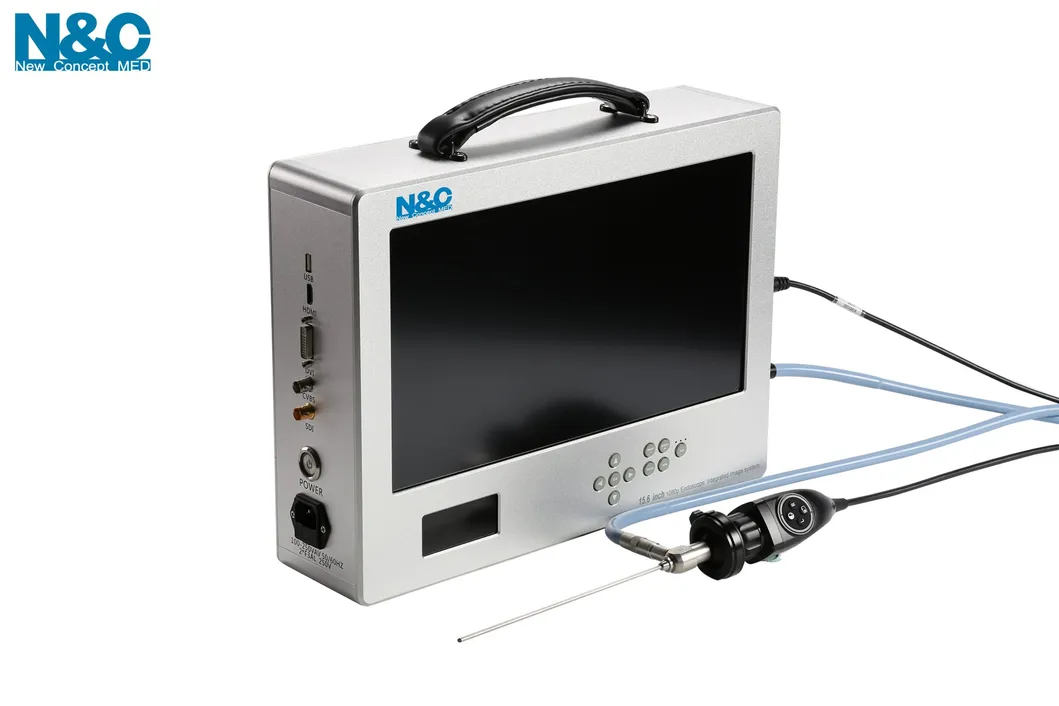

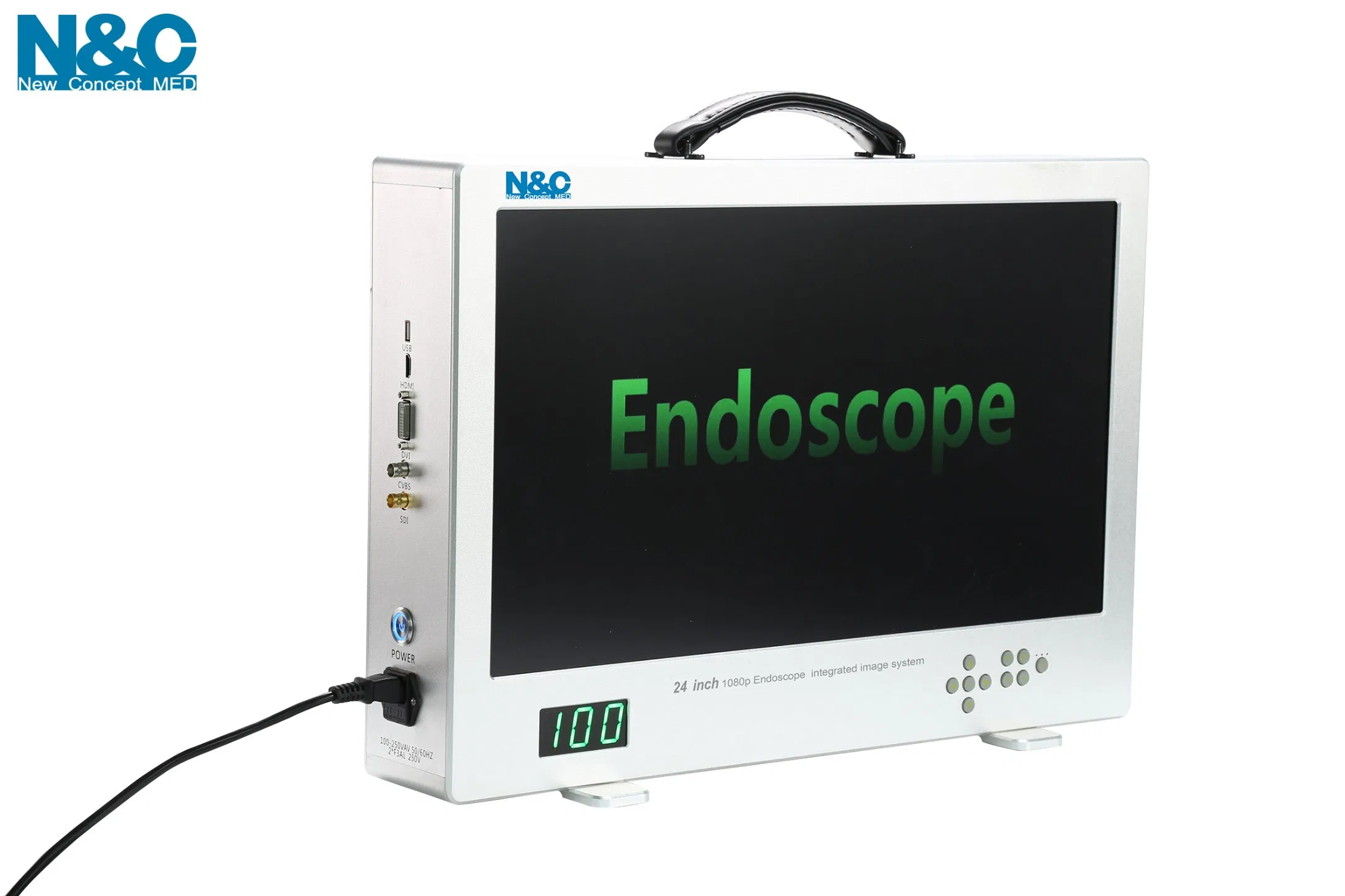

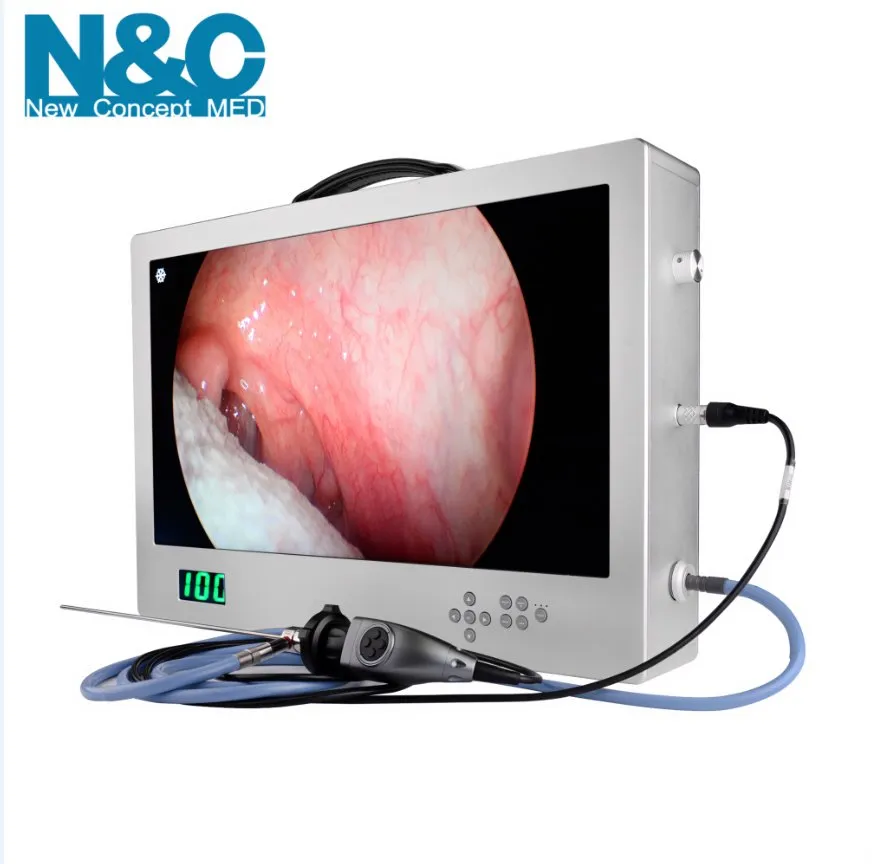

INTEGRATED FULL HD 1080P ENDOSCOPY CAMERA SYSTEM
📋
Basic Info
Camera Sensor
1/1.8'' Sony Signal CMOS
Language
Customization Acceptable
Output
HDMI, DVI, SDI, CVBS, USB
Transport Package
Aluminum Alloy Box / Carton Box
Specification
Aluminum Alloy
🏥
Clinical Applications
Laparoscopy
Arthroscopy
E.N.T. Endoscopy
Fiberscopy
Veterinary
Uroscopy
Spine
Laryngoscopy
Cystoscopy
Dermatoscopy
⚙️
Technical Specifications
| MODEL |
NCM-CPT24 |
| MONITOR SIZE |
24 inch |
| Output Video |
16:9 | 1920X1080P 60fps |
| Effective Pixels |
≥ 2 Mega Pixels |
| Scanning System |
Progressive Scanning |
| Image Settings |
AWB, Freeze, Zoom, Brightness, Color adjustment, etc. |
| Record Format |
MP4 |
| Record Device |
USB |
| LIGHT SYSTEM |
Details |
| LED Lamp |
American Luminus |
| Light Power |
80 Watt |
| Illumination |
2,000,000 Lux |
| Color Temp |
5700-6500K |
| CRI |
>90 |
| Lamp Life |
60,000 Hours |

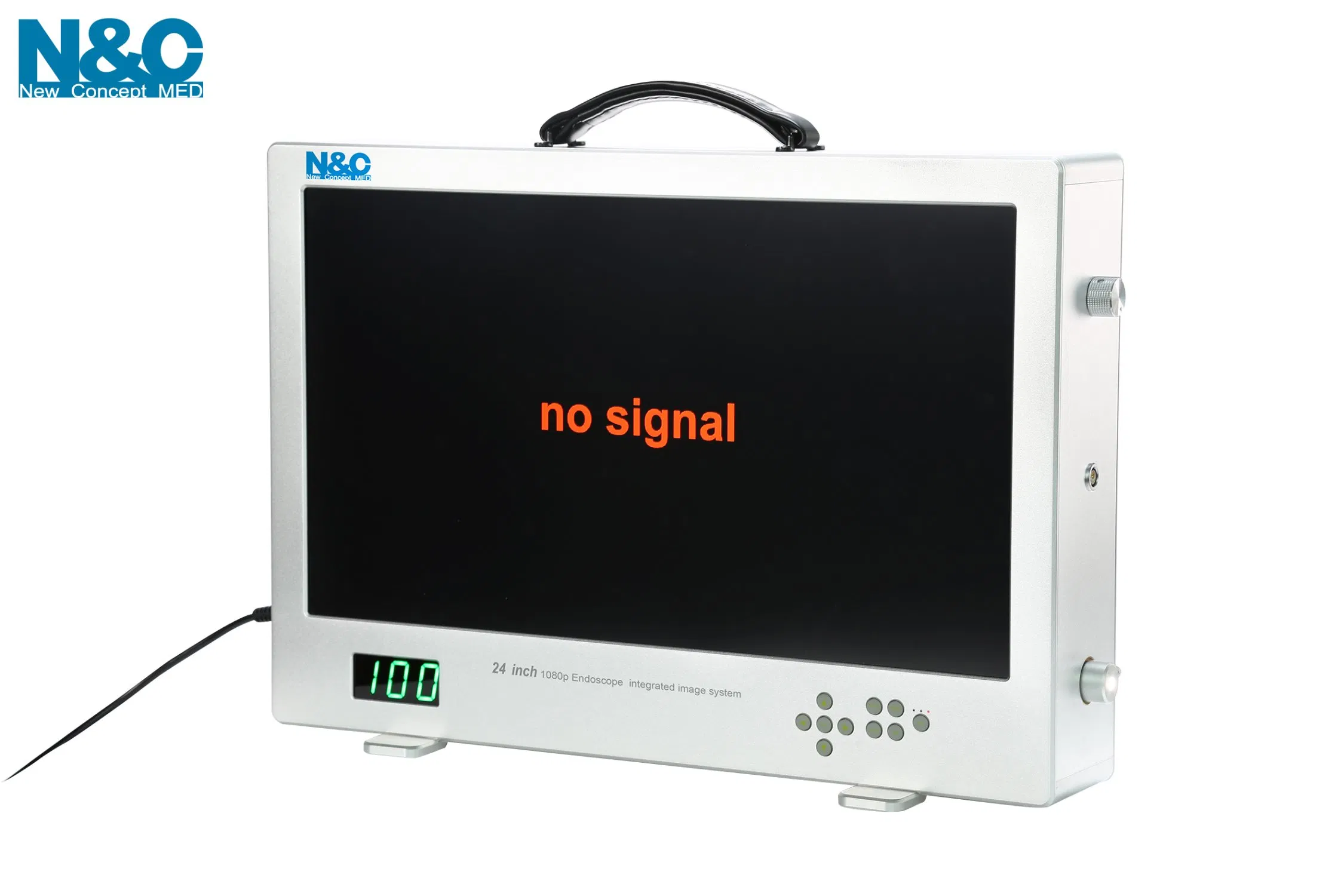

| DISPLAY MONITOR |
Details |
| Screen Standard |
Medical Class |
| Brightness |
450 Cd/m² |
| Angle of View |
178° Full view |
| CAMERA HEAD |
Details |
| Camera Dimension |
38x45x130mm |
| Camera Weight |
200 g |
| Sterilization |
Autoclave and Waterproof IPX 7 |
| PROCESSOR UNIT |
Details |

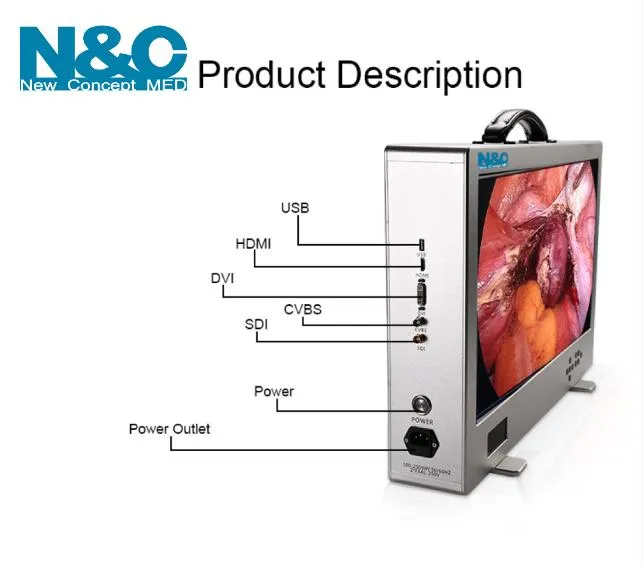

| Processor Output |
HDMI + DVI + SDI + CVBS + USB |
| Processor Weight |
12.8KG (24 inch) |
🌟
Key Features
- Customizable camera head keys based on user preference.
- Integrated capture and video recording; playback directly via the camera interface.
- Supports high-definition video display through USB connection.
- Mouse control integration for easy operation and direct file renaming on the system.
- Four-state display mode for convenient comparison of lesion status.
- Full support for OEM/ODM demands including appearance, functions, and port configuration.
Frequently Asked Questions
What is the resolution of this endoscopy camera system?
The system provides Full HD 1080P resolution with a 16:9 aspect ratio at 60fps, ensuring crystal clear imagery for surgical procedures.
Can the camera head be sterilized?
Yes, the camera head is waterproof with an IPX 7 rating and is compatible with autoclave sterilization processes.
Does the system support video recording?
Absolutely. The system can capture pictures and record videos in MP4 format directly to a USB device, with playback functionality available on the camera.
What types of medical procedures is this system suitable for?
It is highly versatile and suitable for Laparoscopy, Arthroscopy, ENT, Urology, Spine surgery, Cystoscopy, and even Veterinary applications.
How long is the lifespan of the LED light source?
The high-power 80W American Luminus LED lamp has a long service life of approximately 60,000 hours.
Does the system allow for user customization?
Yes, the keys on the camera head can be customized per user preference, and we accept OEM/ODM requests for specific functions and port layouts.
