Sy-PS046A Newest Portable 17 Inch HD Endoscope System All-in-One CCD Endoscopy Camera for Veterinary Hospital

1 / 5

Sy-PS046A Newest Portable 17 Inch HD Endoscope System All-in-One CCD Endoscopy Camera for Veterinary Hospital

Customization:	Available
Type:	Veterianry Endoscope Camera System
Syringe:	No Need

Send Inquiry

Product Description

📋 Basic Information

Model NO.

SY-PS046A

LCD Screen

17 Inch HD

Light Source

80W LED

Horizontal Resolution

700TVL

Breathing Pattern

Auto-Control

Storage Conditions

-40℃~+55℃

Properties

Urology Surgery Equipments

Warranty

1 Year

🔍 Product Overview

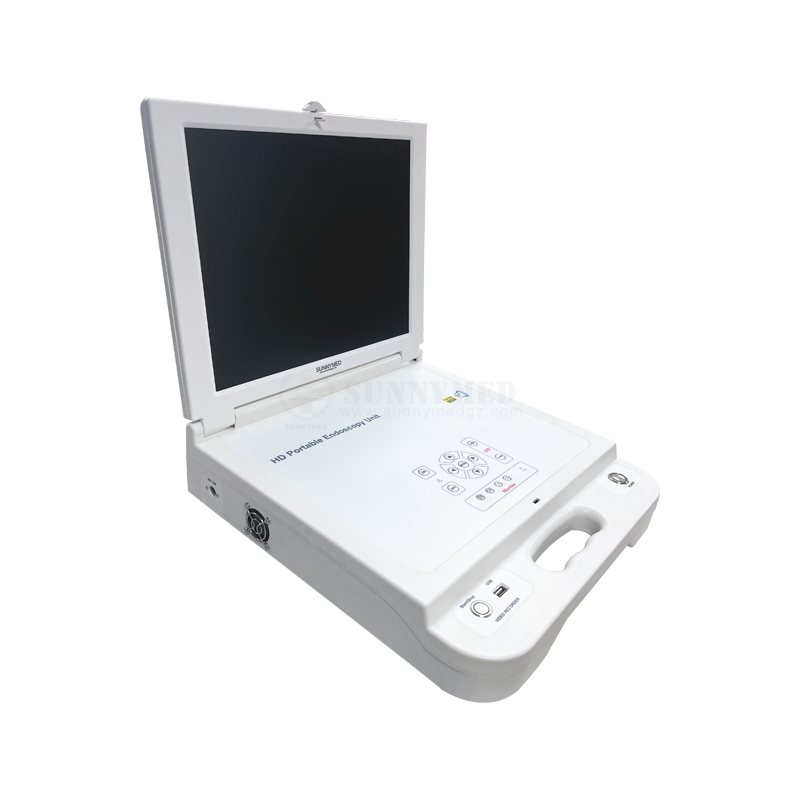

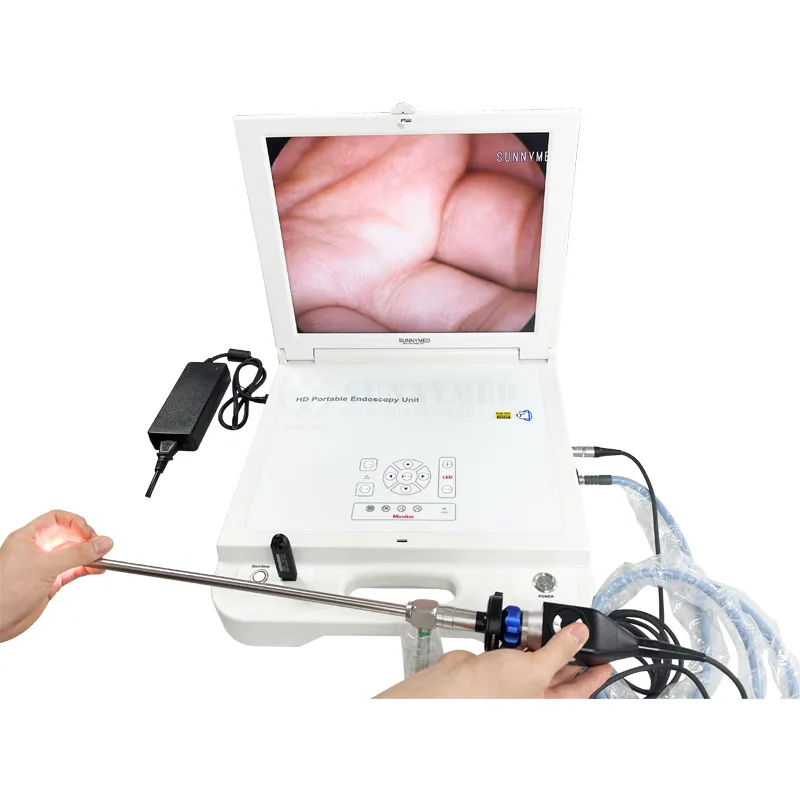

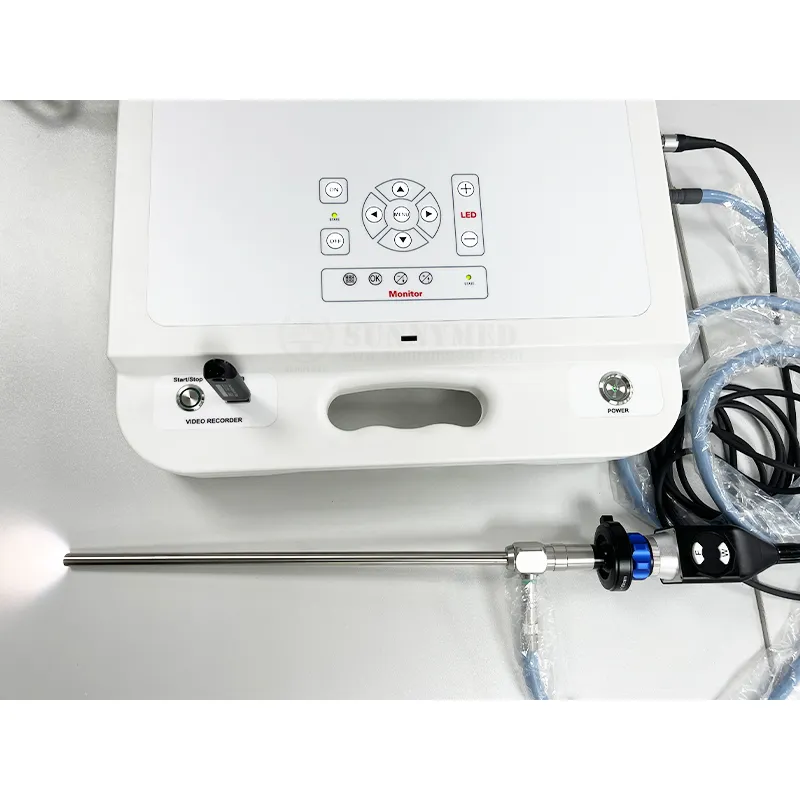

Portable 17 Inch HD Display 4-in-1 Endoscope System

High-performance veterinary endoscopy solution with integrated imaging and light source.

⭐ Why Choose This Model?

No.	Key Feature Highlights
1	17 inch HD monitor for crystal clear surgical visualization
2	Integrated 80W LED light source for superior brightness
3	Expandable connectivity to 15/21/24 inch monitors

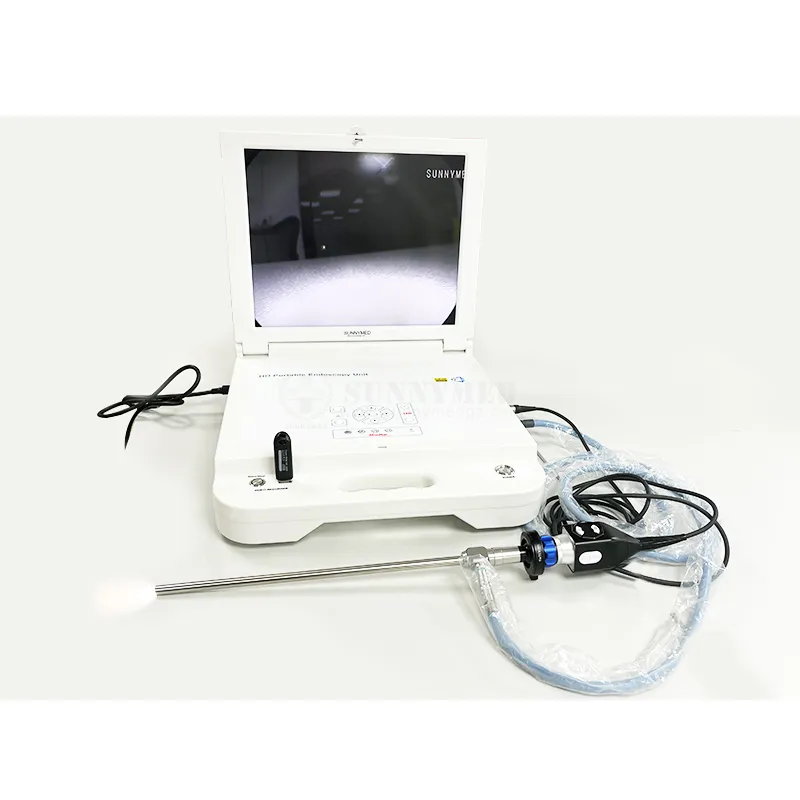

4	Universal compatibility: Connects to both Rigid and Flexible scopes
5	Built-in HD video recorder for procedure documentation
6	Instant capture function for pictures and videos

⚙️ Technical Specifications

Camera System

• Image Sensor: 1/3 CCD
• Extinction speed: <0.5s
• Effective pixels: 795(H)*596(V)
• Scanning Frequency: 60Hz
• Scan mode: Interlacing scan
• Resolution: 700TVL

LED Light Source

• Technology: Advanced LED
• Optical power: ≥100mW
• Brightness/Lux: ≥490000lx
• Color temperature: ≥6500K
• Machine power: 35VA

HD Recorder

• Recording format: MP4
• Storage Interface: USB disk / Removable HDD
• External Support: Max 2T HDD

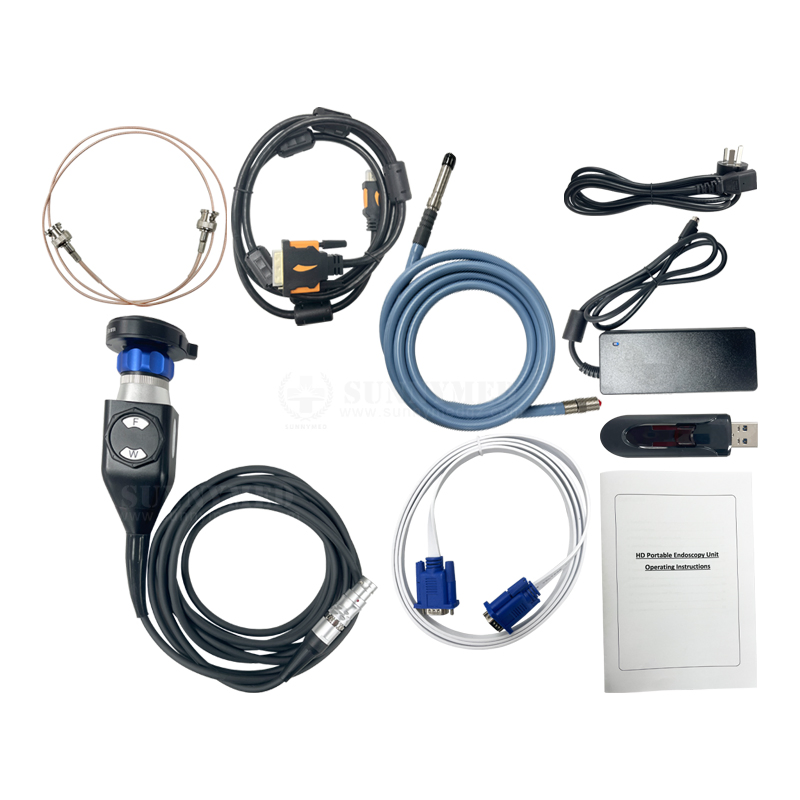

📦 Standard Configuration

1. Endoscope camera system (17 inch)	x 1
2. Light source cable	x 1
3. Camera head	x 1
4. CVBS & HDMI cable	x 1

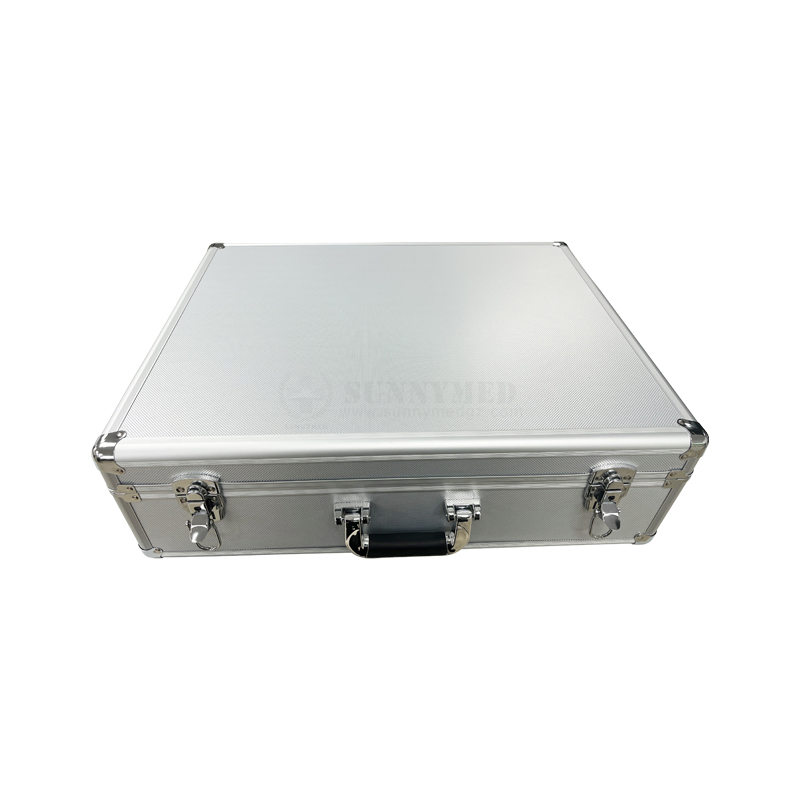

5. Professional Aluminum carry box	x 1

🤝 After-Sales & Support

Available Support Services:

Video tutorials covering installation, operation, and maintenance.
Real-time online video training for pre-sales and after-sales.
Fast response after-sales service (within 8 hours).
Warranty coverage ranging from 12 to 60 months.

Frequently Asked Questions

What are the primary components of this endoscope system?

The system is a 4-in-1 integrated unit including a 17-inch HD monitor, a high-resolution CCD camera, a powerful 80W LED light source, and a built-in HD video recorder.

Can this system record procedures for later review?

Yes, the system features a built-in HD recorder that saves videos in MP4 format. It supports external storage via USB disks or mobile hard drives up to 2T.

Is the system compatible with different types of endoscopes?

Absolutely. The SY-PS046A is designed to be versatile and can connect to both rigid and flexible endoscopes, making it suitable for various veterinary applications.

How long is the delivery time for an order?

Ready stock items can be processed within 24 hours. For OEM requirements, the standard lead time is typically between 2 to 7 working days.

What kind of technical training do you provide?

We offer comprehensive support including detailed video tutorials for installation and operation, as well as real-time online video calls for personalized training.

What is the warranty period for this device?

The standard warranty period is 12 months, though extended service options ranging up to 60 months are available depending on the agreement.
