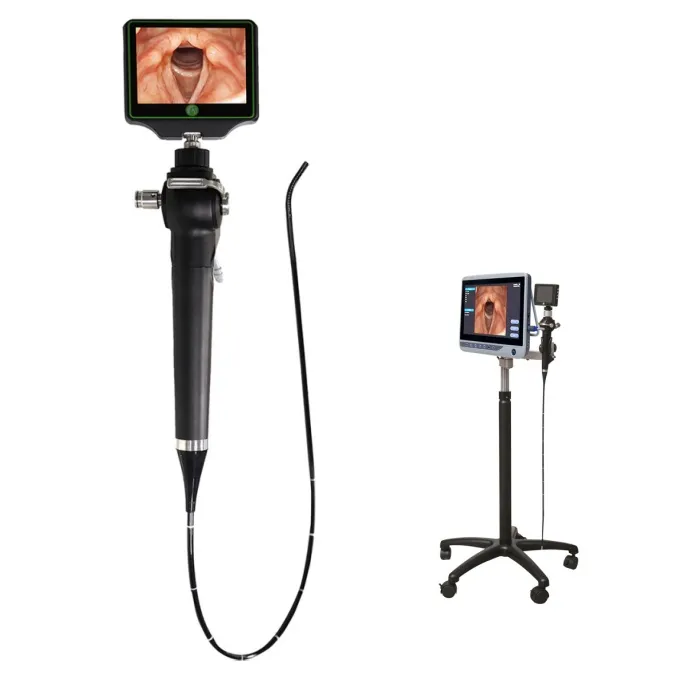

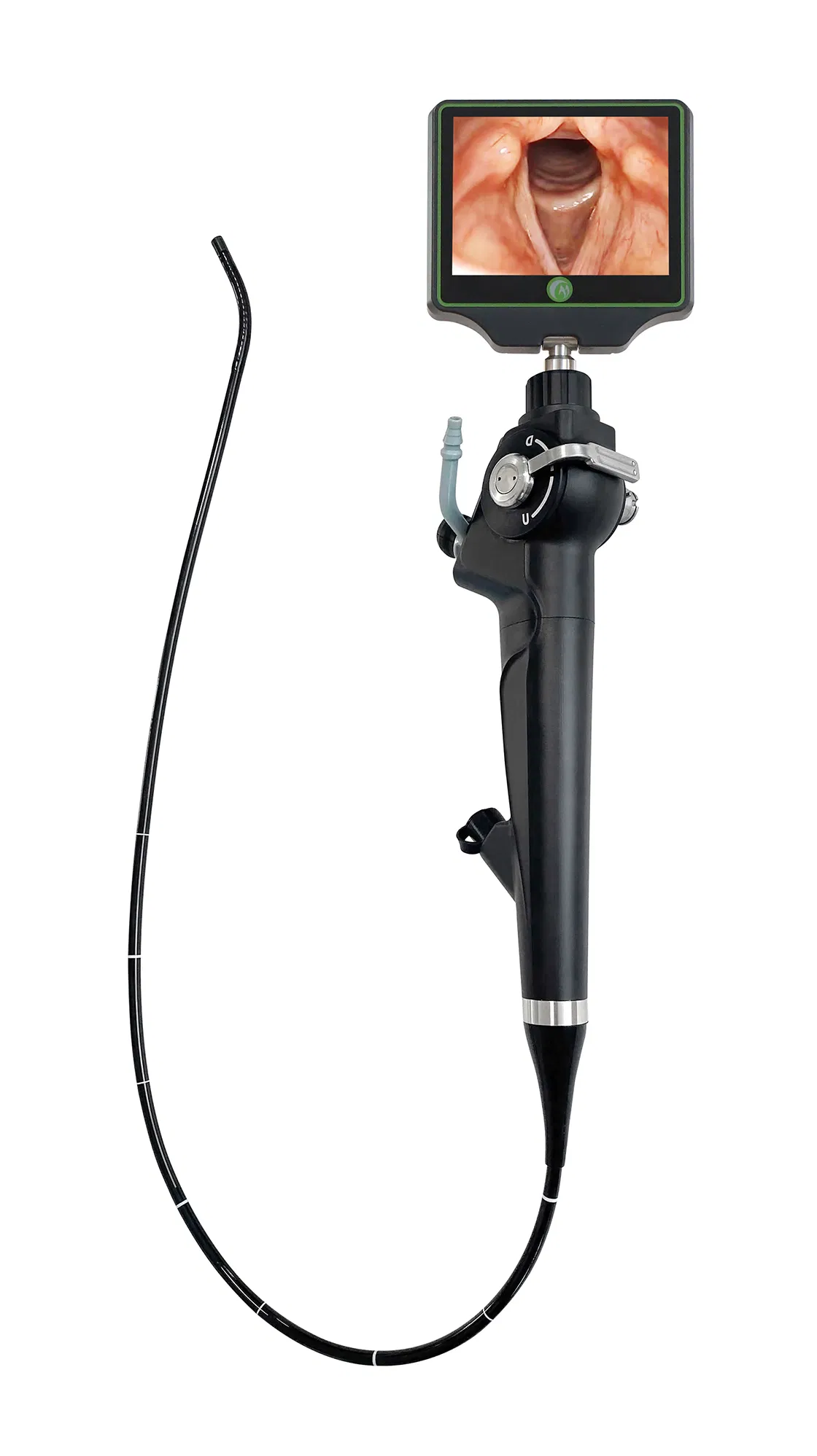

Portable Fiberoptic Bronchoscope Kit with LED Light Source for Respiratory Endoscopy Procedures

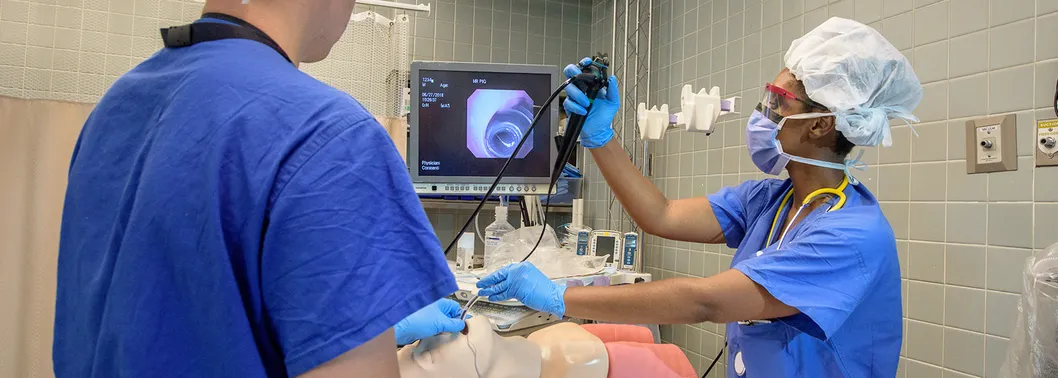

Application: Department of Anesthesiology, ICU Intensive Medicine, Emergency Department, Respiratory Department, Facial Department.

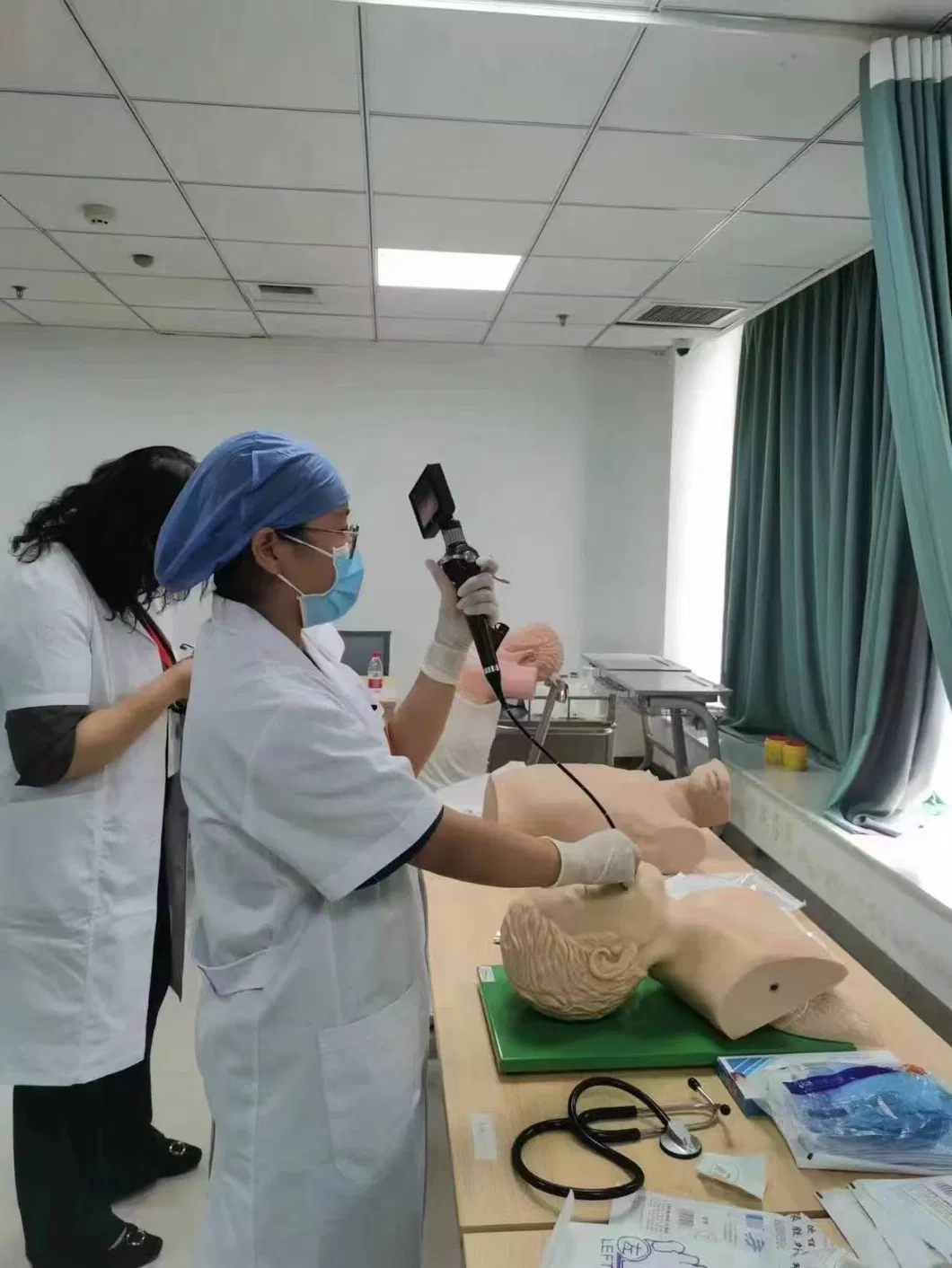

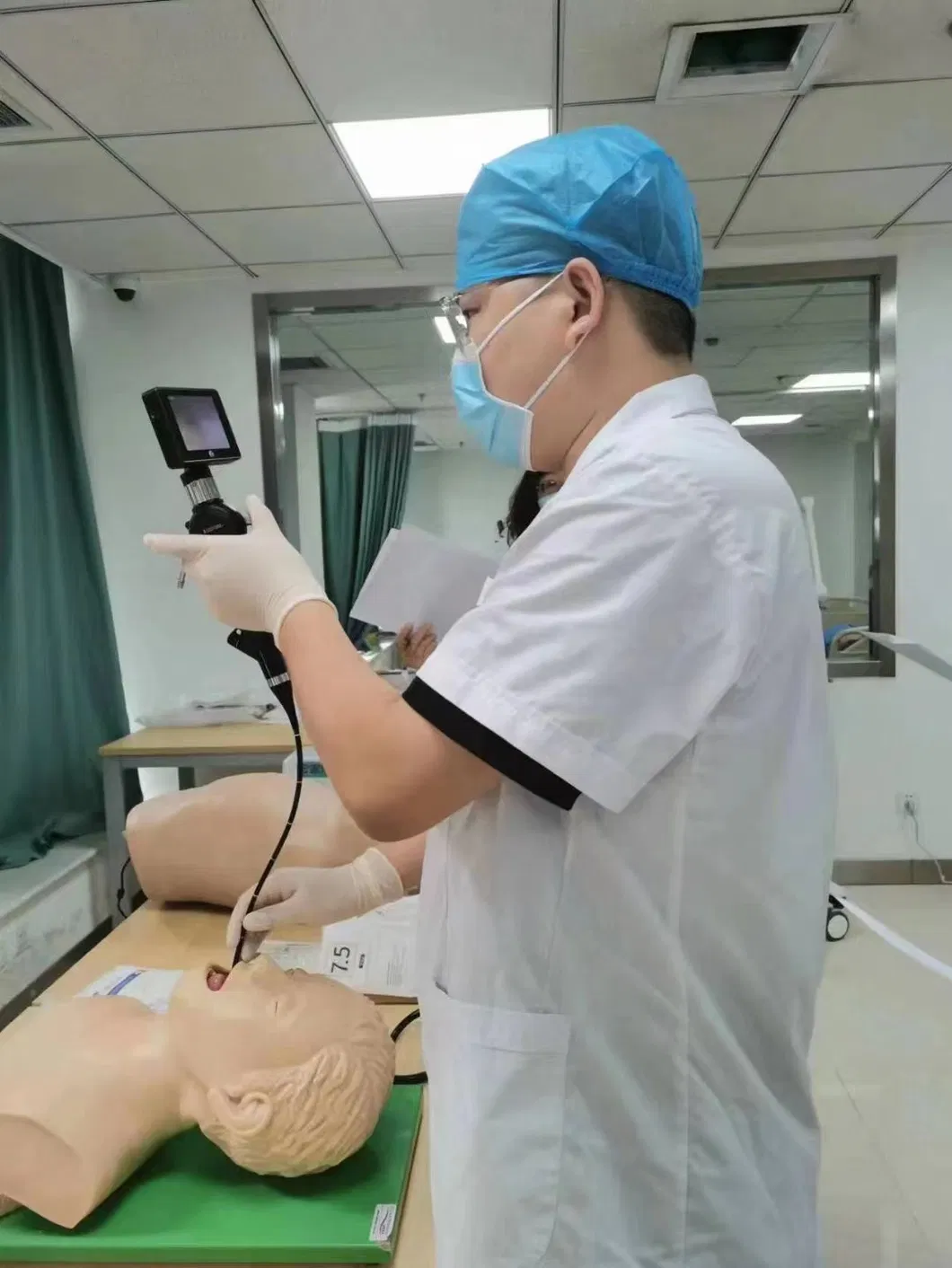

It is suitable for clinical departments to carry out airway management, especially difficult tracheal intubation, nasal tracheal intubation, and placement of bronchial occluder, which can enable physicians to accurately complete tracheal intubation under direct vision. Endobronchial intubation positioning.
Key Features:
| Visual Field | 90°± 10% | ||||
| Visual direction | 0° | ||||
| Observe depth | 3-100mm | ||||
| Intubation diameter | 3.2mm | 3.8mm | 4.8mm | 5.2mm | 5.8mm |
| Suction channel | 1.2mm | 1.4mm | 2.4mm | 2.6mm | 2.8mm |
| Effective work length | 600mm | ||||

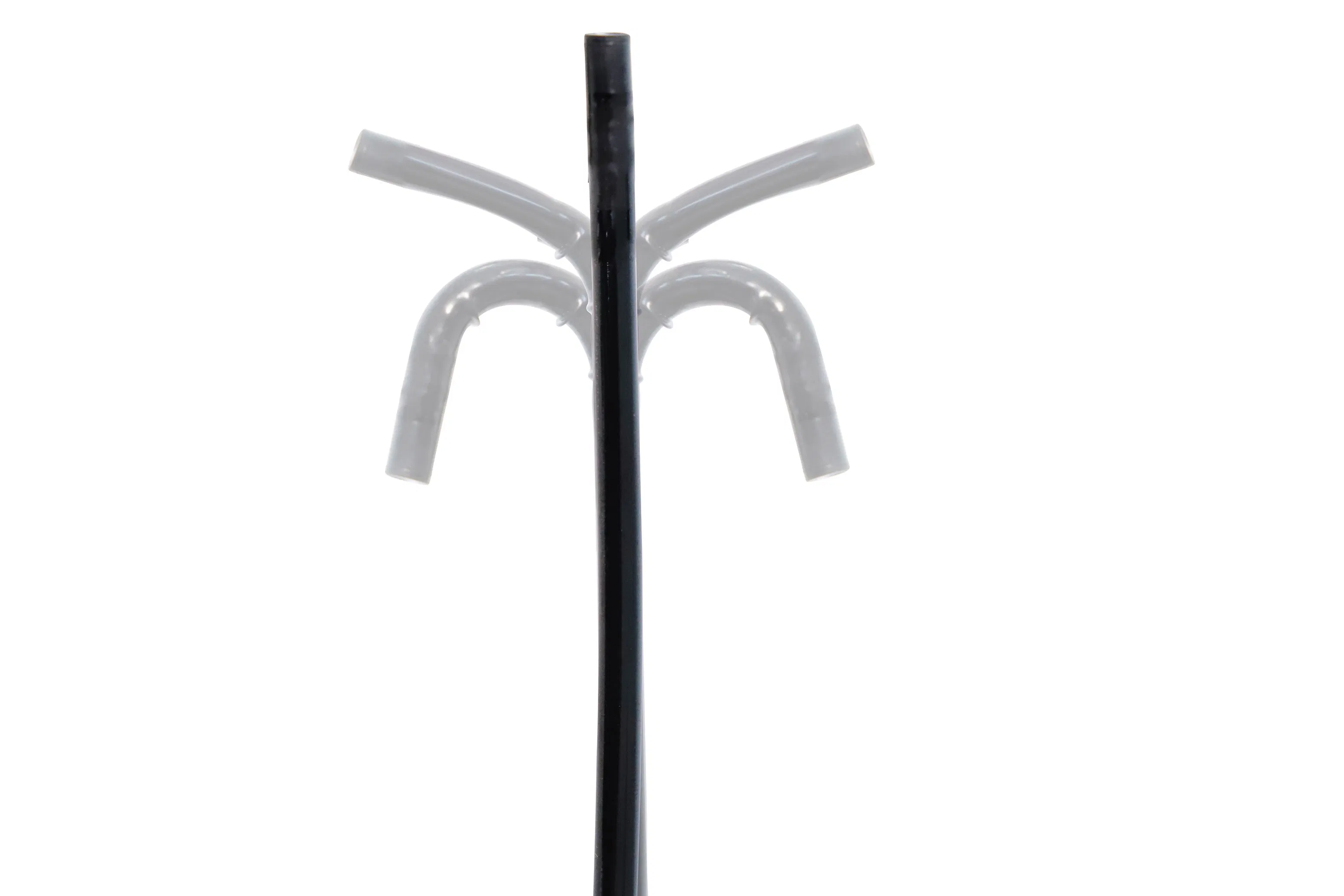

| Curved angle | Upward 150°, Downward 130° | ||||
| Illuminance | ≥800lux | ||||
| Pixel | 2,000,000 pixels | ||||

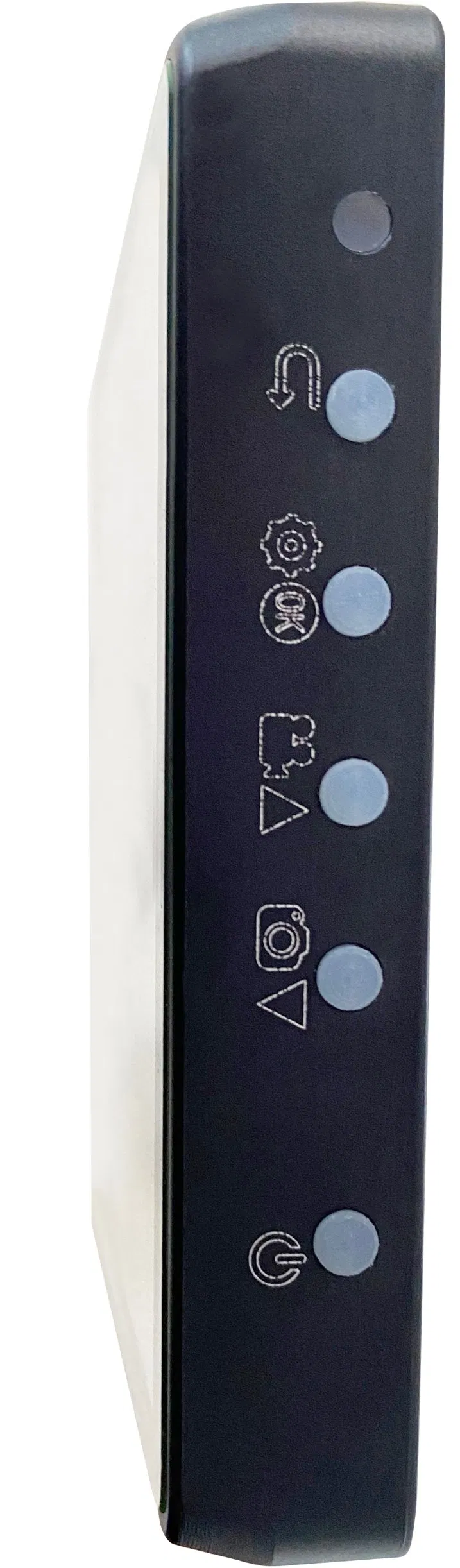

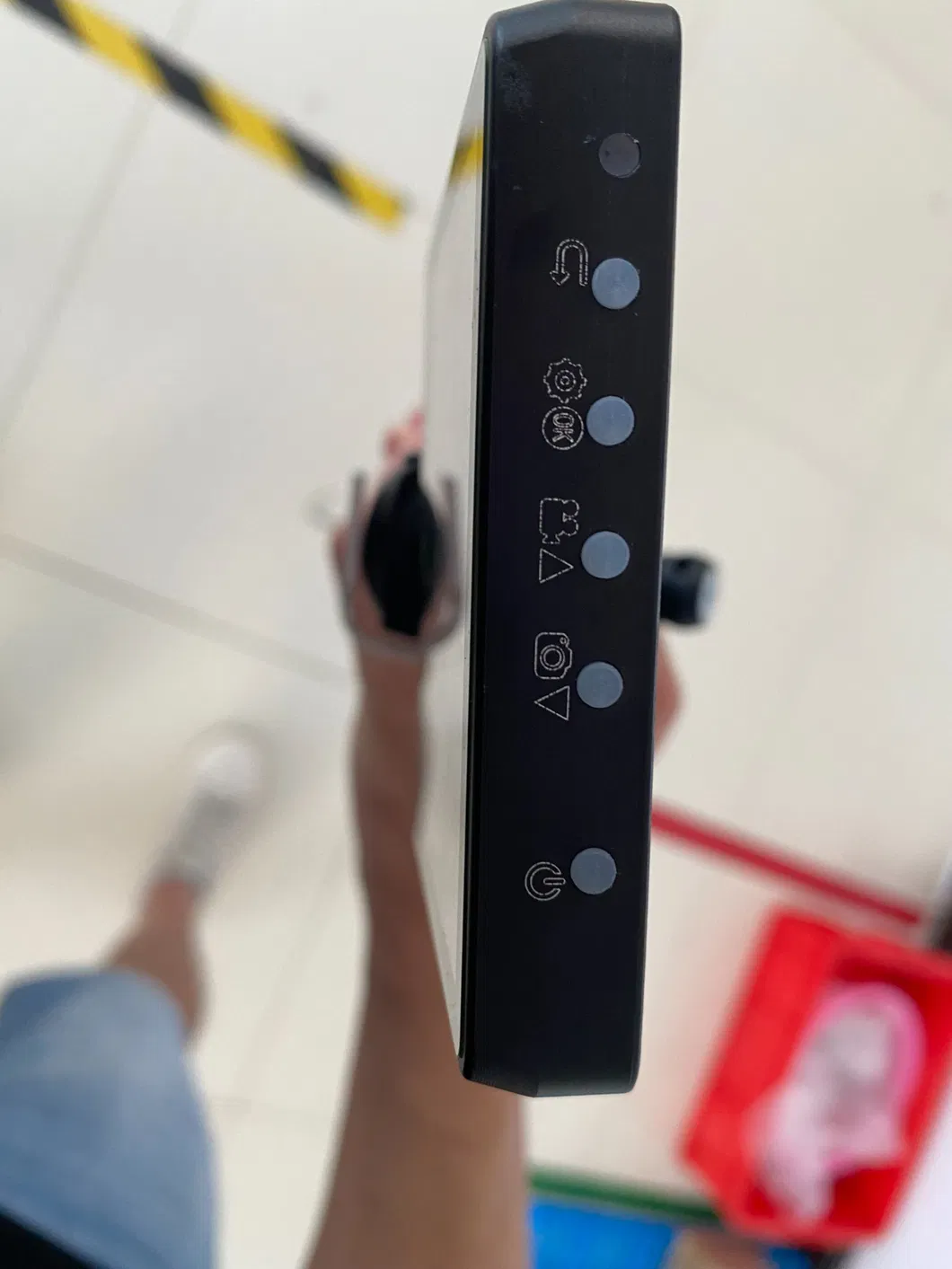

| Display size | 3.5" TFT LCD | ||||

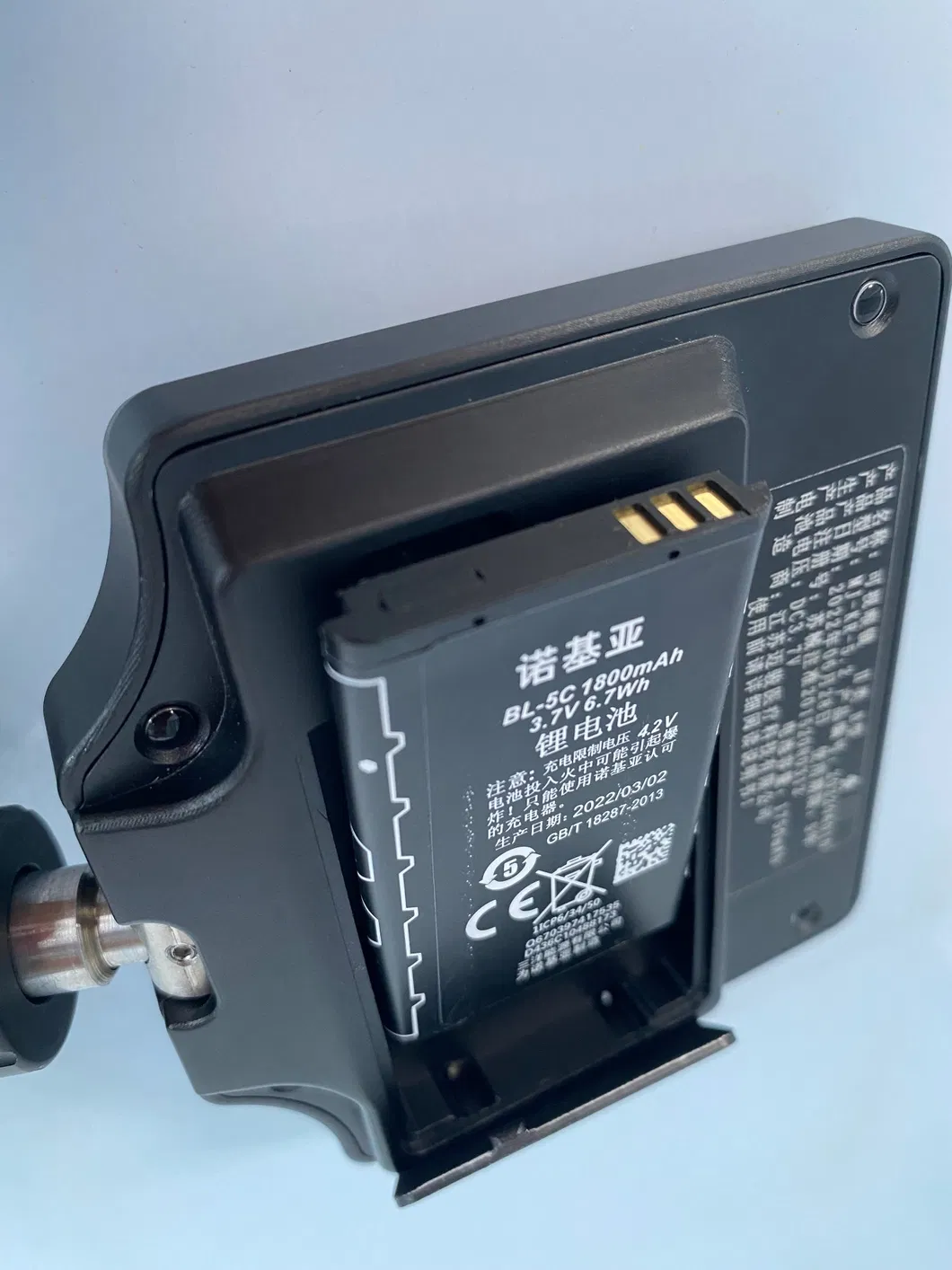

| Battery | Built-in 3.7V polymer lithium battery | ||||
| Discharge time | > 2.5 hours | ||||

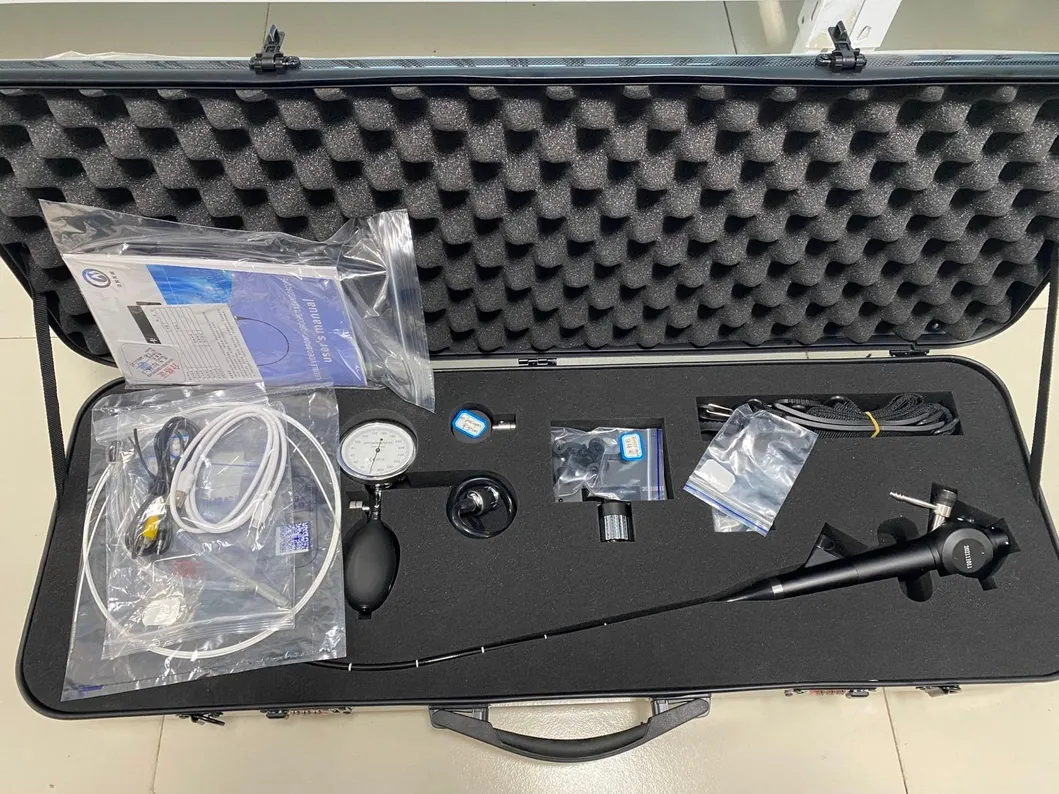

| ITEM | QTY |
|---|---|
| 3.5inch display | 1 set |
| Operative section | 1 pc |
| Recharger battery | 1 pc |
| Pressure compensation cap | 2 pcs |
| Waterproof cap | 2 pcs |
| Reusable biopsy valve | 2 pcs |
| Suction button | 2 pcs |
| Leak detector | 1 pc |
| Cleaning brush | 1 pc |
| SD save card | 1 pc |

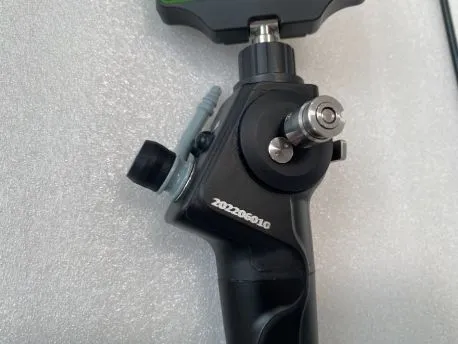

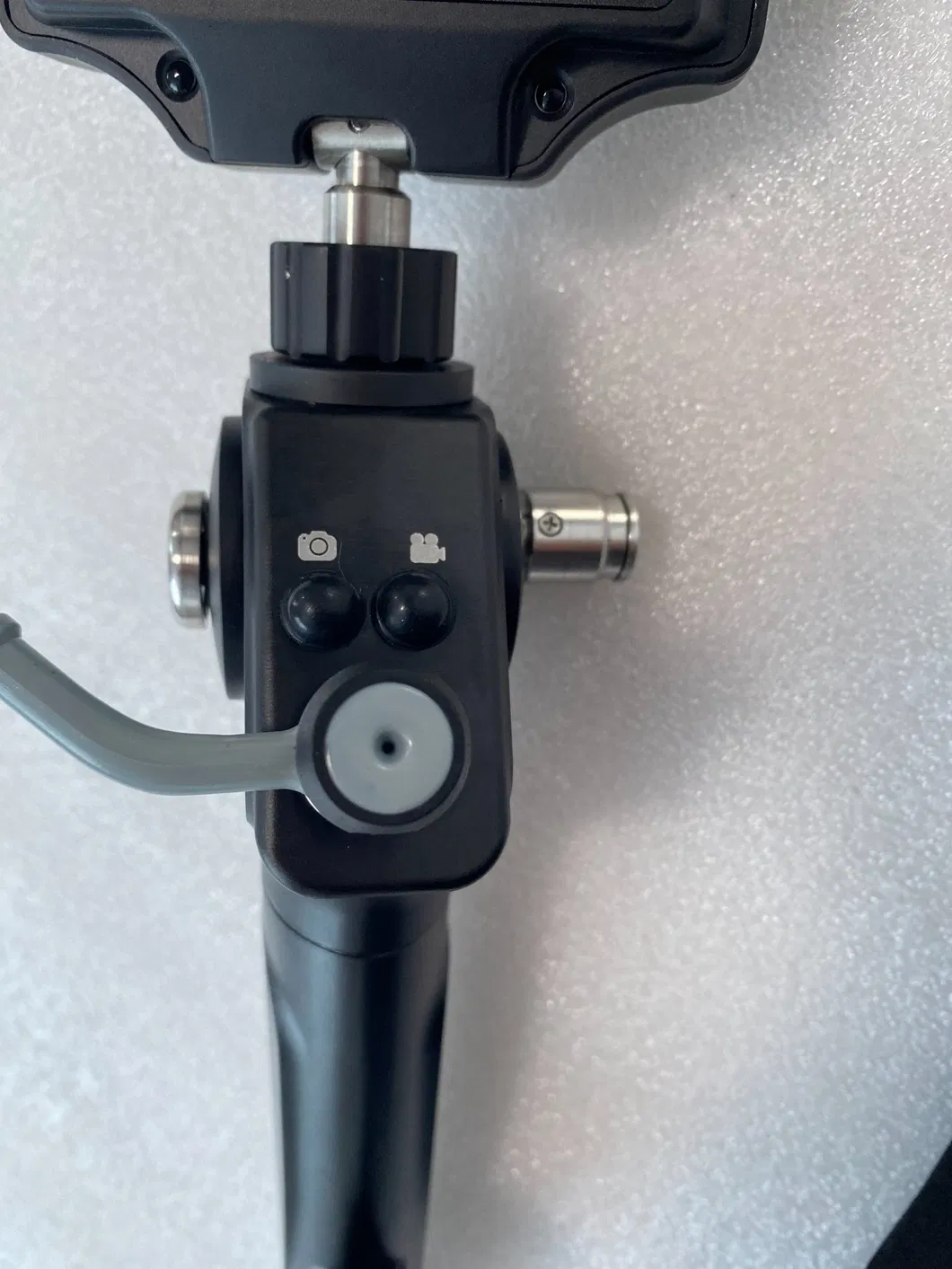

Operation part: The operating wrench is connected to a circular drum on which a traction wire is wound. Bending is achieved through wire zoom control.

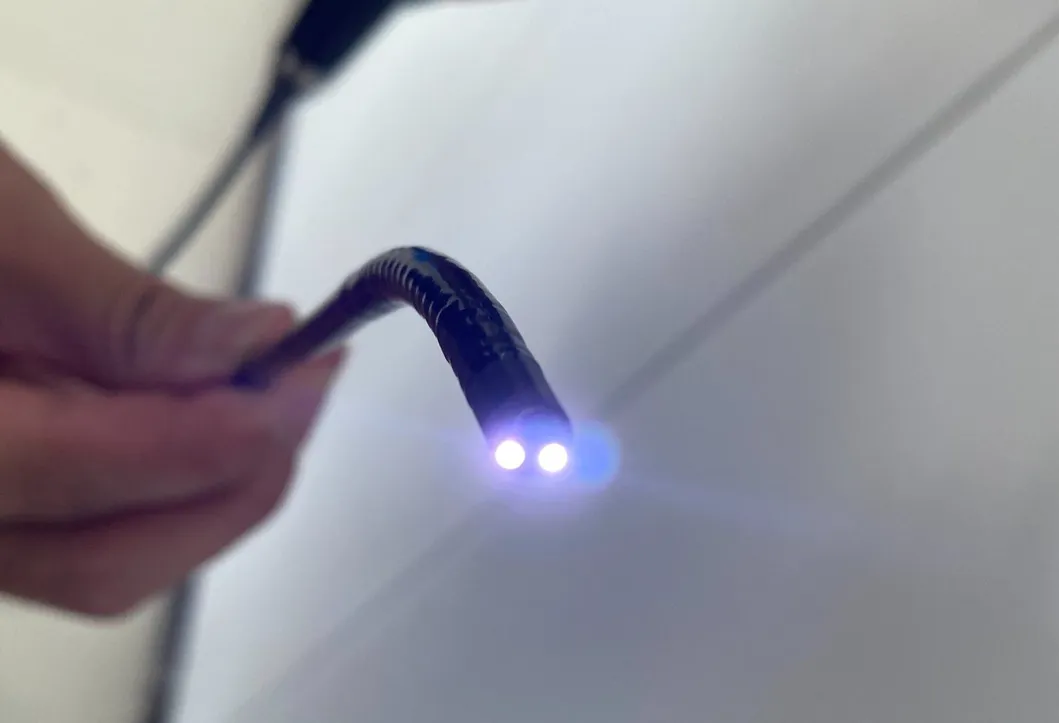

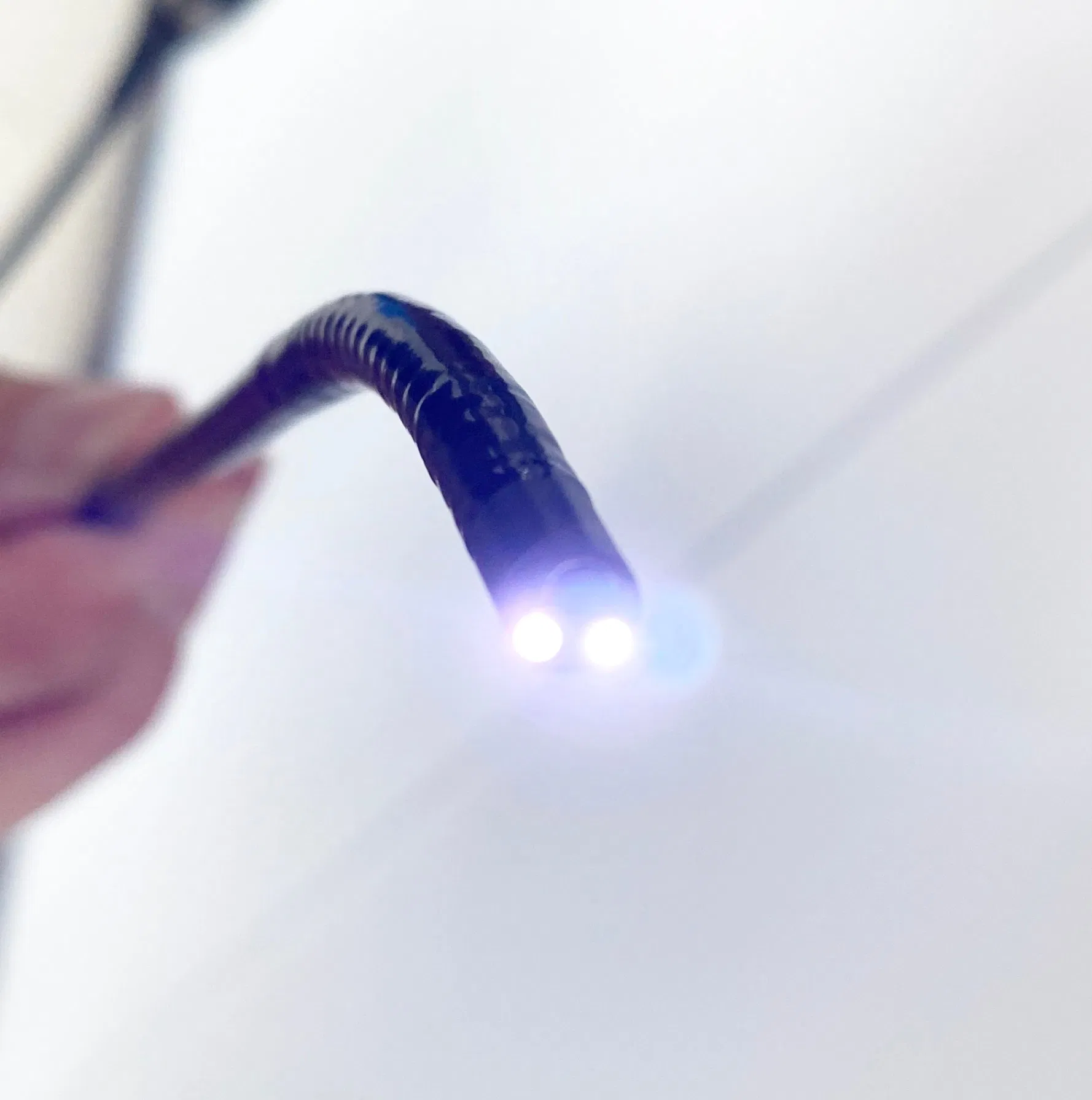

Illumination: LED white light ≥800lux, featuring nano anti-fog cold light source technology.

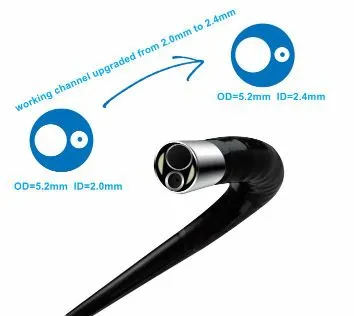

Working Channel: Upgraded options available from 1.2mm to 2.8mm to improve efficiency.
1. Wooden case or carton package, standard export packages.
2. All of the productions are inspected carefully by QC before delivery.
