Surgical Electronic Bronchoscope Professional Medical Equipment for ICU Respiratory Care Emergency Airway Management

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
MEB-5.2B
Material
Steel
Feature
Reusable
Certification
CE, ISO13485
Usage
Difficult Airway Intubation
Display
3.5inch or 10.1"
Resolution
600,000 - 2,000,000 Pixels
Battery
Lithium Battery
Warranty
2 years
Disinfection
Ethylene Oxide, Autoclave Sterilization
Product Description

Portable Fiberoptic Bronchoscope Kit with LED Light Source for Respiratory Endoscopy Procedures

Suitable for airway management, especially difficult tracheal intubation, nasal tracheal intubation, and placement of bronchial occluder. Enables physicians to accurately complete intubation under direct vision.

  • 3.5-inch TFT LCD screen or 10.1" touch screen options.
  • Supports photo and video functions for clinical records.
  • Electronic imaging system providing clear, undistorted images.
  • Hose resistant to bending with specialized flexible process.
  • Viewing field of the curved part greater than 180 degrees.
  • Integrated suction support and easy cleaning/disinfection.
Surgical Electronic Bronchoscope
Technical Parameters
Parameter Specification
Visual Field90°± 10%
Visual Direction
Observe Depth3-100mm
Effective Work Length600mm

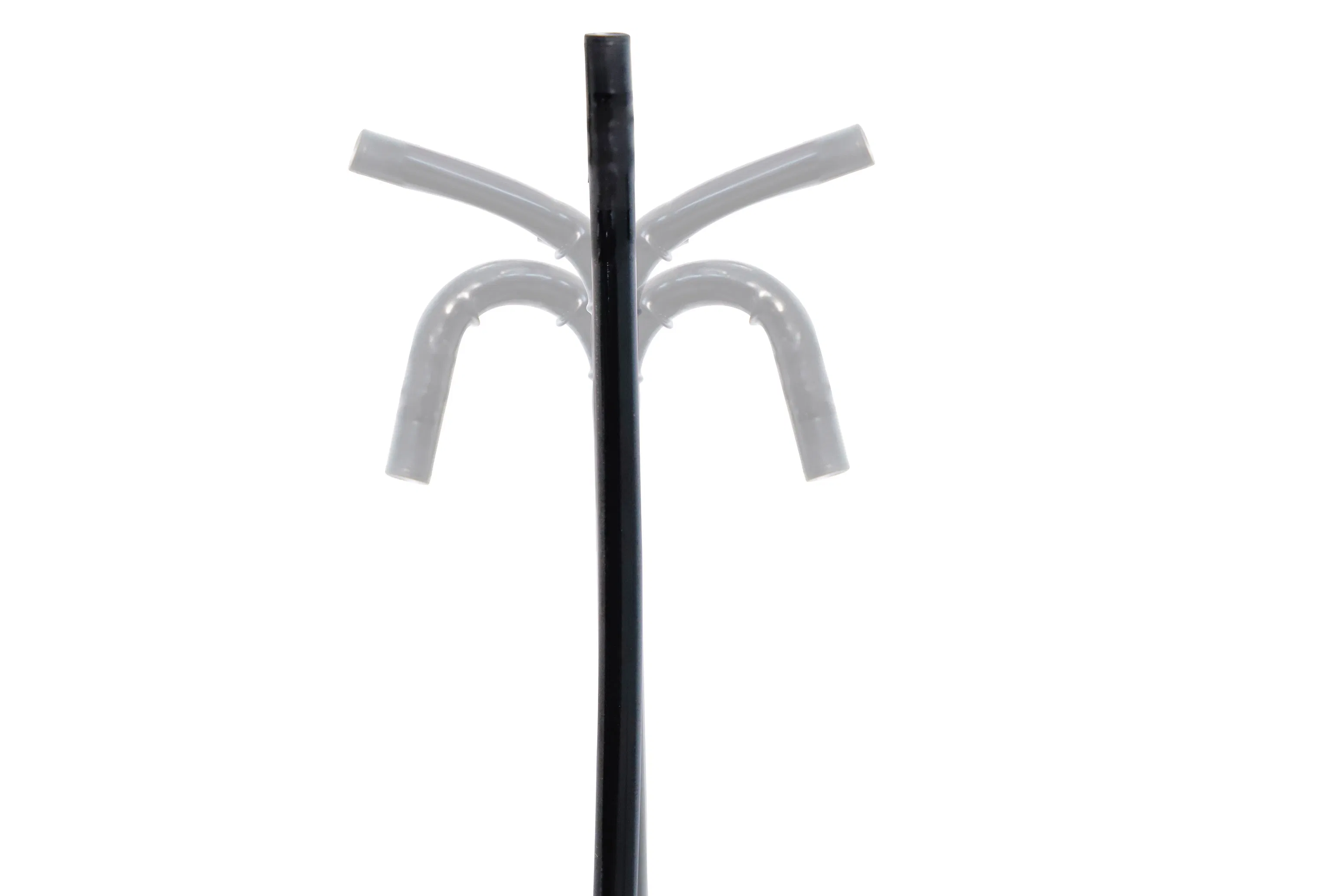

Curved AngleUpward 150°, Downward 130°
Illuminance≥800lux

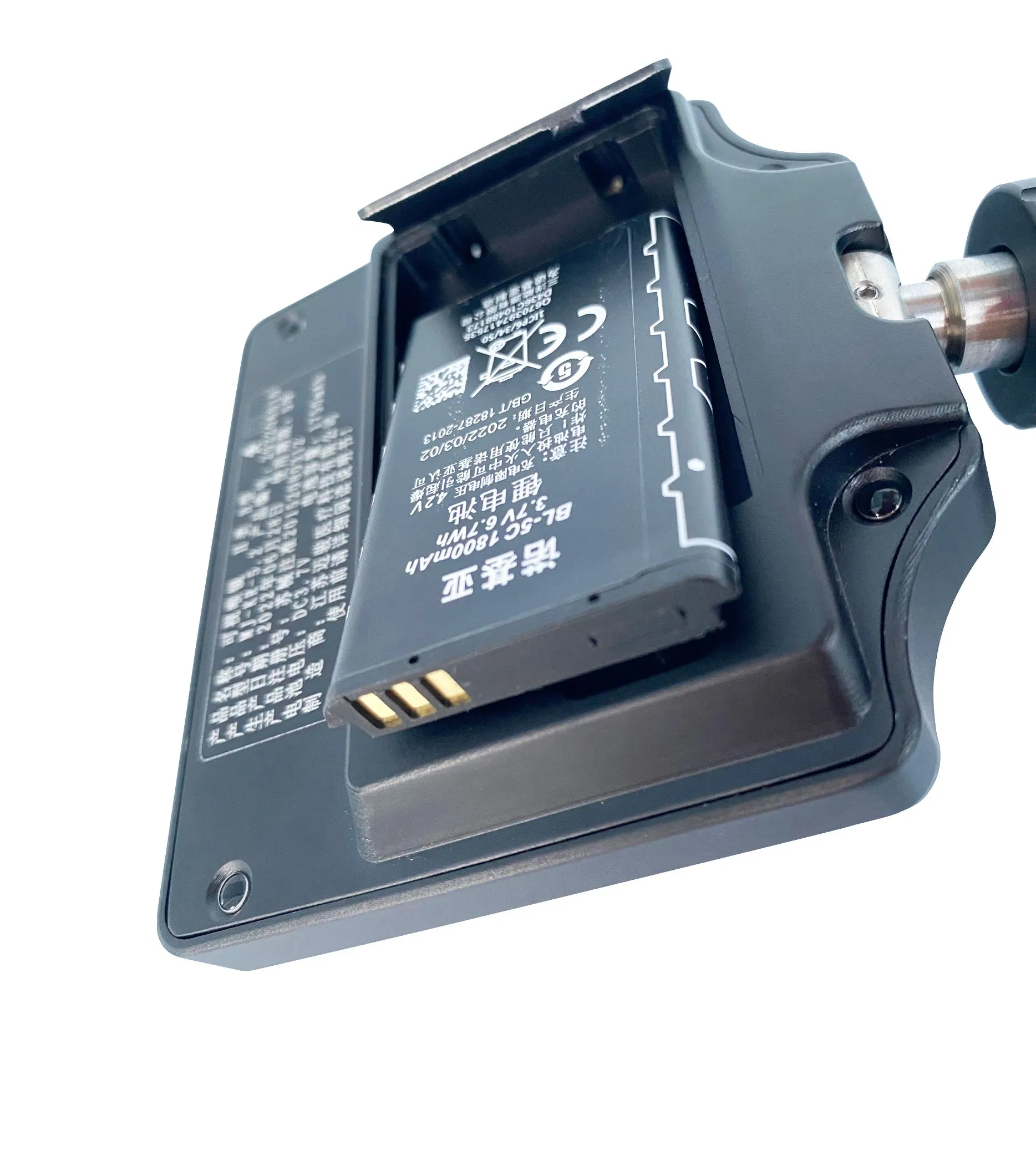

Battery Capacity1850mA (Polymer Lithium)
Charging Time< 3 hours
Discharge Time> 2.5 hours
Detailed Features & Components

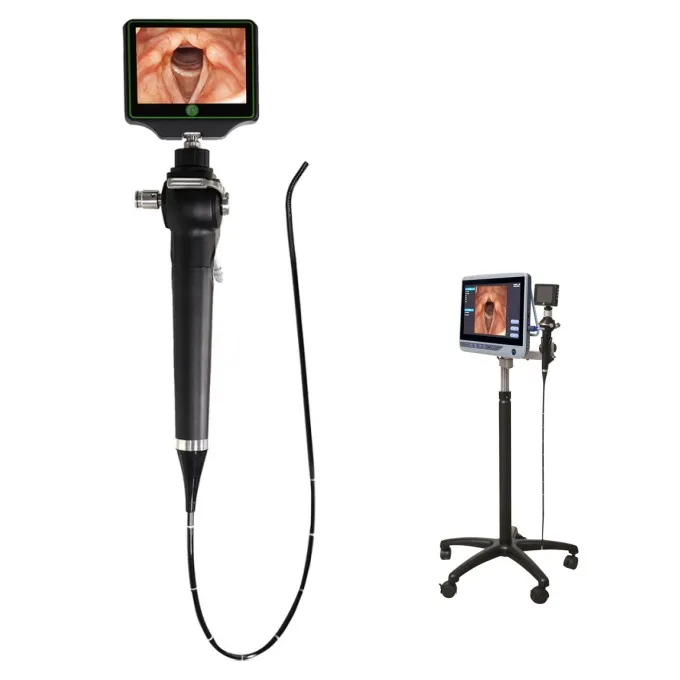

Detailed View 1

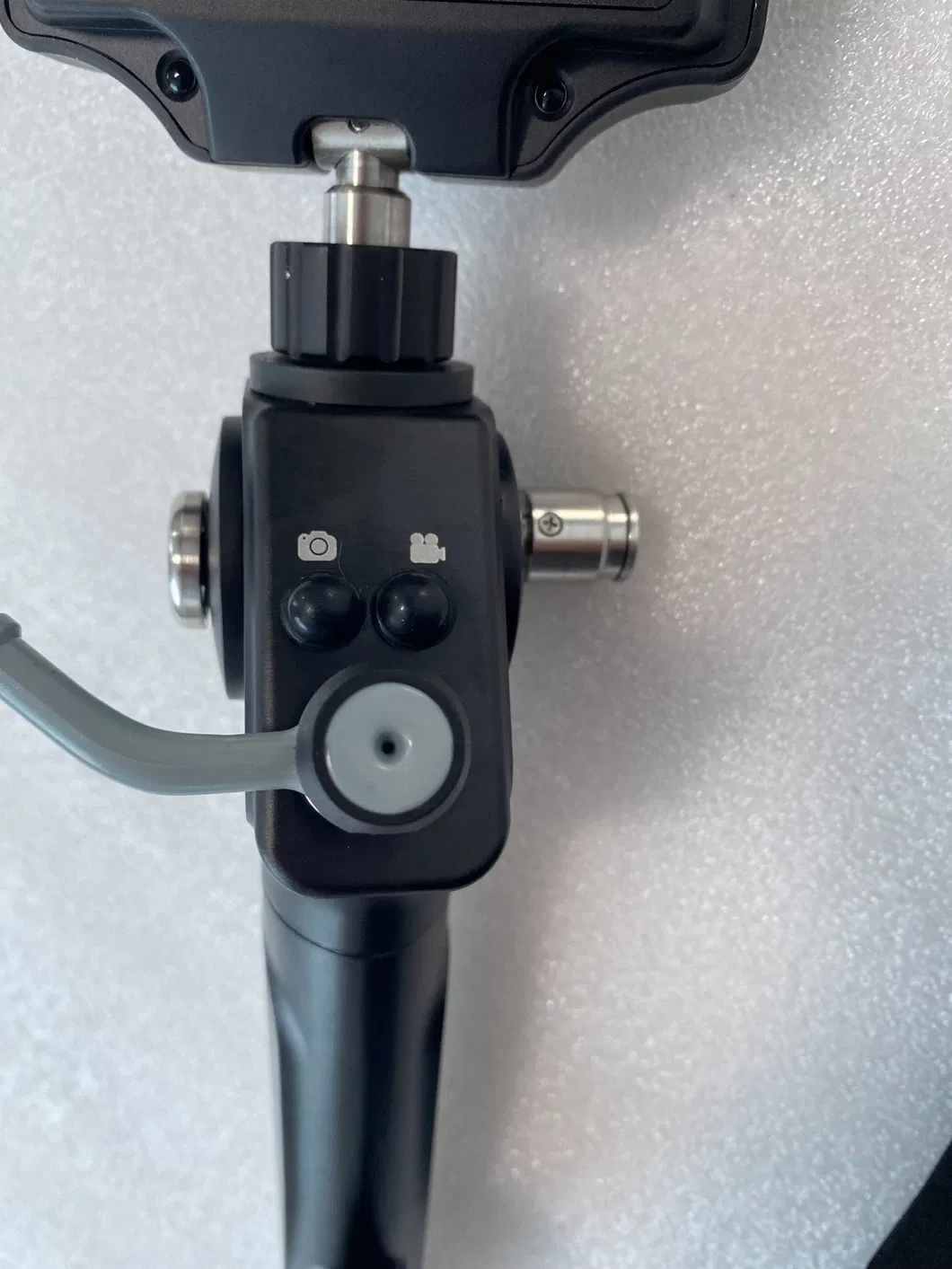

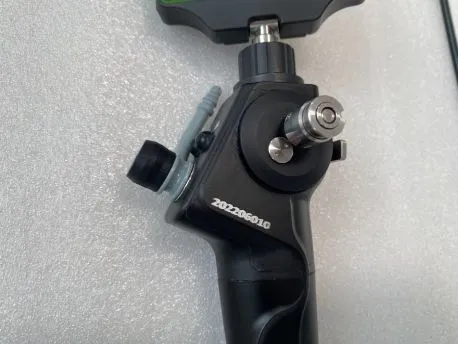

Operation Part

Operation Part: Features an operating wrench connected to a circular drum driving a traction wire, allowing precise bending of the curved section.

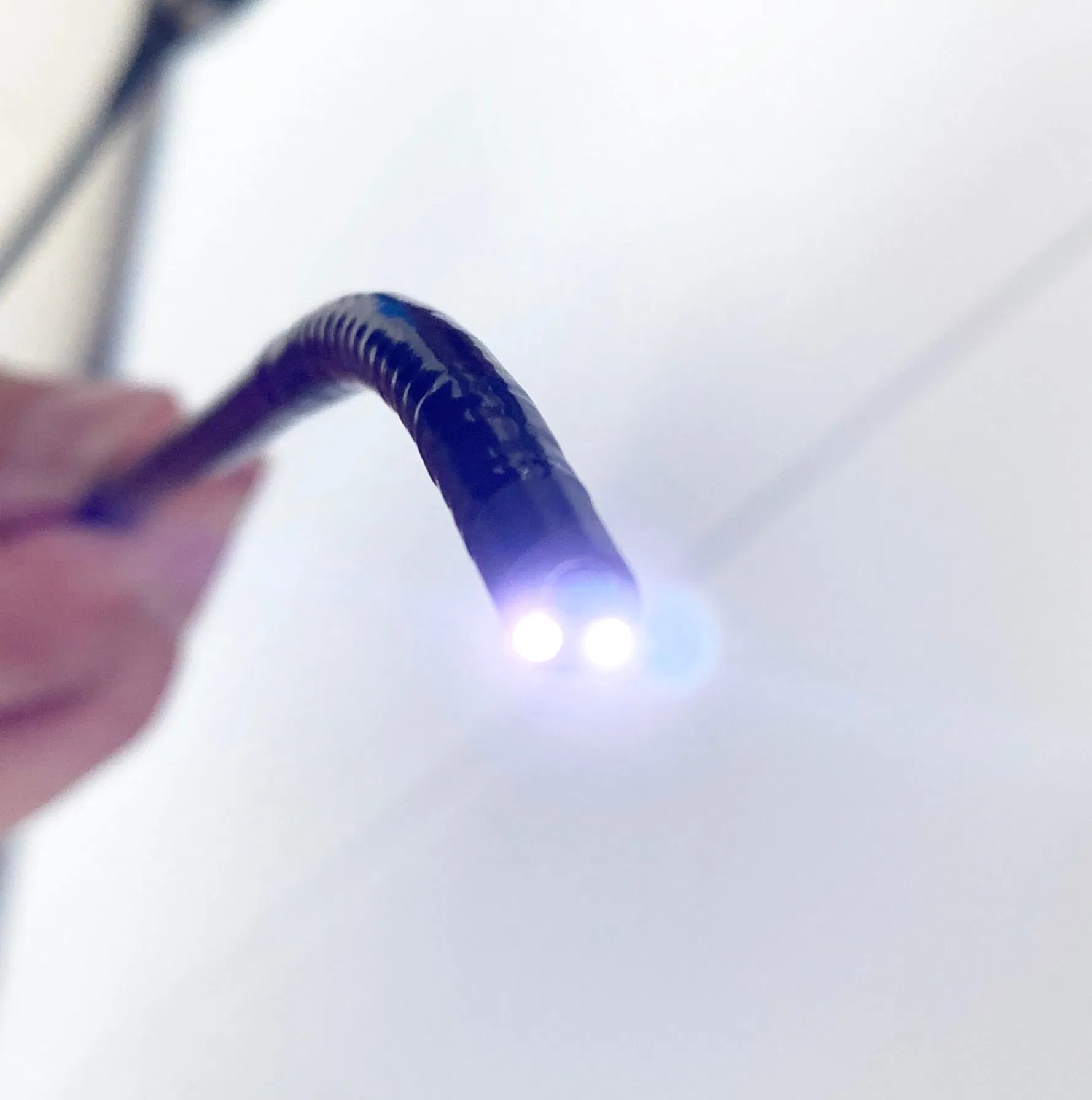

Illumination: LED white light illumination ≥800lux with nano anti-fog cold light source technology for durable, clear vision.

Part 1

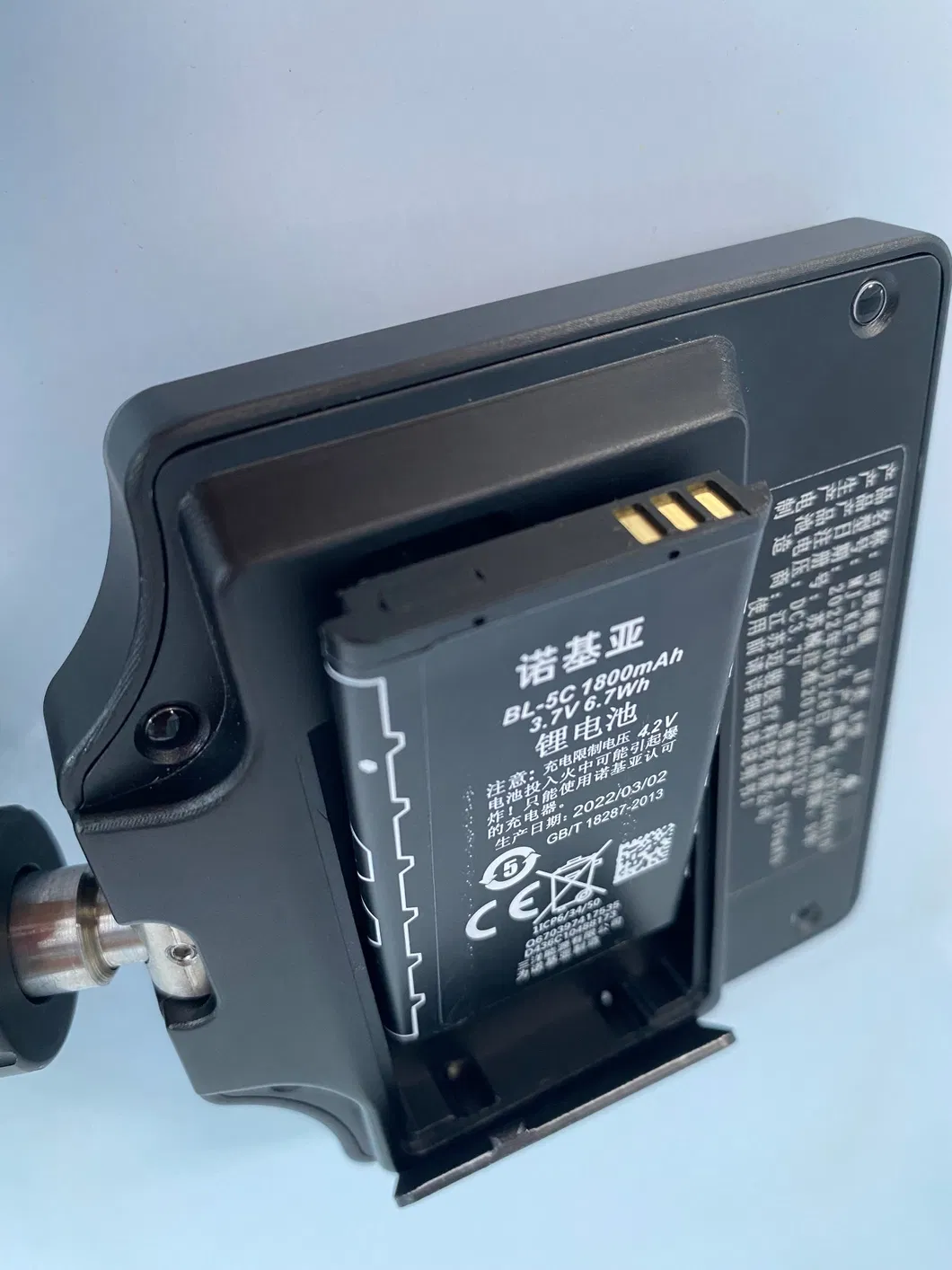

Part 2

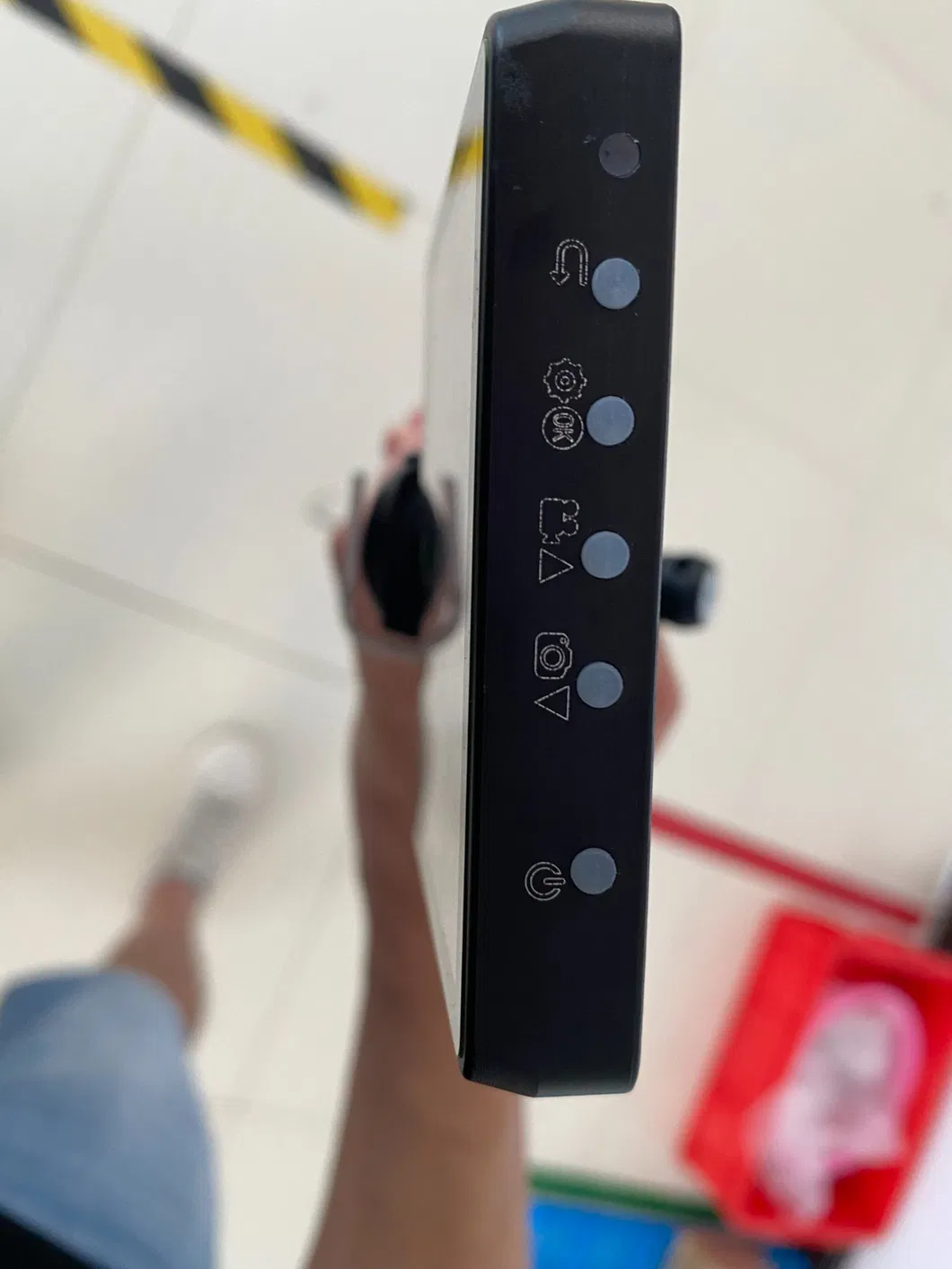

Part 3
Clinical Application

This equipment is widely used in the following departments:

  • Department of Anesthesiology
  • ICU (Intensive Care Unit)
  • Emergency Department
  • Respiratory Department

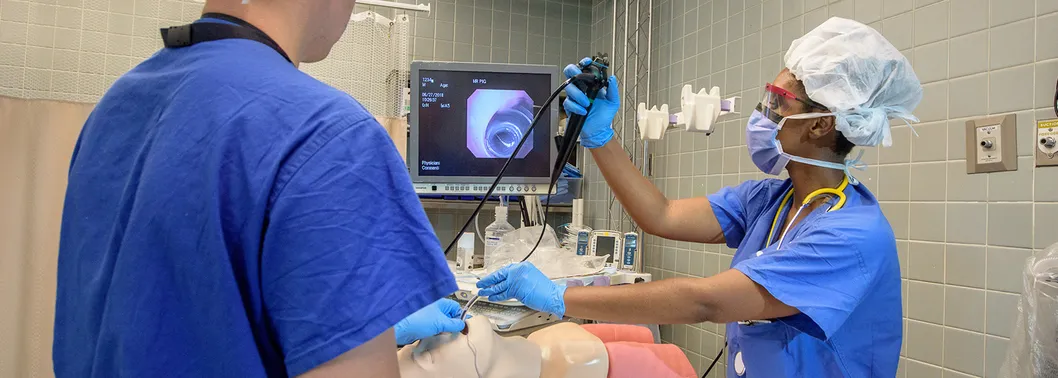

Application Overview

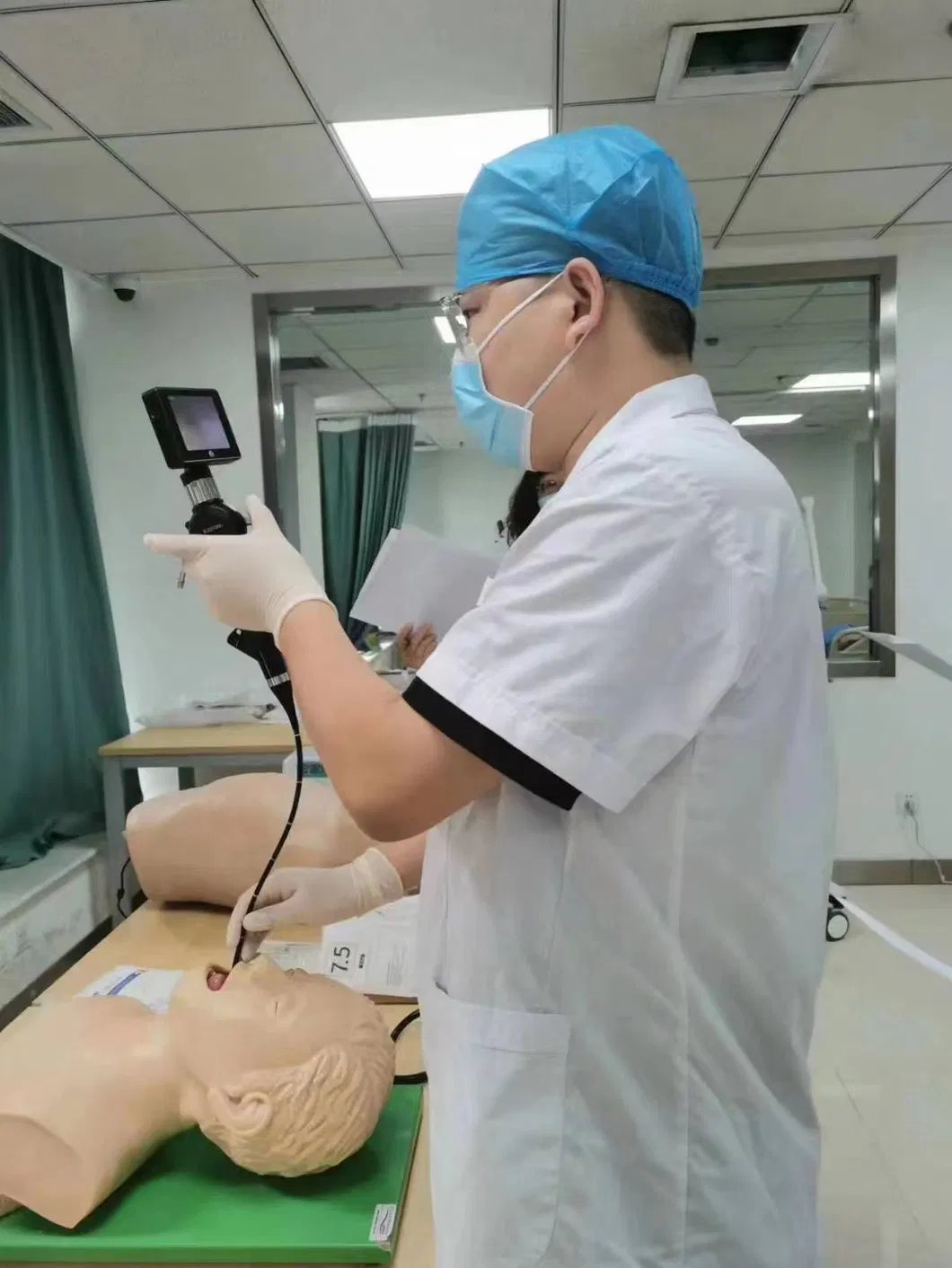

Usage 1

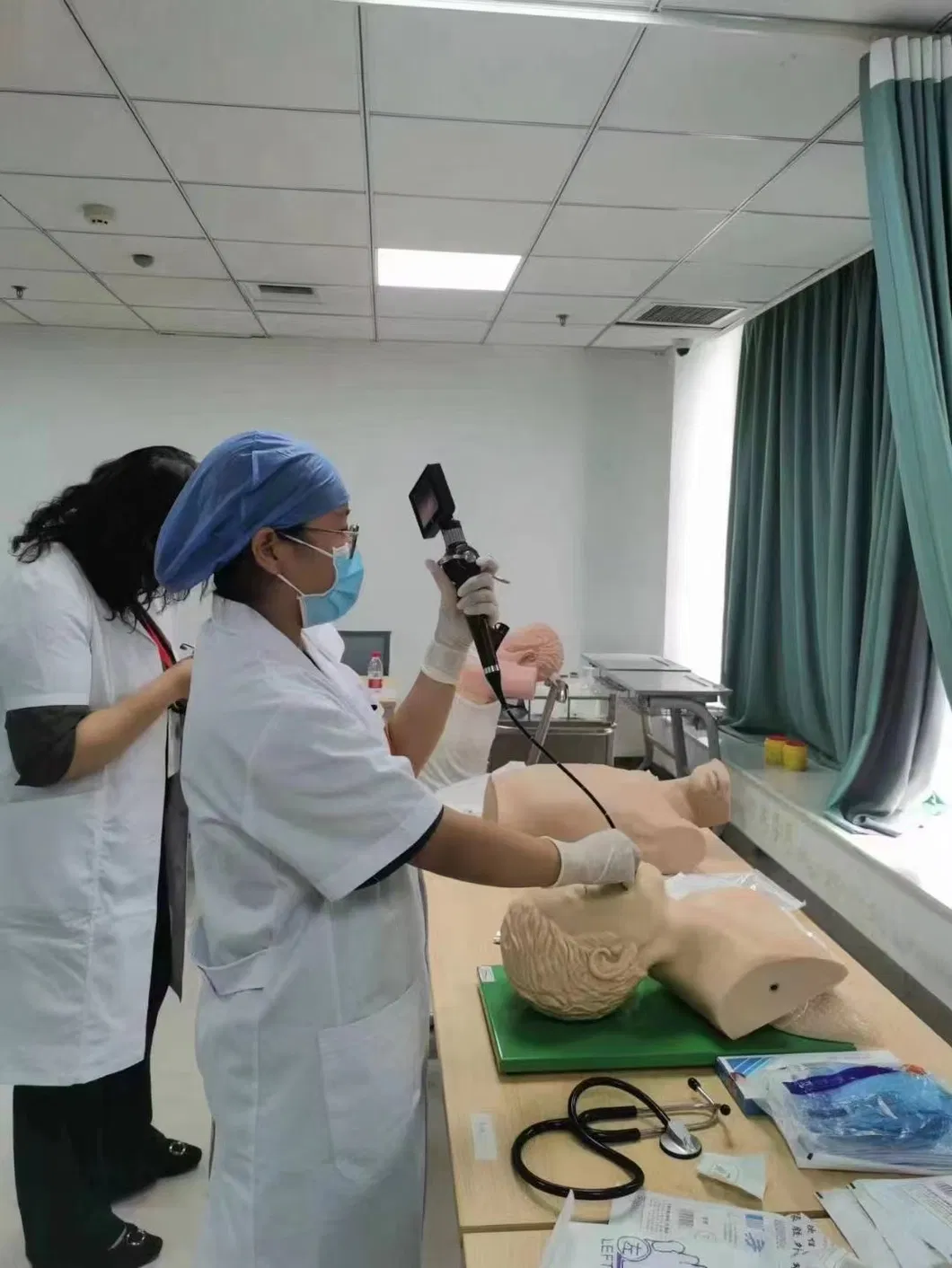

Usage 2
Packaging & Shipping
Packaging Box

All units are packed in high-quality wooden cases or standard export cartons. Every production is carefully inspected by QC before delivery to ensure clinical safety and performance.

Frequently Asked Questions
What are the primary clinical uses for this bronchoscope?
It is designed for airway management, particularly for difficult tracheal intubations, nasal intubations, and endobronchial positioning in ICU, anesthesia, and emergency settings.
Does the device support recording for medical records?
Yes, the system supports both photo and video functions, allowing images to be saved directly to an SD card or U-disk for retrieval and report editing.
What disinfection methods are compatible with this equipment?
The bronchoscope is reusable and can be disinfected using Ethylene Oxide or Autoclave Sterilization, depending on the specific component requirements.
How flexible is the camera tip?
The curved part provides a high degree of maneuverability with an upward bending angle of 150° and a downward angle of 130°, covering a viewing field greater than 180°.
What screen options are available for the display?
Standard configurations usually feature a 3.5-inch TFT LCD, but there is an optional 10.1-inch medical high-definition touch screen that supports multi-screen display and manual white balance.
What is the expected battery performance?
The device uses a 1850mA polymer lithium battery. It takes less than 3 hours to charge and provides over 2.5 hours of continuous discharge time.
