Top-Selling Holter System Pl-3L/ 4L

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	ECG

Send Inquiry

Product Description

Basic Information

Model NO.

PL-3L/ 4L

Certification

ISO13485, F&S

Channel

3/12 Channel

Qrs Classification

Arrhythmia Analysis

St Segment

Myocardial Ischemia Evaluation

Analysis Type

Atrial Fibrillation/Flutter

Package

Cartons with Foams Insides

HS Code

98000000

Capacity

100 Sets Per Month

★

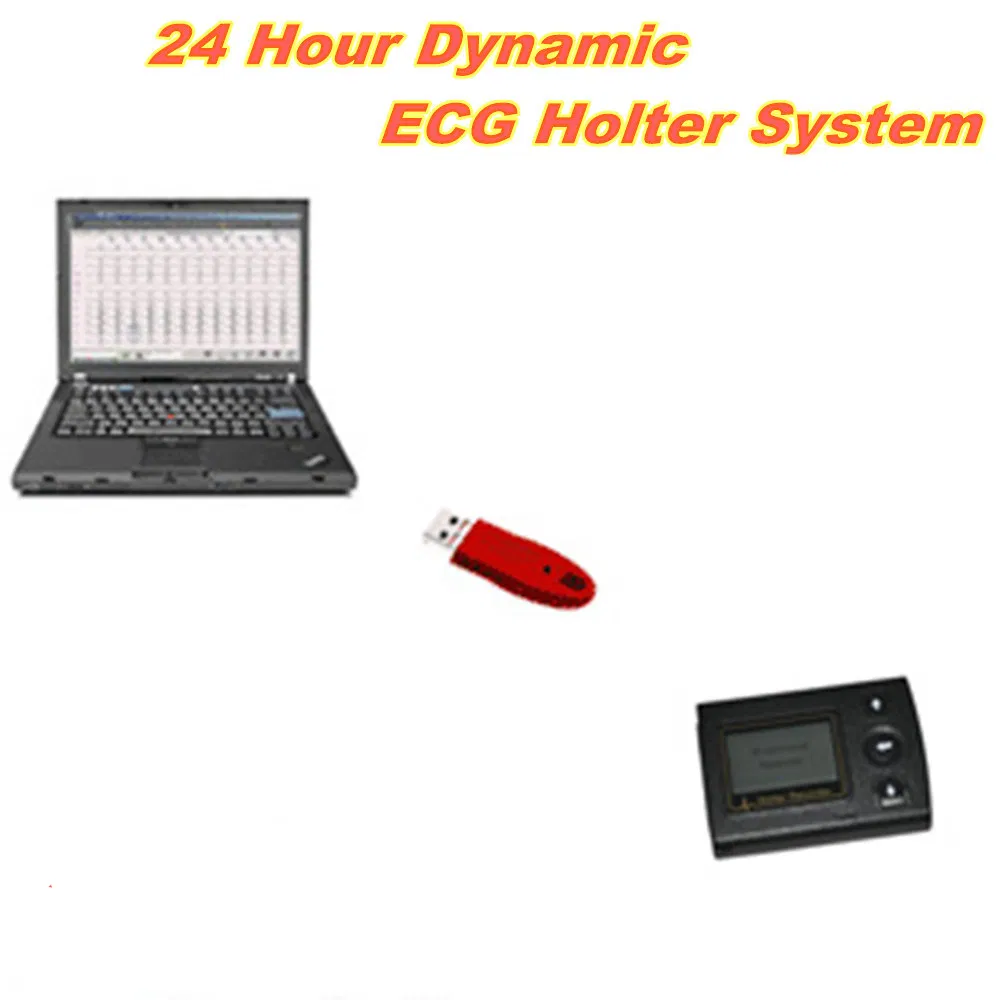

Product Description: 24 Hour Dynamic EKG Test

Advanced diagnostic system designed for long-term cardiac monitoring with high-fidelity recording and comprehensive analysis tools.

3/12 channel analysis
QRS template classification
Arrhythmia analysis
ST segment changes & Myocardial ischemia evaluation
Excellent pacemaker analysis
Obstructive Sleep Apnea Syndrome (OSAS) analysis
Heart Rate Variability (HRV) analysis

⚙

Technical Specifications

Feature	3-Channel (PL-3L / PL-3L-2)	12-Channel (PL-4L)
Recording Mode	3 digital recording channels	12-lead / 3-lead switchable
Sample Rate	128~1024Hz (10000Hz for Pacemaker)	128~1024Hz (10000Hz for Pacemaker)
Recording Time	24-72 Hours (PL-3L) / Up to 7 Days (PL-3L-2)	Up to 2 Days (24-48 Hours)
Resolution	8, 10, 12 or 16 bit sampling	8, 10, 12 or 16 bit sampling
Storage	SD flash card (2GB) or Solid state (512Mb)	SD flash card (2GB) or Solid state (512Mb)
Weight	42 grams (without battery)	42 grams (without battery)
Power	1 AAA size battery	1 AAA size battery
Dimensions	68mm x 53mm x 16mm	68mm x 53mm x 16mm

🖼

Product Visuals

Frequently Asked Questions

How long can the PL-3L series record data?

The PL-3L supports 24 to 72 hours of recording, while the PL-3L-2 model can support extended recording for up to 7 days.

Does the system compress the ECG data?

No, the system provides full disclosure recording with no data compression to ensure the highest diagnostic accuracy.

What type of batteries and storage does the device use?

The recorder is powered by a single AAA size battery and uses standard SD flash cards (up to 2GB) or solid-state storage.

Can the 12-channel model also perform 3-channel recording?

Yes, the PL-4L model features two recording modes (12-lead or 3-lead) which can be switched simply by changing the patient cable.

Is the device compatible with common analysis software?

Yes, the hardware is completely compatible with widely used systems such as Del Mar, DMS CardioScan, and Century 3000.

What specialized cardiac analyses can the software perform?

The system includes advanced tools for Arrhythmia analysis, ST segment change evaluation, Atrial Fibrillation/Flutter detection, and Pacemaker analysis.
