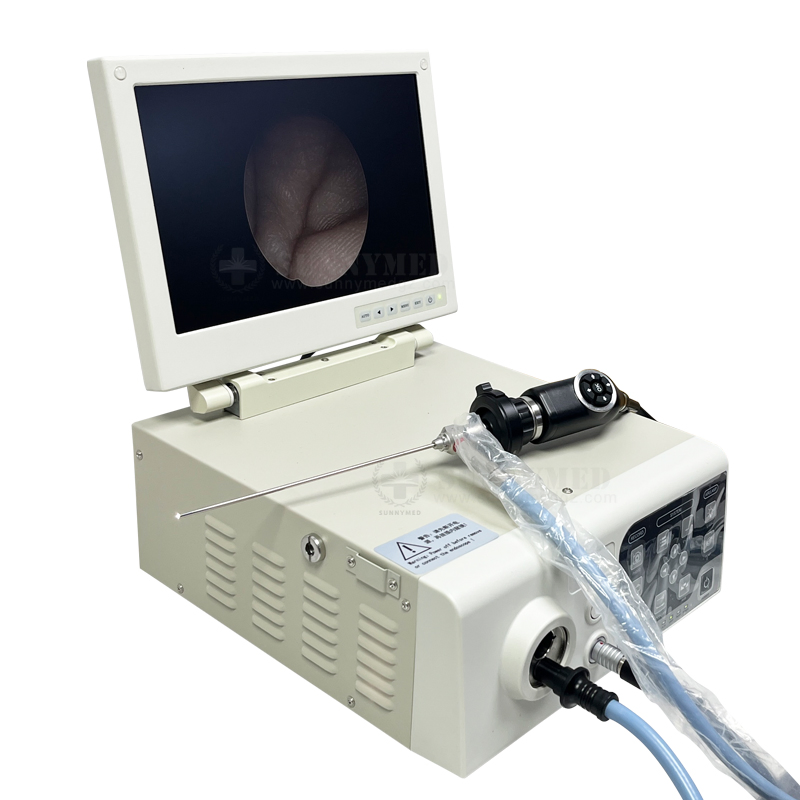

Sy-P033-2 Veterinary All-in-One Endoscope Processor Rigid & Flexible Endoscopy Camera System
Sy-P033-2 Veterinary All-in-One Endoscope Processor Rigid & Flexible Endoscopy Camera System
Sy-P033-2 Veterinary All-in-One Endoscope Processor Rigid & Flexible Endoscopy Camera System
Sy-P033-2 Veterinary All-in-One Endoscope Processor Rigid & Flexible Endoscopy Camera System
Sy-P033-2 Veterinary All-in-One Endoscope Processor Rigid & Flexible Endoscopy Camera System
1 / 5
Sy-P033-2 Veterinary All-in-One Endoscope Processor Rigid & Flexible Endoscopy Camera System
Sy-P033-2 Veterinary All-in-One Endoscope Processor Rigid & Flexible Endoscopy Camera System
Sy-P033-2 Veterinary All-in-One Endoscope Processor Rigid & Flexible Endoscopy Camera System
Sy-P033-2 Veterinary All-in-One Endoscope Processor Rigid & Flexible Endoscopy Camera System
Sy-P033-2 Veterinary All-in-One Endoscope Processor Rigid & Flexible Endoscopy Camera System

Sy-P033-2 Veterinary All-in-One Endoscope Processor Rigid & Flexible Endoscopy Camera System

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Certification: CE
Send Inquiry

Product Description

📋

Overview & Basic Information

Model NO.:SY-P033-2
Application:Animal Hospital
Image Definition:1080P
Field of View:120°
Insertion Tube Diameter:6.3mm, 8.3mm, 12.9mm
Product Name:Veterinary Endoscope
Transport Package:Carton Box
Production Capacity:200 Set/Month
🔬

Product Description

SY-P033-2 Veterinary All-in-one Endoscope Processor Rigid & Flexible Endoscopy Camera System
Veterinary Endoscope Processor
Video Gastroscope Standard Optional
Type VET-1508 VET-1206 VET-3313
Insertion tube diameter Φ8.3mm Φ6.3mm Φ12.9mm
Working channel Φ2.8mm Φ2.0mm Φ3.7mm
Working length 1500mm 1200mm 3300mm
Tip Deflection U210°D90°L100°R100° U180°D180°L160°R160°
Field of view 120°
Depth of field 3-100mm
Image definition 1080P
Endoscope Processor Specifications
TYPE VET-300F
White balance Automatic
RGB adjustment -50~+50
Cold light LED 40W
Luminance >800Lm
Air/Flow 0.05MPa, 0.75m³/n
Snap/Record 1080P/30Fps
Voltage ~100V-240V, 50HZ/60HZ
📸

Detailed Photos

Detail 1

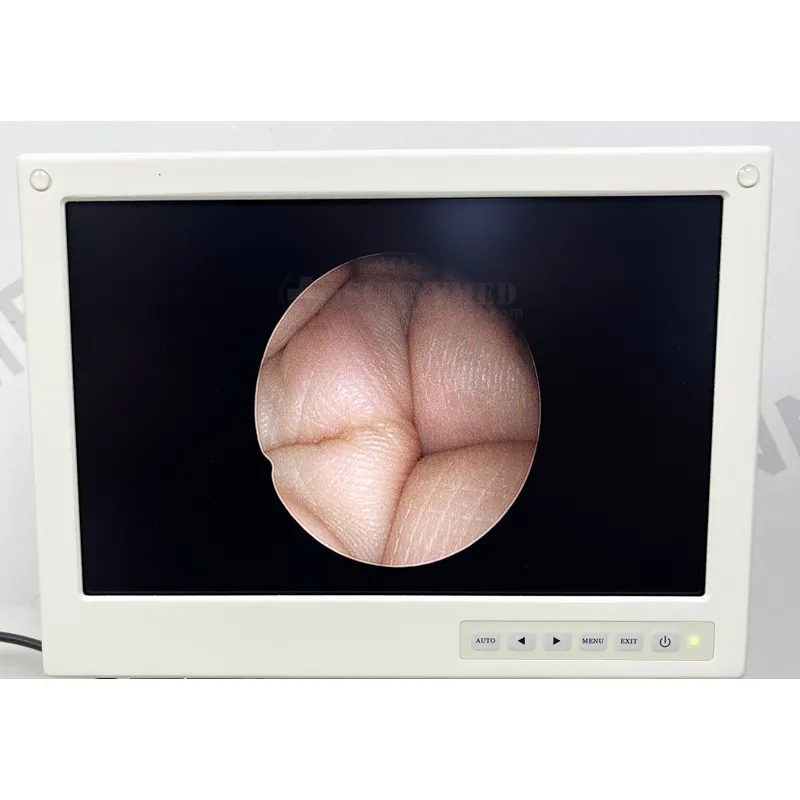

Detail 2

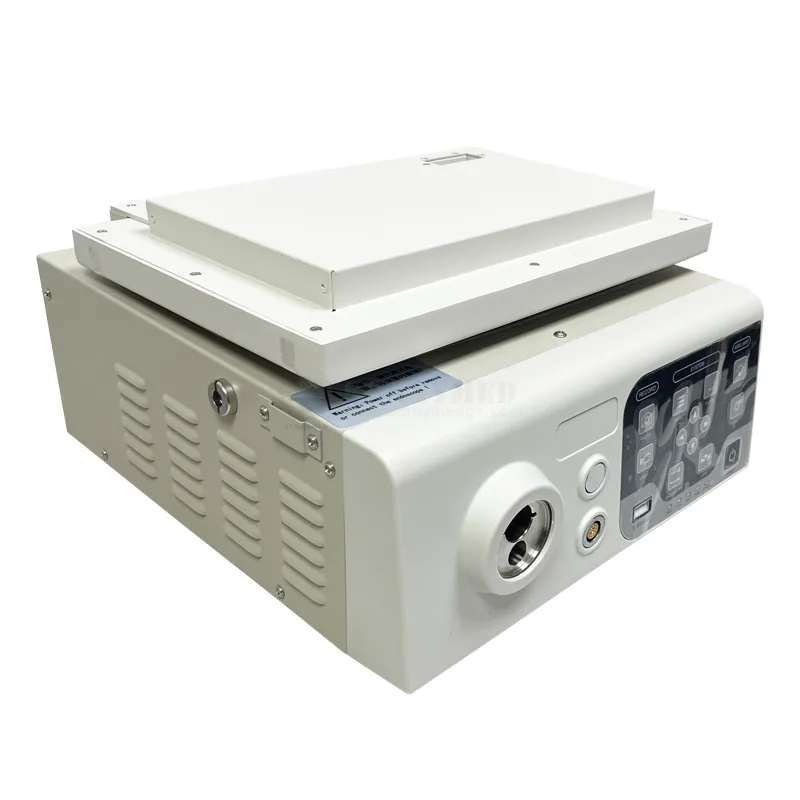

Detail 3

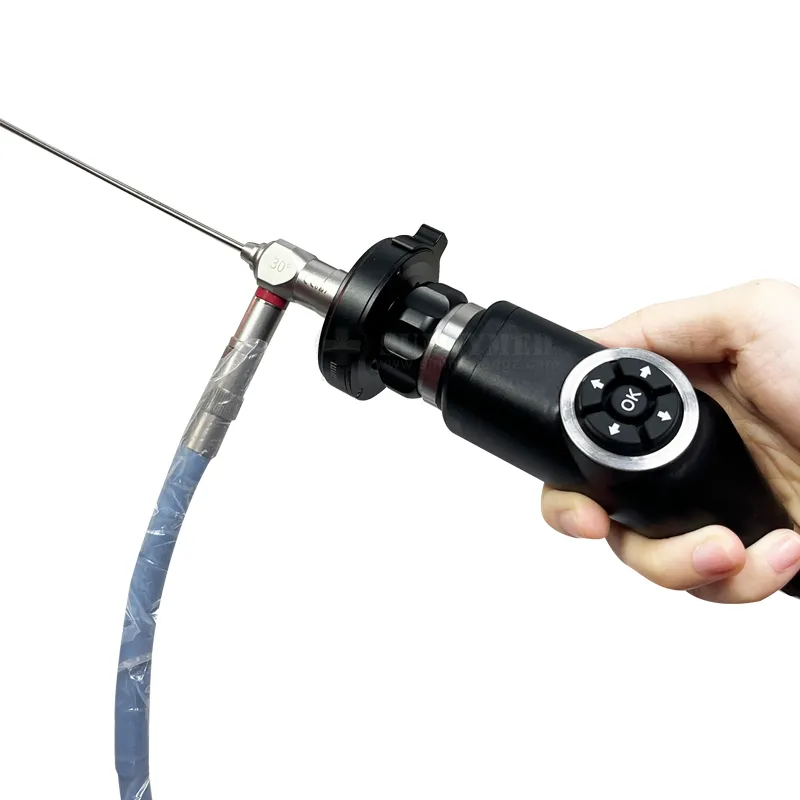

Detail 4

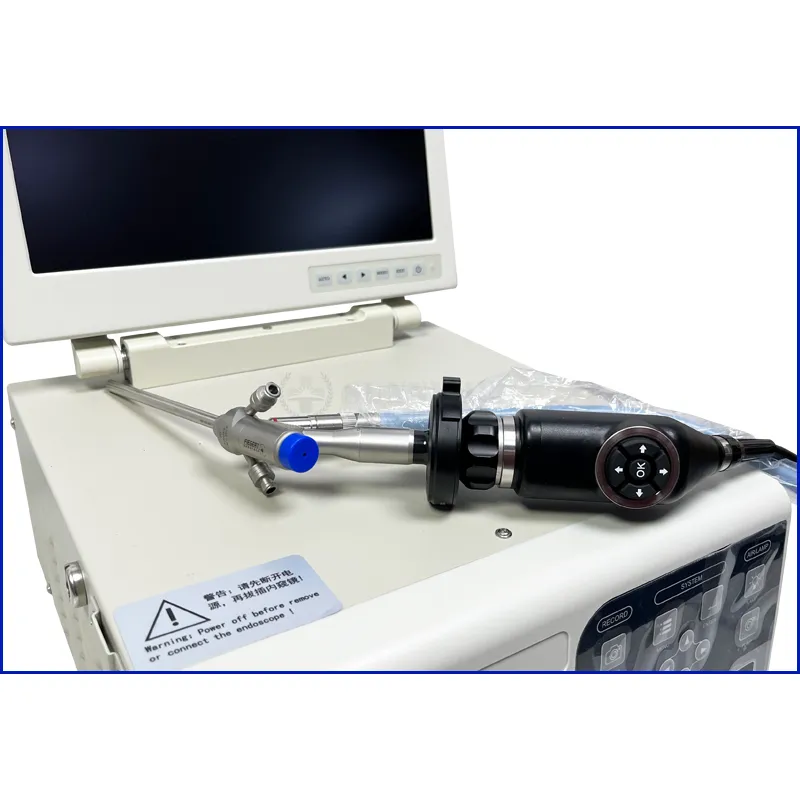

Detail 5

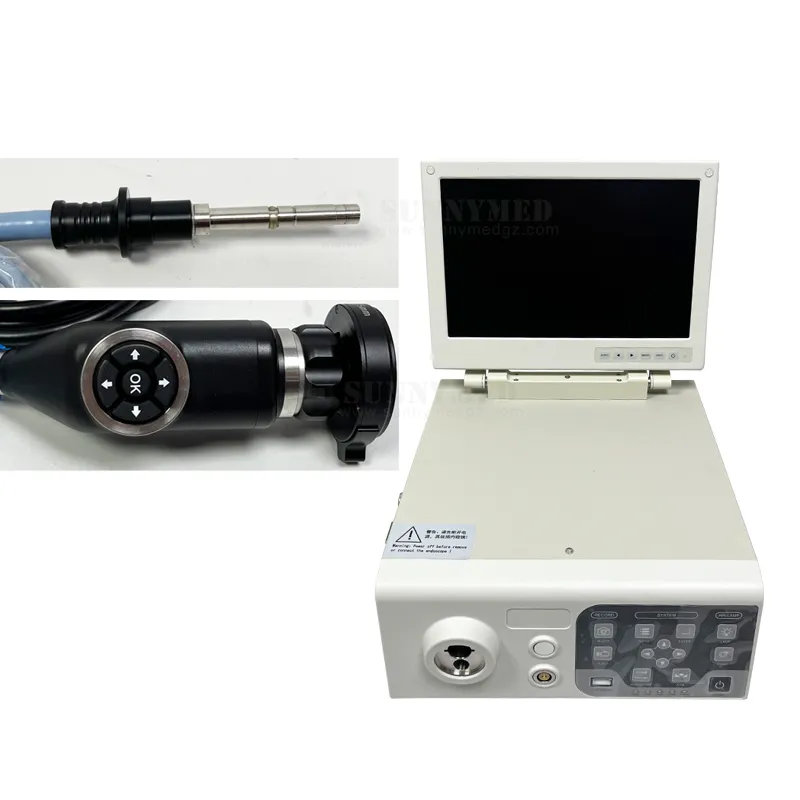

Detail 6
🏢

System Overview

System Overview 1 System Overview 2 System Details
❓

Frequently Asked Questions

What are the primary applications for this endoscope system?
This system is specifically designed for veterinary use in animal hospitals for both rigid and flexible endoscopy procedures.
What is the image quality of the SY-P033-2?
The system provides high-definition 1080P resolution at 30Fps for clear and detailed diagnostic imaging.
Can I choose different insertion tube diameters?
Yes, there are multiple options available: 6.3mm, 8.3mm (Standard), and 12.9mm to suit various animal sizes and clinical needs.
Does the processor include an integrated light source?
Yes, the VET-300F processor features a built-in 40W LED cold light source with high luminance (>800Lm).
Does it support video recording and image capture?
Absolutely, the system has built-in Snap and Record functions that save high-quality 1080P video and images.
What is the bending capability (deflection) of the gastroscope?
For the standard VET-1508 model, it offers Up 210°, Down 90°, and Left/Right 100° deflection for excellent maneuverability.
