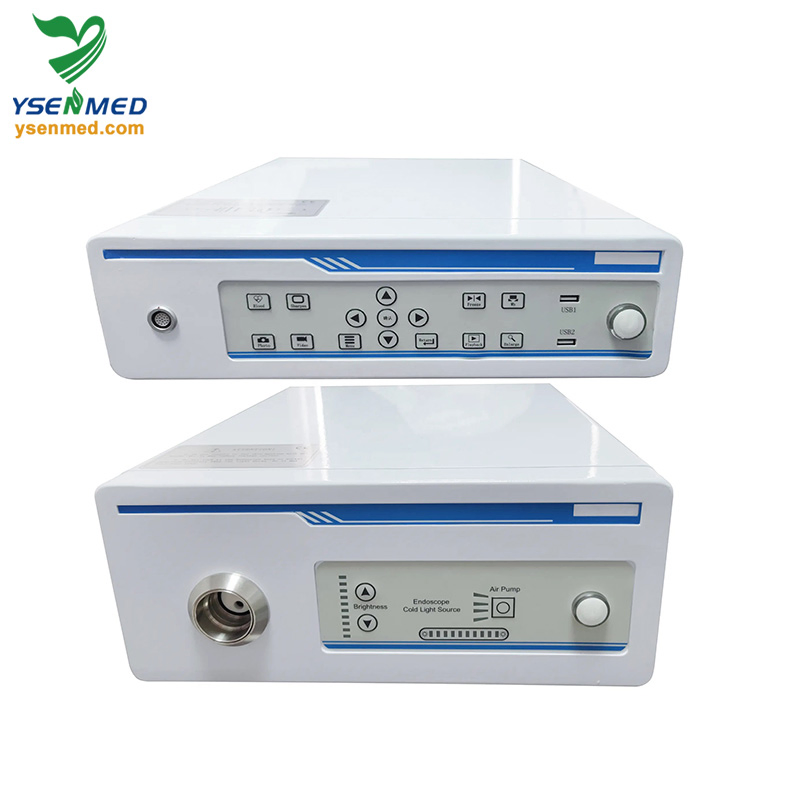

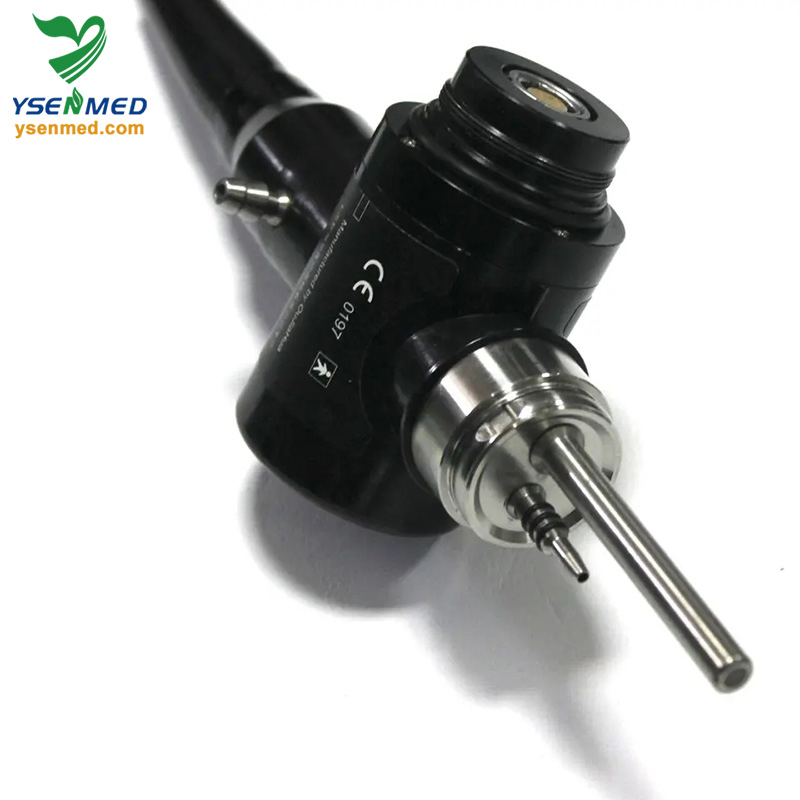

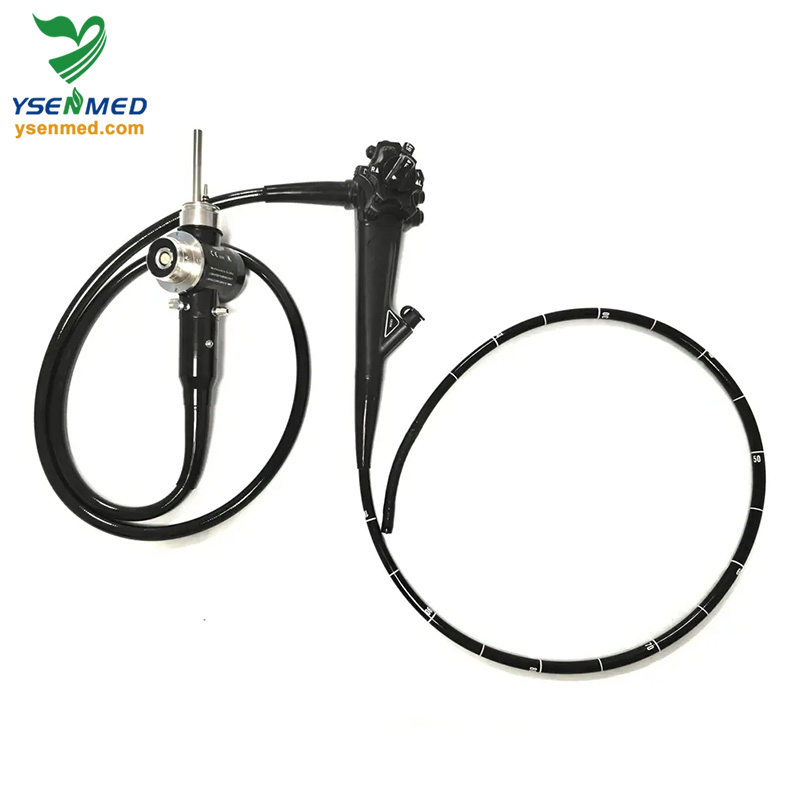

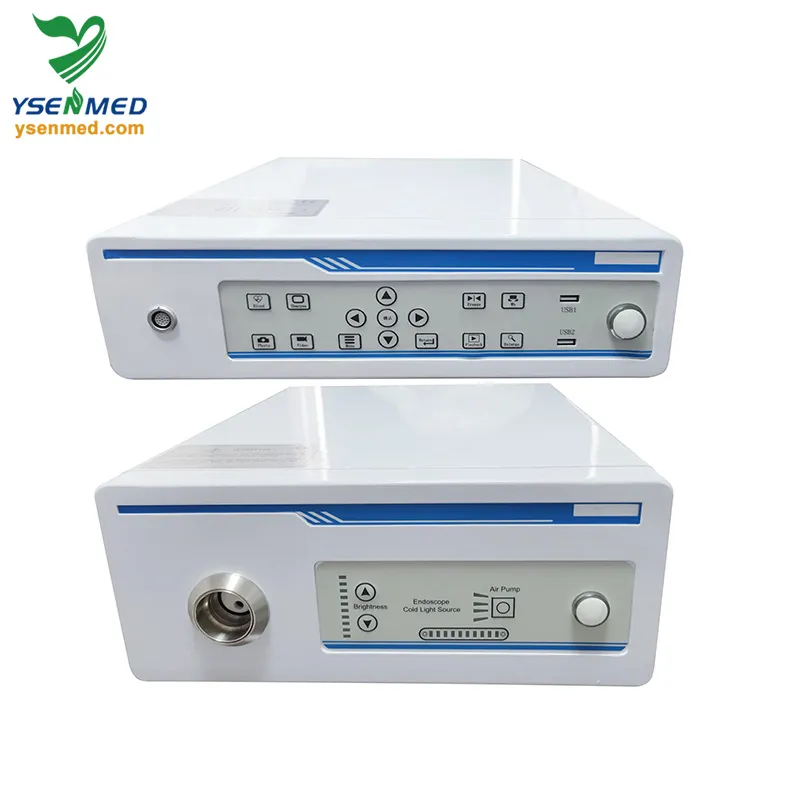

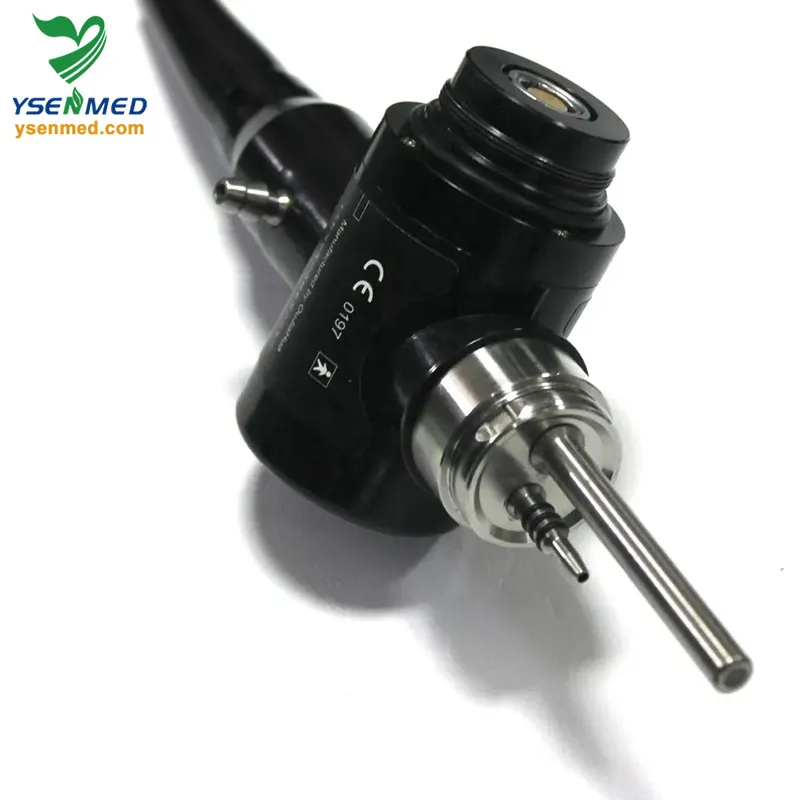

YSVME-300 System with Gastroscope, Colonoscope, Bronchoscopy, Duodenoscope, and Choledochoscope
| Item | Video Colonoscope | Video Gastroscope | Video Bronchoscope | Video Duodenoscope | Video Choledochoscope |
|---|---|---|---|---|---|

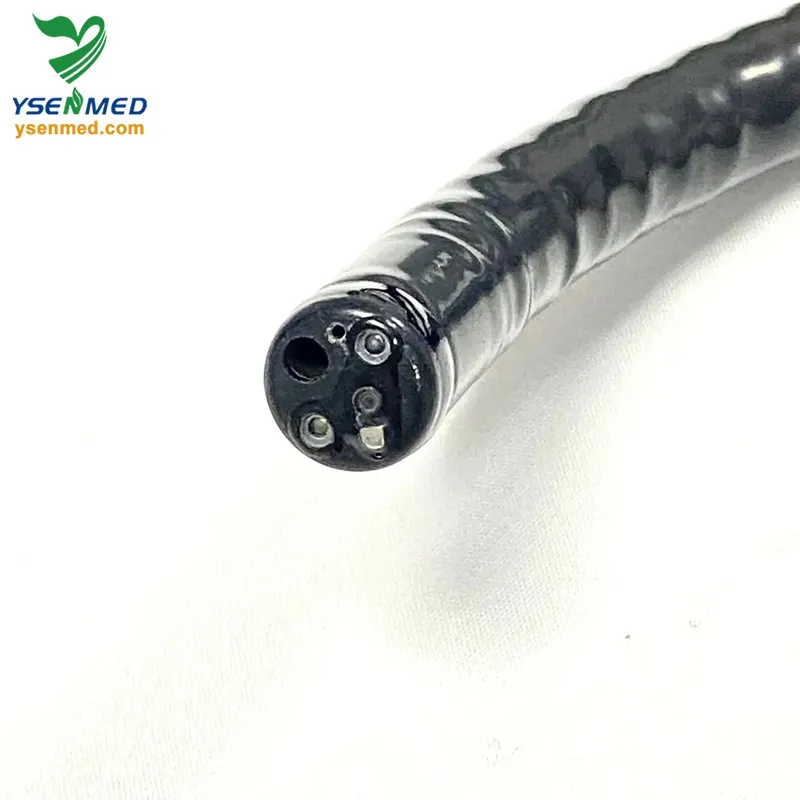

| Distal-end Diameter | Φ13.0mm | Φ9.8mm | Φ5.0mm | Φ12.2mm | Φ6.2mm |
| Insert Tube Diameter | Φ12.8mm | Φ9.6mm | Φ5.0mm | Φ12.0mm | Φ6.0mm |
| Instrument Channel | Φ3.7mm | Φ2.8mm | Φ2.0mm | Φ4.2mm | Φ2.6mm |
| Working Length | 1350mm | 1050mm | 530mm | 1200mm | 370mm |
| Field of View | 140º | 140º | 120º | Side view 90° | 120º |
| Resolution | CMOS 1.0M Pixels | CMOS 1.0M Pixels | CMOS 0.3M Pixels | CMOS HD 1.0M pixels | CMOS 0.3M pixels |

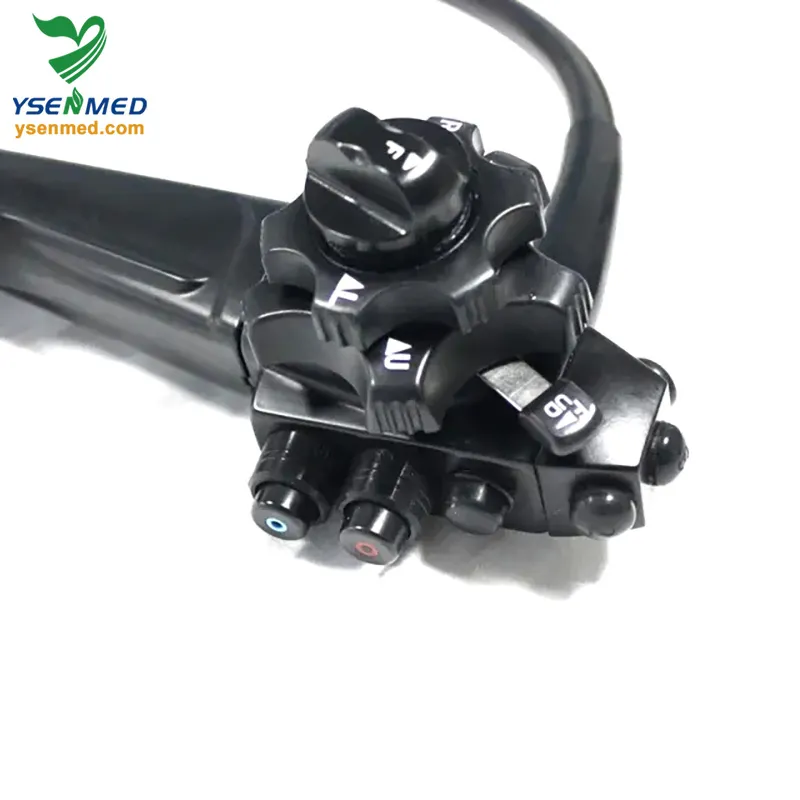

| Tip Deflection | U/D 180°, L/R 160° | U 210°, D 90°, L/R 100° | U 160°, D 130° | U 125°, D 90°, L/R 90° | U 160°, D 130° |
Main Functionality:
LCD Monitor:
Size: 24 Inch (16:9)
Resolution: 1920x1080
Interface: VGA/HDMI
Brightness: 250 cd/m2
Professional Trolley:
Size: 500 * 700 * 1350mm
Features: Built-in drawer
Package G.W.: 36kgs
