0.8mm Flexible Optical Fiberscope with 850mm Probe Length, Ent Endoscopy, Adjustable LED Light
0.8mm Flexible Optical Fiberscope with 850mm Probe Length, Ent Endoscopy, Adjustable LED Light
0.8mm Flexible Optical Fiberscope with 850mm Probe Length, Ent Endoscopy, Adjustable LED Light
0.8mm Flexible Optical Fiberscope with 850mm Probe Length, Ent Endoscopy, Adjustable LED Light
0.8mm Flexible Optical Fiberscope with 850mm Probe Length, Ent Endoscopy, Adjustable LED Light
1 / 5
0.8mm Flexible Optical Fiberscope with 850mm Probe Length, Ent Endoscopy, Adjustable LED Light
0.8mm Flexible Optical Fiberscope with 850mm Probe Length, Ent Endoscopy, Adjustable LED Light
0.8mm Flexible Optical Fiberscope with 850mm Probe Length, Ent Endoscopy, Adjustable LED Light
0.8mm Flexible Optical Fiberscope with 850mm Probe Length, Ent Endoscopy, Adjustable LED Light
0.8mm Flexible Optical Fiberscope with 850mm Probe Length, Ent Endoscopy, Adjustable LED Light

0.8mm Flexible Optical Fiberscope with 850mm Probe Length, Ent Endoscopy, Adjustable LED Light

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Digital Imaging System
Send Inquiry

Product Description

Basic Info

Model NO.
SZF101D
Certification
CE
Group
Middle-aged and Old
Camera Diameter
0.8mm
Cable Length
850mm
Waterproof
IP67
Light Source
Adjustable
Focus
Adjustable
Dof
2mm-50mm
View Angle
85 Degree
Transport Package
Box: Fire Protection
Specification
48cm x 39cm x 19.5cm
HS Code
8525801390
Production Capacity
200PCS / Month

Product Description

0.8mm flexible optical fiberscope with 850mm probe length, Ent endoscopy, adjustable led light

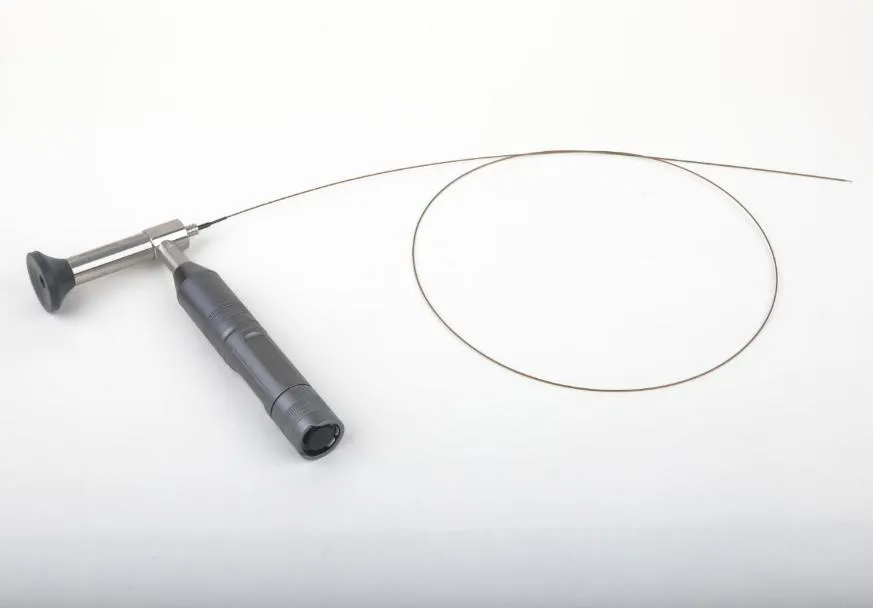

0.8mm Flexible Optical Fiberscope
Technical specifications:
Tube 1. Diameter: 0.8mm, working cable length: 850mm
2. Working hose surface material is nylon (polyamide), lens and hose waterproof, anti-oil; resistant to weak acid, weak base
Probe camera lens 1. View field angle: ≥85°
2. View direction angle: 0°
3. DOF: 2mm~50mm
4. Magnification (two optional): 60 times (positive); 65 times (reverse image)
Lighting Hose fiber optic light transmission inside, high brightness LED light source back lighting, portable integrated light source, adjustable brightness
Viewing terms Optical eyepiece observation
Temperature -20ºC~70ºC
Battery working time ≥4 hours
Battery with flash light:

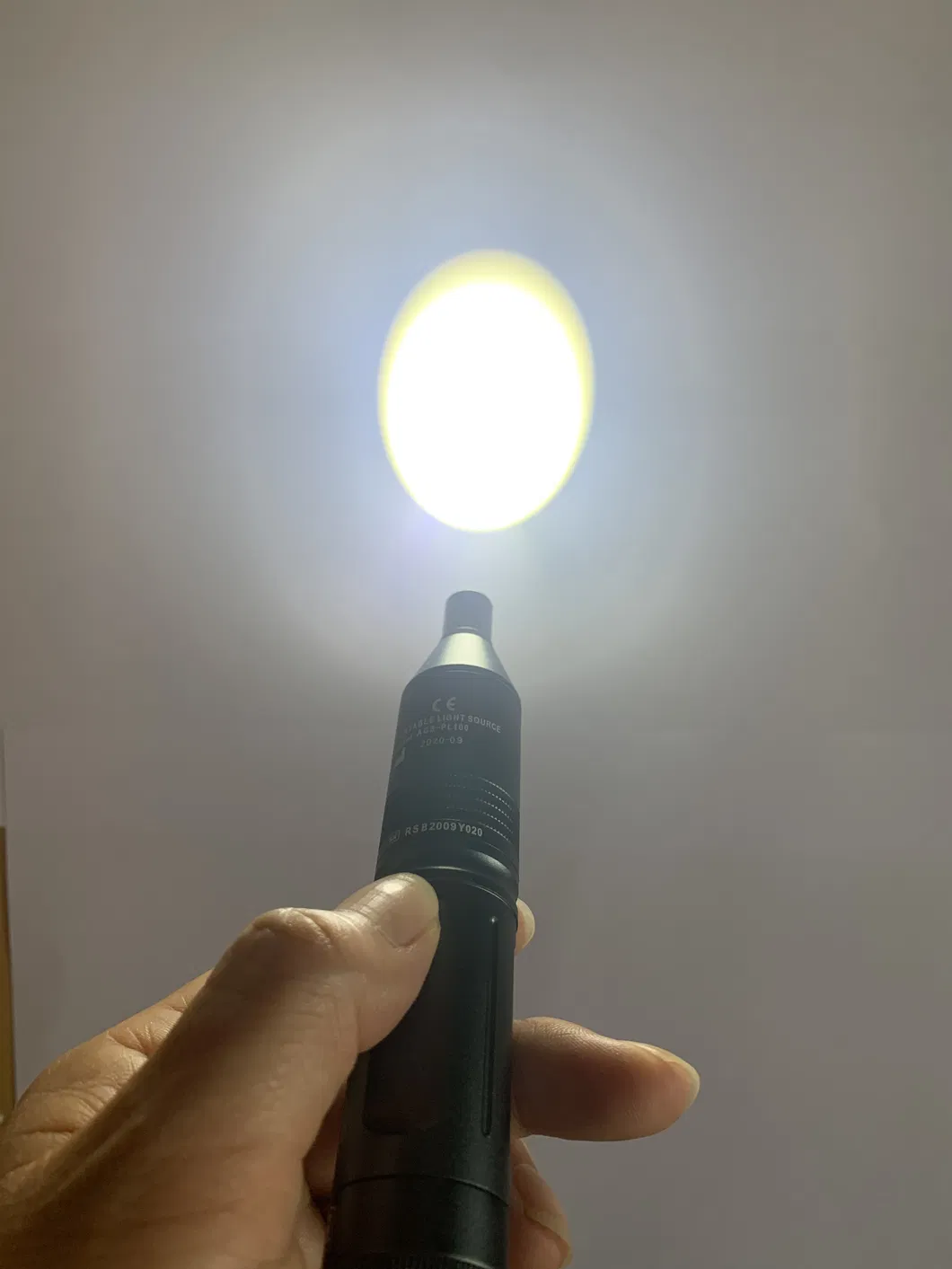

Fiberscope Battery and Light Source

Frequently Asked Questions

What are the dimensions of the probe?
The probe features an ultra-fine diameter of 0.8mm and a total working cable length of 850mm, making it ideal for precision medical and industrial applications.
Is the device resistant to liquids and chemicals?
Yes, the working hose is made of high-quality nylon (polyamide). The lens and hose are waterproof (IP67), anti-oil, and resistant to weak acids and weak bases.
How is the visual quality and focus handled?
The device offers a field of view angle of ≥85° and a depth of field (DOF) between 2mm and 50mm. Both the focus and the LED light brightness are fully adjustable for clear optical eyepiece observation.
What is the battery life of the integrated light source?
The portable integrated light source is powered by a battery that provides a continuous working time of 4 hours or more.
What are the magnification options available?
The fiberscope comes with two magnification options: 60 times for positive images and 65 times for reverse images.
What is the operating temperature range?
The device is designed to operate efficiently in environments ranging from -20ºC to 70ºC.
