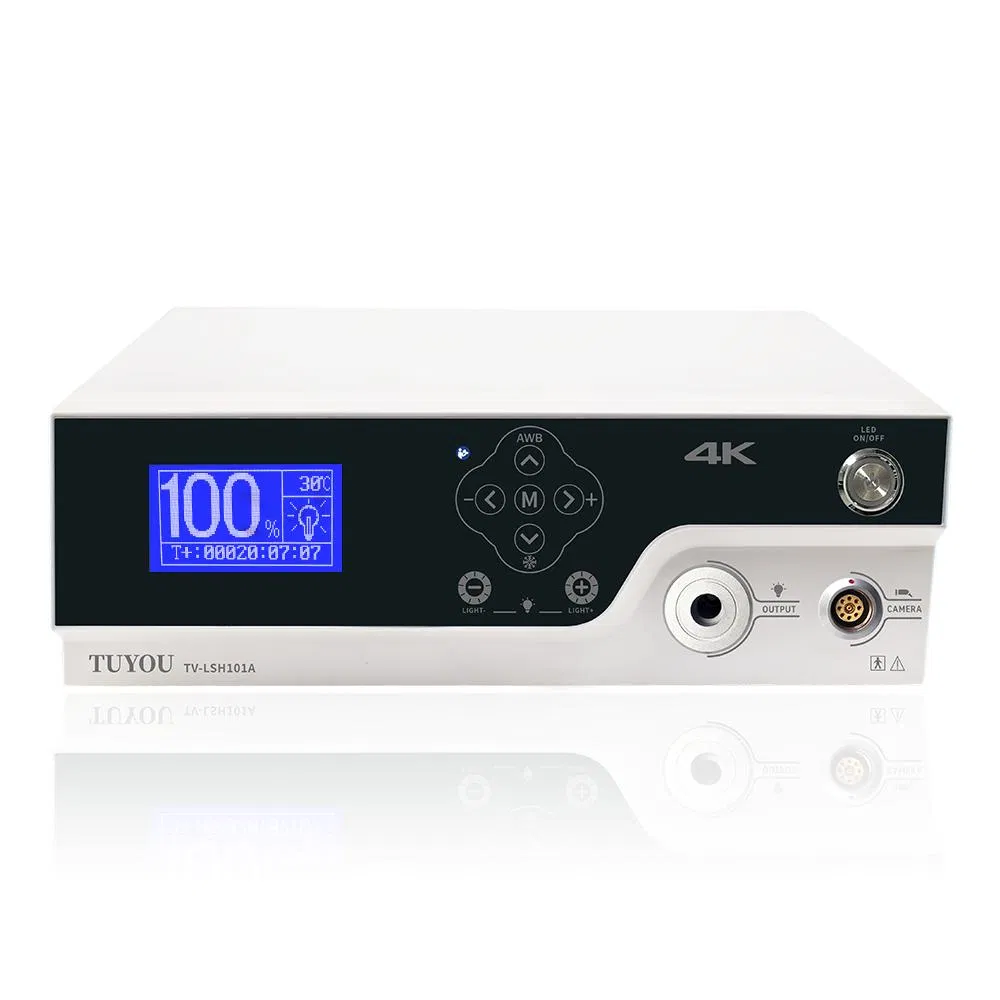

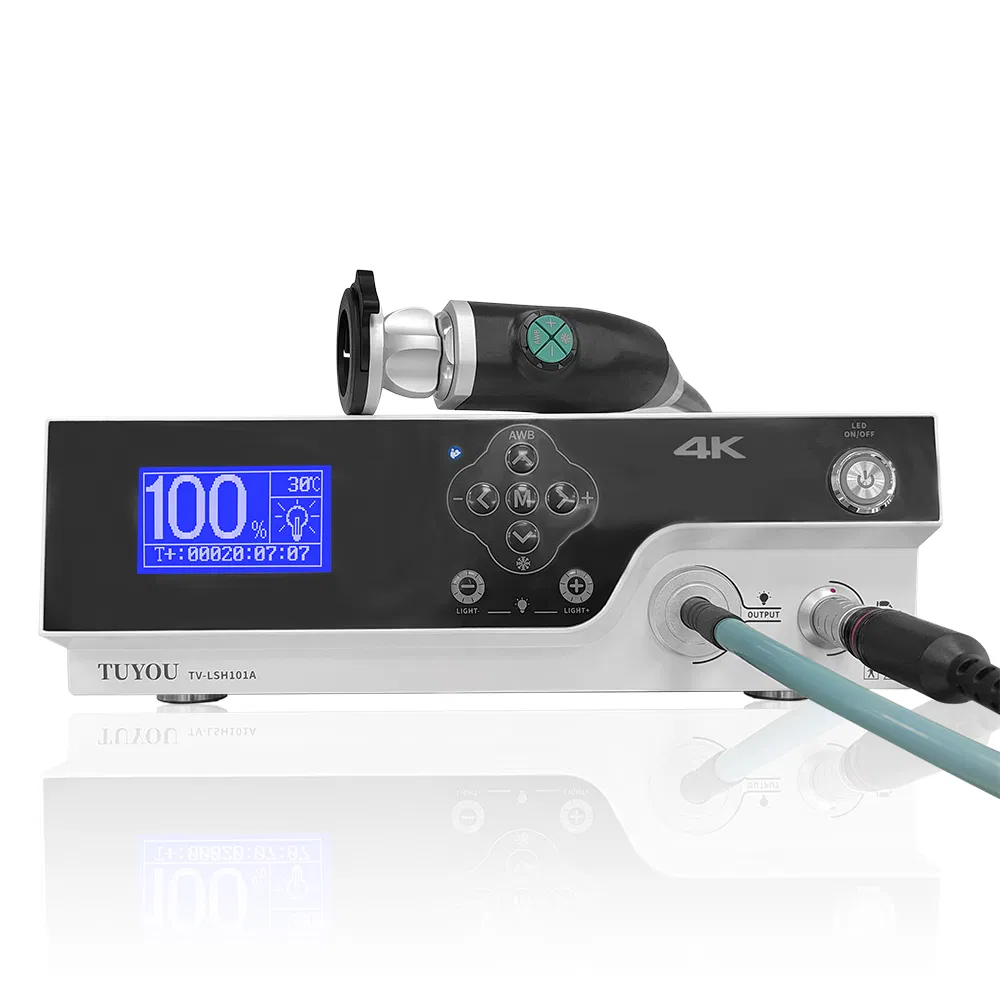

| Model NO. | TV-LSH101A |
|---|---|
| Certification | CE, ISO13485, FCC |
| Specification | 46.5*45*21.5cm 5.8kg |
| Production Capacity | 2000/Month |
| System Parameters | |
|---|---|
| Input Interface | SDI 4K 60FPS |
| Output Interface | HDMI/SDI |

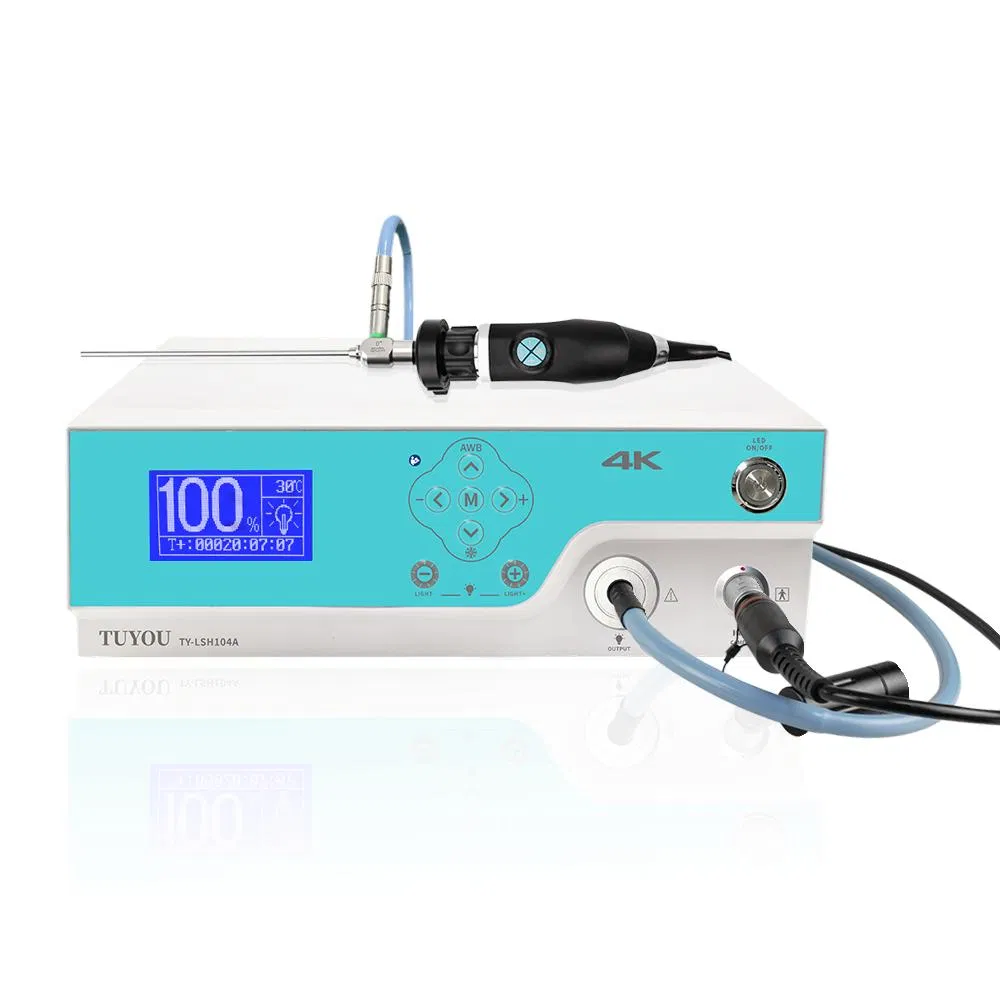

| Keypad Control | Control mainboard menu and shortcut keys through RX/TX |
| Power | AC110V~240V |
| Shortcut Key Function | Freeze / White Balance / Video / Photo / Digital Zoom |
| Noise | <45db |
| Product Size | L336*W330*H116mm |
| Net Weight | 4.2KG |
| Camera Parameters | |
|---|---|
| Image Sensor | 1/1.8" SONY CMOS |
| Effective Pixels | 3864(H) × 2192(V) Approx. 8.46M pixels |
| Resolution | SDI 4K 60fps |
| AWB | One Button White Balance |
| D-ZOOM | Image zoom 1-8X |
| Lens Mode | ENT / Abdominal / Bladder / Uterine / Joint / Foramen / Fiber / Custom |
| Working Current | 250mA±10mA |

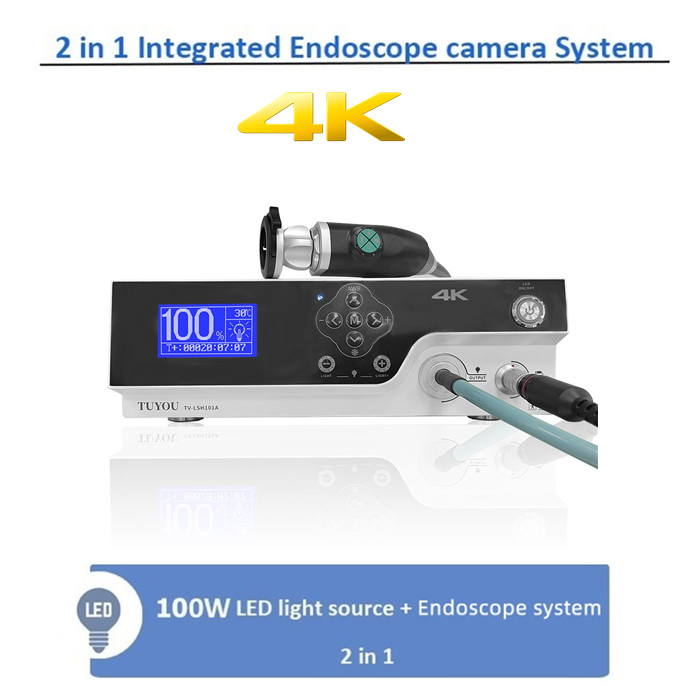

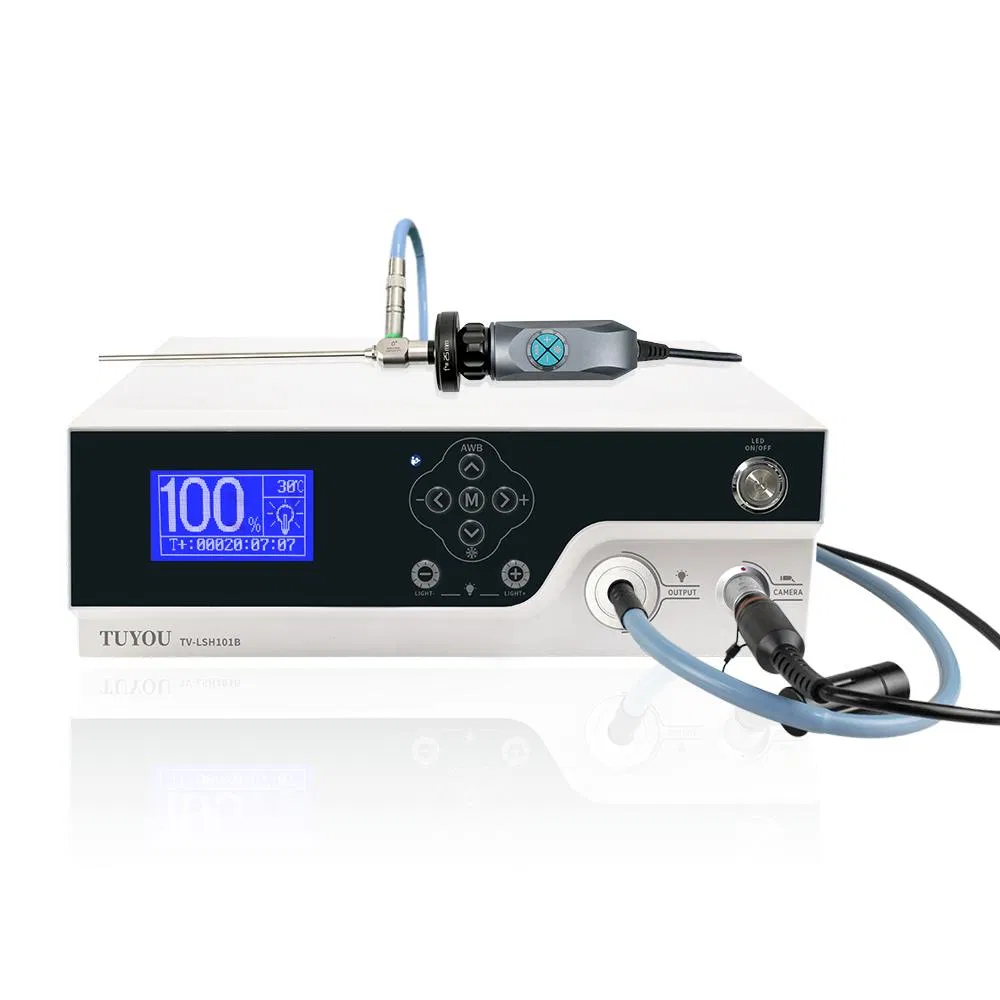

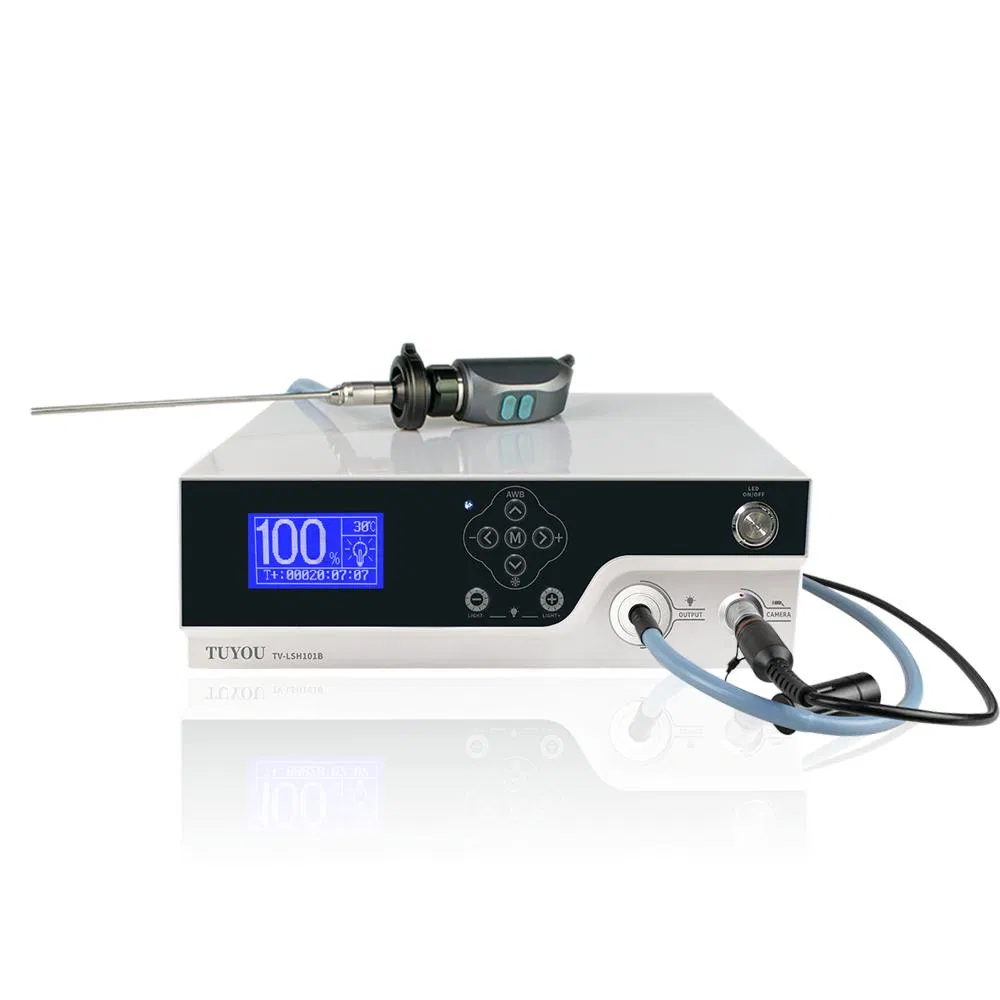

Self-contained video recording system, light source, and high-definition display screen.
One-key freeze, one-key white balance, and one-key digital zoom for efficient surgery.
Automatically memorizes the brightness settings before shutdown; no initialization required upon startup.

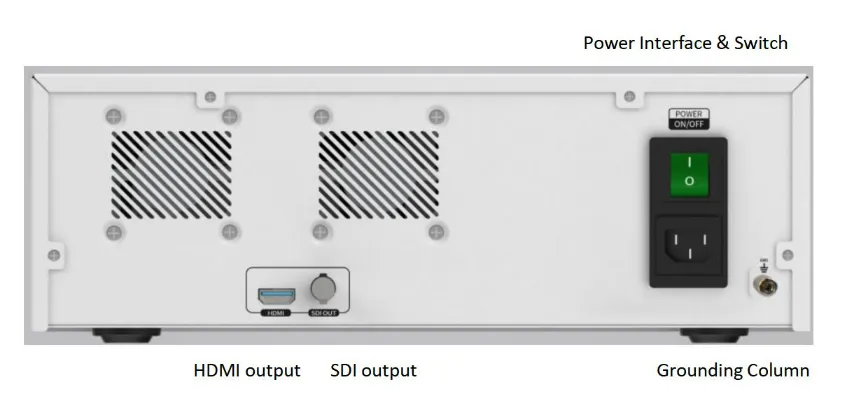

Supports multiple output signals for connection to external professional medical displays.

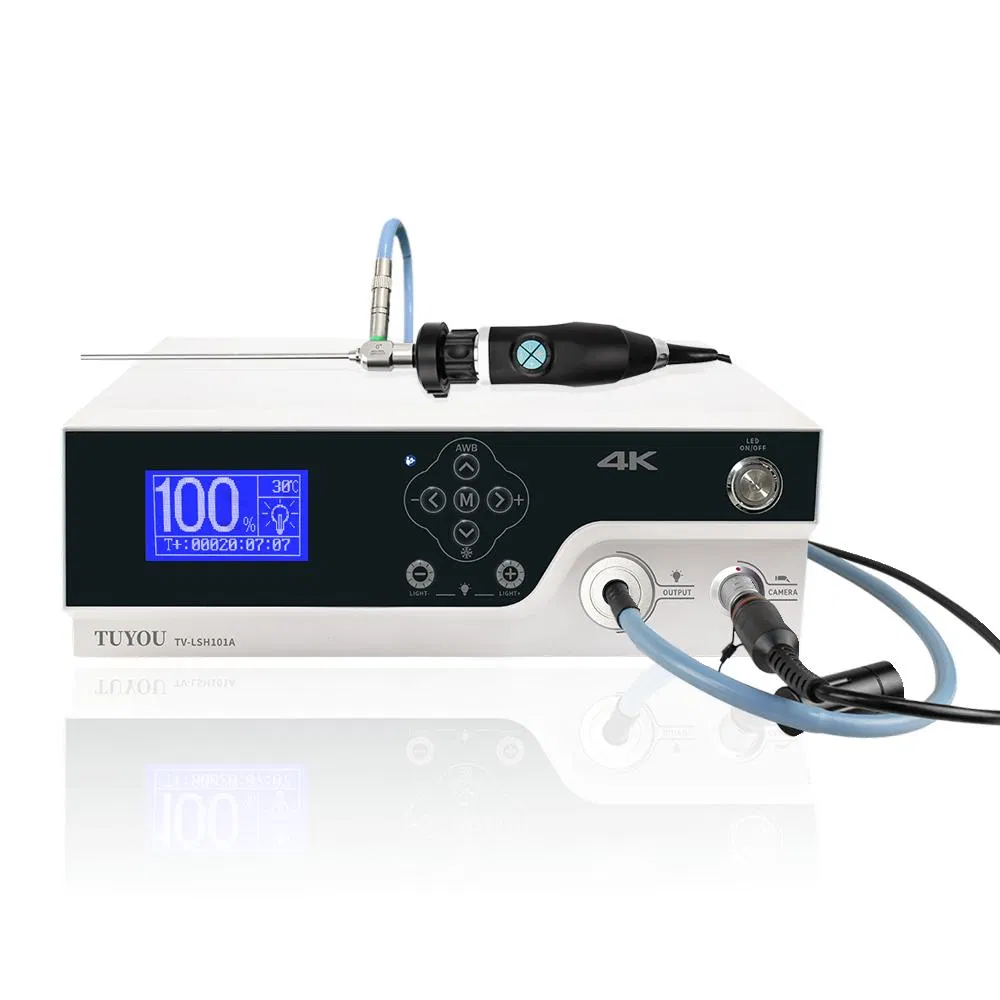

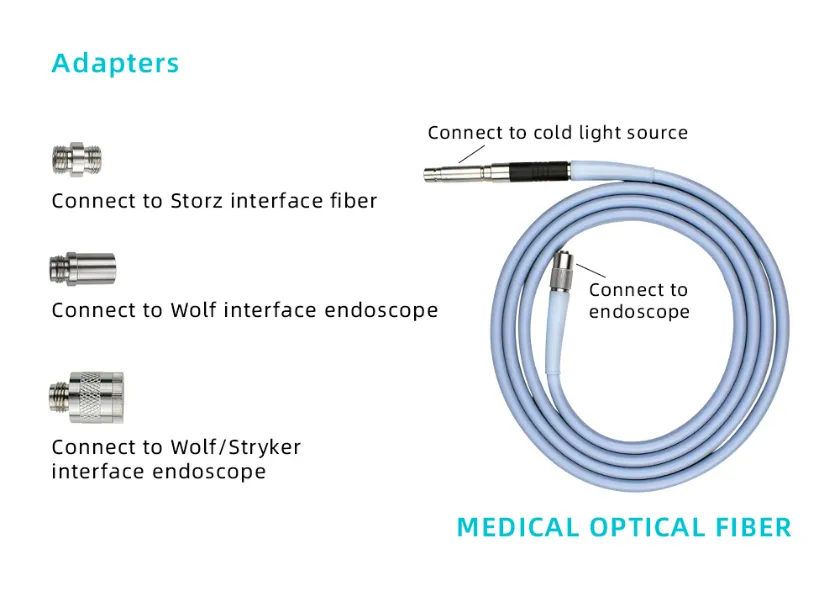

The endoscope light source imaging system is widely used across various clinical practices, including ENT, urology, gynecology, ophthalmology, orthopedics, neurosurgery, and medical cosmetic surgery. It consists of a high-precision camera control system, ergonomic handle camera, light guide, and professional optical adapter.
