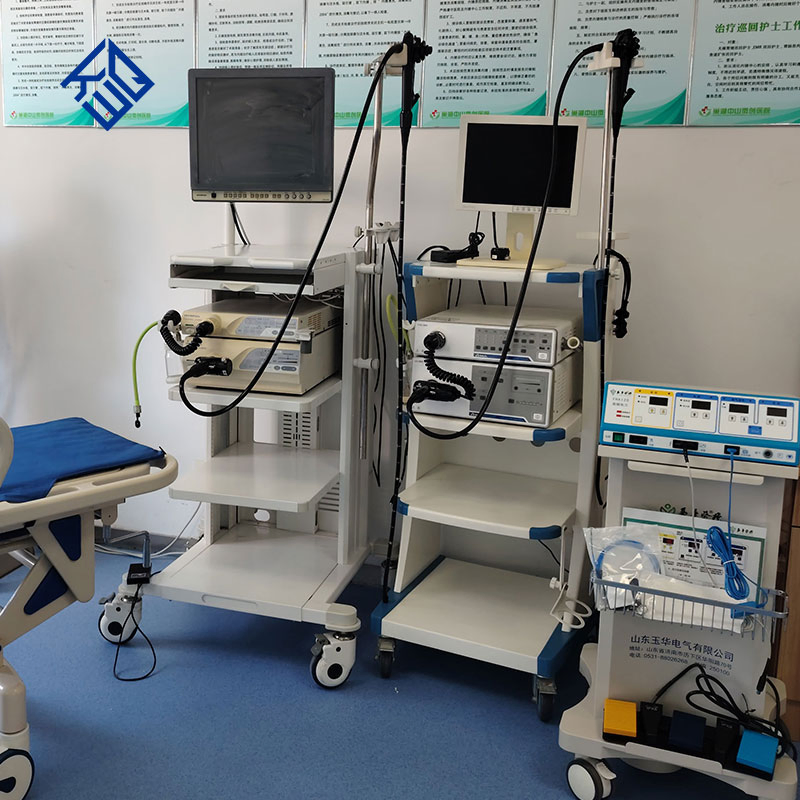

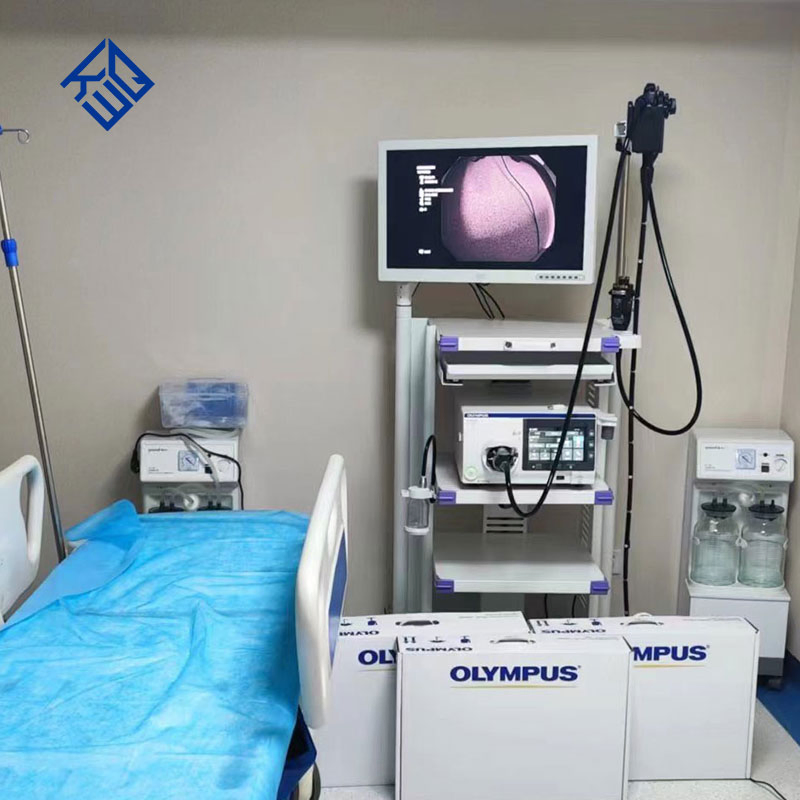

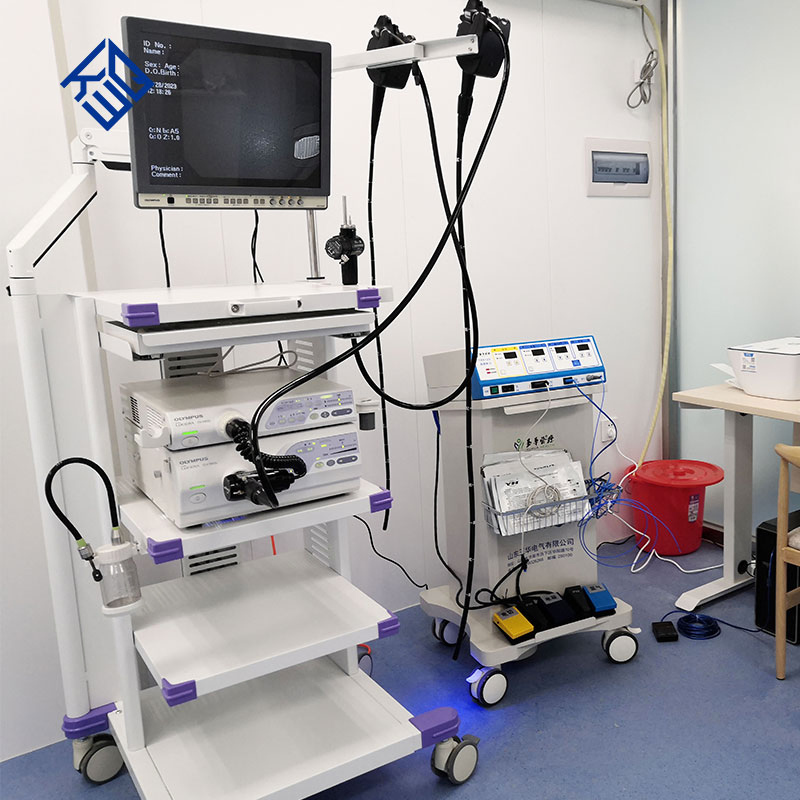

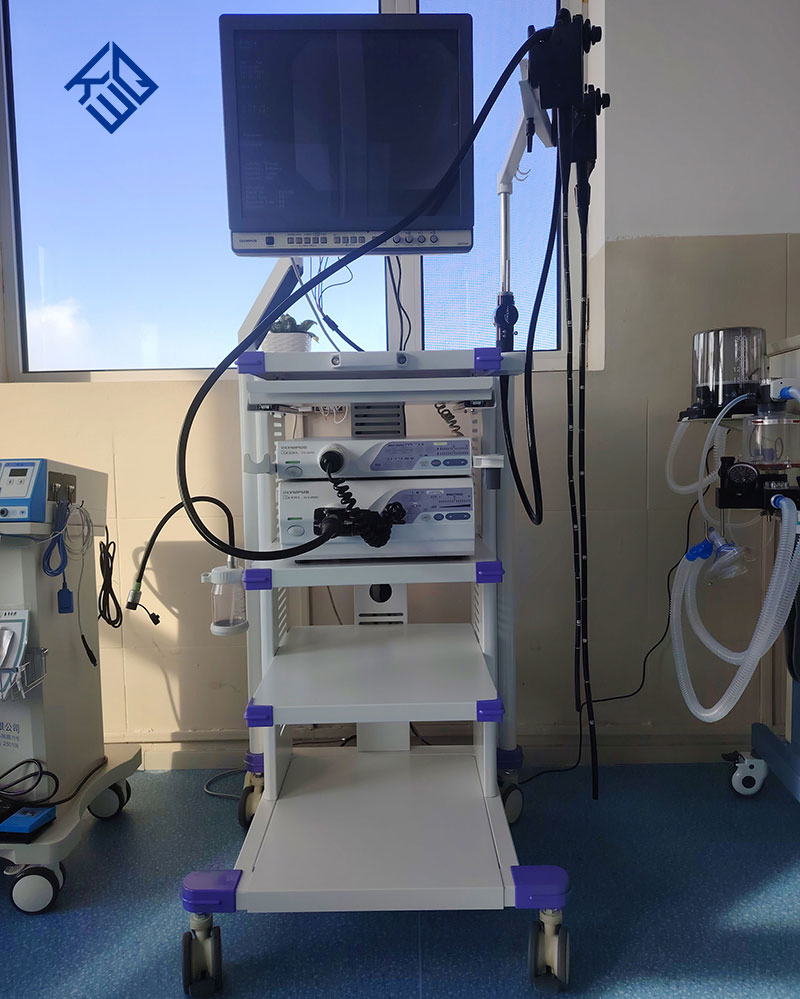

Hospital Video Endoscopy Camera Tower Gastroscope Colonoscope Imaging System

1 / 5

Hospital Video Endoscopy Camera Tower Gastroscope Colonoscope Imaging System

Customization:	Available
Type:	Electrosurgical
Application:	Emr-ESD-Ercp

Send Inquiry

Product Description

Overview & Basic Info

Feature

Reusable

Group

Children and Adult

Function

Flexible

Language

Multi Language

Model

CV170/190/290, Ect

Endoscopy

CV-290+Clv-290SL+GIF-Hq290+CF-Hq290I

Electronic System

CV-170+GIF-H170+CF-H170L/I

Imaging

Evis Lucera Elite

Trolley

Wm-Np2

Trademark

Olympus

Origin

Japan

Product Description

CV-290 + CLV-290SL + GIF-HQ290 + CF-HQ290I

A New Standard for High-definition Upper Gastrointestinal Tract Endoscopes with Further Improved Approachability and Operability.

Product Features

🎯

Improved Approach

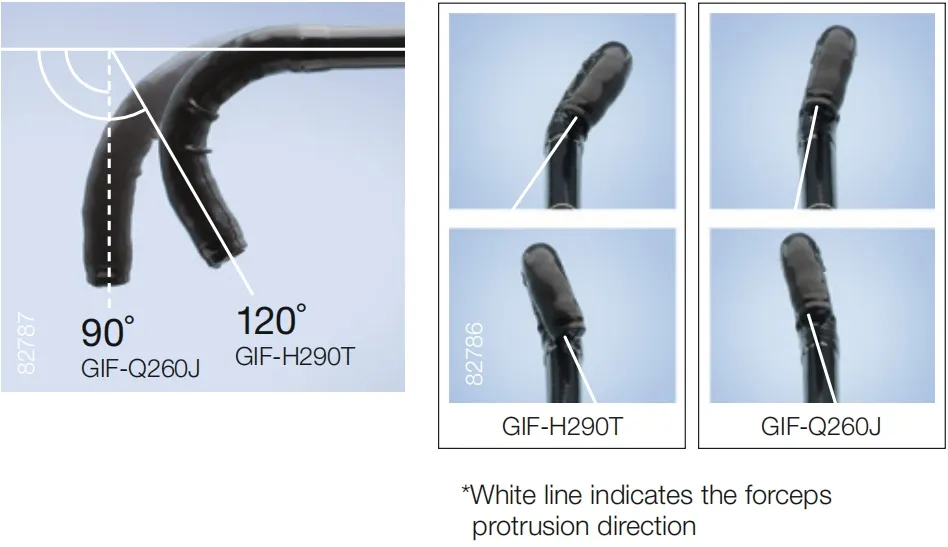

The down angle of the GIF-H290T expanded to 120˚. Extended left/right moveable range during up angle offers easier lesion approachability.

💧

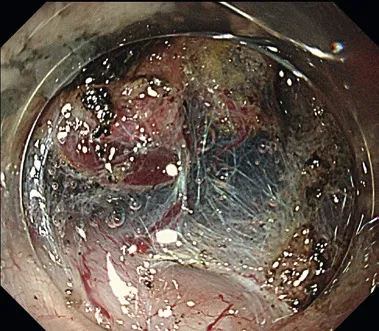

Rapid Hemostasis

Improved auxiliary water channel position close to the instrument channel for smooth operation and rapid hemostasis support.

🖥️

HD Imaging

Equipped with high-definition CCD, providing high-resolution HD images for improved treatment accuracy and clarity.

Technical Parameters

Optical System	Field of view	140º
	Direction of view	0° (Forward viewing)
	Depth of field	3-100 mm
Insertion Section	Distal end outer diameter	9.8 mm
	Insertion tube outer diameter	9.9 mm
	Working length	1030 mm
	Instrument Channel inner diameter	Standard
	Minimum visible distance	3 mm
Air/Water	Air flow rate	30 cm³/s
Bending Section	Angulation range	Up 210º / Down 120º / Right 100º / Left 100º
Total Length	1350 mm
Compatibility	EVIS LUCERA SYSTEM: CV-290, CLV-290SL, CLV-290

Frequently Asked Questions

What are the primary components of this endoscopy system?

The system typically includes the CV-290 video system center, CLV-290SL xenon light source, and high-definition endoscopes like the GIF-HQ290 and CF-HQ290I.

Does this system support both adult and pediatric patients?

Yes, the equipment is designed for use with both children and adults, offering the flexibility needed for various clinical environments.

What imaging technology is used in the EVIS LUCERA ELITE series?

It utilizes high-definition CCD technology to provide superior HD images, which enhances diagnostic accuracy during gastrointestinal procedures.

How has the bending capacity been improved in the newer models?

The GIF-H290T model features an expanded down angle of 120˚ (up from 90˚) and improved left/right moveable ranges for better lesion accessibility.

Is the system compatible with existing OLYMPUS processors?

This system is compatible with the EVIS LUCERA SYSTEM, specifically the CV-290 video center and CLV-290 series light sources.

What is the advantage of the auxiliary water channel?

The auxiliary water channel is positioned close to the instrument channel to support rapid hemostasis by supplying water directly to the site without needing to adjust the scope position.
