📋Overview
| Model NO. | MEB-5.2B |
Material | Steel |
| Feature | Reusable |
Certification | CE, ISO13485 |
| Group | Adult |
Usage | Difficult Airway Intubation |
| Display | 3.5inch or 10.1" |
Working Length | 300mm-600mm |
| Resolution | 600,000 Pixels |
Channel | 1.2mm - 2.8mm |
| Battery | Lithium Battery |
Warranty | 2 Years |
🔬Product Description

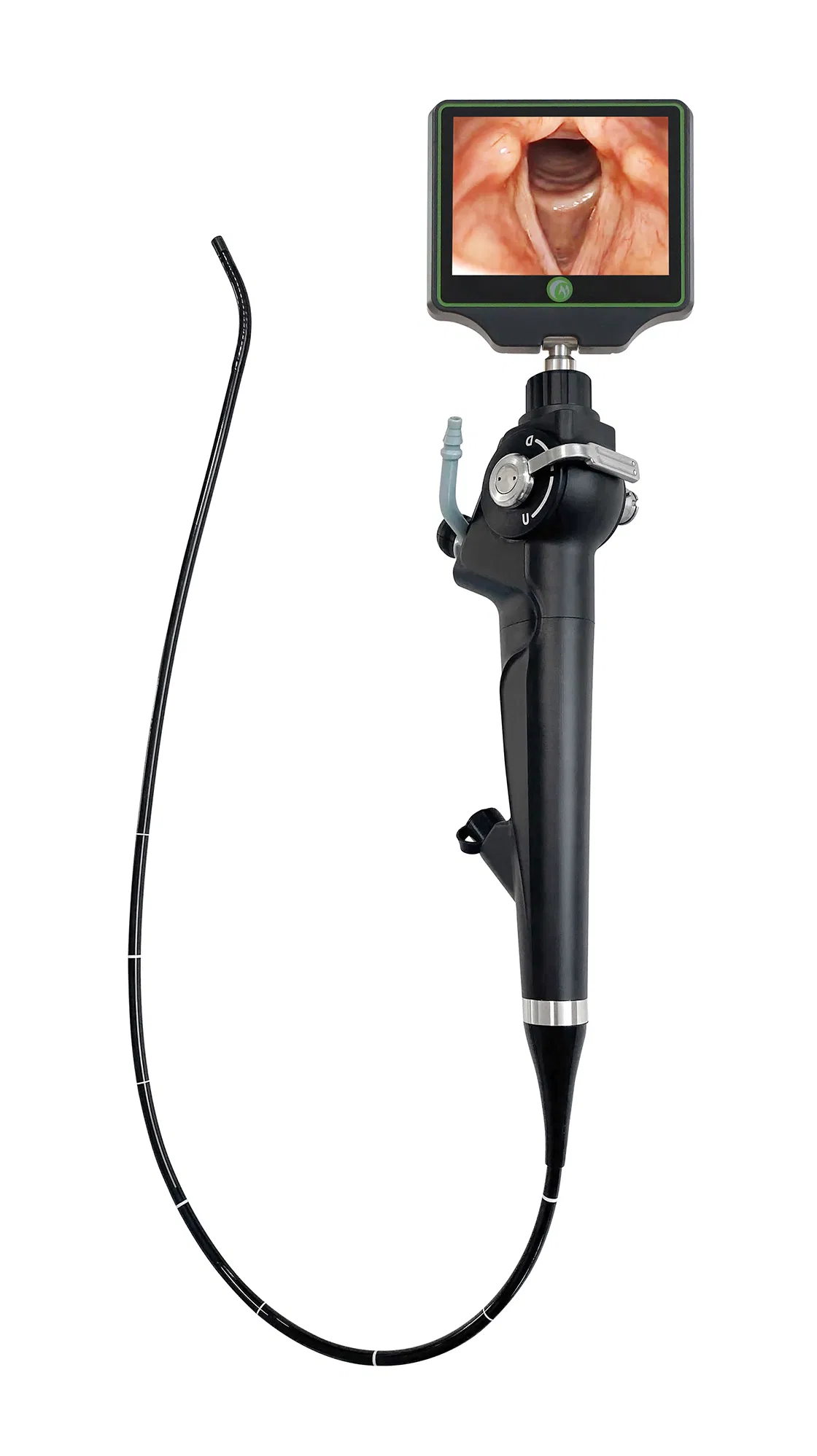

Portable Fiberoptic Bronchoscope Kit with LED Light Source

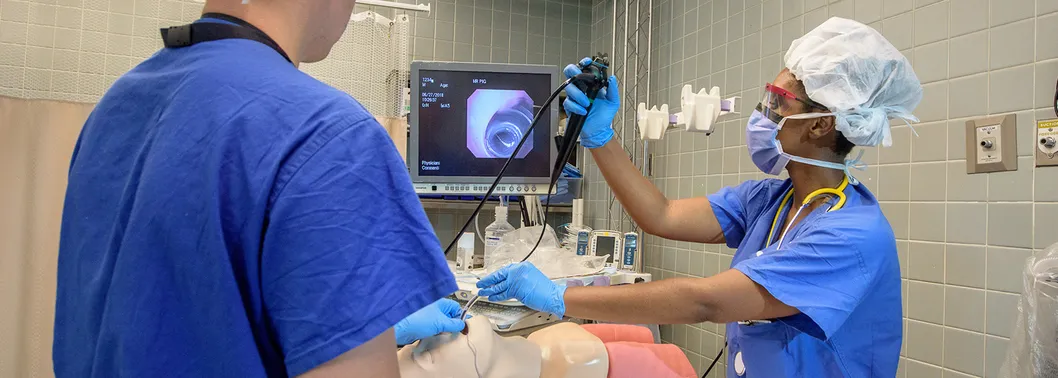

Highly suitable for clinical departments including Anesthesiology, ICU, Emergency, and Respiratory departments. It facilitates accurate airway management, especially for difficult tracheal intubations and placements of bronchial occluders under direct vision.

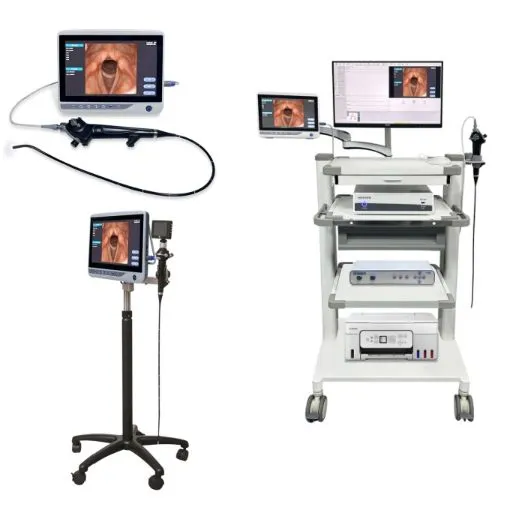

🖥️ Display: Supports 3.5-inch TFT LCD or 10.1" touch screen for intuitive large-screen viewing.
📸 Media: Integrated photo and video functions for clinical documentation.
🧩 Flexibility: Special hose process resistant to bending; viewing field of curved part > 180°.

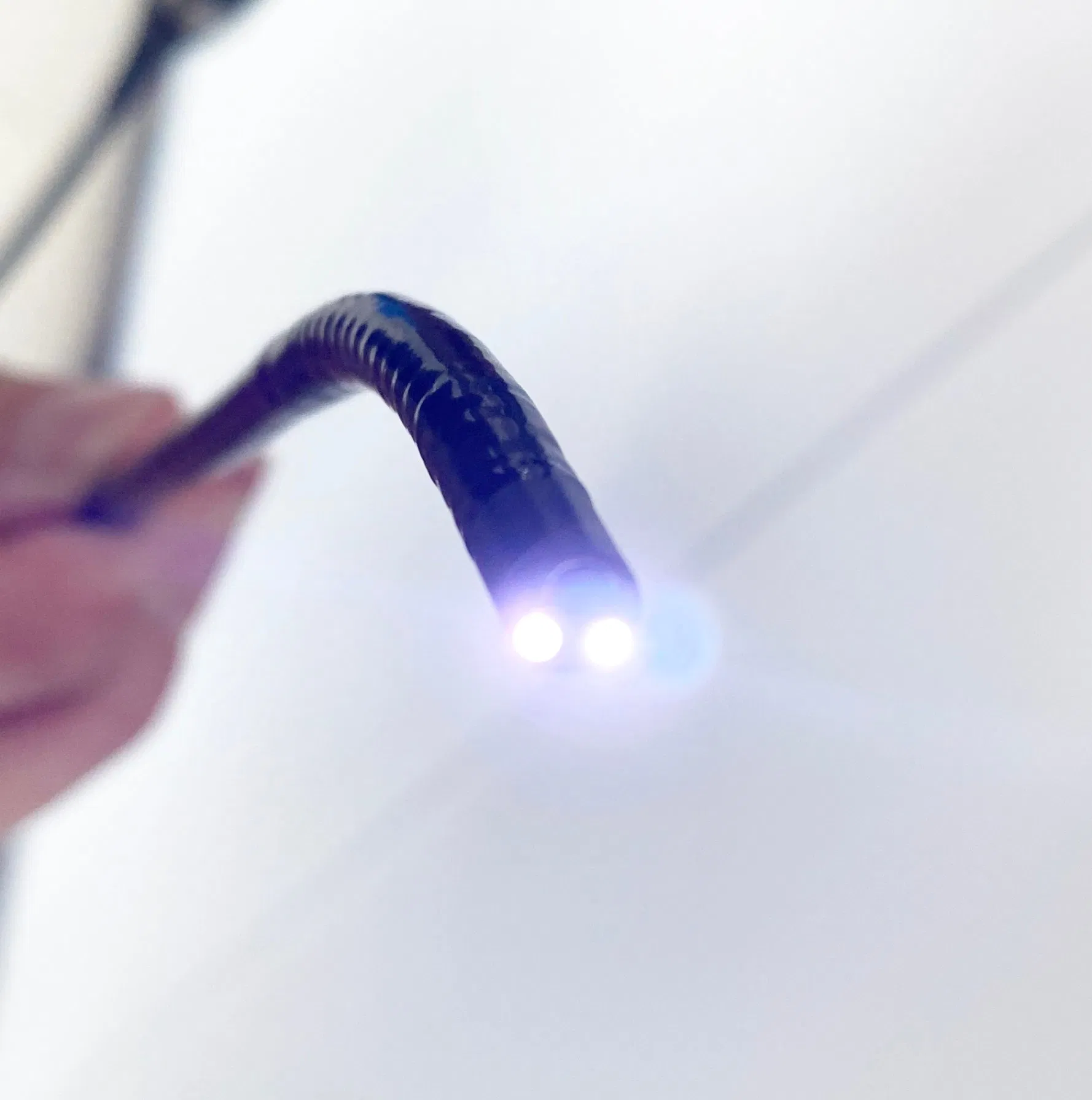

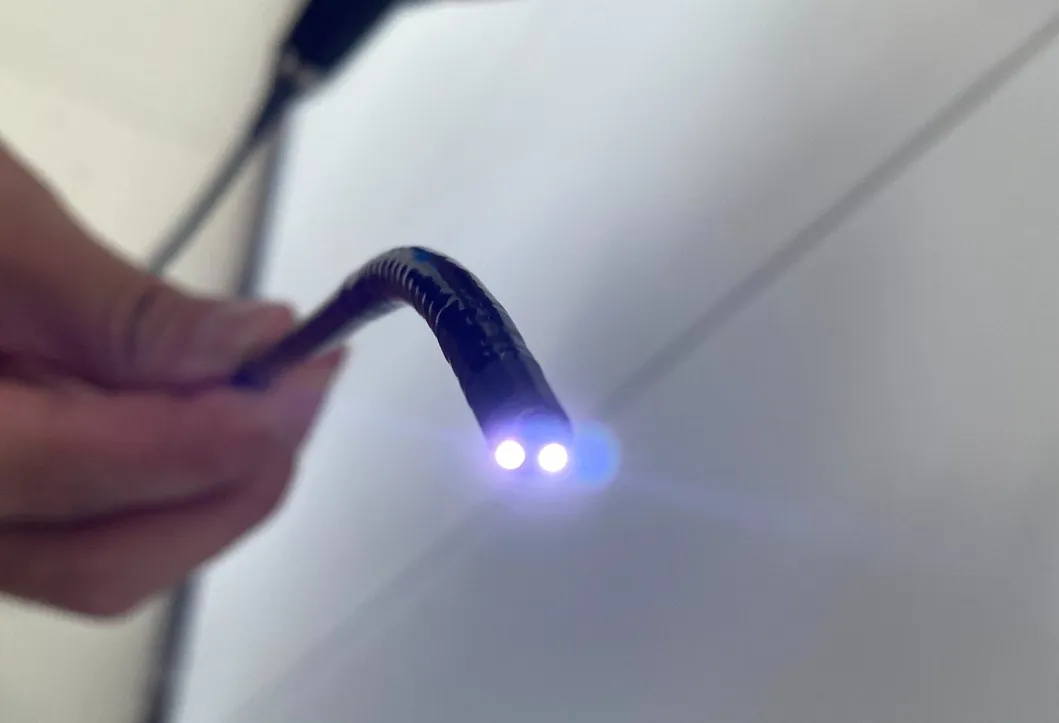

💡 Lighting: Electronic imaging system with high-illuminance LED light source (≥800lux).
⚙️Product Parameters
| Parameter |
Specification |
| Visual Field / Direction | 90°± 10% / 0° |
| Observe Depth | 3-100mm |
| Intubation Diameters | 3.2mm, 3.8mm, 4.8mm, 5.2mm, 5.8mm |

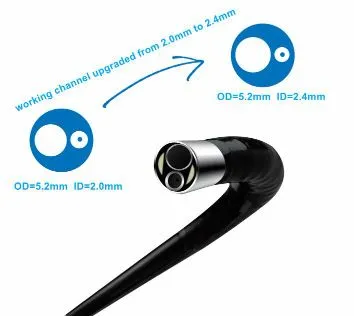

| Suction Channels | 1.2mm, 1.4mm, 2.4mm, 2.6mm, 2.8mm |

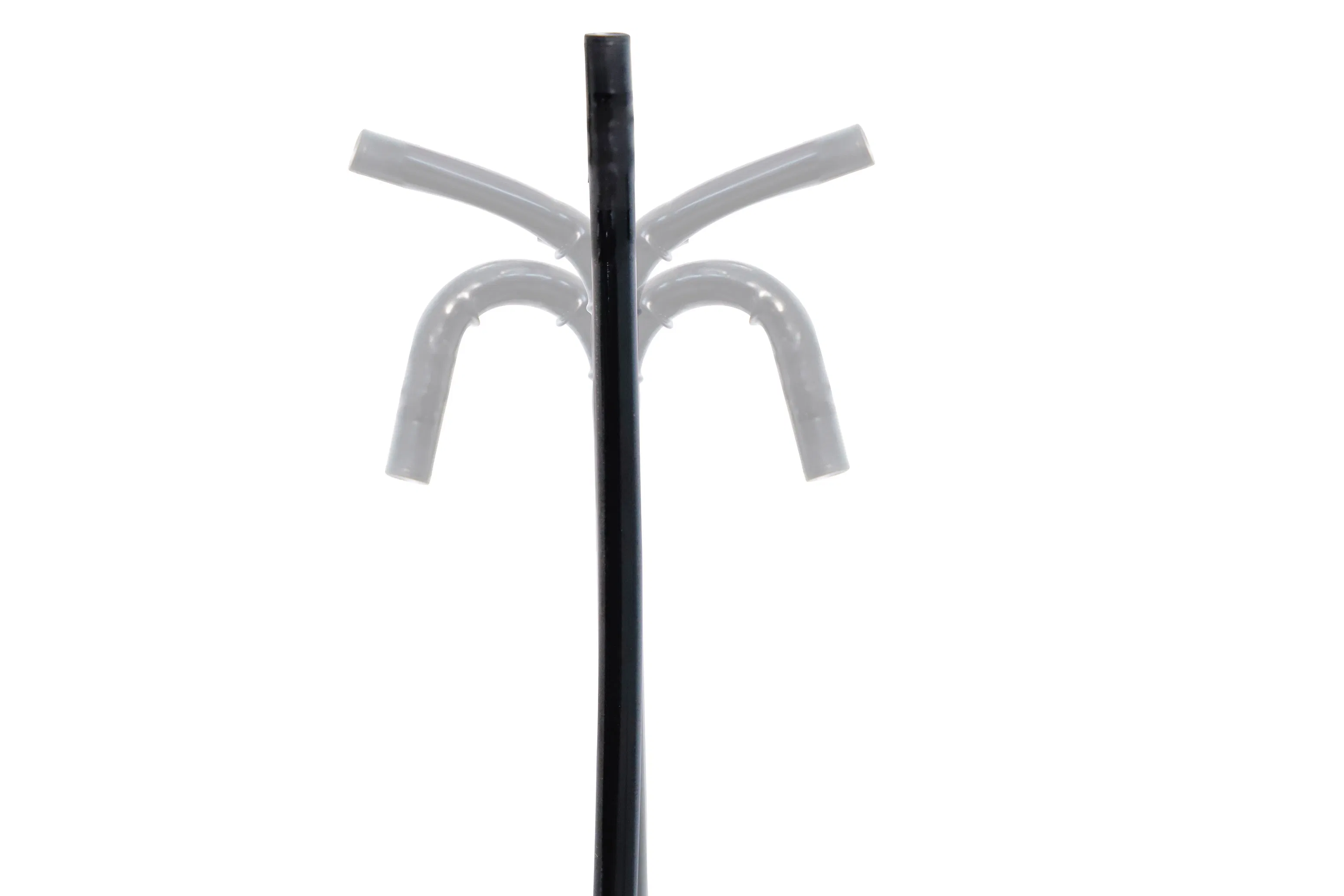

| Curved Angle | Upward 150°, Downward 130° |
| Pixel / Resolution | 2,000,000 pixels / 960 * 240 |

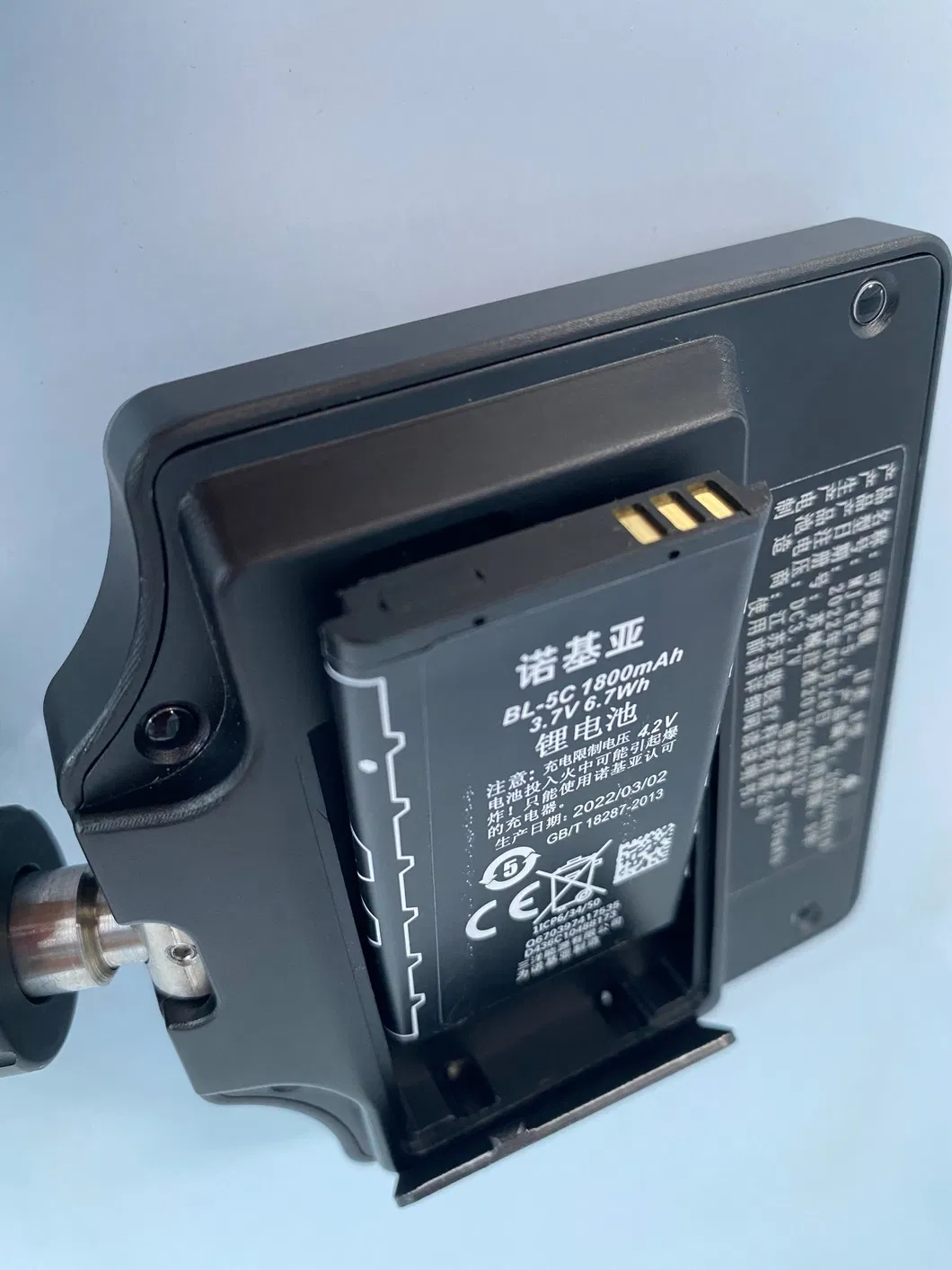

| Battery Capacity | 1850mA (Charge time < 3h, Discharge > 2.5h) |

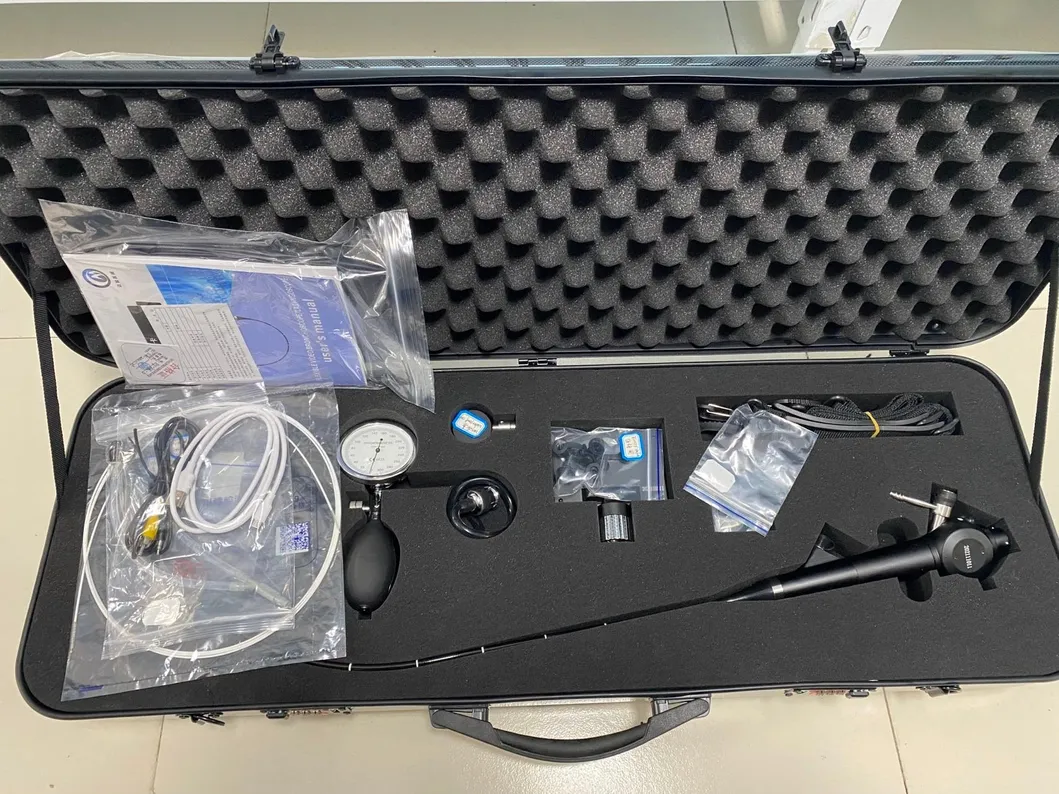

📦Standard Configuration

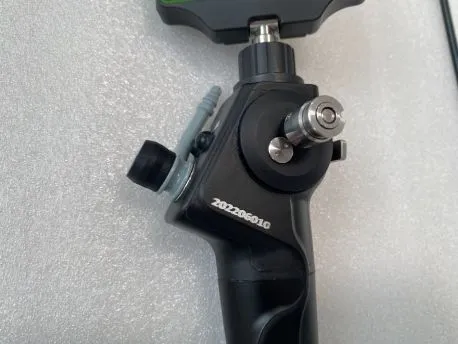

| 3.5inch Display (1 set) | Operative Section (1 pc) |
| Rechargeable Battery (1 pc) | Pressure Compensation Cap (2 pcs) |
| Waterproof Cap (2 pcs) | Reusable Biopsy Valve (2 pcs) |
| Suction Button (2 pcs) | Leak Detector (1 pc) |
| Cleaning Brush (1 pc) | SD Save Card (1 pc) |

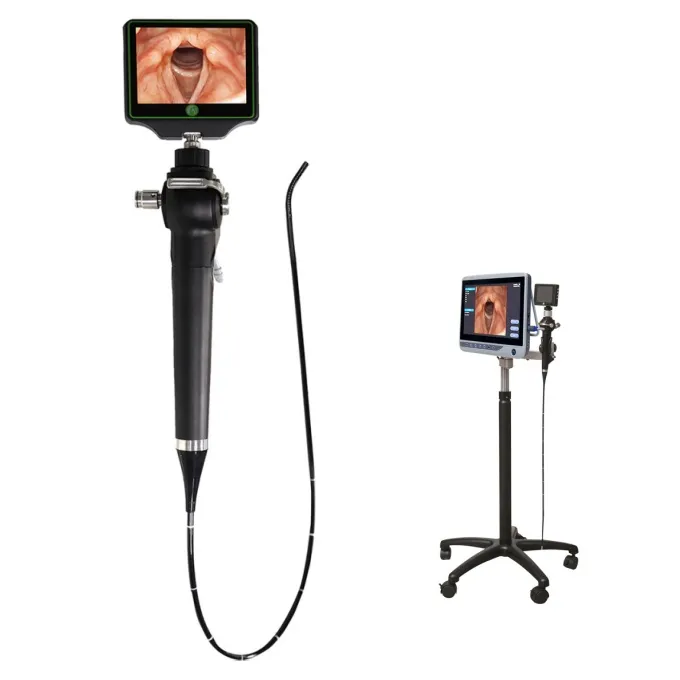

🖼️Detailed Product Photos

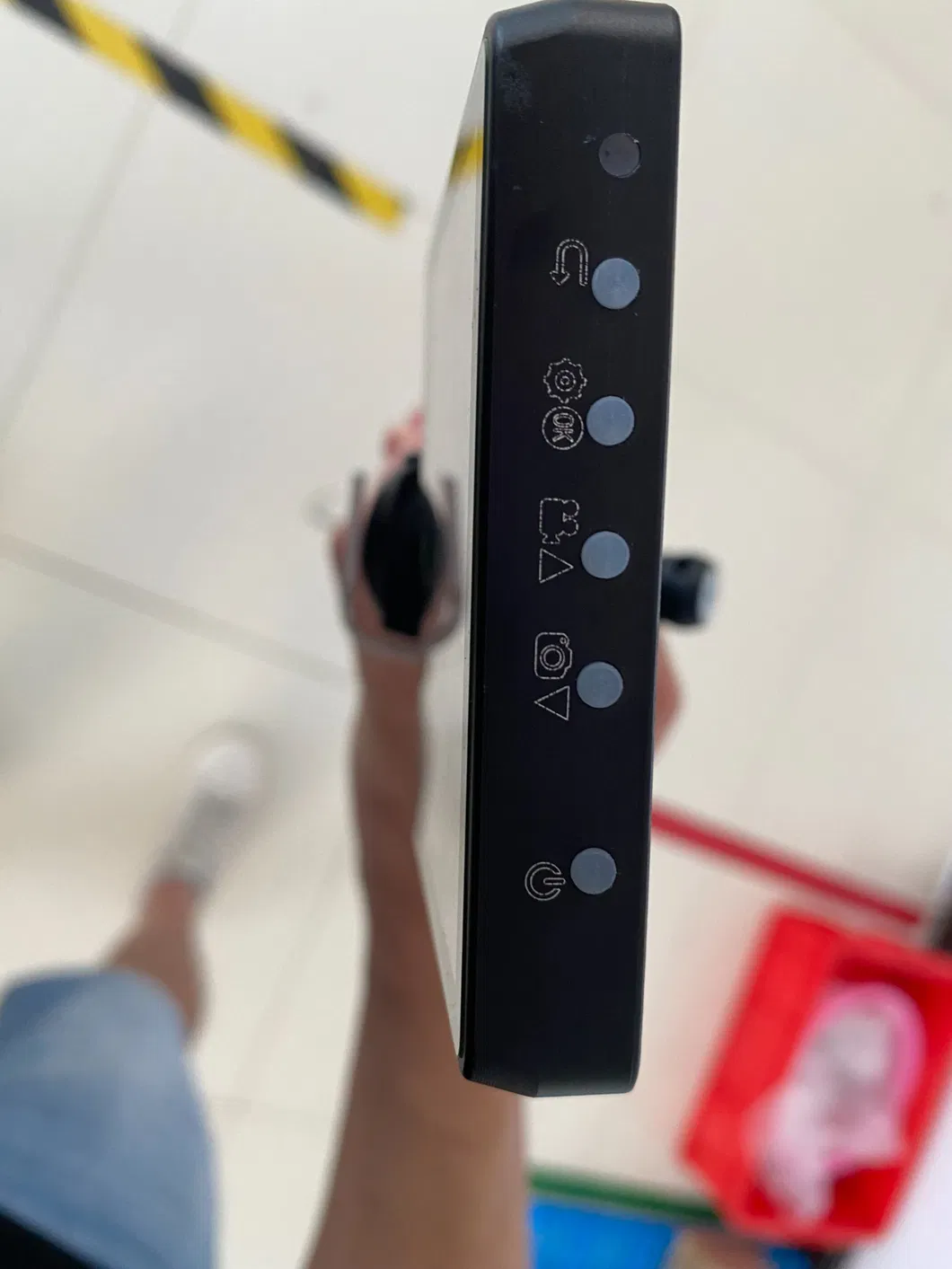

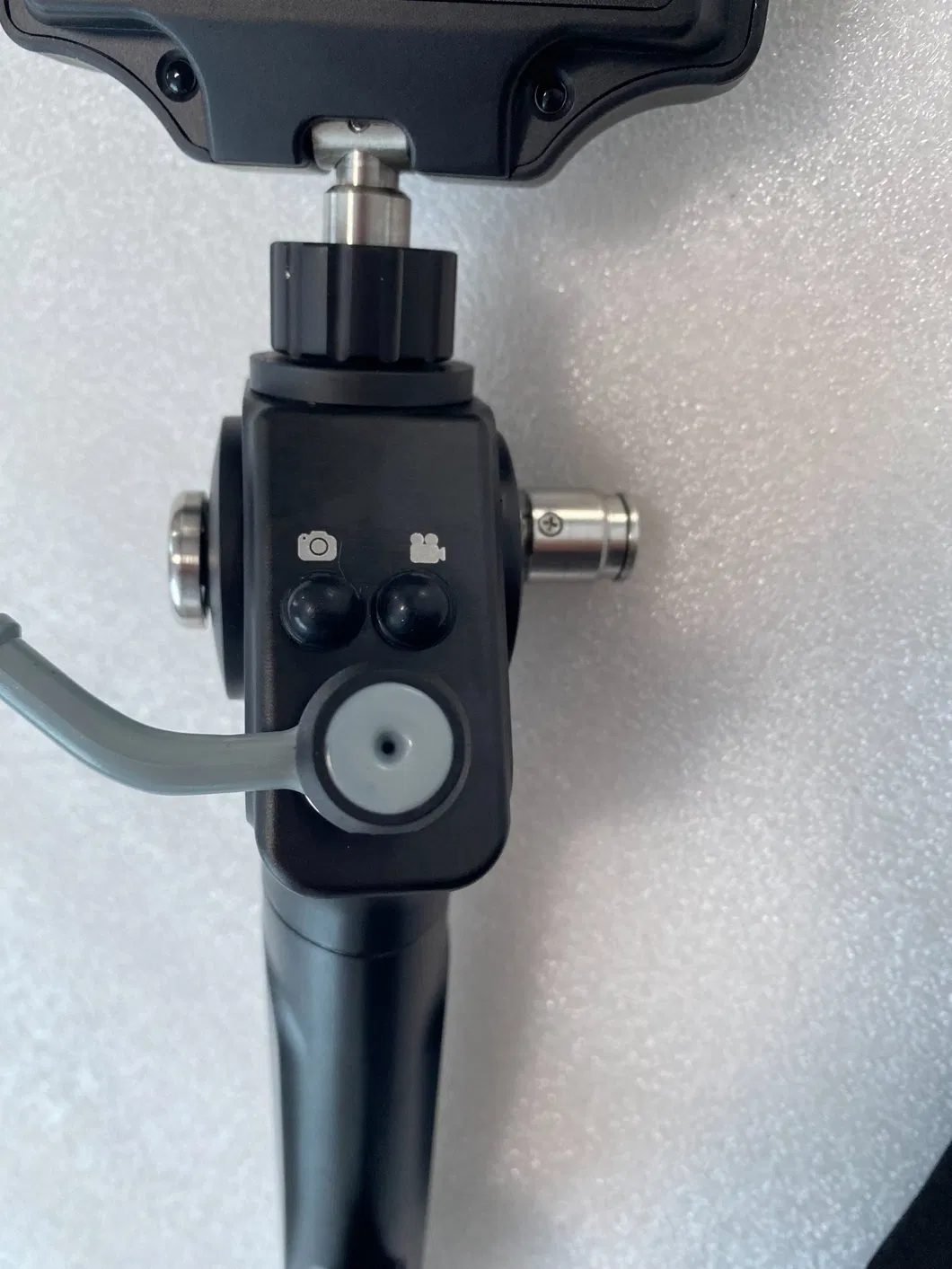

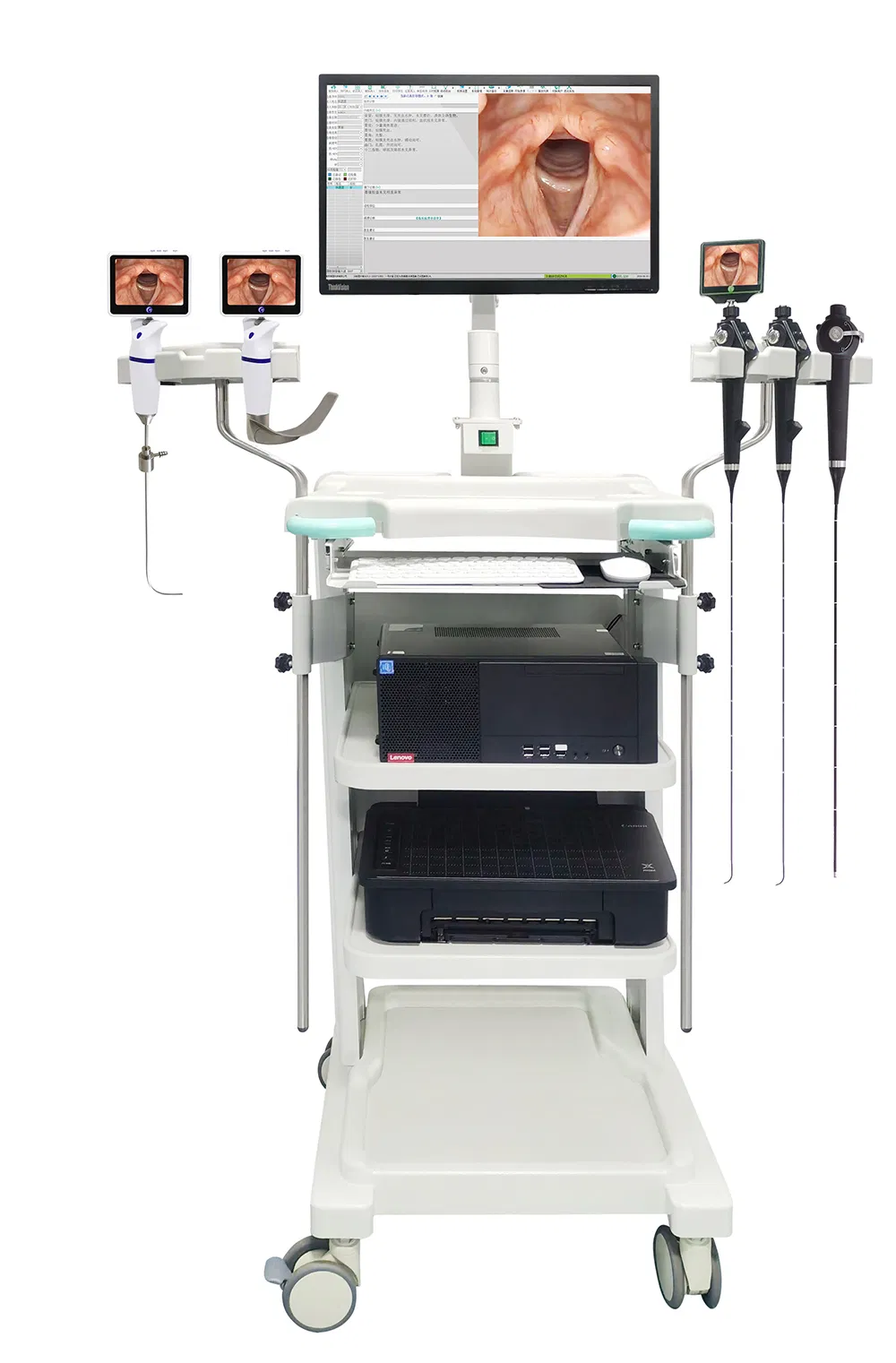

Components and Accessories
❓Frequently Asked Questions
Q1: Are you a manufacturer of this bronchoscope?
Yes, we have a dedicated R&D and sales team to provide professional one-stop services for medical equipment.
Q2: Can the device be customized (OEM/ODM)?
Yes, we can produce products according to your specific requirements provided all necessary documentation is available.
Q3: What are the available payment terms?
We accept L/C at sight, and T/T (30% deposit, 70% balance before shipment). Trade terms include EXW, FOB, and CIF.
Q4: How is the product packed for international shipping?
Products are packed in standard export wooden cases or cartons. Every unit is inspected by QC before delivery.
Q5: How do we handle installation and after-sales service?
We provide professional installation videos. For any technical issues during usage, our team responds within 24 hours.
Q6: Is the device suitable for both adults and children?
Yes, with various intubation diameters ranging from 2.8mm to 5.8mm, it can be used for infants, children, and adults.
