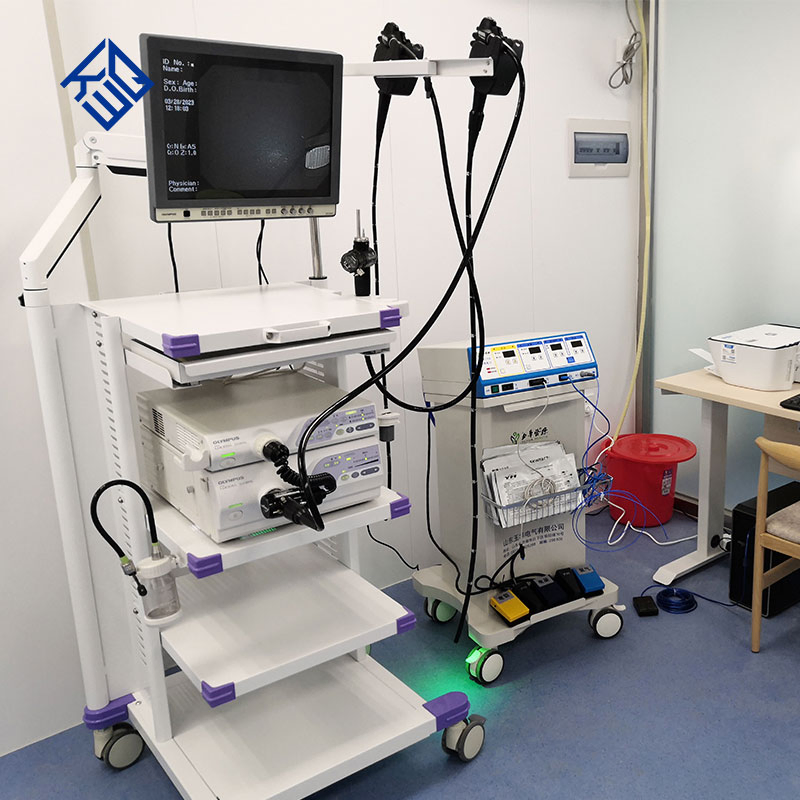

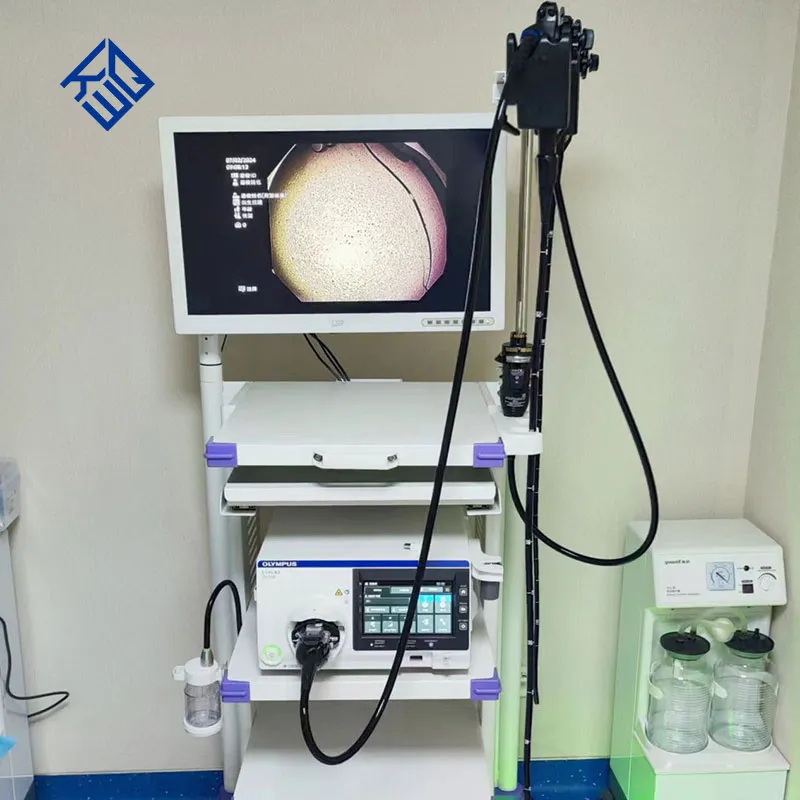

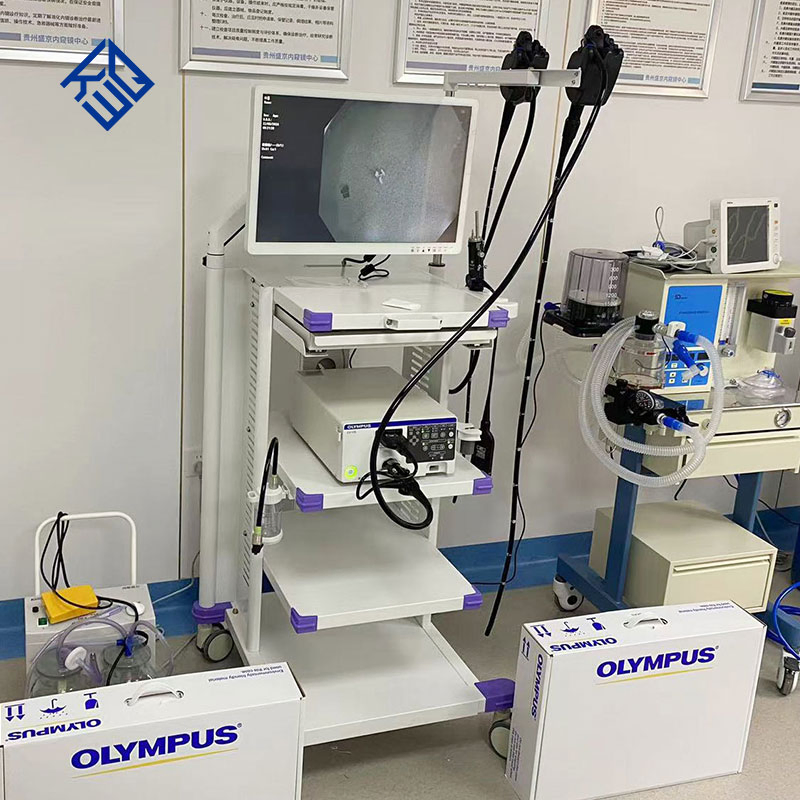

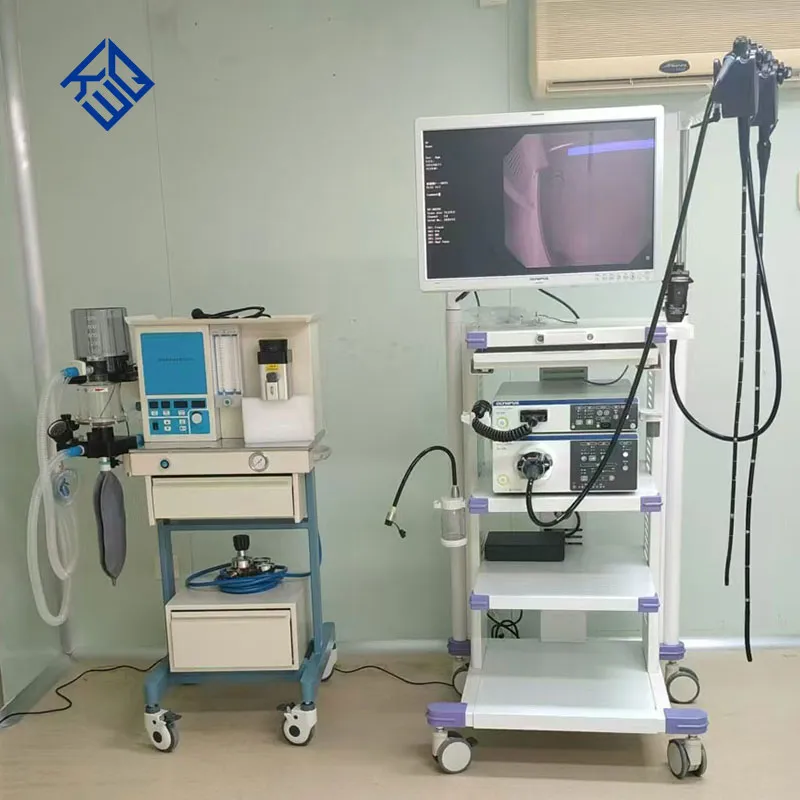

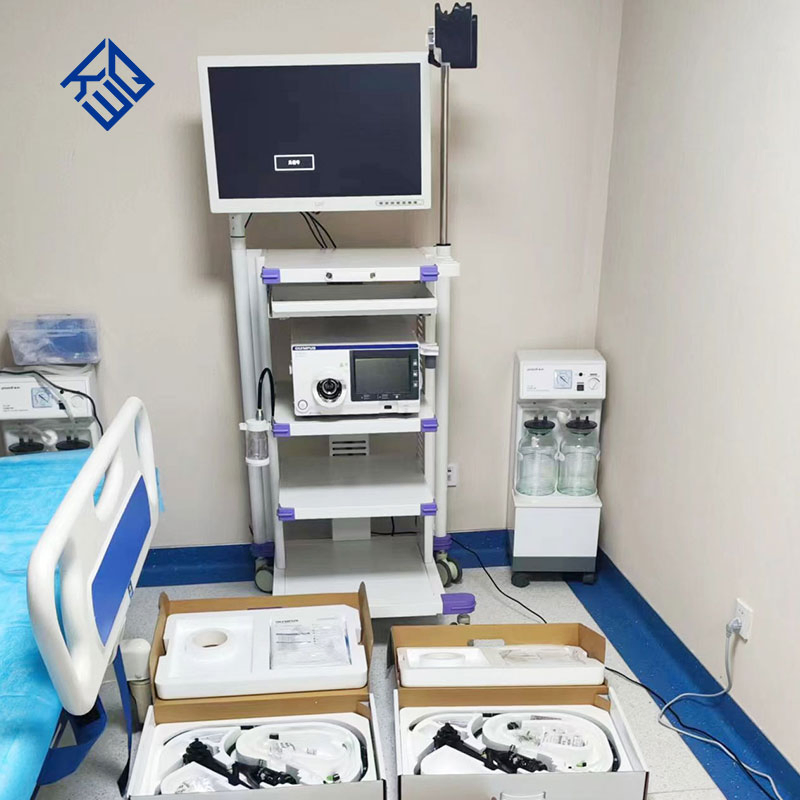

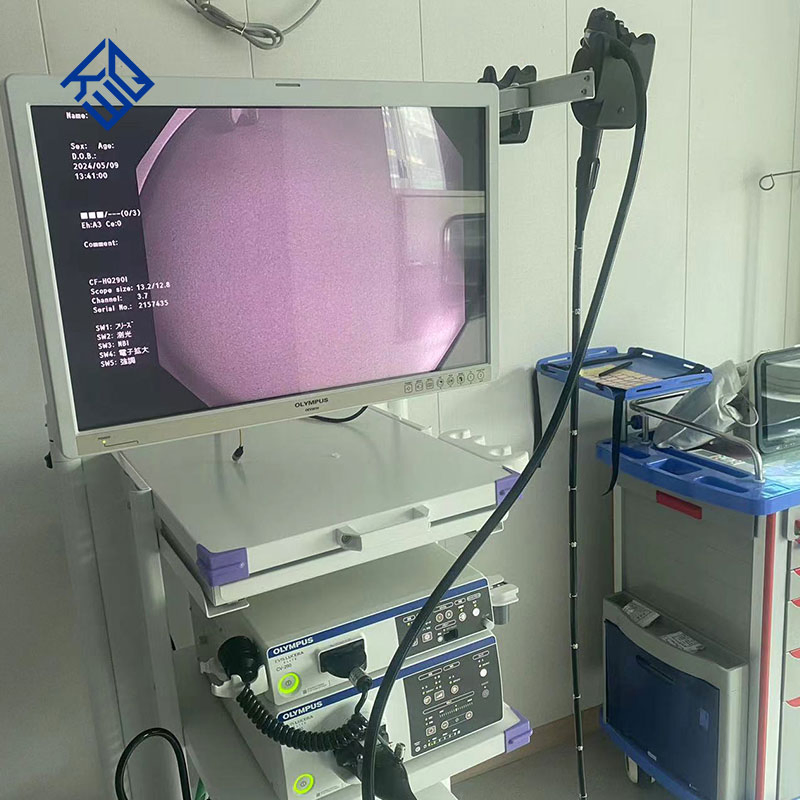

CV-290 + CLV-290SL + GIF-HQ290 + CF-HQ290I
A New Standard for High-definition Upper Gastrointestinal Tract Endoscopes with Further Improved Approachability and Operability.
| Optical System | Field of view | 140º |
|---|---|---|
| Direction of view | 0° (Forward viewing) | |
| Depth of field | 3-100 mm | |
| Insertion Section | Distal end outer diameter | 9.8 mm |
| Insertion tube outer diameter | 9.9 mm | |
| Working length | 1030 mm | |
| Instrument Channel | Channel inner diameter | |
| Minimum visible distance | 3 mm | |
| Bending Section | Angulation range | Up 210º / Down 120º / Right 100º / Left 100º |
| Total Length | 1350 mm | |
| Compatibility | Video System Center OLYMPUS CV-290; Xenon Light Source OLYMPUS CLV-290SL, CLV-290 | |

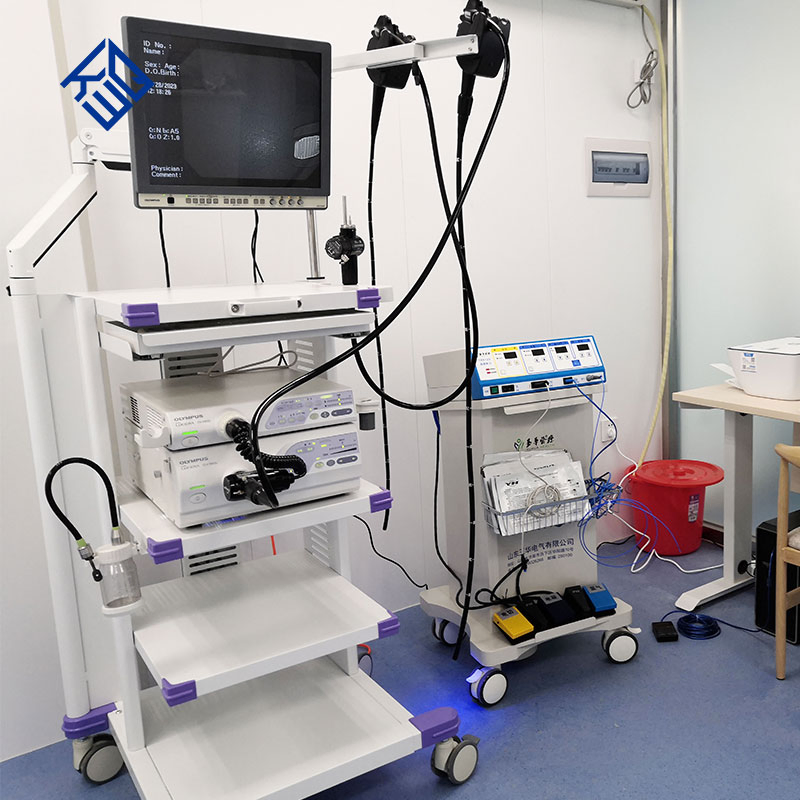

This system is fully compatible with the EVIS LUCERA ELITE system, specifically the OLYMPUS CV-290 Video System Center and the CLV-290SL/CLV-290 Xenon Light Sources.

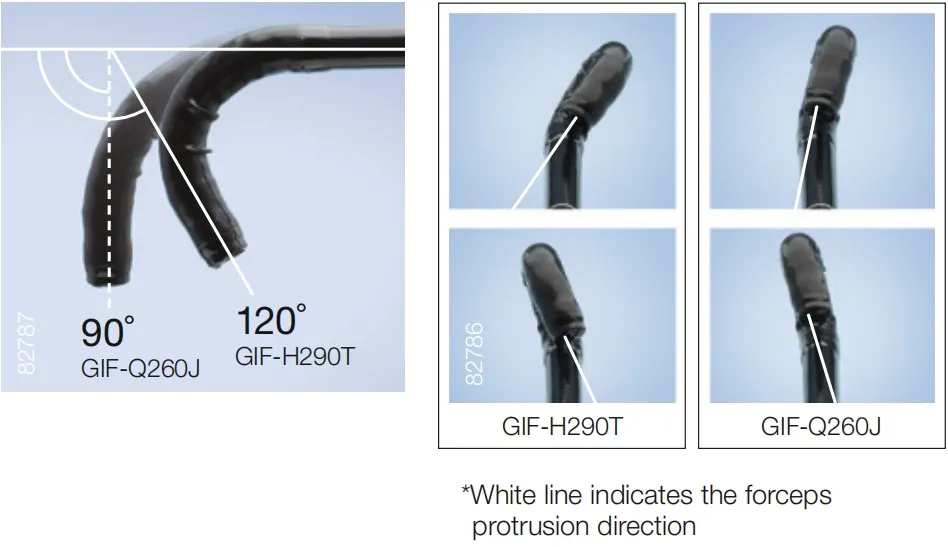

The down angle has been expanded to 120˚ (previously 90˚), and the left/right moveable range during the up angle position has been extended to provide better approachability to lesions.
The distal end outer diameter is 9.8 mm, with an insertion tube outer diameter of 9.9 mm.

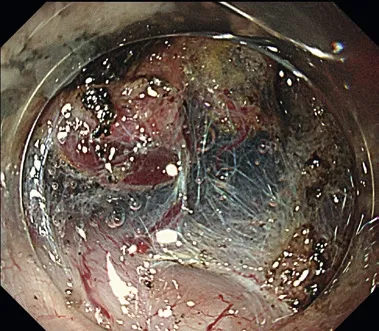

Yes, it features an auxiliary water channel positioned close to the instrument channel, allowing for smooth water supply to support hemostasis without needing to adjust the scope's position.
The system offers a wide 140º field of view with a depth of field ranging from 3 mm to 100 mm for clear visualization.
Yes, the system is designed to be reusable and is suitable for both children and adult patient groups.
