Basic Information
Model NO.: MCS1529
Certification: CE, FDA, EEC, MSDS, ISO13485
Group: Adult
Function: 6 Vital Signs
Usage: Healthcare
Keyword: Multiparameter Patient Monitor
Application: Medical Surgery
Feature: Portable
Display: 12.1" TFT Display
Production Capacity: 500,000 Set/Month
Product Description

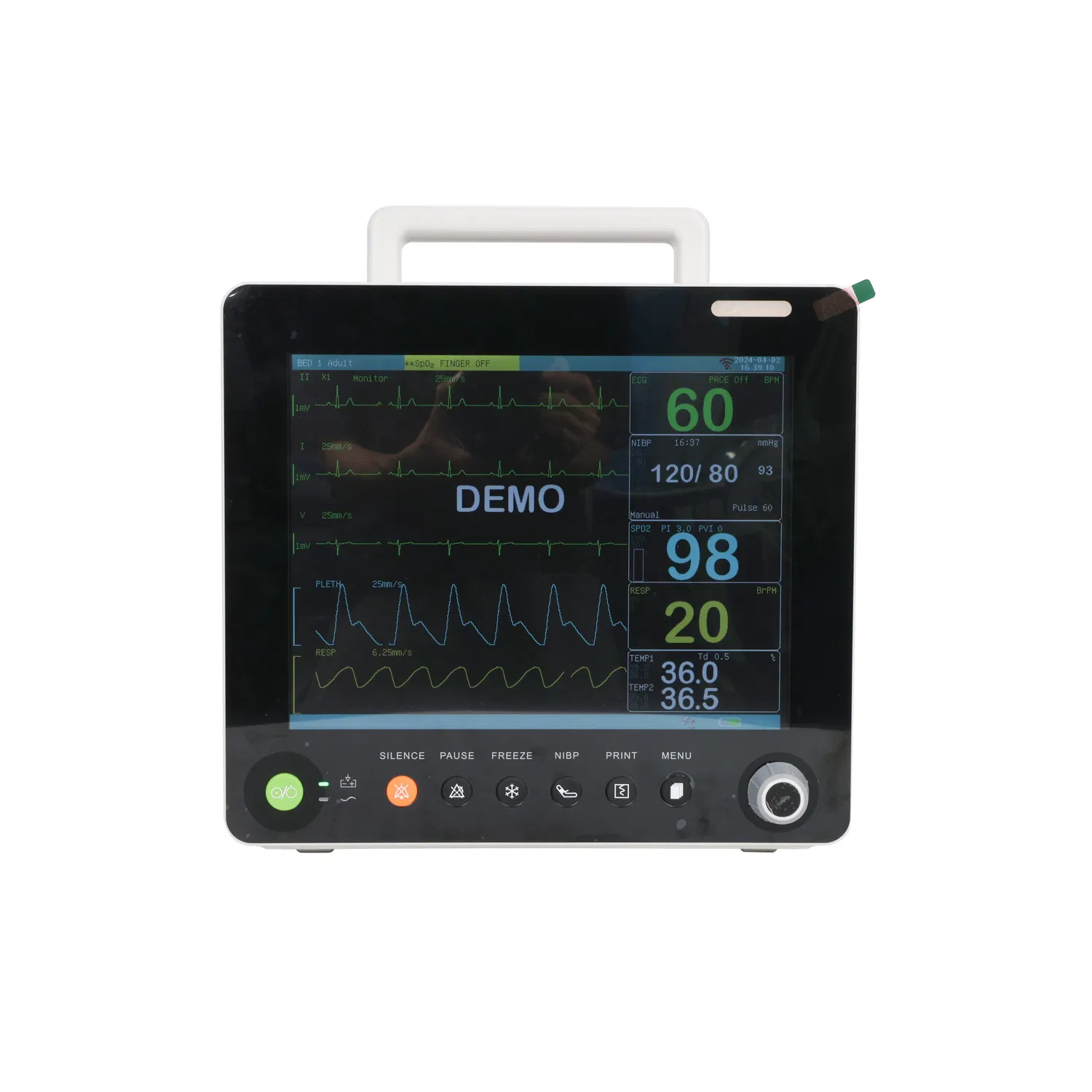

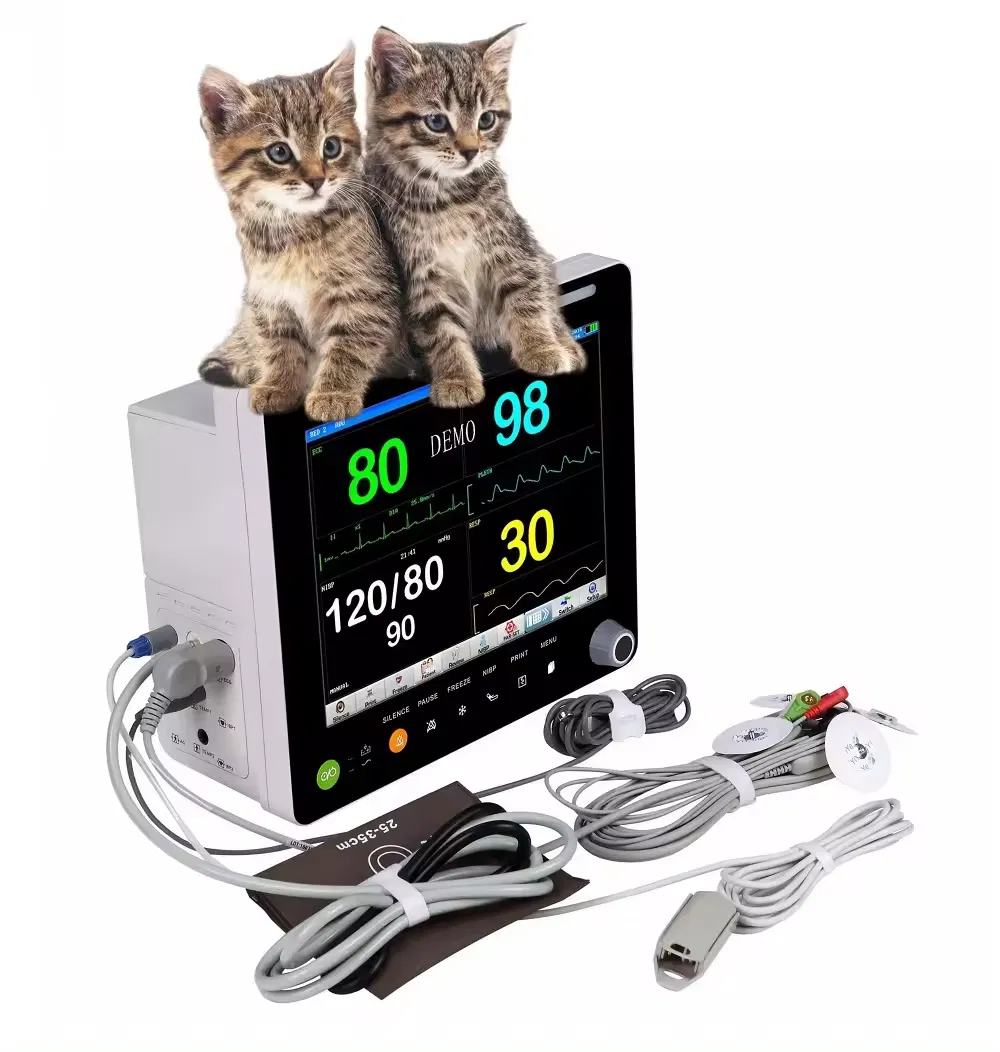

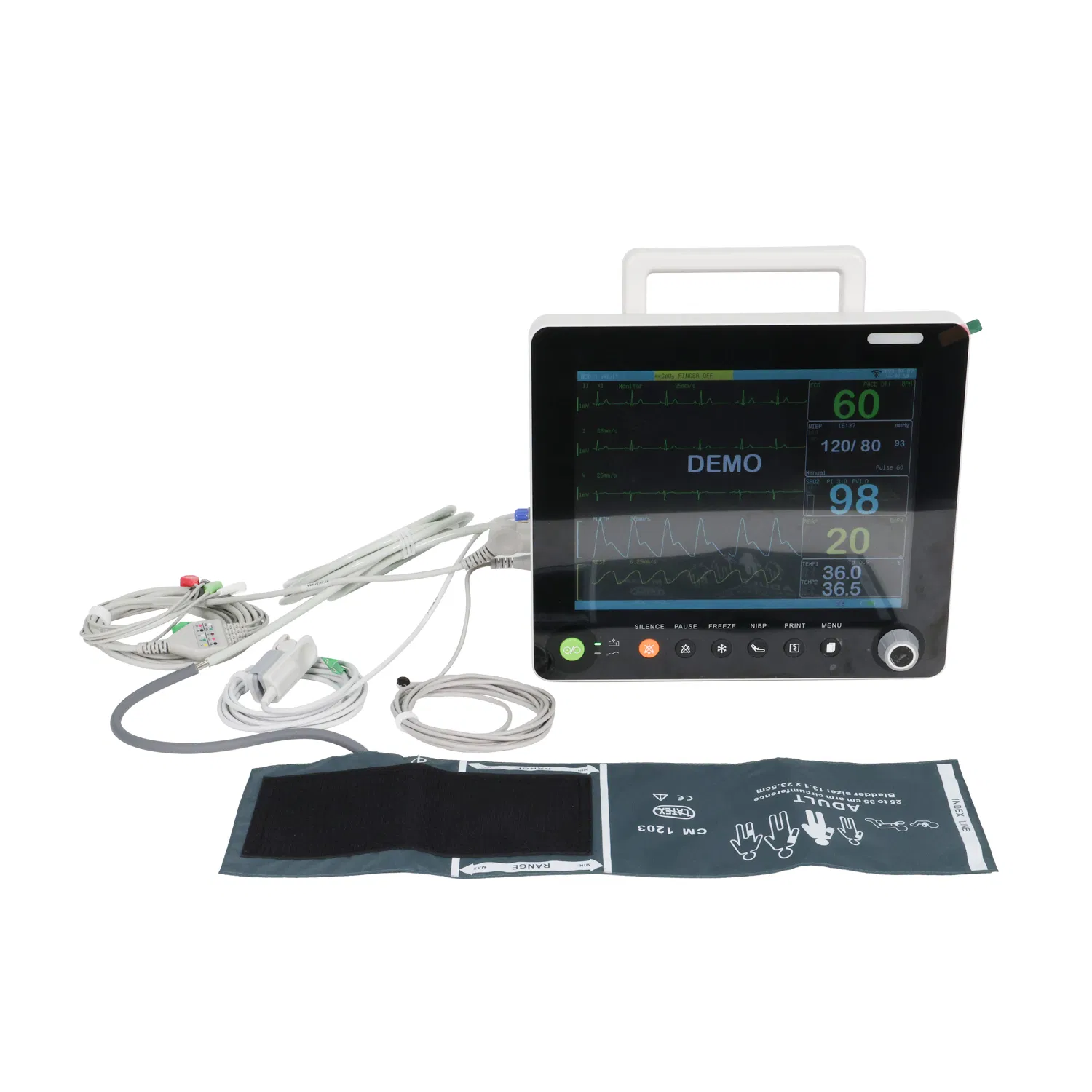

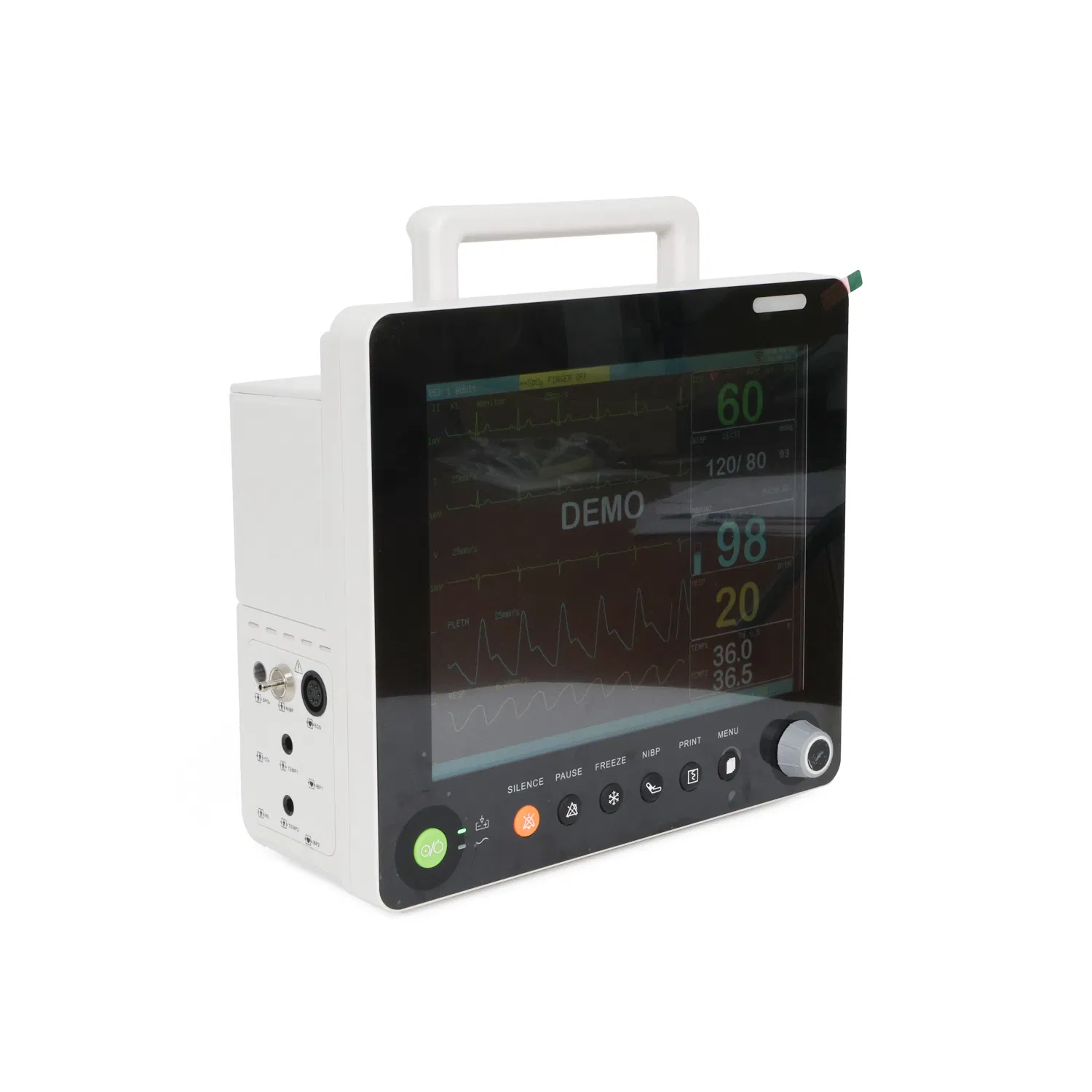

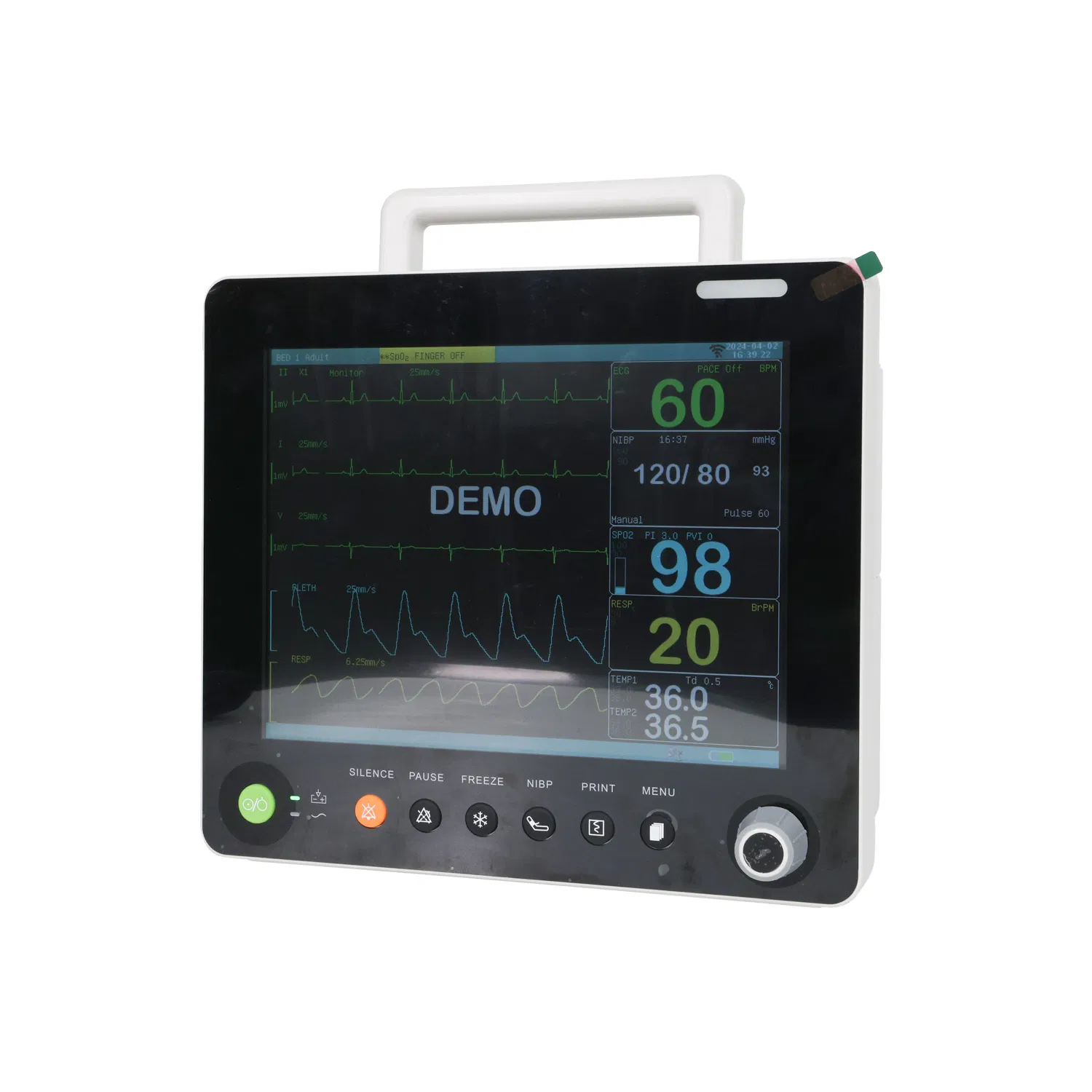

Medical Flexible Modular Multi-Parameter High-Definition 12.1" TFT Display ECG Vital Sign Patient Monitor
Key Features:
- High-Resolution Display: 12.1-inch, 800x600 color TFT screen supporting up to 13 wave channels simultaneously.
- Advanced SpO2 Technology: Uses DSP algorithm for excellent performance during movement and low perfusion (includes PI display).
- Versatile Layouts: Includes Big Font screen; parameters and waveforms can be customized for each view.

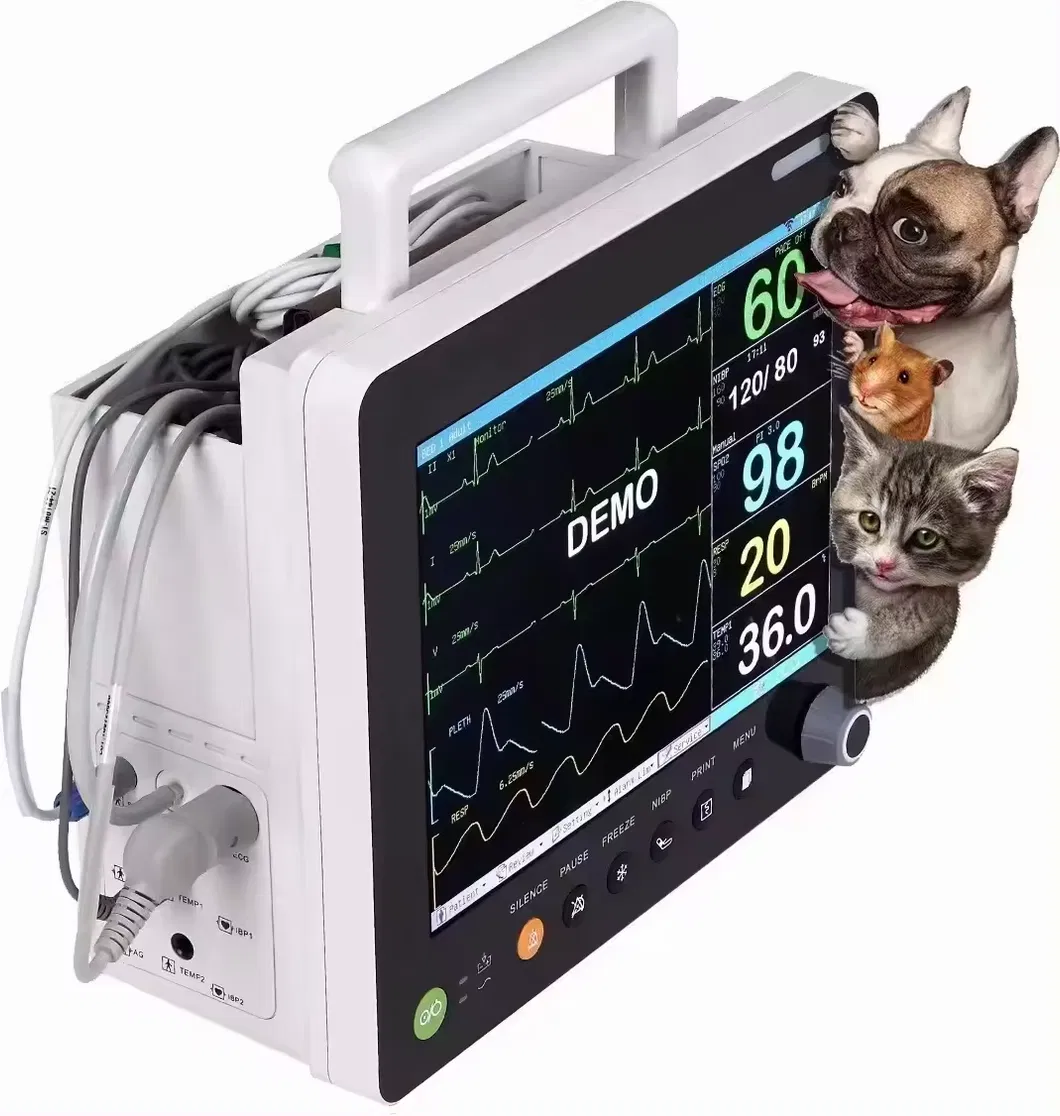

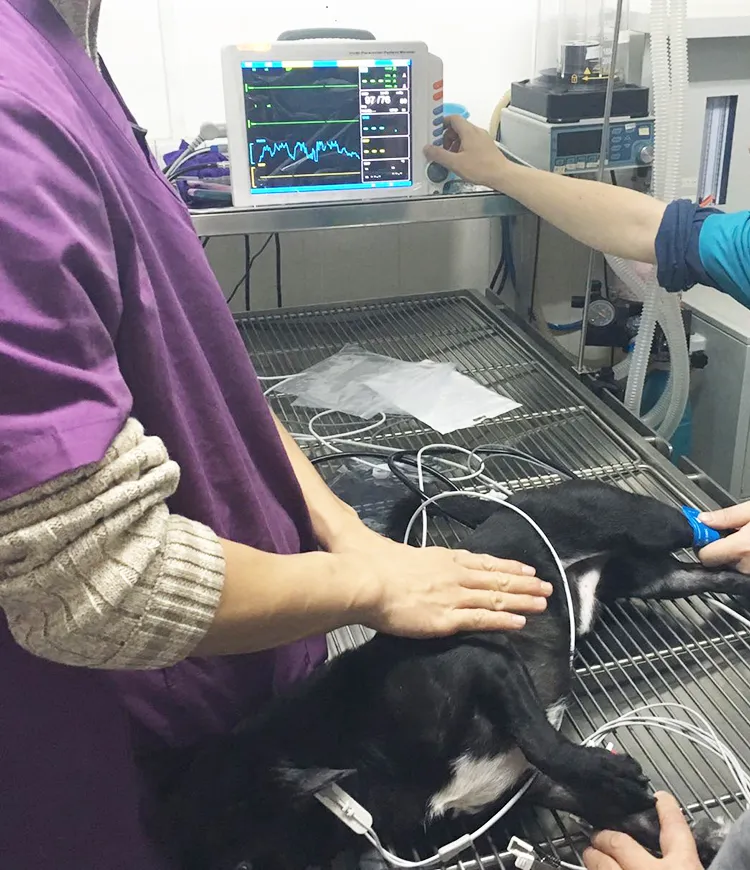

- NIBP VET Support: Advanced algorithm supports a wide range of sizes from small animals (cats) to horses.
- Human Voice Alarms: Unique voice-guided alarm system for improved clinical response.

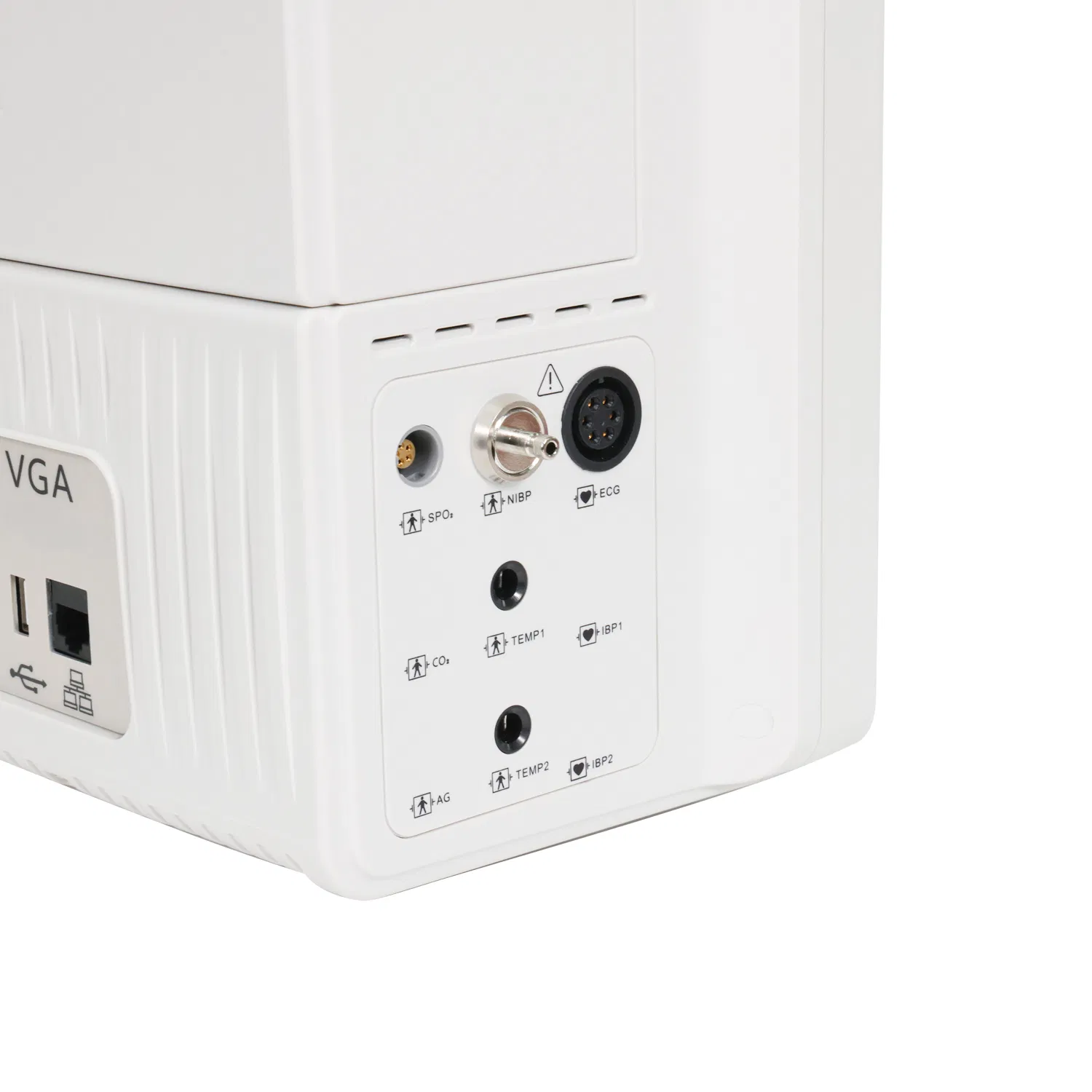

- Connectivity: Standard RJ45 network port with optional USB WIFI module for easy CMS connection and data viewing on computers.
Technical Specifications
| ECG |
Lead: 3/5 Lead mode (I, II, III, aVR, aVL, aVF, V)
Channels: 3 ECG channels, 7 waves in full lead mode
HR Range: 15 ~ 350 BPM | Gain: X1/4, x1/2, x1, x2
Filter Mode: Surgery, Monitor, Diagnostic | Arrhythmia & ST Analysis
|
| RESP |
Method: Impedance between RA-LL or RA-LA
Wave Speed: 6.25, 12.5, 25 mm/s
Apnea Alarm: 5 ~ 120s
|
| NIBP |
Method: Oscillometry (Manual, Auto, STAT modes)
Range: SYS (40~280 mmHg), DIA (10~220 mmHg), MEAN (20~240 mmHg)
Auto Interval: 1 to 480 minutes
Over-pressure protection included.
|
| SPO2 |
Range: SpO2, PR, PI
Accuracy: ±2% (70%~100%)
Pulse Rate: 20 ~ 250 bpm
|
| Configurations |

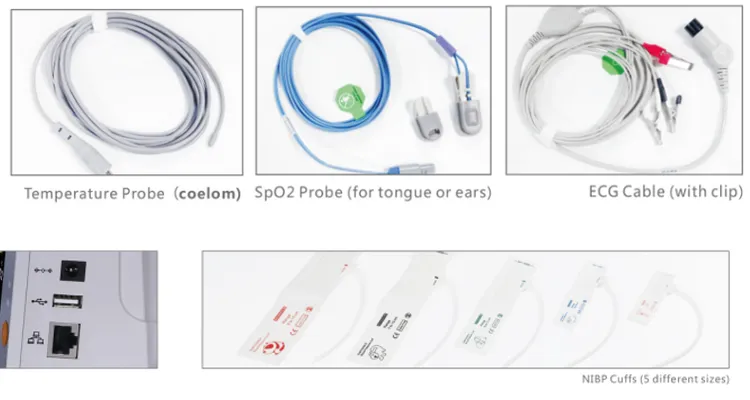

Standard: ECG, NIBP, SpO2, PR, TEMP, RESP

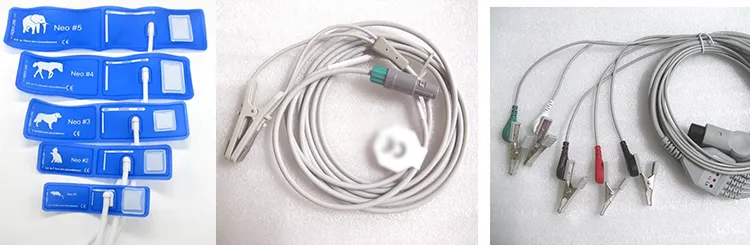

Optional: EtCO2 (Mainstream/Sidestream), Wall Mount, Trolley, CMS
|
Why Choose Our Solutions
- Proven Reliability: One-stop medical equipment service providing solutions to over 2,000+ hospitals worldwide.
- High Standards: Approved by multiple international health authorities for large-scale medical projects.
- Quality Components: Shares component suppliers with national-grade aerospace projects.
- Certified Quality: Golden Supplier certified by TUV with visualized production and delivery.
- Full Support: Online training for installation, operation, and daily maintenance.
- Flexible Service: No MOQ requirements for ODM/OEM services and support for English, Spanish, French, and Cantonese.
Customer Feedback & Performance
About Our Service
Established in 2006, we are a pioneer in one-stop medical equipment services. Our global collaborations span hospitals, clinics, and universities. We strictly select components to ensure aerospace-level reliability and are certified by TUV. With a 99% on-time delivery rate and comprehensive after-sales training, we aim to help more people enjoy better medical conditions through honesty, efficiency, and mutual benefit.
Frequently Asked Questions
What is the warranty for the products?
We provide a one-year warranty for all products free of charge.
What kind of after-sales service is provided?
We provide technical support via operating manuals and videos. Our engineers are available to respond promptly via email or phone. If hardware issues occur during the warranty period, we provide free spare parts.
What are the delivery times?
Delivery varies by method: Express takes 7-10 days, Air Freight 3-10 days, and Sea Freight typically 10-45 days depending on the port.
What is the standard lead time for production?
Approximately 40% of products are in stock. 50% require 3-10 days to produce, and specialized equipment may take 15-30 days.
What payment terms are accepted?
We accept Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, PayPal, and Trade Assurance.
Is training available for the equipment?
Yes, we provide online training for installation, operation, and daily maintenance to ensure you can use the equipment effectively.
