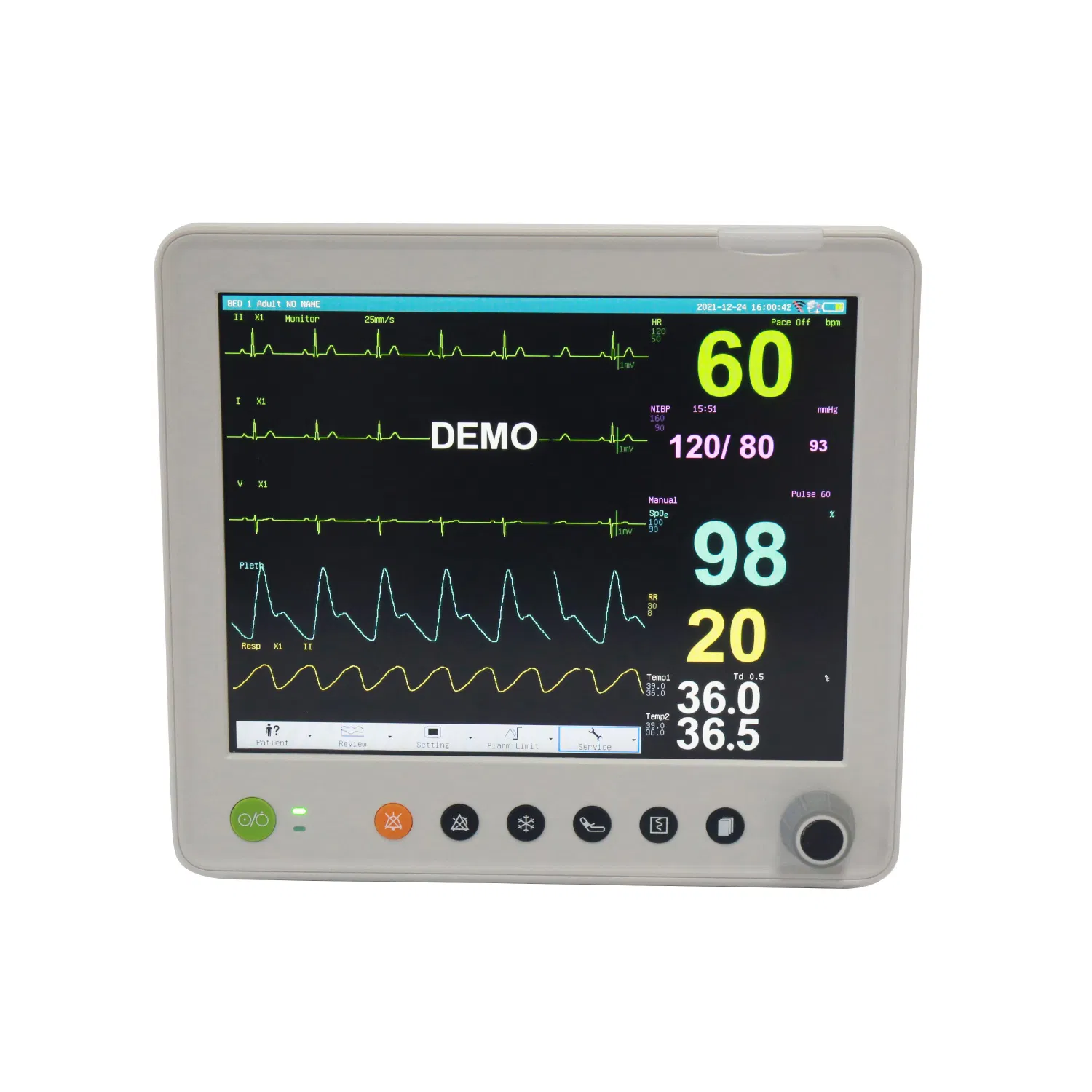

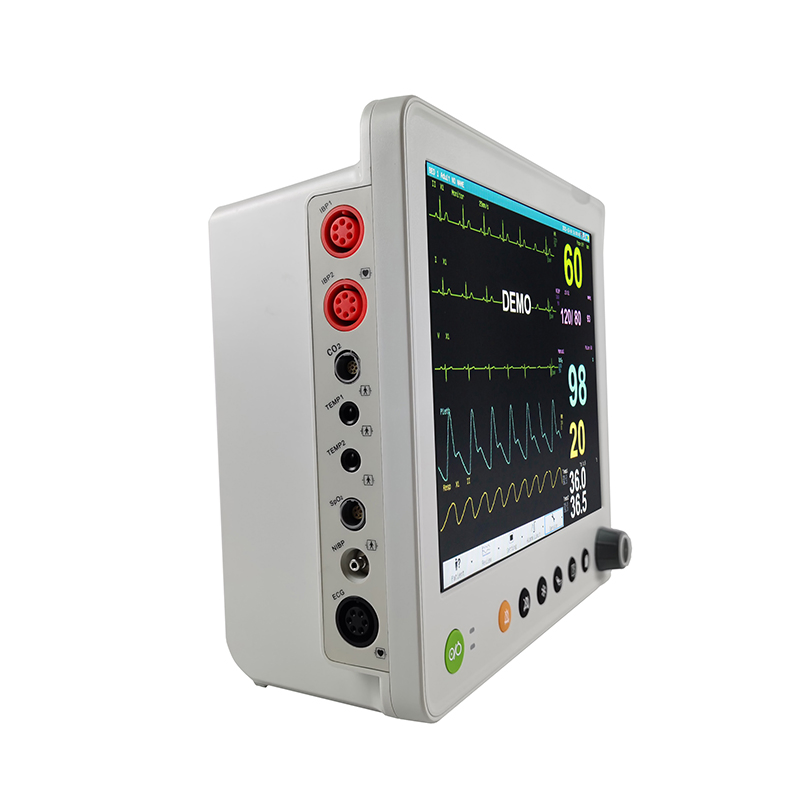

Multi-Parameter Patient Monitor with 12.1" Screen for ICU/CCU Hospital Equipment

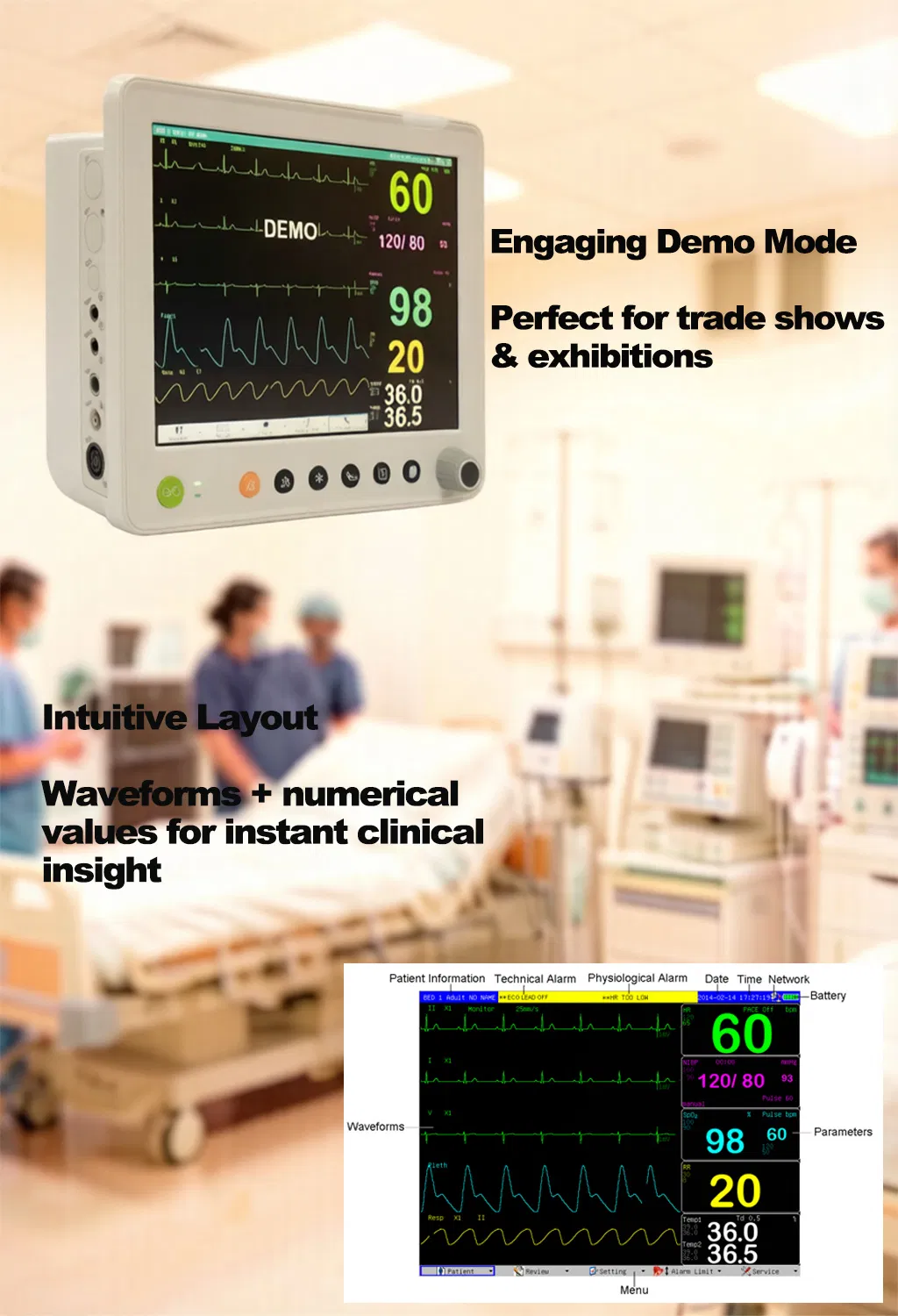

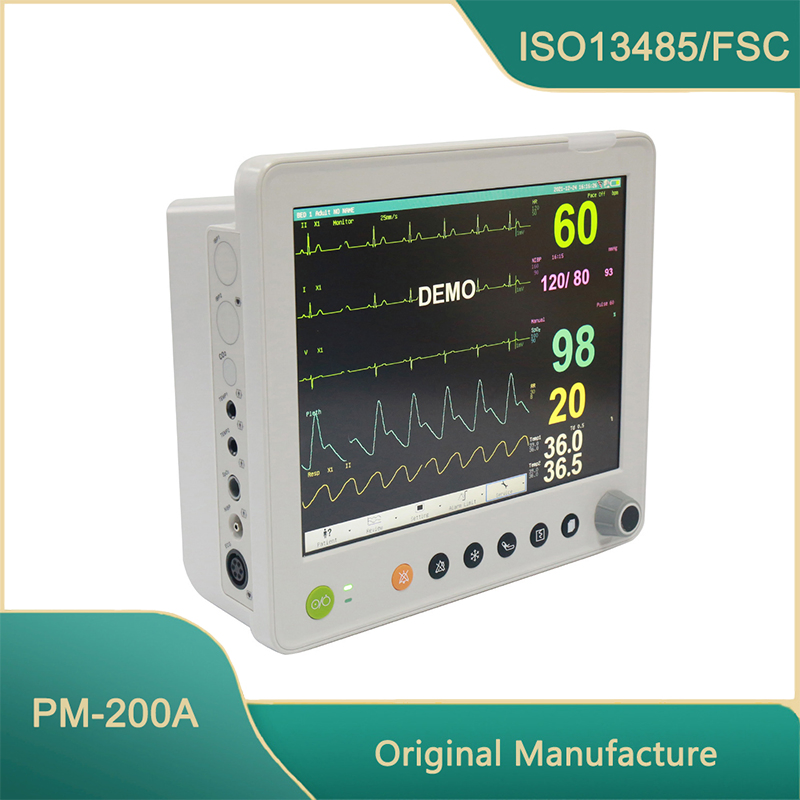

The Alps PM200A is a 12.1-inch multi-parameter patient monitor with a high-resolution TFT LED display, supporting up to 11 waveforms and 7-channel ECG. It features 720-hour trend storage, built-in 50mm thermal printer, three-level alarms with voice prompts, and USB data export.
A complete range of patient monitoring solutions is available, including 15-inch tabletop multi-parameter monitors, as well as 2.8-inch and 5.5-inch handheld patient monitors and vital signs monitors, suitable for various clinical scenarios such as general wards, emergency departments, ICU, home care, and ambulance transport.
| Module | Technical Specifications |
|---|---|
| ECG | Lead Mode: 5 Leads; Waveform: 3 channel; Differential Input Impedance: > 5 MΩ; CMRR: Monitor > 105 dB; Baseline Recovery: < 3s after defibrillation; Accuracy: ± 1% or ± 1 bpm. |
| SPO2 | Measurement Range: 0 ~ 100%; Resolution: 1%; Accuracy: 70% ~ 100%: ±2%; Pulse Rate Range: 0 ~ 254 bpm; Accuracy: ± 2 bpm. |
| NIBP | Method: Oscillometric; STAT Mode Period: 5 minutes; Pulse Rate Range: 40 ~ 240 bpm; Adult Mode: SYS 40-270mmHg / DIA 10-215mmHg; Pediatric/Neonatal modes available. |
| Respiration | Impedance Range: 0.3~5.0 Ω; Bandwidth: 0.3 ~ 2.5 Hz; Resp Rate Range: Adult 0-120 rpm, Neo/Ped 0-150 rpm; Accuracy: ±2 rpm. |
| Temperature | Range: 0 ~ 50 °C; Accuracy: ± 0.1 °C; Average Time Constant: < 10 seconds. |
Dimensions & Weight:
Size: 312mm × 287mm × 175mm
Weight: 3.4 Kg
Package List:
1* PM-200A Patient Monitor, 1* ECG Cable (5 Lead), 1* ECG Electrodes, 1* SpO2 Probe, 1* NIBP Cuff, 1* Temp Probe, 1* Extension Tube, 1* Power Wire, 1* Grounding Cable, 1* User Manual, 1* Warranty, 1* Certificate.
Packing Info: 1pc/carton, Carton Size: 39*37*30cm
