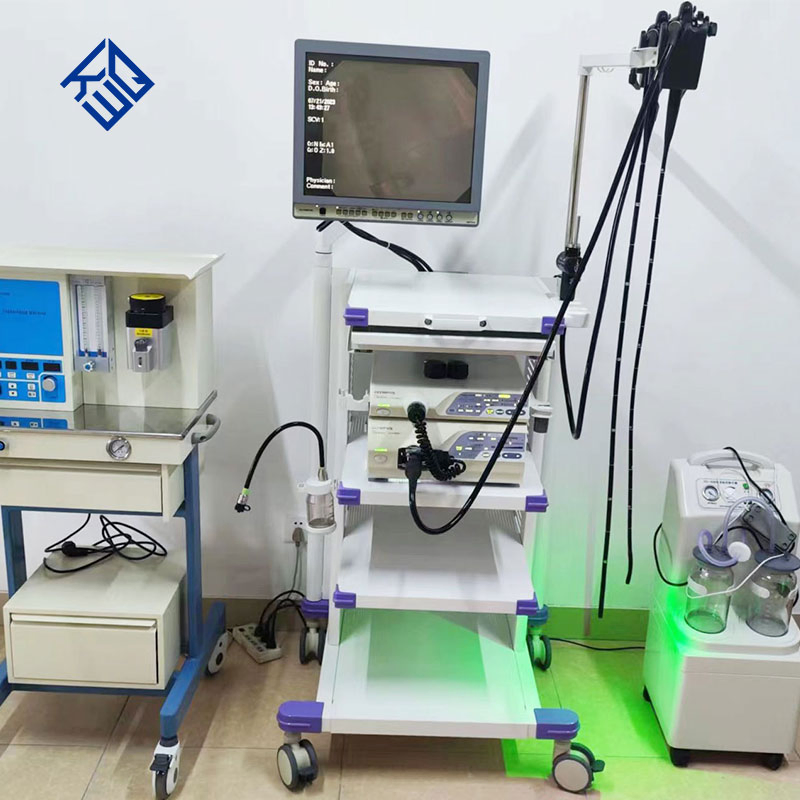

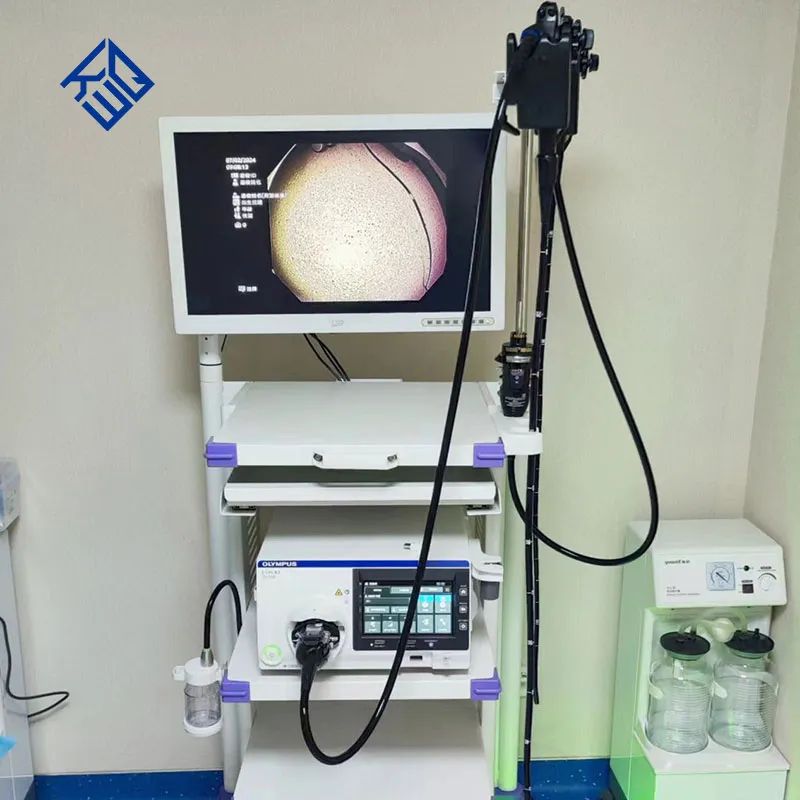

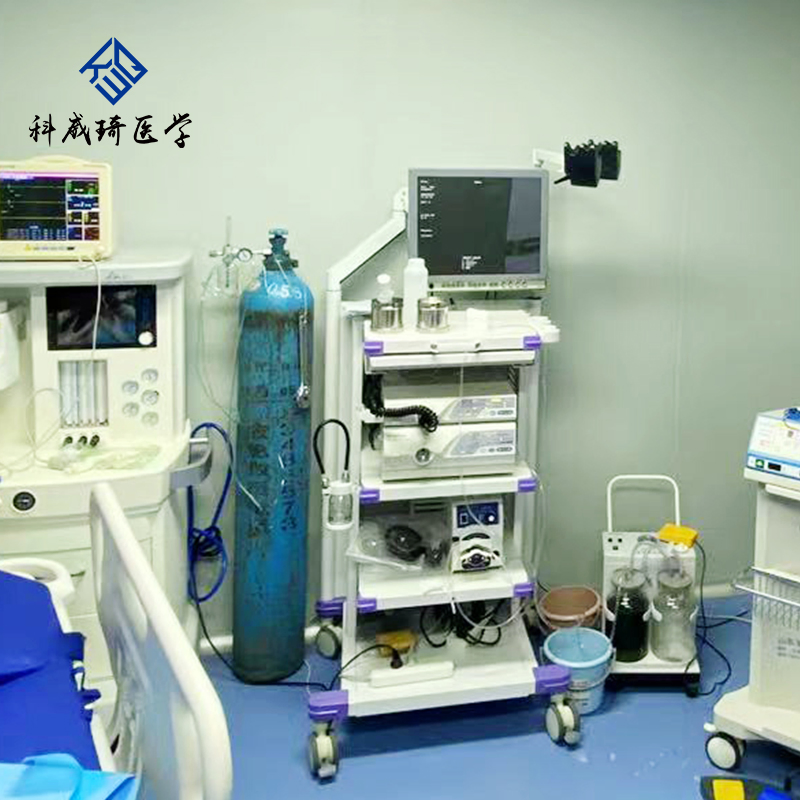

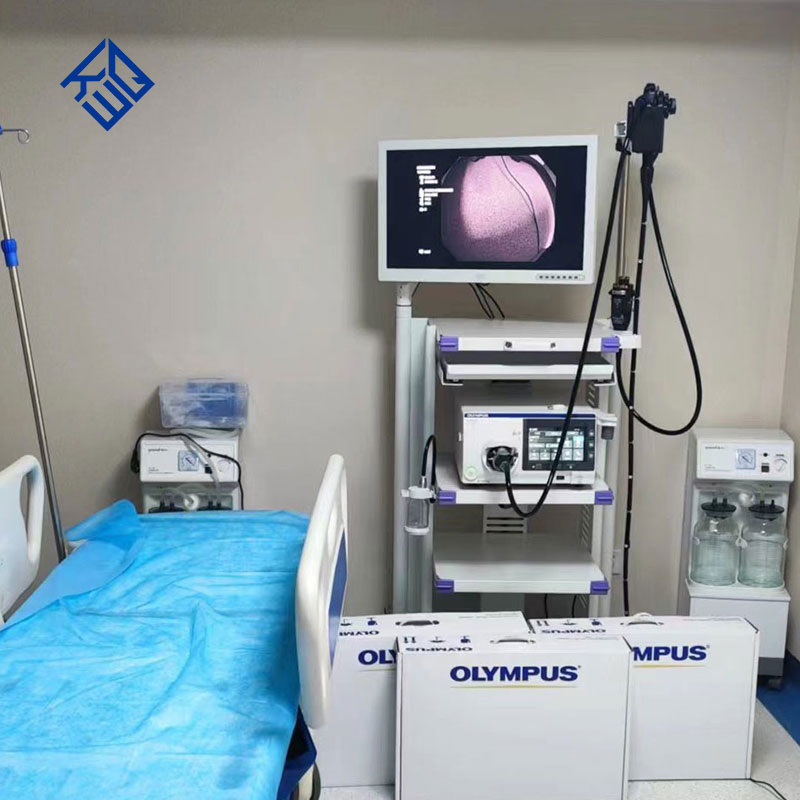

CV-290 + CLV-290SL + GIF-HQ290 + CF-HQ290I
A New Standard for High-definition Upper Gastrointestinal Tract Endoscopes with Further Improved Approachability and Operability.
|

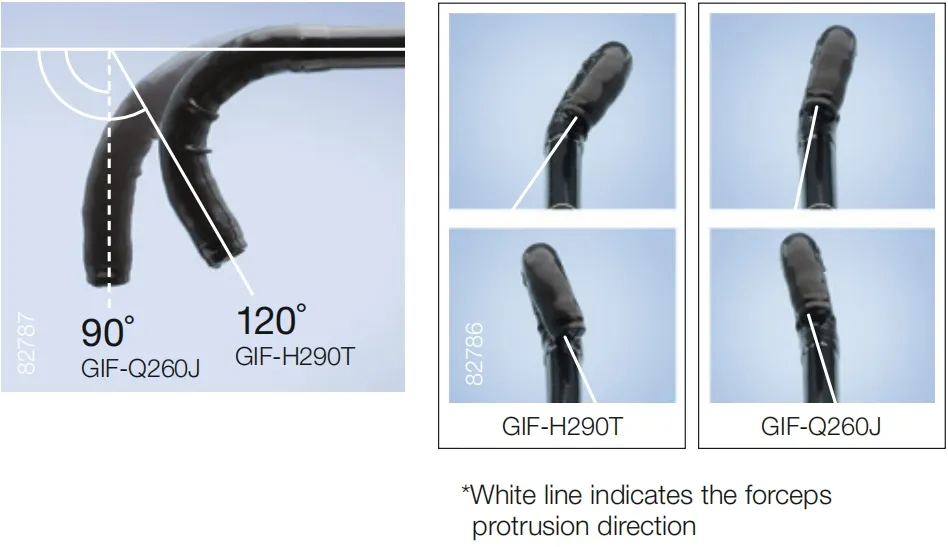

📍 Improved Approach to the Lesion The down angle of the GIF-H290T has been expanded to 120˚ from the conventional 90˚. This scope offers easier lesion approachability through an expanded bending range. |
💧 Supports Rapid Hemostasis Features an improved position of the auxiliary water channel close to the instrument channel for smooth operation and immediate support for hemostasis. |
🖥️ HD Images Equipped with a high-definition CCD, high-resolution HD images are provided to improve treatment accuracy and clinical outcomes. |
| Category | Specifications | |
|---|---|---|
| Optical System | Field of view | 140º |
| Direction of view | 0° (Forward viewing) | |
| Depth of field | 3-100 mm | |
| Insertion Section | Distal end outer diameter | 9.8 mm |
| Insertion tube outer diameter | 9.9 mm | |
| Working length | 1030 mm | |
| Minimum visible distance | 3 mm | |
| Bending Section | Angulation range | Up 210º / Down 120º / Right 100º / Left 100º |
| Total Length | 1350 mm | |
| Compatibility | Video System Center OLYMPUS CV-290, Xenon Light Source OLYMPUS CLV-290SL / CLV-290 | |
