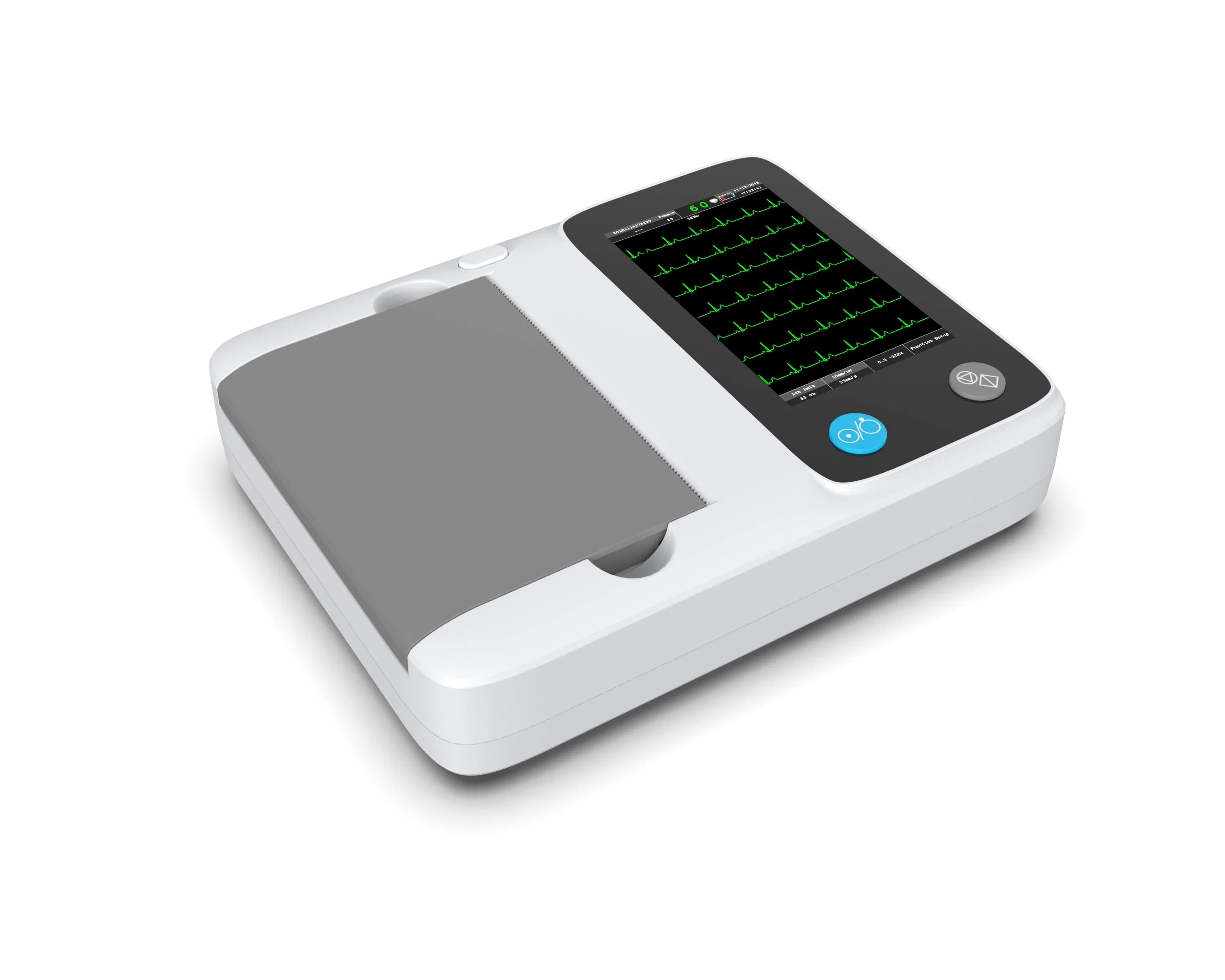

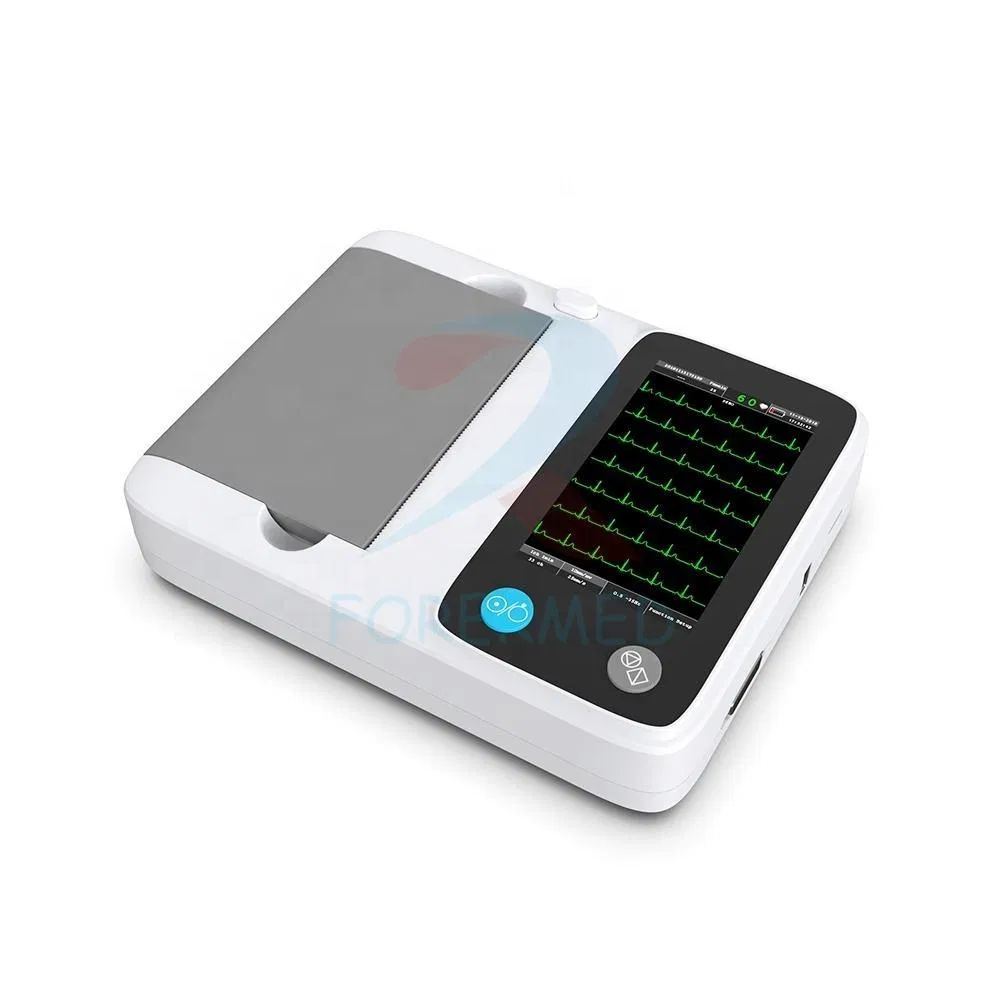

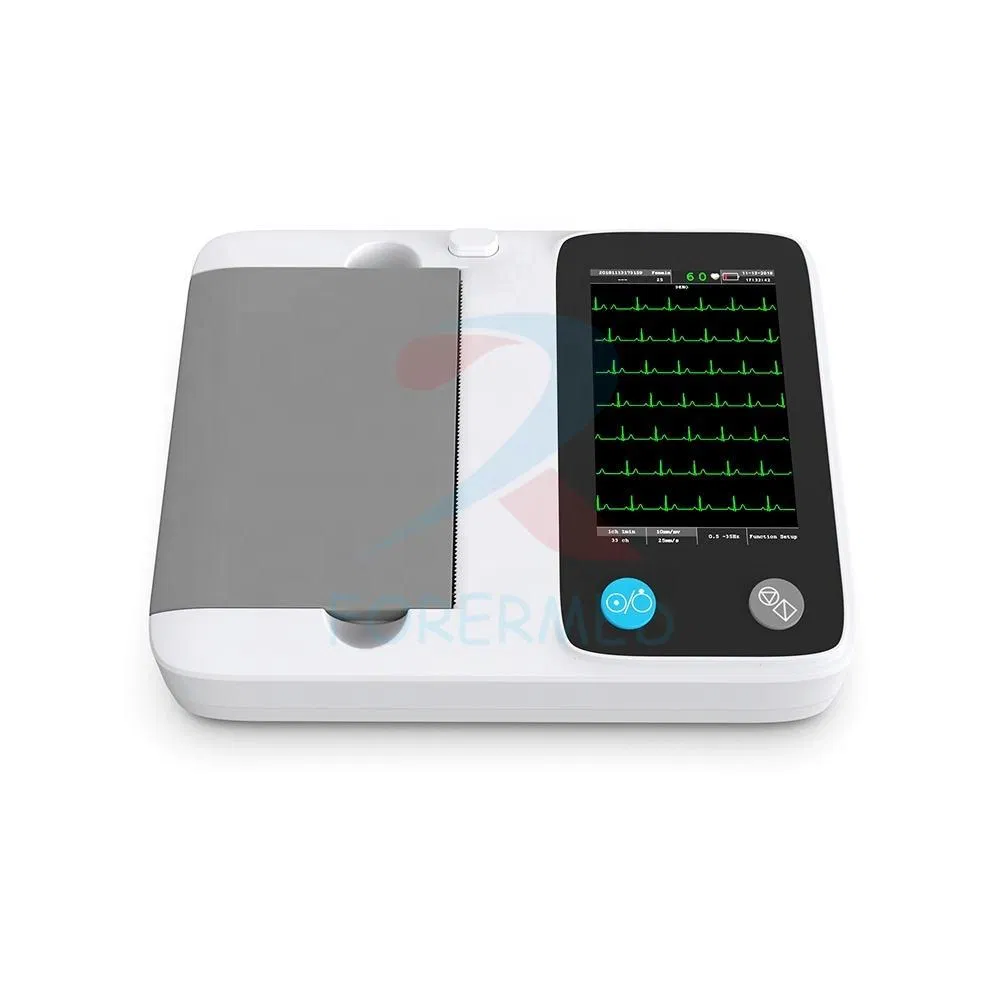

Hospital Digital Touch Screen 3 Channel Portable ECG Machine
Hospital Digital Touch Screen 3 Channel Portable ECG Machine
Hospital Digital Touch Screen 3 Channel Portable ECG Machine
Hospital Digital Touch Screen 3 Channel Portable ECG Machine
Hospital Digital Touch Screen 3 Channel Portable ECG Machine
1 / 5
Hospital Digital Touch Screen 3 Channel Portable ECG Machine
Hospital Digital Touch Screen 3 Channel Portable ECG Machine
Hospital Digital Touch Screen 3 Channel Portable ECG Machine
Hospital Digital Touch Screen 3 Channel Portable ECG Machine
Hospital Digital Touch Screen 3 Channel Portable ECG Machine

Hospital Digital Touch Screen 3 Channel Portable ECG Machine

Customization: Available
Certification: ISO13485
Group: Middle-aged and Old
Send Inquiry

Product Description

📋 Basic Information
Model NO.
YJ-ECG602
Lead
Standard 12 Leads
Acquisition Mode
Simultaneous 12 Leads
Input Impedance
>50MΩ
Gross Weight
2.5kg
🩺 Product Description
Portable ECG Machine
5 inch high resolution color touch screen
12-lead simultaneous acquisition and display
ECG Automatic measurement and interpretation function
Complete digital filters, resisting baseline drift, AC and EMG interference
Compact and lightweight design

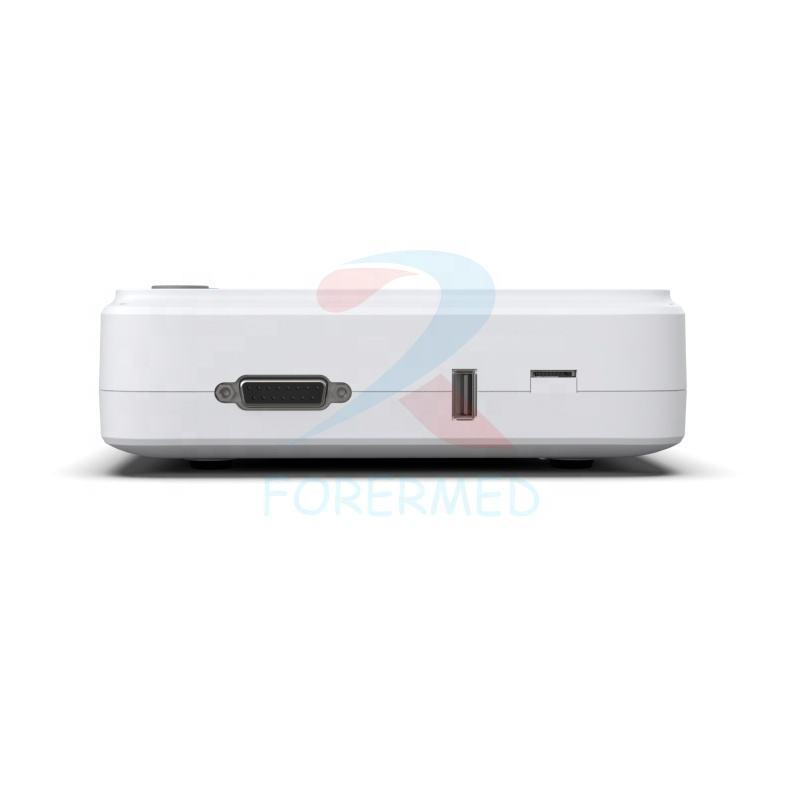

Support USB flash disk and micro SD card to extend memory
Software upgrade via USB/SD card
Built-in rechargeable Li-ion battery

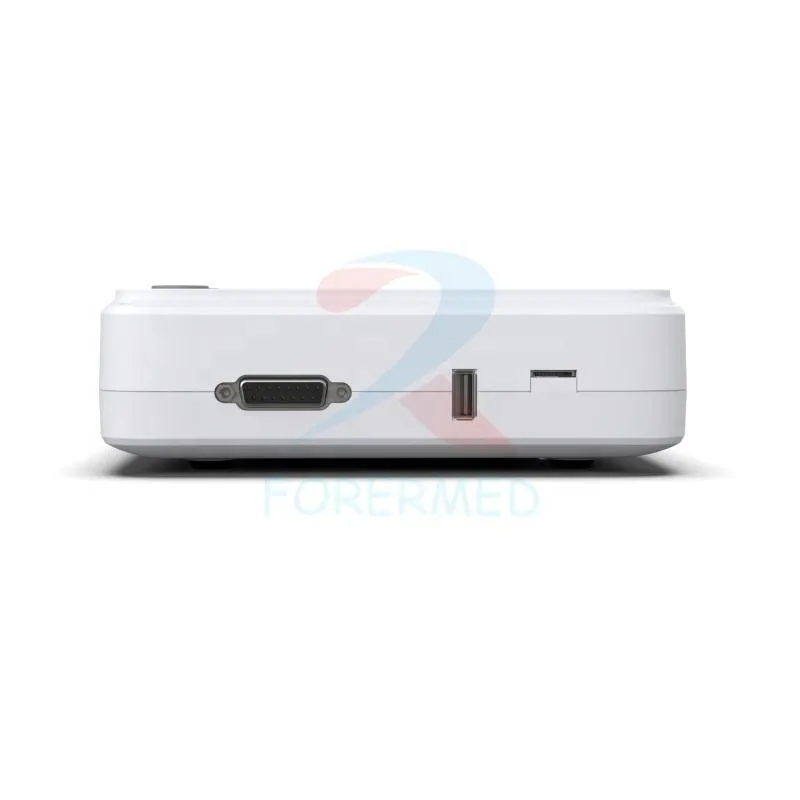

Digital ECG Detail
📊 Technical Specification

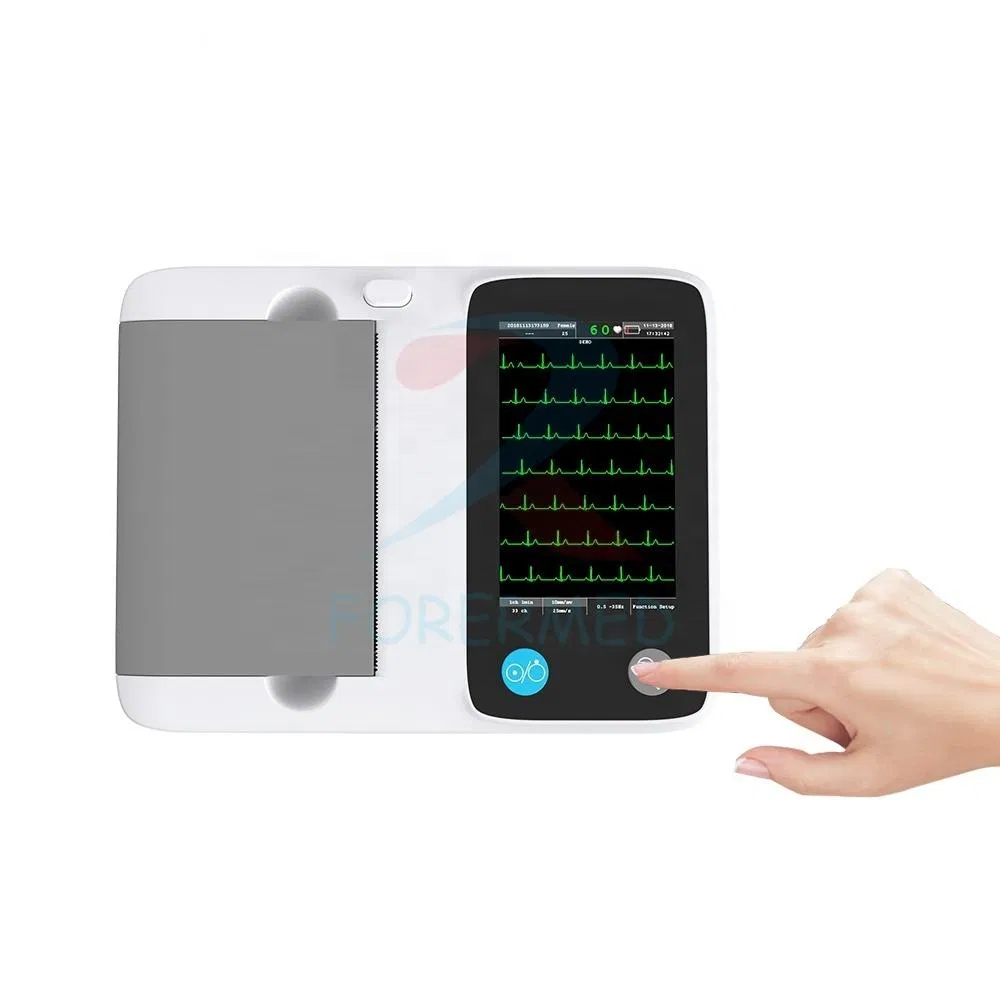

Technical Specs Chart
Items Specification
LeadStandard 12 leads
Acquisition ModeSimultaneous 12 leads acquisition
Measurement Range5mVpp
Input circuitFloating; Protection circuit against Defibrillator effect
Input Impedance≥50MΩ
Input circuit current<0.05µA
Record modeAutomatic: 3CHx4+1R, 3CHx4, 3CHx2+2CHx3, 6CHX2; Manual: 3CH, 2CH, etc.
FilterEMG: 25-150Hz; DFT: 0.05/0.15Hz; AC: 50/60Hz
CMRR>100dB
Patient leak current< 10µA (220V-240V)
Frequency Response0.05Hz-150Hz (-3dB)
Paper speed12.5, 25, 50 mm/s
Paper specificationRoll 110mm x 20M
Power SupplyAC: 100-240V; DC: 14.8V/2200mAh Lithium battery

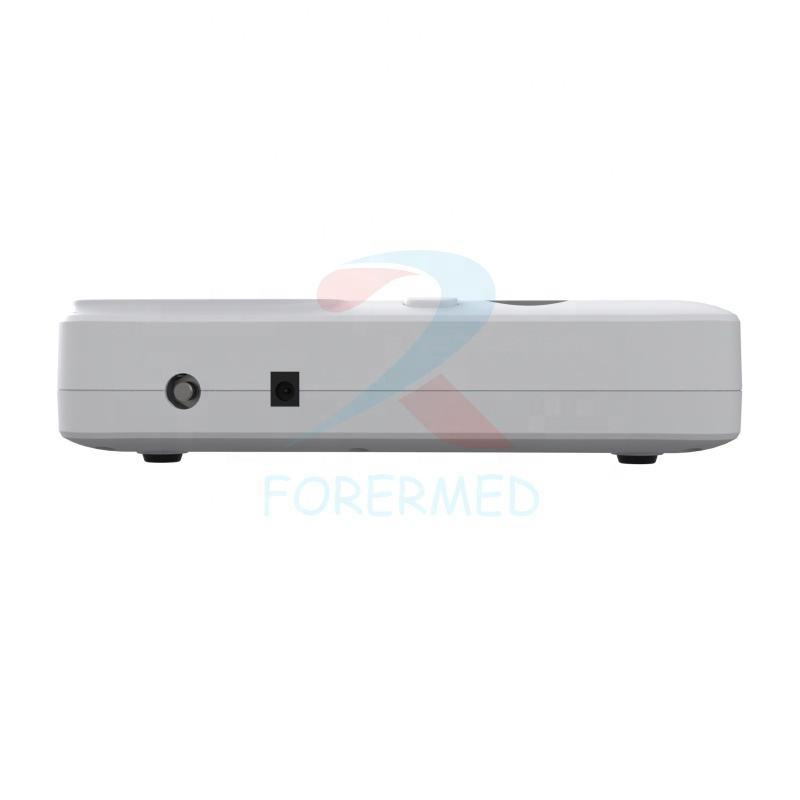

Device View 1
Device View 2
🏢 Production & Quality
Production Line
Manufacturing
Quality Control
Warehouse
❓ Frequently Asked Questions
FAQ Support
What is the display size of the YJ-ECG602?
The device features a 5-inch high-resolution color touch screen for clear waveform display and easy operation.
How many leads can this machine acquire simultaneously?
It supports simultaneous 12-lead acquisition and display, providing comprehensive cardiac data.
Does the device include automatic interpretation?
Yes, it includes ECG automatic measurement and interpretation functions to assist medical professionals.
Is it possible to expand the memory of the device?
Yes, the machine supports both USB flash disks and micro SD cards to extend storage capacity for patient records.
How is the signal quality protected from interference?
It utilizes complete digital filters to resist baseline drift, AC interference, and EMG (muscle) interference, ensuring high-quality signal output.
What type of battery does the machine use?
The machine is equipped with a built-in rechargeable Li-ion battery, making it highly portable for hospital or clinic use.
