Cheap 1080P HD Medical Ent Laparoscopy Camera Endoscope Machine Video Endoscopy System
Cheap 1080P HD Medical Ent Laparoscopy Camera Endoscope Machine Video Endoscopy System
Cheap 1080P HD Medical Ent Laparoscopy Camera Endoscope Machine Video Endoscopy System
Cheap 1080P HD Medical Ent Laparoscopy Camera Endoscope Machine Video Endoscopy System
Cheap 1080P HD Medical Ent Laparoscopy Camera Endoscope Machine Video Endoscopy System
1 / 5
Cheap 1080P HD Medical Ent Laparoscopy Camera Endoscope Machine Video Endoscopy System
Cheap 1080P HD Medical Ent Laparoscopy Camera Endoscope Machine Video Endoscopy System
Cheap 1080P HD Medical Ent Laparoscopy Camera Endoscope Machine Video Endoscopy System
Cheap 1080P HD Medical Ent Laparoscopy Camera Endoscope Machine Video Endoscopy System
Cheap 1080P HD Medical Ent Laparoscopy Camera Endoscope Machine Video Endoscopy System

Cheap 1080P HD Medical Ent Laparoscopy Camera Endoscope Machine Video Endoscopy System

Customization: Available
Customized: Customized
Certification: CE, FCC
Send Inquiry

Product Description

📋

Basic Information

Model NO.
TU-Y4HDSC
Scale
Medium
SDI
HD-SDI/Ex-SDI Switchable
Output Interface
DVI+HDMI+SDI+CVBS
Resolution
1080P@30fps, 1080P@60fps
Power
AC110V~240V
Image Sensor
1/2.8" SONY CMOS (IMX385)
Origin
China
⚙️

Technical Parameters

Parameter Item Specifications
Effective Pixels1845(H) × 1097(V) Approx. 2.13M pixels
Brightness / Sharpness1-20 steps adjustable
Backlight ModeOFF/BLC/HLC/WDR
AWBPreset / Pushing
Digital ZoomImage zoom in / out (1-10x)
Lens ModePTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope
Operating Temp-10ºC to +75 ºC
Color AdjustmentUser Defined (RGB gain/hue 1-250)
Power Consumption1.2 W (≤100mA)
Processor Size2000x1700x170mm
🌟

Core Features

High Definition Imaging

Equipped with 1/2.8" SONY CMOS sensor, providing crystal clear 1080P resolution for medical diagnostics.

Versatile Connectivity

Supports multiple output interfaces including DVI, HDMI, SDI, and CVBS for compatibility with various monitors.

Multi-Disciplinary Use

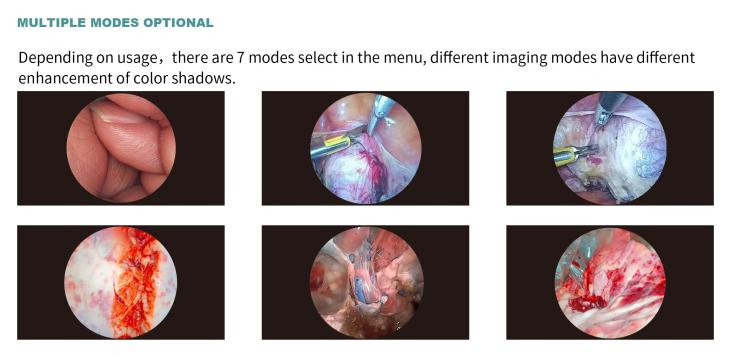

Optimized modes for Arthroscopy, ENT, PTED, Cystoscopy, Laparoscopy, and Hysteroscopy.

📷

Product Showcase

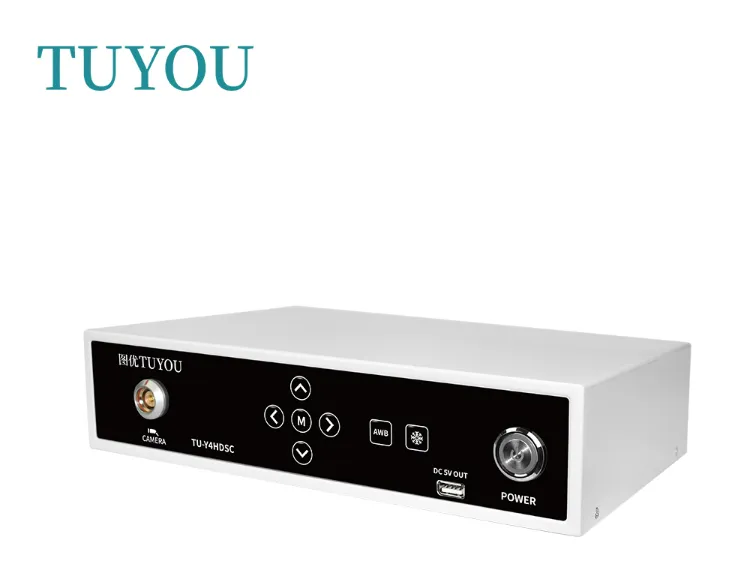

Endoscope System Main Unit

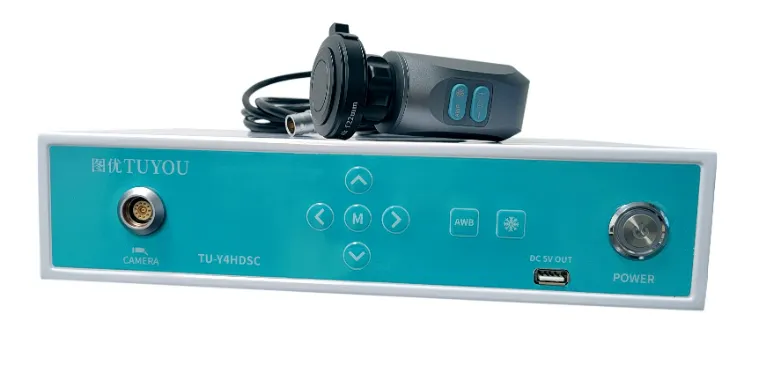

Video Interface Display

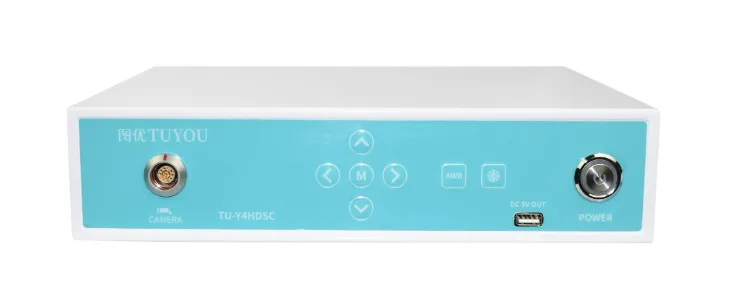

Medical Endoscope Camera Details

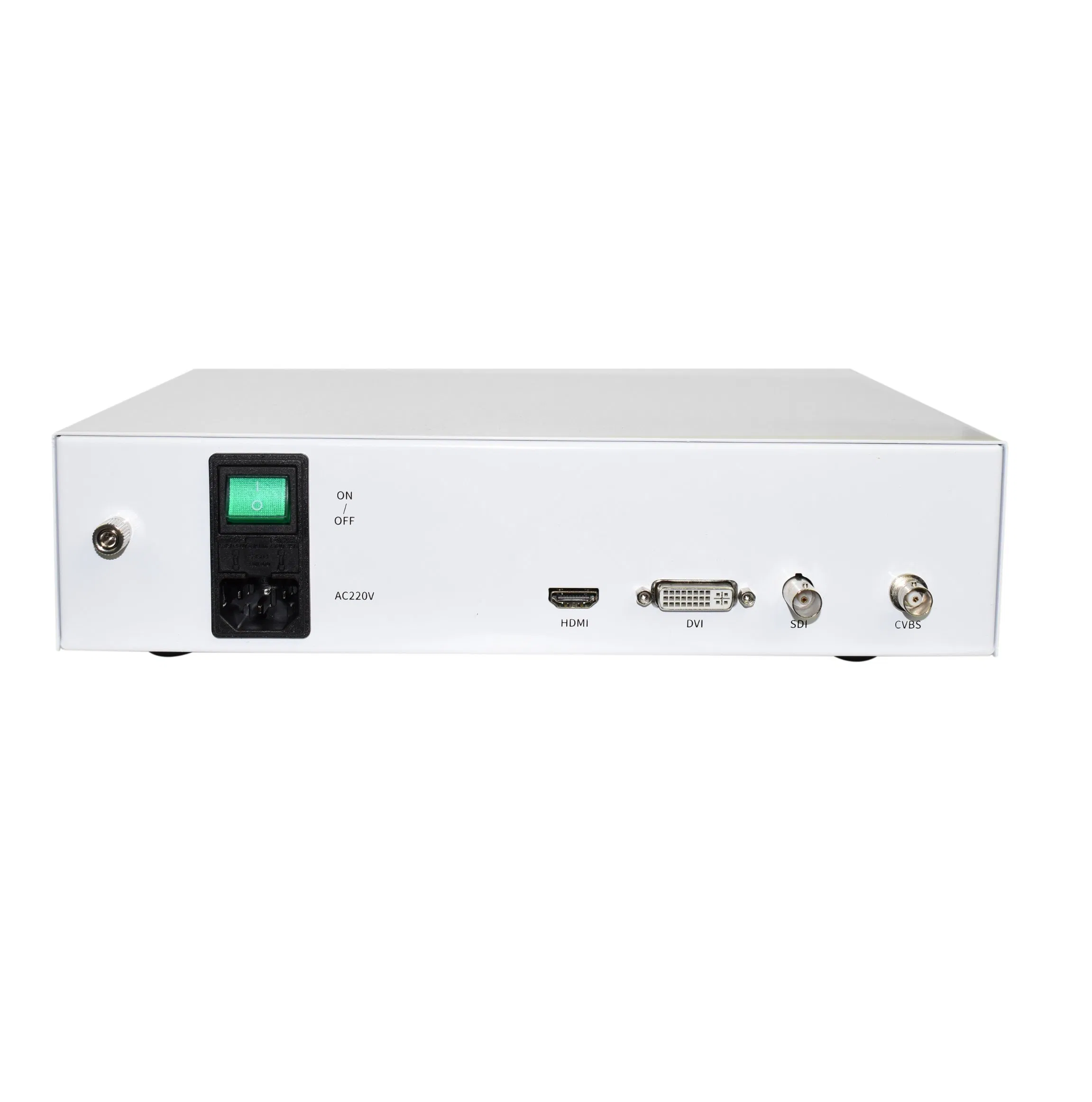

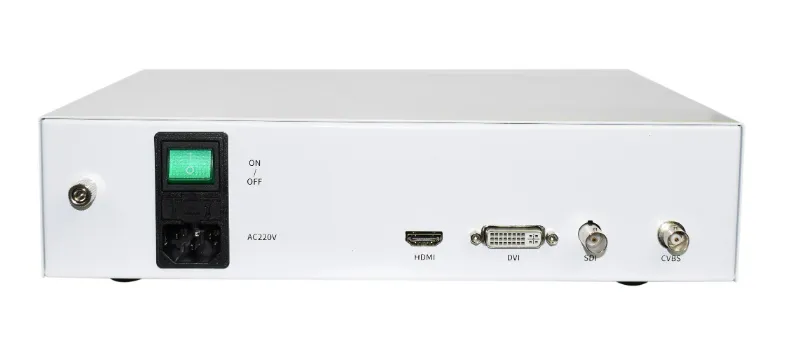

Output Ports View

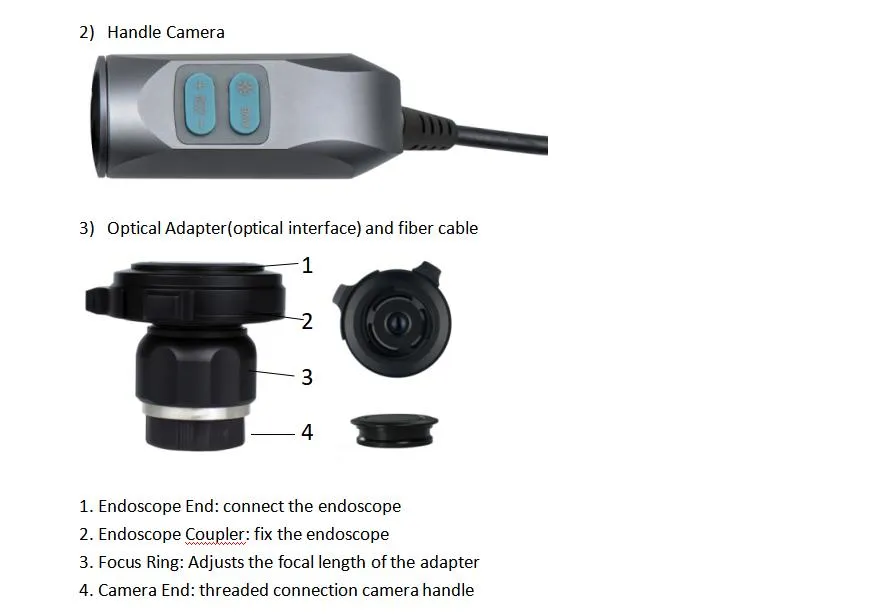

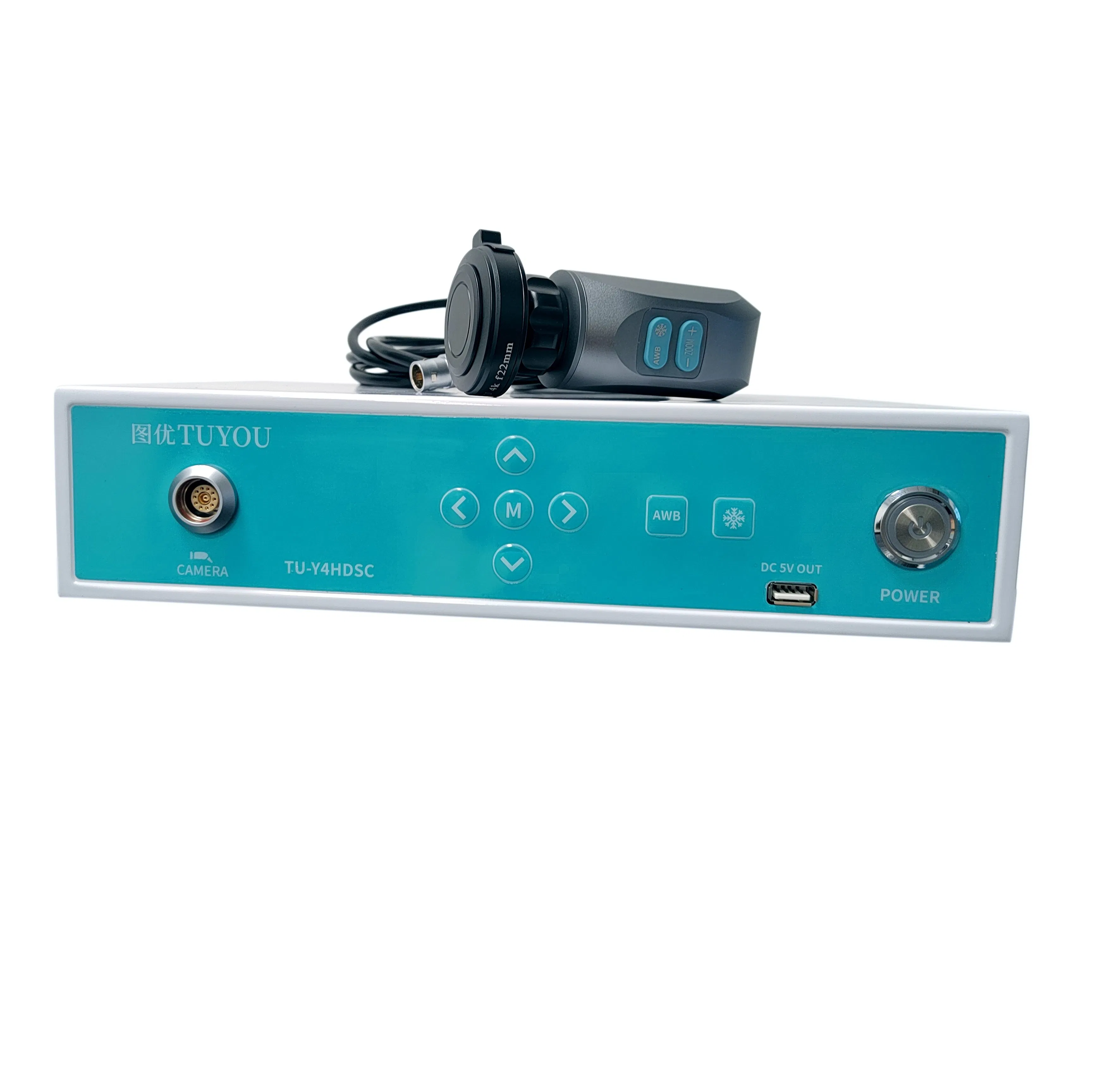

Camera Head and Connection

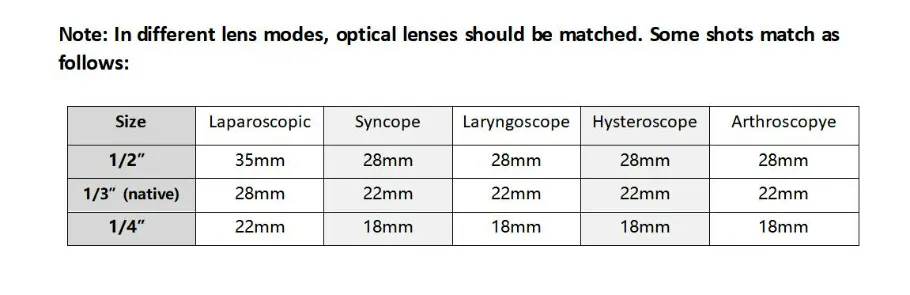

System Dimensions
Feedback Display
📦

Quality & Logistics

Our manufacturing process adheres to international standards. Each system is carefully packed in standard cartons with protective foam to ensure safe delivery.

Product Certifications

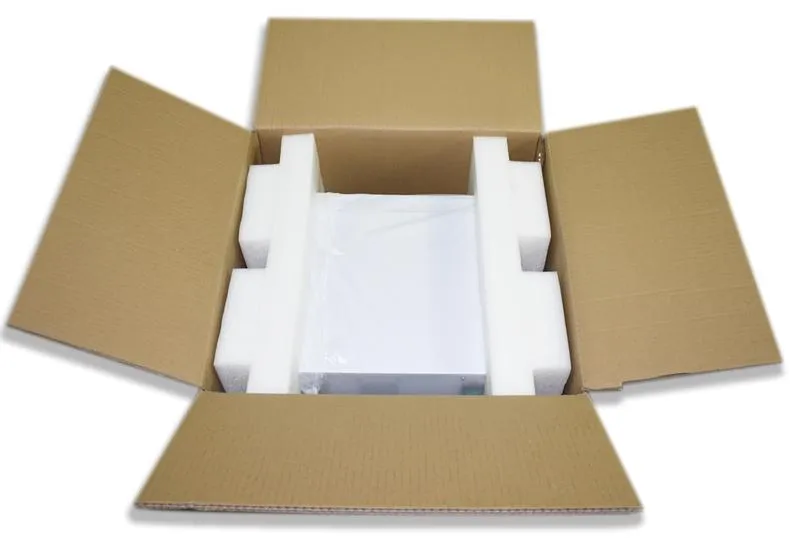

Packaging Box
Shipping Preparation
❓

Frequently Asked Questions

What clinical applications is this camera system suitable for?
The system is designed for a wide range of endoscopic procedures including Arthroscopy, ENT, PTED, Cystoscopy, Laparoscopy, Hysteroscopy, and fiber-based endoscopies such as bronchoscopy and ureteroscopy.
What kind of video outputs are supported?
This model provides comprehensive output options: DVI, HDMI, SDI, and CVBS, allowing it to connect to almost any medical-grade monitor or recording system.
Can the image quality be adjusted during surgery?
Yes, the system features a 20-step adjustment for both brightness and sharpness, along with digital zoom (D-zoom) and manual white balance (AWB) to optimize the visual field.
What is the resolution and sensor type?
It uses a high-performance 1/2.8" SONY CMOS (IMX385) sensor, delivering full HD 1080P resolution at up to 60fps for smooth, real-time imaging.
What is the standard warranty and lead time?
The product comes with a two-year free warranty. Standard orders are typically delivered within 7 working days after payment, with sample units ready for immediate shipping.
Does the system support multiple languages?
Yes, the OSD menu supports multiple languages including Chinese, English, Japanese, Korean, and others to accommodate global users.
