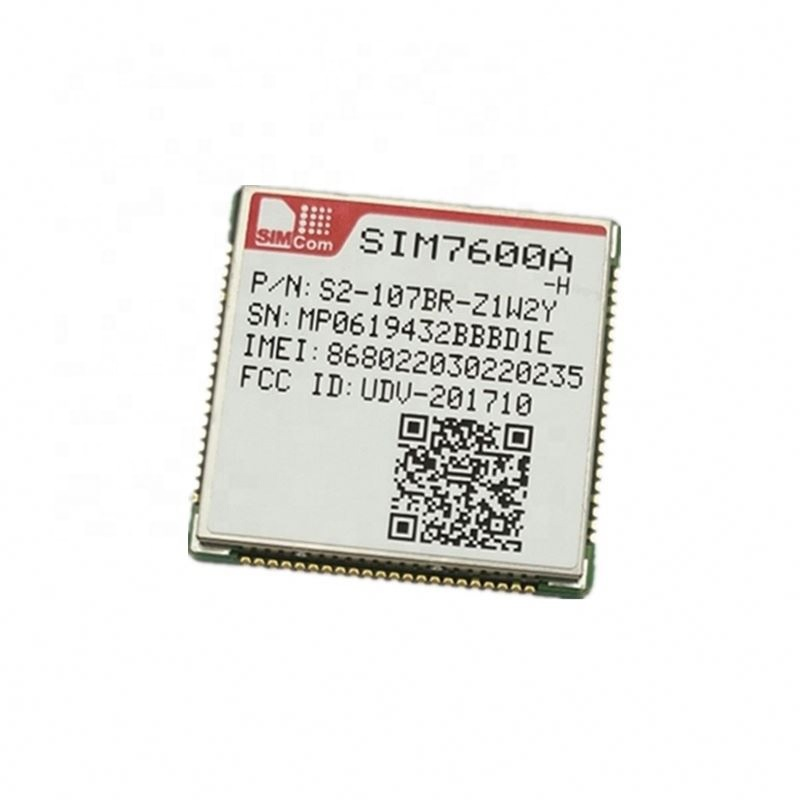

4G LTE Network Module SIM7100A SIM7500A SIM7600A Network Chip Module for Arduino
4G LTE Network Module SIM7100A SIM7500A SIM7600A Network Chip Module for Arduino
1 / 2
4G LTE Network Module SIM7100A SIM7500A SIM7600A Network Chip Module for Arduino
4G LTE Network Module SIM7100A SIM7500A SIM7600A Network Chip Module for Arduino

4G LTE Network Module SIM7100A SIM7500A SIM7600A Network Chip Module for Arduino

Customization: Available
Usage: Module
Type: Wireless
Send Inquiry

Product Description

Basic Information

Model NO.: SIM7020
Support Network: GSM / NB-IoT
Information Content: Data
Condition: New
Mounting Type: DIP / LCC
Origin: Guangdong, China
Production Cap.: 10000PCS/Month
Package: Carton

Product Description

4G LTE & NB-IoT Network Module Series (SIM7100A / SIM7500A / SIM7600A) for Arduino

The SIM7020 is a high-performance multi-band NB-IoT wireless communication module in a 42 PIN LCC package. It features a rich set of hardware interfaces including serial ports, GPIO, and ADC, providing extensive scalability for product development. Compatible with the SIM800C module, it allows for seamless upgrades and significantly reduces development time.

🔋 Low Power

Supports PSM and eDRX modes; long battery life up to 10 years.

📡 Wide Coverage

Strong gain and wide signal coverage, ideal for basements and remote areas.

🔄 Smooth Upgrade

Pin-to-pin compatible with SIM800C for easy hardware migration.

Technical Specifications

🔹 Frequency Bands

SIM7020C: B1/B3/B5/B8
SIM7020E: B1/B3/B5/B8/B20/B28

🔹 Data Transmission (NB-IoT)

Upstream: Max 62.5kbps
Downstream: Max 26.15kbps

🔹 Power & Physical Specs

Voltage: 2.1V ~ 3.6V (Typical 3.3V)
Operating Temp: -40°C to +85°C
Dimensions: 17.6 x 15.7 x 2.3 mm
Weight: 1.3±0.2 g

🔹 Interface & Software

USIM (1.8V/3V), UART, ADC, GPIO, Network Light, Reset.
Supports TCP/UDP, MQTT, FTP, HTTP, HTTPS, SSL, DTLS, FOTA.

Product Gallery

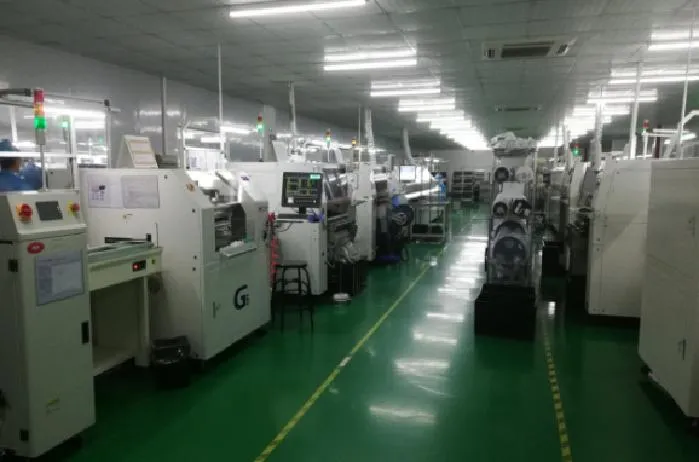

Network Module 1

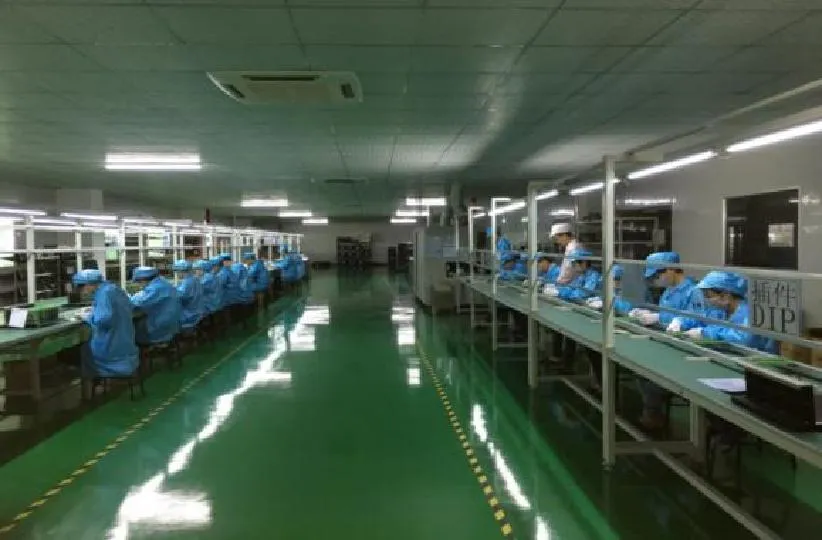

Network Module 2

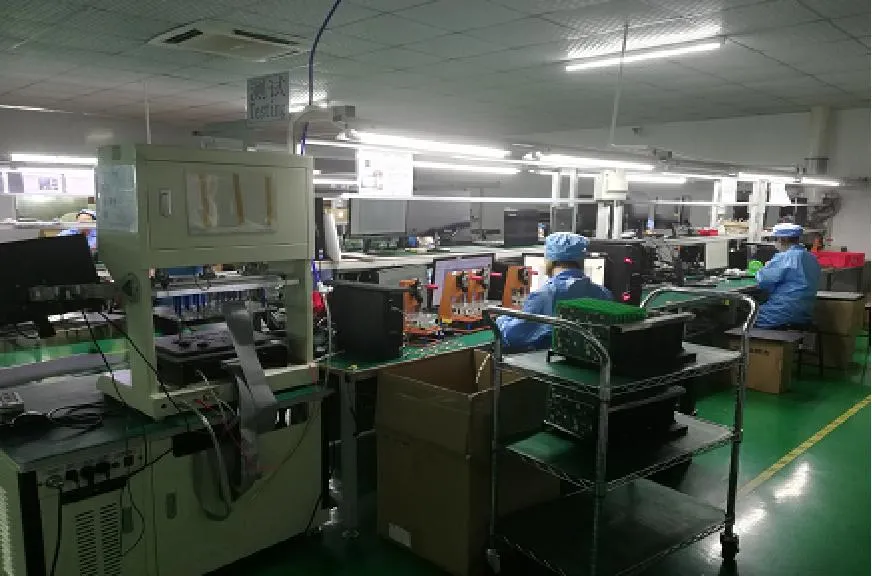

Network Module 3

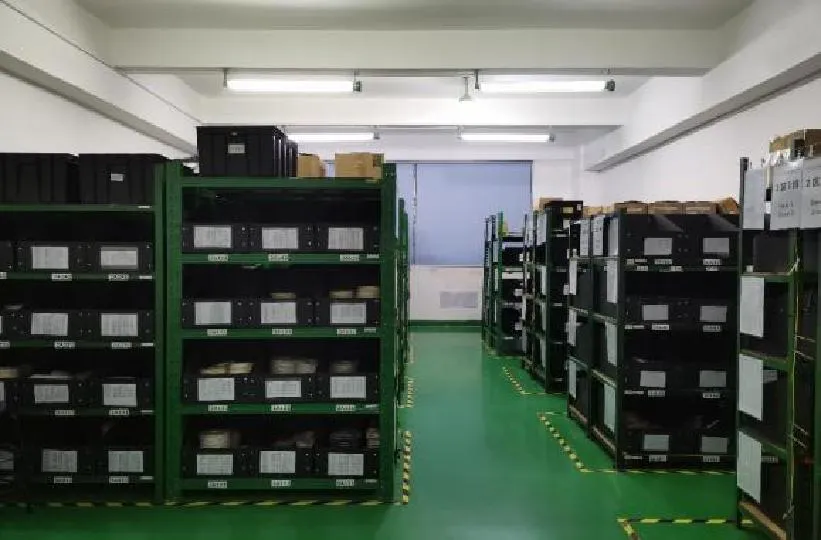

Network Module 4

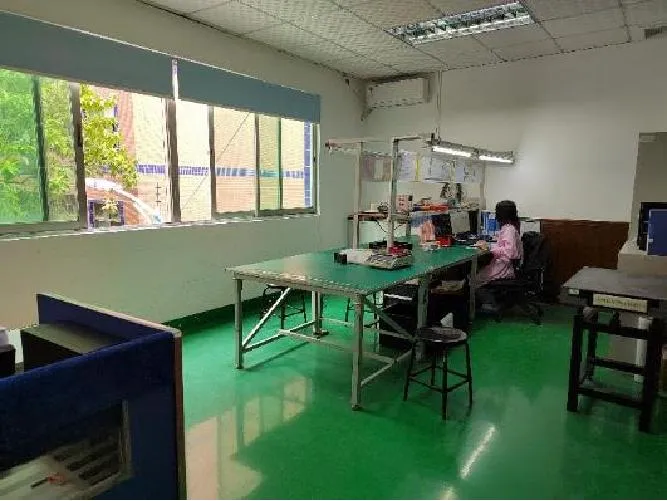

Network Module 5

Frequently Asked Questions

What are the primary applications for the SIM7020 module?
The SIM7020 is ideal for low-latency, low-throughput IoT applications such as smart metering, asset tracking, remote monitoring, telemedicine, and shared bicycles.
How does the low power consumption benefit long-term use?
By supporting PSM (Power Saving Mode) and eDRX, the module can operate for up to 10 years on two standard size-5 batteries in theoretical conditions.
Is the SIM7020 compatible with older module designs?
Yes, the SIM7020 package is compatible with the SIM800C module, allowing customers to upgrade their existing hardware designs with minimal changes.
What network protocols does the module support?
It supports a wide range of protocols including TCP/UDP, LWM2M, COAP, MQTT, FTP, HTTP, HTTPS, SSL, and DTLS.
Can the software be updated remotely?
Yes, the module supports FOTA (Firmware Over-The-Air) for remote software updates, in addition to updates via the serial port.
What certifications does the module hold?
Planned certifications include CCC, TA, CTA for SIM7020C, and CE/GCF for SIM7020E, along with RoHS and REACH compliance.
