7-Inch Rigid Touch Screen Endoscope System with Built-in Video Recording
7-Inch Rigid Touch Screen Endoscope System with Built-in Video Recording
7-Inch Rigid Touch Screen Endoscope System with Built-in Video Recording
7-Inch Rigid Touch Screen Endoscope System with Built-in Video Recording
7-Inch Rigid Touch Screen Endoscope System with Built-in Video Recording
1 / 5
7-Inch Rigid Touch Screen Endoscope System with Built-in Video Recording
7-Inch Rigid Touch Screen Endoscope System with Built-in Video Recording
7-Inch Rigid Touch Screen Endoscope System with Built-in Video Recording
7-Inch Rigid Touch Screen Endoscope System with Built-in Video Recording
7-Inch Rigid Touch Screen Endoscope System with Built-in Video Recording

7-Inch Rigid Touch Screen Endoscope System with Built-in Video Recording

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Medical Endoscopy Camera System
Send Inquiry

Product Description

i

Basic Specifications

Model NO.TU-D90TB+TU-LS90TG
CertificationCE, ISO13485, FCC
Resolution1080P Full HD
OutputHDMI/DVI/VGA/SDI/CVBS
PowerAC110V~240V
StorageU Disk (USB 2.0/3.0 up to 32GB)
Zoom0-8X Digital Zoom
LanguageMulti-language Support
★

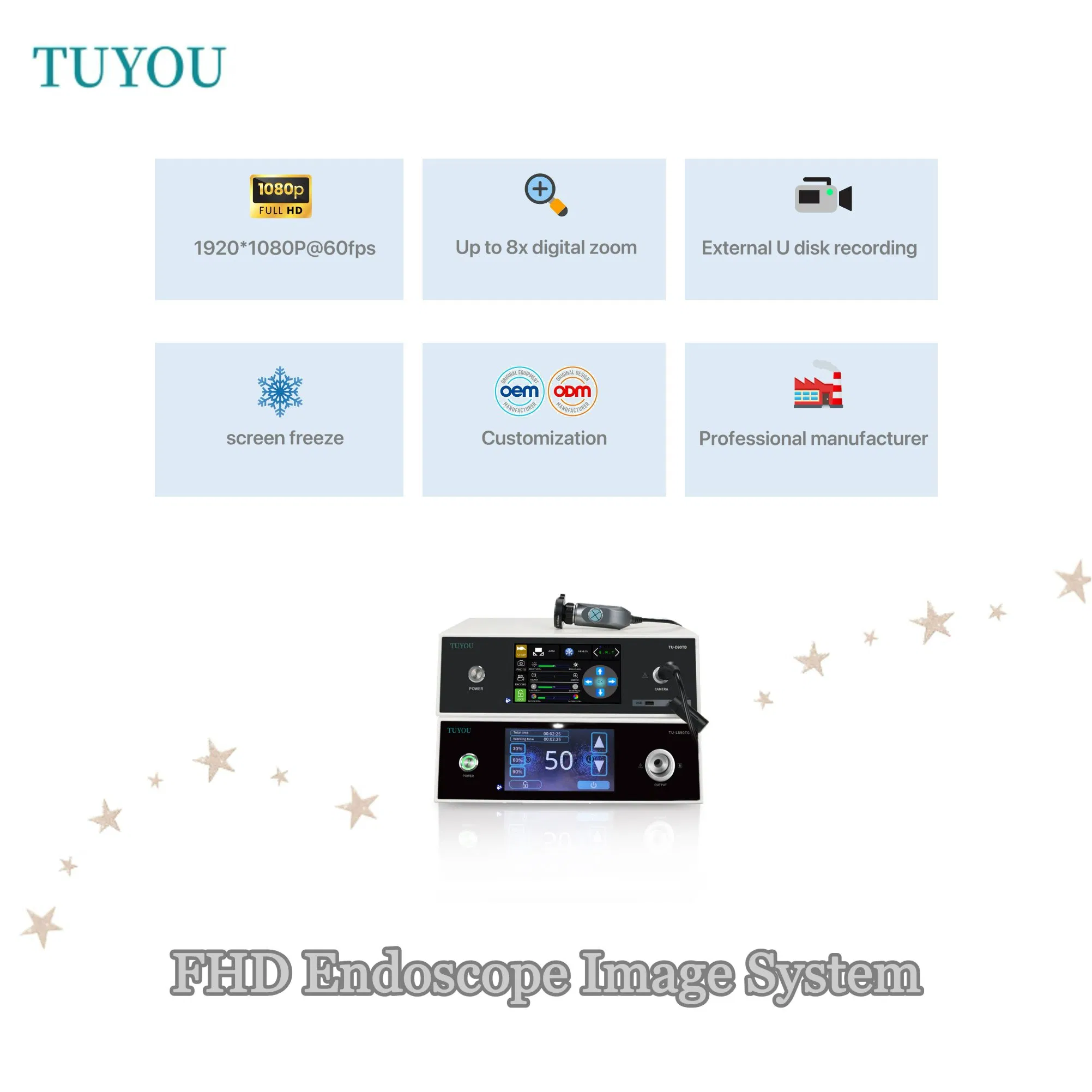

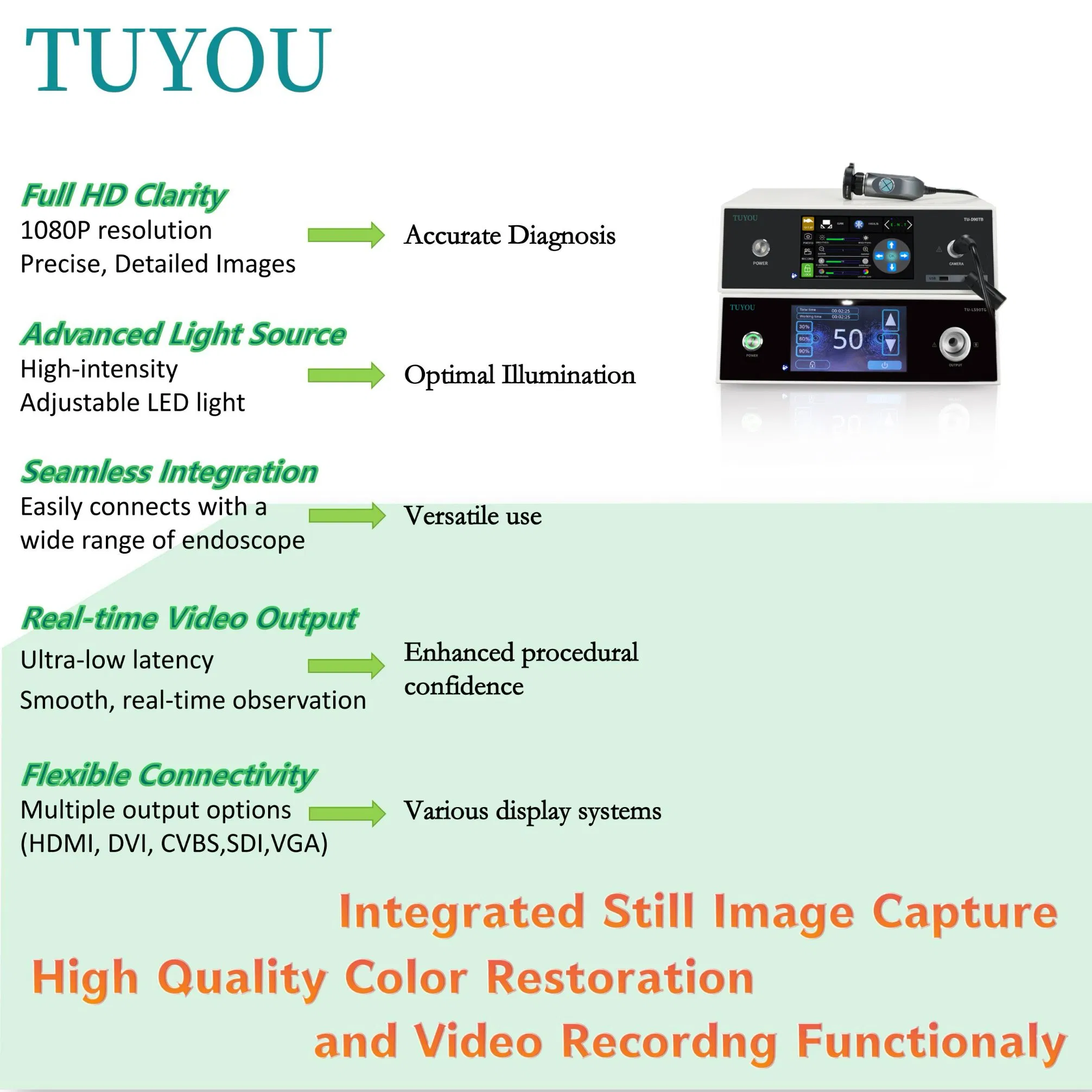

Product Features

Integrated Recording: Self-contained video recording system for seamless data management.
Touch Interface: 7-inch high-resolution touch screen for real-time viewing and instant playback.
Dual Storage: Two built-in USB full HD video storage options with external monitor connectivity.
One-Key Control: Dedicated shortcut keys for freeze, white balance, zoom, and photo/video capture.

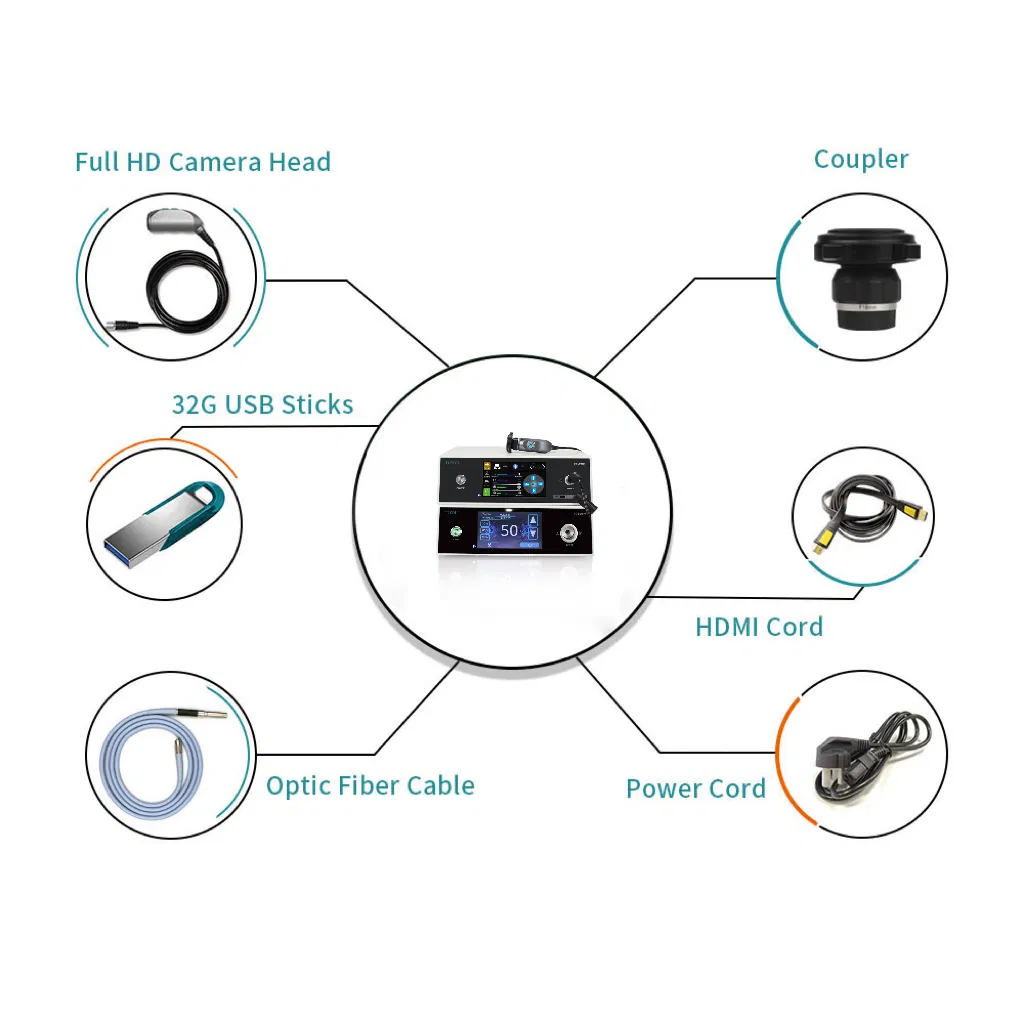

Composition: System includes camera control unit, handle camera, and optical adapter.
Note: Specific configurations for handle camera and lenses may vary based on selection.

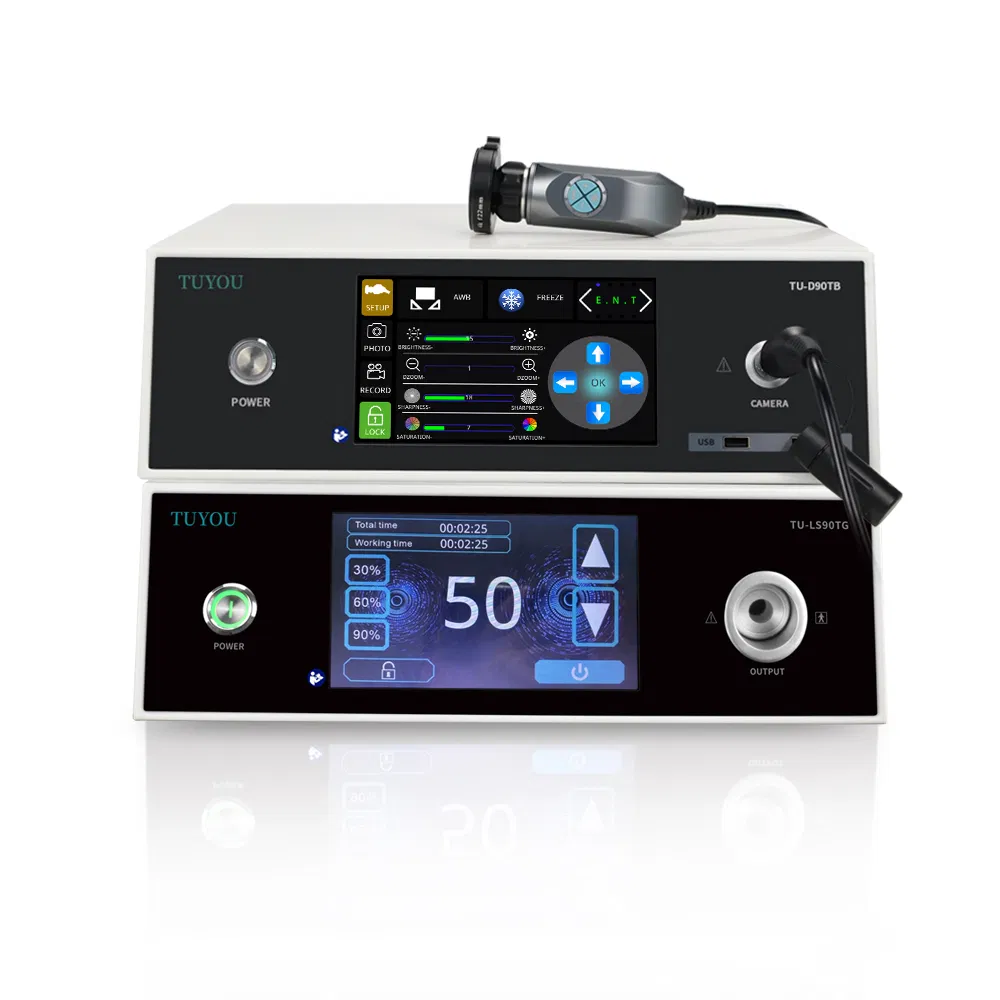

7-Inch Endoscope System
Endoscope Control Interface
⚙

System & Camera Parameters

System Specifications
Input Interface1080P
Output InterfaceHDMI/SDI/DVI/VGA/CVBS
Signal Noise Ratio (SNR)<45dB
Environment-10ºC~60ºC
DimensionsL336 * W330 * H116mm
Camera Sensor Specifications
Image Sensor1/1.8" SONY CMOS
Effective Pixels1920(H) × 1080(V) Approx. 2M pixels
Brightness Control1-30 Steps
Lens ModesPTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT
Power SupplyDC12V ±10% <3W

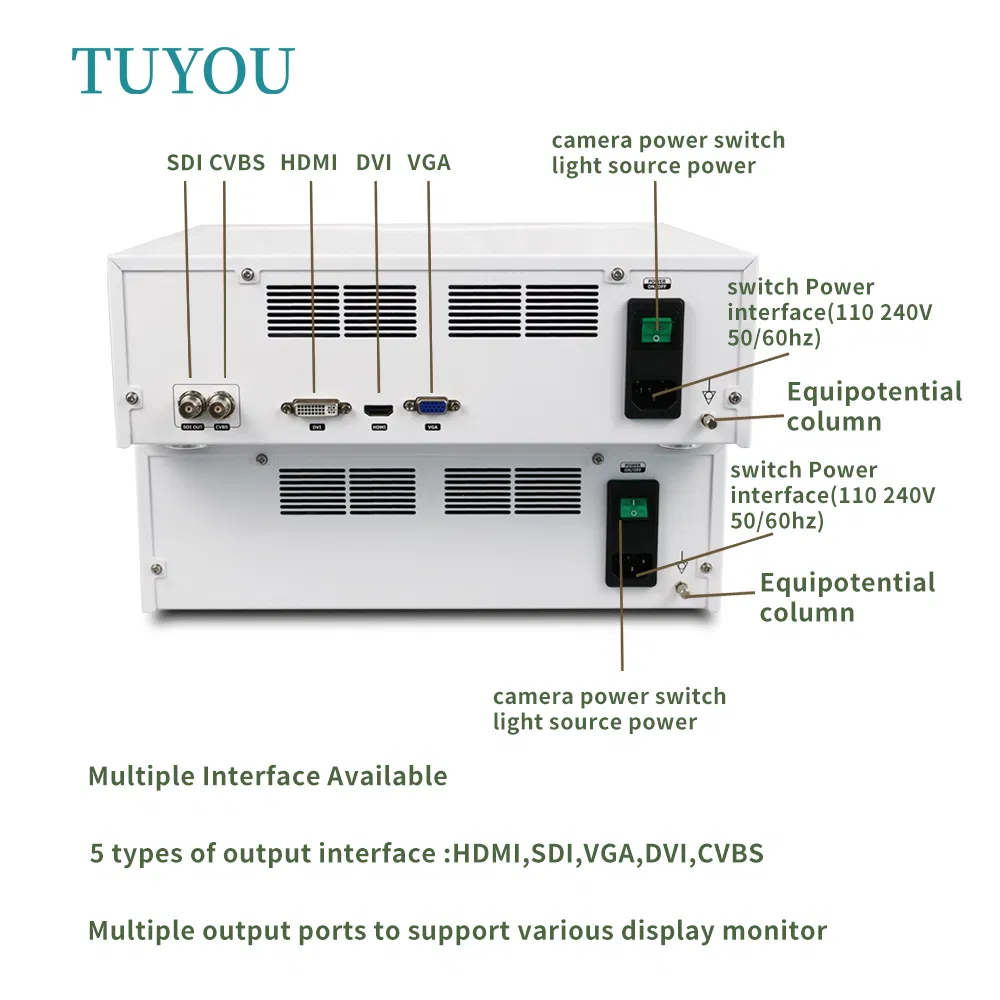

Product Rear View
Technical Layout
✓

Quality & Certifications

The imaging system has passed international quality standards including CE, FCC, and ROSH. Designed for professional medical environments, the system ensures high-fidelity image reproduction for diagnostic accuracy across various endoscopic procedures.

Certifications Display
📦

Packing & Delivery

Packaging Box
Delivery Process
🌐

Global Presence

Medical Exhibition
Industry Booth
?

Frequently Asked Questions

Is the video recording system built-in or external?
The system features a self-contained built-in video recording system that supports U Disk storage (USB 2.0/3.0) for easy recording and photo capture.
What types of endoscopy can this system be used for?
The camera supports multiple lens modes including Arthroscope, Cystoscope, Hysteroscope, Laparoscope, Fiber, and ENT, making it highly versatile.
What interfaces are available for monitor connection?
The system provides multiple output interfaces including HDMI, SDI, DVI, VGA, and CVBS to ensure compatibility with various medical monitors.
Does the device support digital zoom?
Yes, it supports a digital zoom range from 0x to 8x, which can be controlled via the touch screen or shortcut keys.
What is the warranty period for this medical system?
We provide a two-year free warranty. During this period, if there is any fault with the product, repair and fault assembly changes are handled free of charge.
What languages are supported by the software?
The system supports multiple languages including Chinese, English, Japanese, and Korean, allowing for global clinical application.
