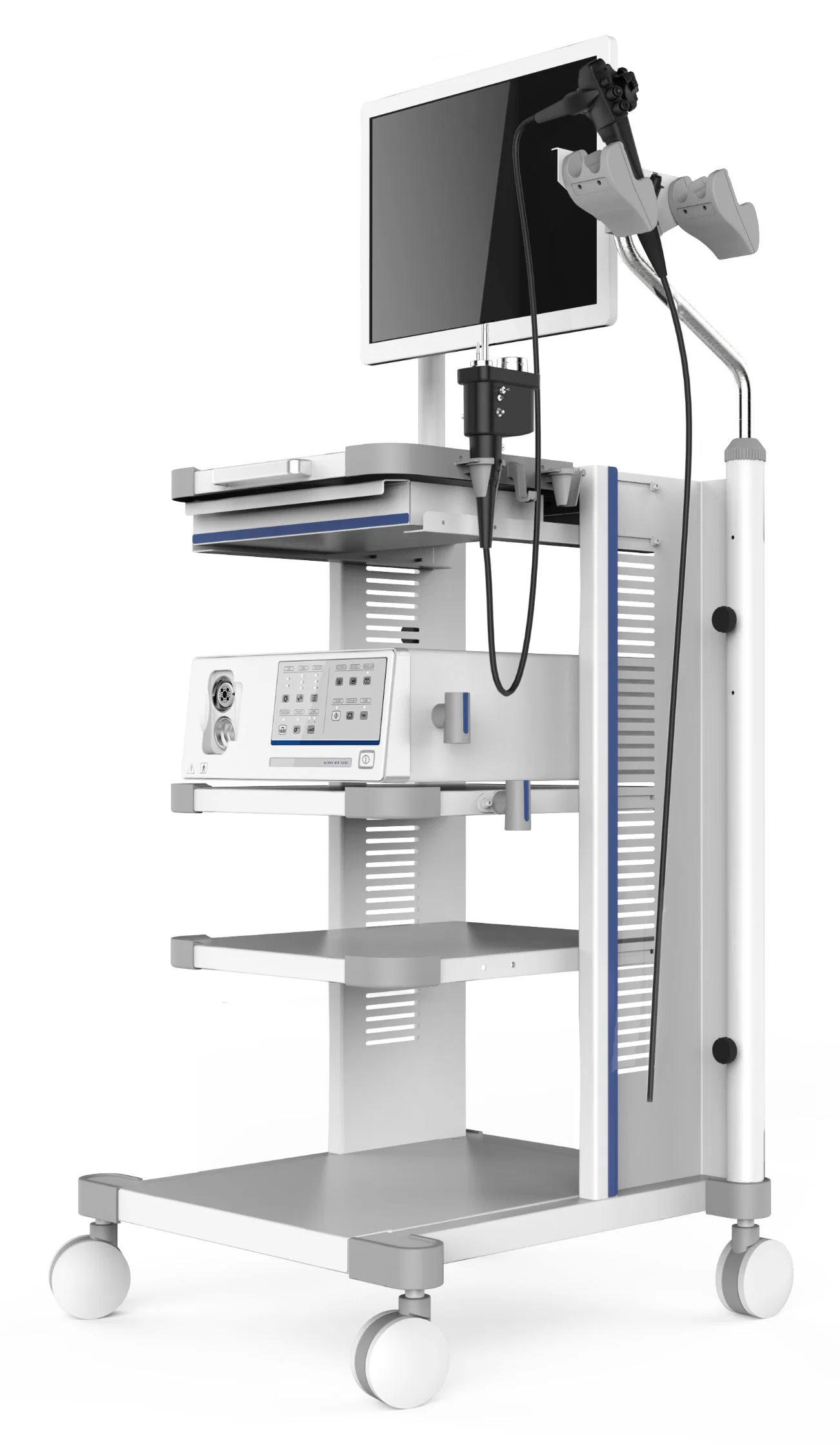

Advanced Gastrointestinal & Colono Video Endoscopy System with High Quality, Optoelectronics Equipment, Med

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Video Endoscopy System

Product Description

i

Basic Information

Model NO.
Gastrointestinal & Colono Video Endoscopy System
Certification
ISO13485
Field of View
120°
Depth of Field
3-100mm
Center Resolution
≥7.41 Lp/mm
Water Flow Rate
≥45ml/Min
Air Flow Rate
≥800ml/Min
Suction Flow Rate
≥400ml/Min
HS Code
9018903010
Production Capacity
500PCS/Month
★

Product Description

Advanced Cart Type Gastrointestinal & Colono Video Endoscopy System with High Quality, Optoelectronics Equipment

Key Features

  • Exceptional Optical System: Superior-high resolution imaging with 440K pixel color CCD for crystal clear resolution and realistic color.
  • Circular Imaging Design: Allows for an easier and clearer observational experience.
  • Compact Design: Multifunctional lightweight design for maneuvering through small and tight spaces easily.
  • Advanced Freeze Frame: 4-images frozen and stored continuously; shown simultaneously; playback scrolling.
  • Enlargeable Images: Any part of a single image is enlargeable for detailed inspection.
  • Picture-in-Picture: Support and enhance visual examination.
  • High Luminance Light Source: Minimal power, adjustable brightness without affecting light color.
  • PC Connectivity: Enables image capture, storage, and management of patient data (name, gender, diagnosis, etc.) and report printing.
⚙

Specifications

System Parameter Colono Video Endoscope Gastrointestinal Video Endoscope
Diameter of Insertion Tube13mm9.8mm
Outer Diameter13.4mm9.8mm
Working Length1330mm1050mm
Instrument Channel Diameter3.2mm2.8mm
Field of View120°120°
Depth of Field3-100mm3-100mm
Center Resolution≥7.41 Lp/mm≥7.41 Lp/mm
Maximum Angulations180°Up/Down, 160°Right/Left210°Up, 90°Down, 100°Right/Left
Water Flow Rate≥45ml/min≥40ml/min
Air Flow Rate≥800ml/min≥800ml/min
Suction Flow Rate≥400ml/min≥400ml/min
P

Product Show

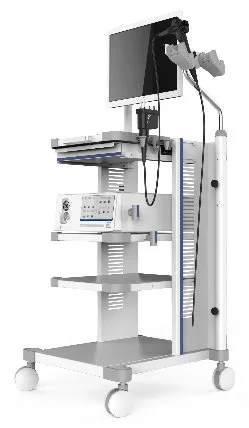

Endoscopy System Display
MOQ1 pc
Warranty1 year
PackageOne piece one carton
A

About Our Solutions

As a leading professional manufacturer and exporter of medical equipment, we provide integrated solutions for medical diagnosis and treatment. We operate our own factories and maintain long-term cooperation with numerous reputable manufacturers to supply basic medical equipment for all types of hospitals and clinics.

Our core product range includes surgical equipment, clinical lab instruments, reagents, X-ray series, ultrasound scanners, and ECG systems. We focus on providing excellent performance, reliable quality, and cost-effective solutions with comprehensive after-sales support.

With a customer-orientated and innovative approach, we have established an efficient worldwide marketing network, exporting to more than 130 countries and cooperating with international organizations such as WHO and UNICEF.

?

Frequently Asked Questions

What is your Minimum Order Quantity?
Our Minimum Order Quantity (MOQ) is generally 1 unit. For certain consumable items like wires or tubing, the MOQ may vary.
Which payment methods do you accept?
We accept most forms of payment including bank transfer (T/T), L/C, and Western Union.
Which certifications do your products have?
Most of our products are ISO and RoHS certified, ensuring international quality standards.
Can I place my company logo on the product?
Yes, OEM services are available for most products. Please confirm with our team before ordering.
What after-sales services do you provide?
We offer comprehensive technical support, customer service, and troubleshooting for all our medical equipment.
How long is the warranty period?
We typically offer a 12-month warranty for all our products, excluding some accessories which may have different periods.
