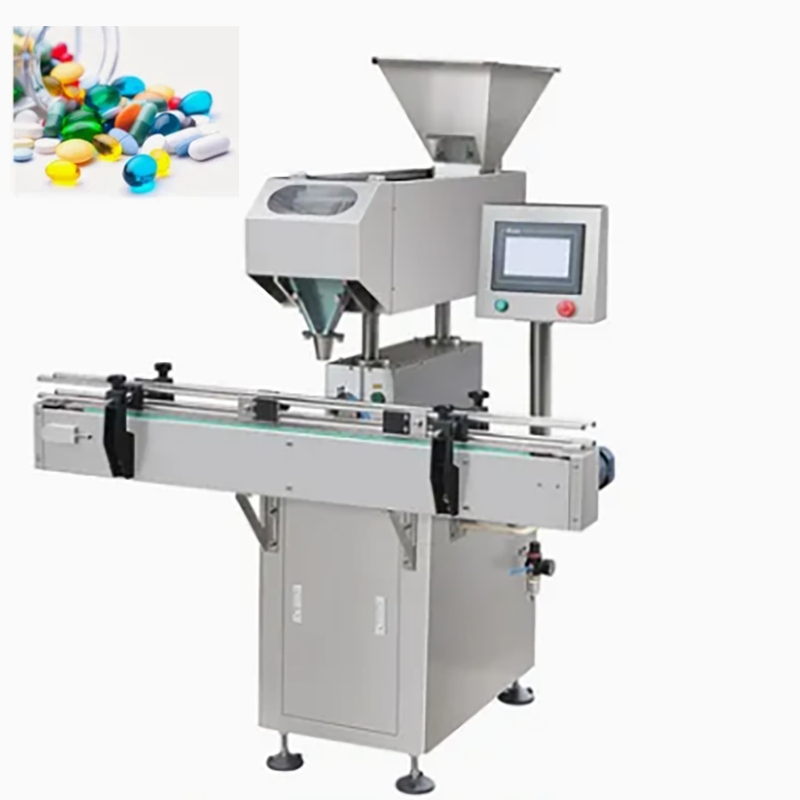

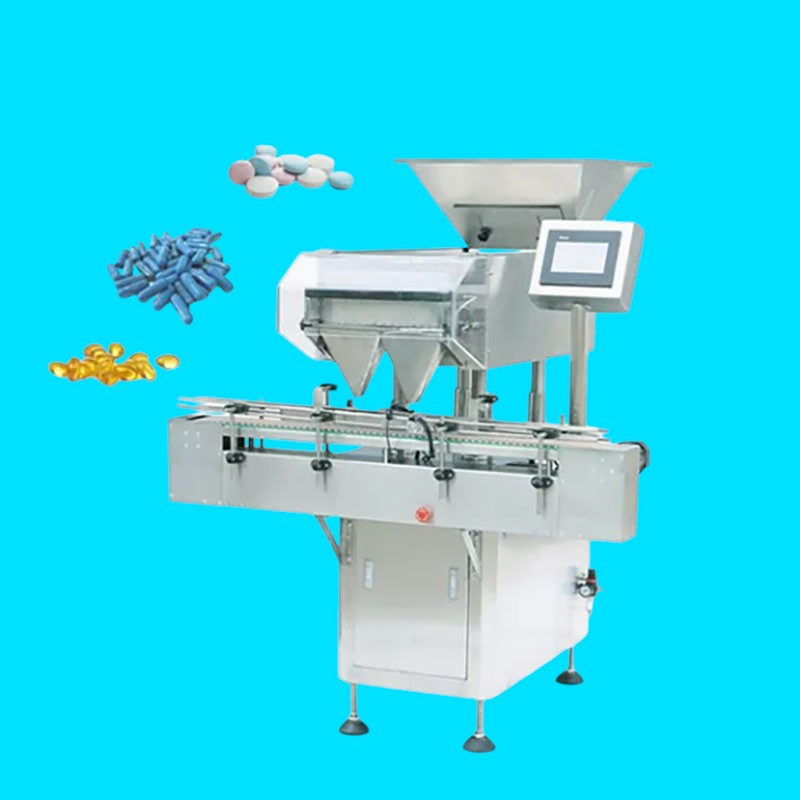

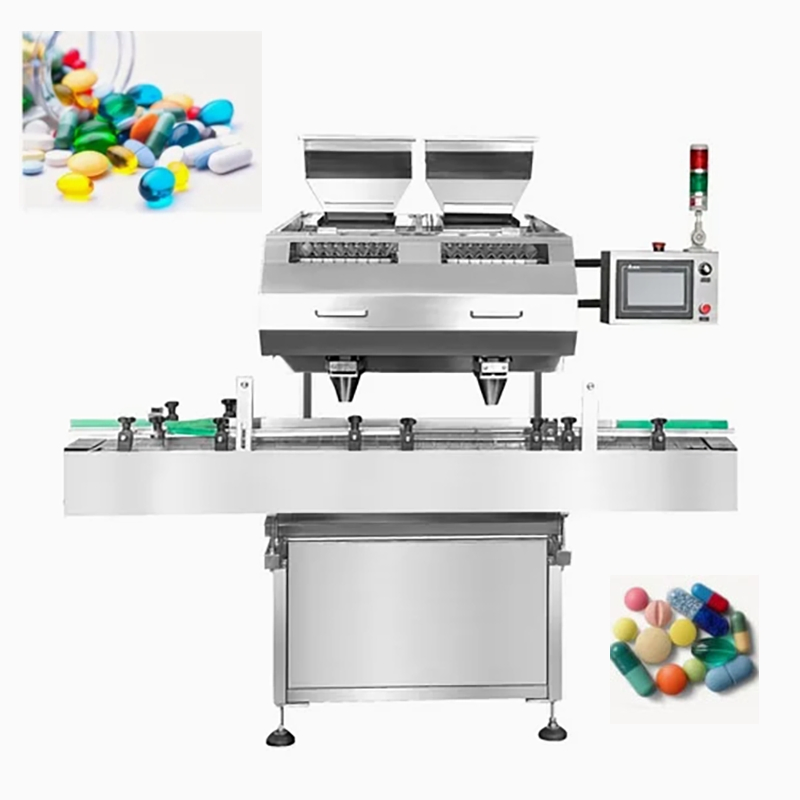

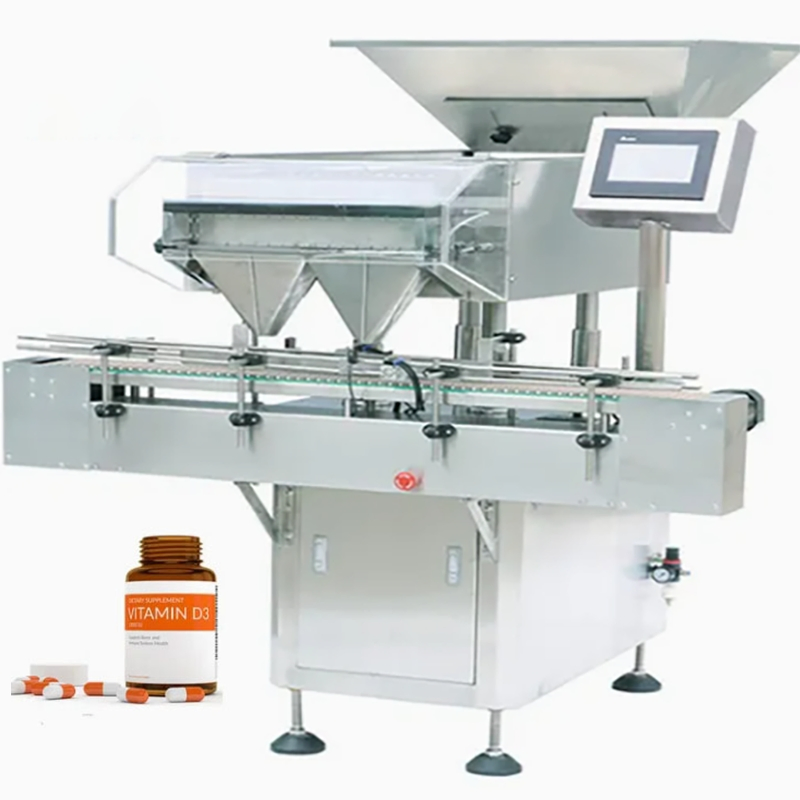

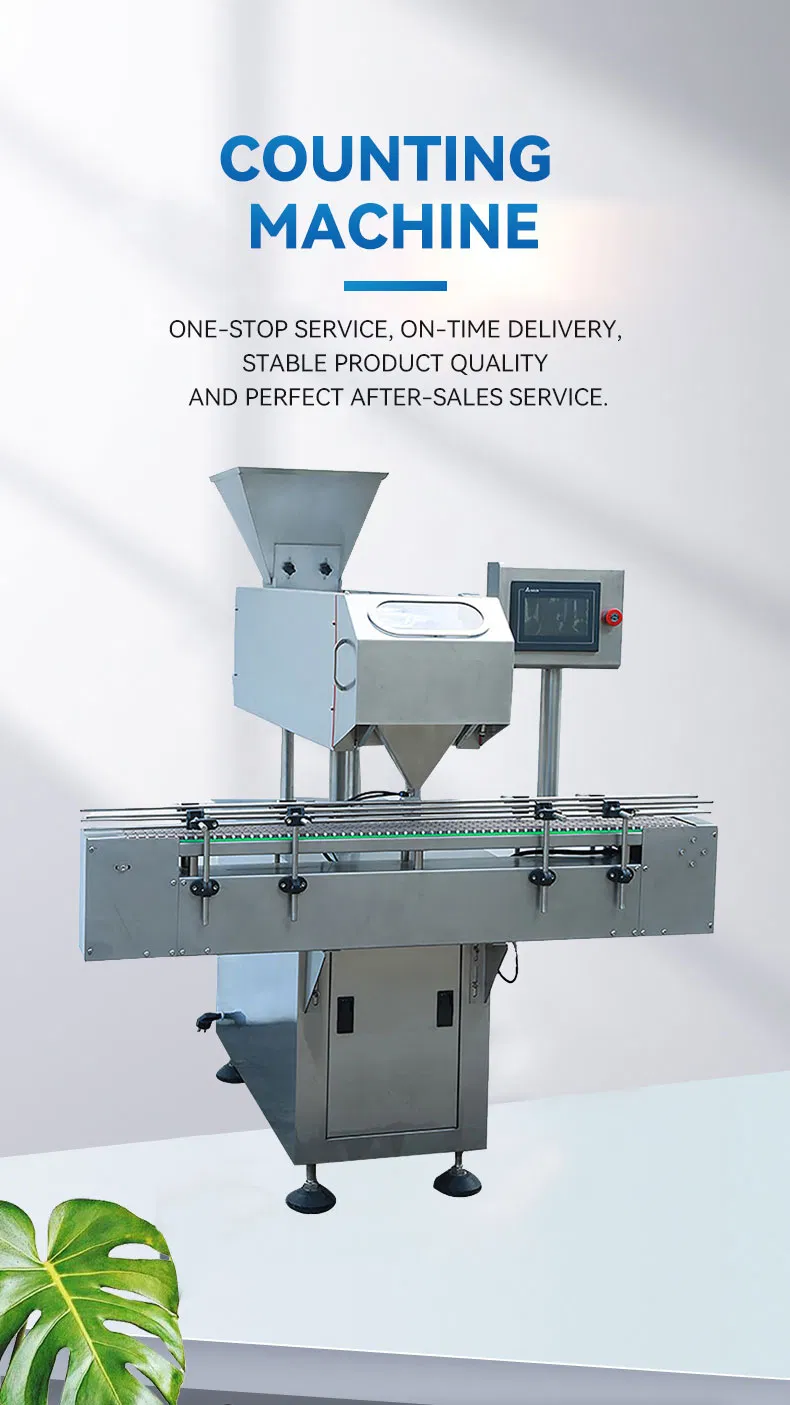

8-Channel Feeding Counter Vibration Panel Vitamin/Candy/Gummy/Tablet/Capsule/Pill Counting Line

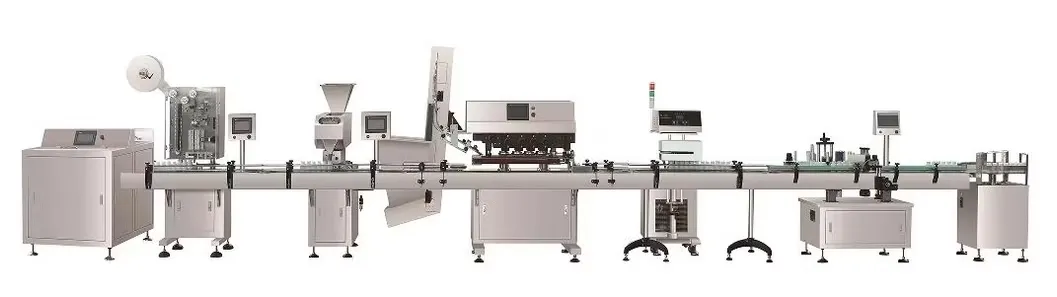

Introduction: Fully automatic tablet capsule candy gum counting packaging line that can count hard capsules, soft capsules, tablets, pills, snack foods, hardware, gum, etc. It features a wide range of applications. The whole line consists of a bottle unscrambler, an electronic counting machine, a desiccant insertion machine, aluminum foil sealing machine, a capping machine, and a labeling machine. All machines operate synchronously ensuring stability. Each component can be adjusted quickly and used independently. The outer frame is constructed of 304 stainless steel, and the contact parts are made of 316 stainless steel.
| Product Name | 8 channels | 12 channels | 16 channels | 24 channels | 32 channels | 48 channels |
|---|---|---|---|---|---|---|
| Filling Accuracy | >99.5% | >99.5% | >99.5% | >99.5% | >99.5% | >99.5% |
| Filling Material | Tablets, pills, capsules, plain tablets, sugar-coated tablets, and other granules | |||||
| Filling Range | Adjustable from 2 to 9,999 units | 2-9999 units | ||||
| Output (BPM) | 10-30 | 20-40 | 20-80 | 20-90 | 40-120 | 40-150 |
| Model | JF-8A | JF-12A | JF-16A | JF-24A | JF-32A | JF-48A |
| Rated Power | 0.6kW | 0.8kW | 1.2kW | 1.5KW | 2.2kW | 2.5KW |
| Weight | 250kg | 320kg | 420kg | 450KG | 550kg | 620KG |
