Portable HD Ent Endoscopy Endoscopic Endoscope Camera System with 17 Inch LCD Screen

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	1 CCD CMOS Wireless Ent Endoscope Camera System

Send Inquiry

Product Description

📦

Basic Information

Model NO.	JLD-G612
Product Name	Portable Ent Endoscope Camera
Certification	CE, MSDS, ISO13485
Screen	17 Inch LCD Screen
Horizontal Resolution	1000 Lines
Brightness/Lux	≥190000lx
Color Temperature	≥6500K
Material	Metal
Power Source	Electric (AC100-240V 50/60Hz)
Shelf Life	3 Years
Application	All Surgery
Origin	China

🔬

Product Description

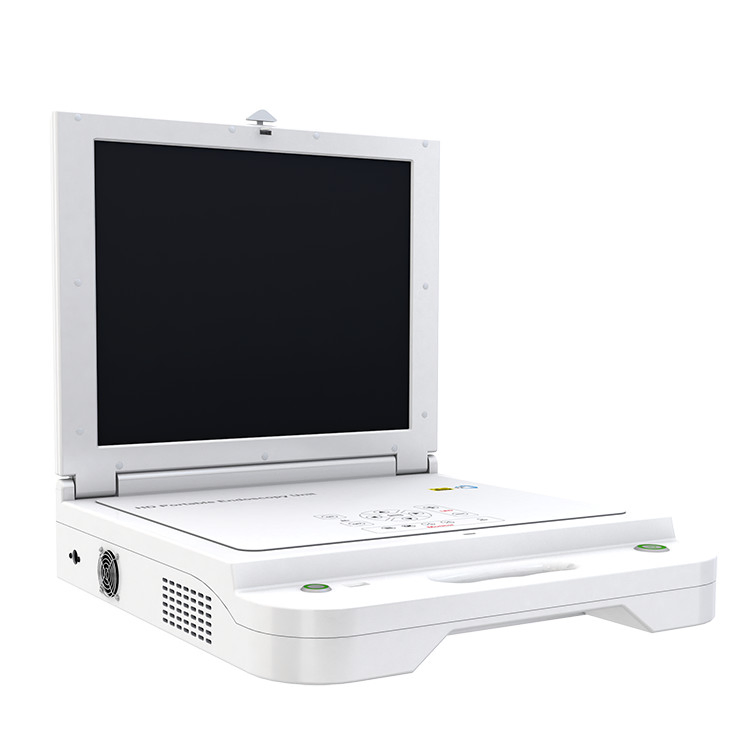

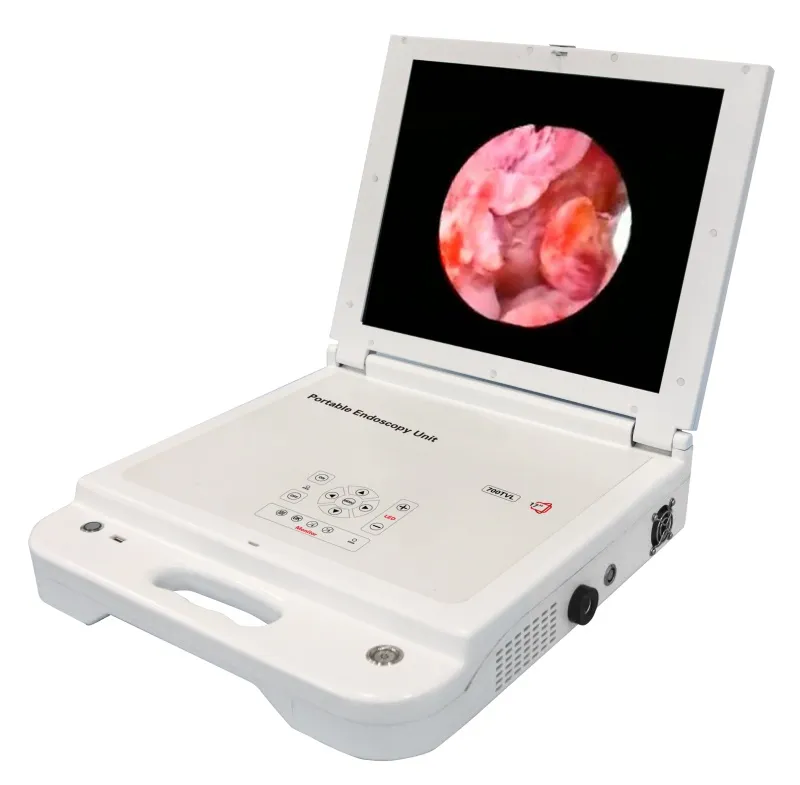

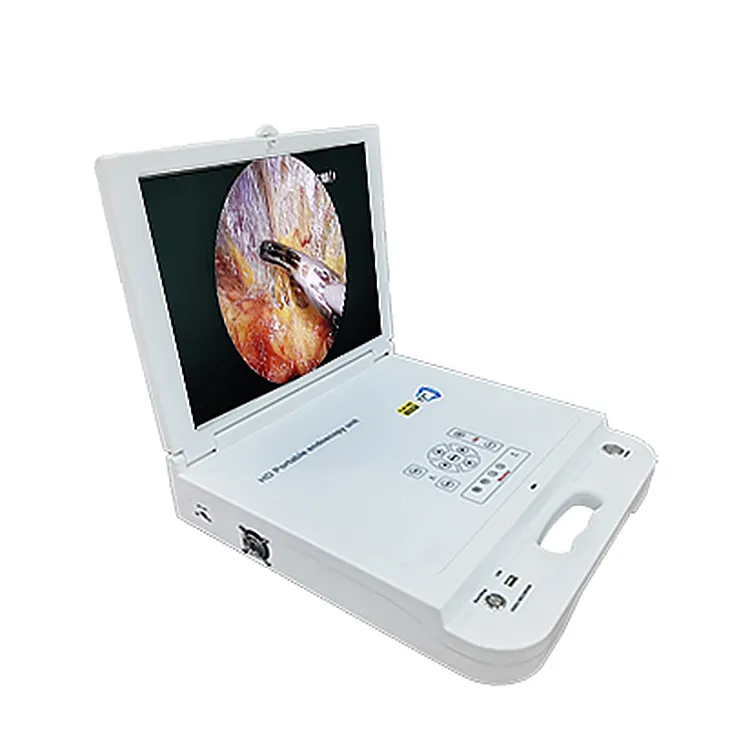

Portable Ent Endoscope Camera JLD-G612

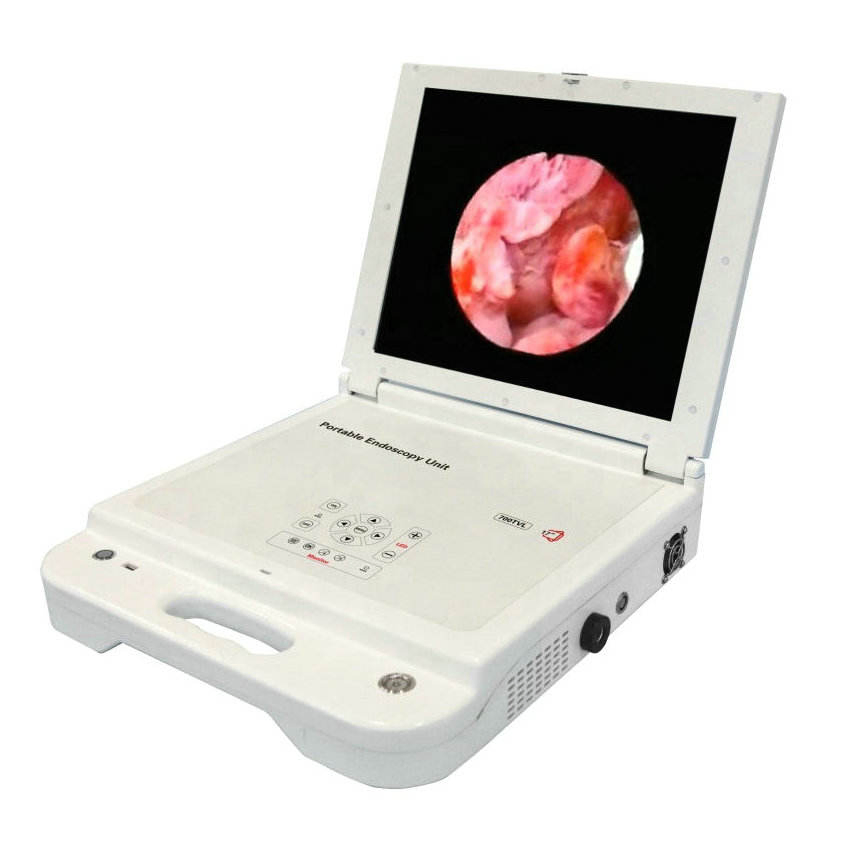

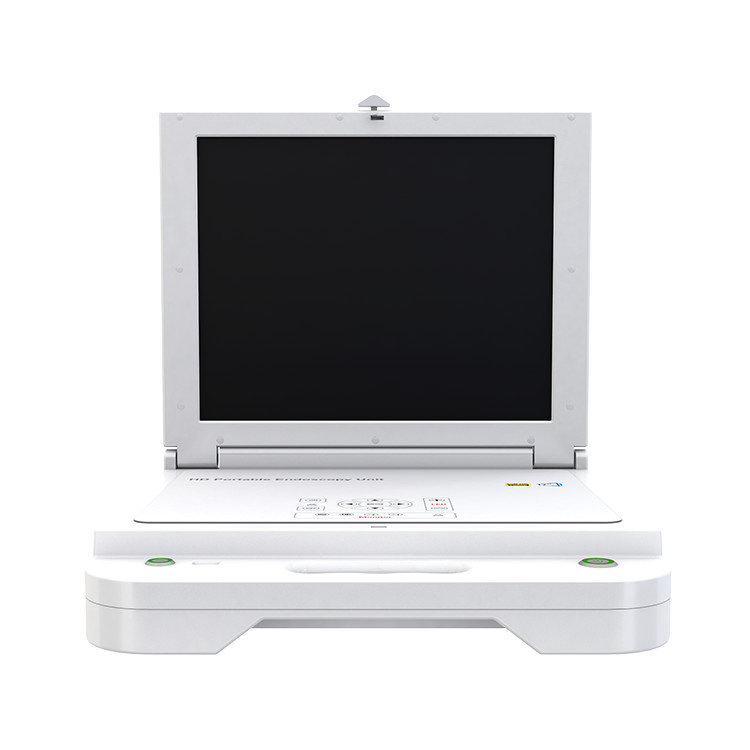

This integrated system combines a high-definition medical monitor, endoscopy camera, LED light source, and HD video recorder into one portable unit.

Technical Specifications

Medical Monitor
LCD screen	17" (Aspect Ratio 5:4)
Endoscopy Camera
Image sensor	1/2.8 CMOS
Horizontal resolution	1000TVL
Scanning mode	Progressive scanning
LED Light Source
Light source	LED light (>40,000hs life)
Color temperature	6000±500K
HD Video Recorder
Recording format	MP4 (Input: HDMI, CVBS)

🏥

Wide Application

The JLD-G612 system is versatile and can be used for various endoscopic procedures including:

ENT and Arthroscopy
Laparoscopy and Thoracoscopy
Hysteroscopy and Urology Resectoscope
Cystoscope and Percutaneous Nephroscope
Fiber Nasopharyngoscope and Bronchoscope
Plastic Surgery and Minimally Invasive Procedures

⭐

Product Advantages

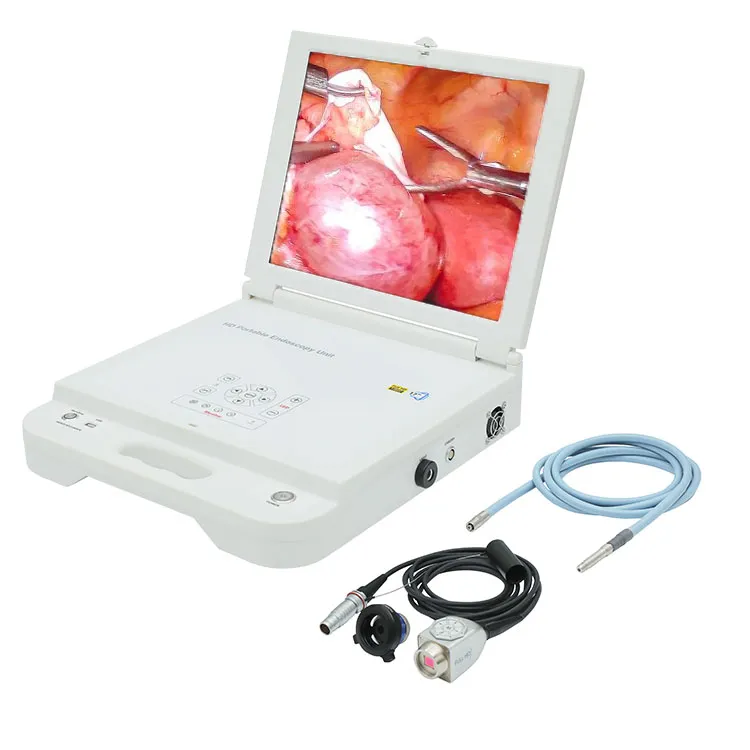

4-in-1 Integration: Camera (1000 lines) + LED light source + 17" Monitor + HD Recorder.
Digital Full HD: Effective pixels 1920(H)*1080(V).

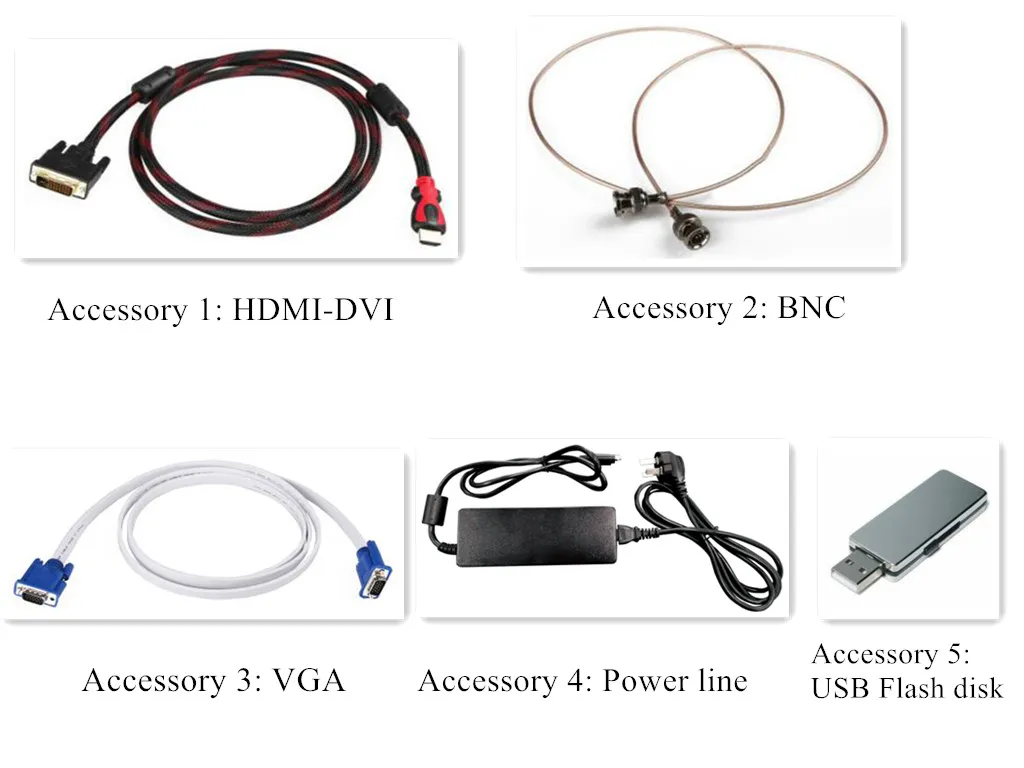

Multi-output Connectivity: Supports HDMI*2, SDI, CVBS, VGA, and USB.
Portability: Designed with a suitcase for easy carrying and reduced shipping costs.

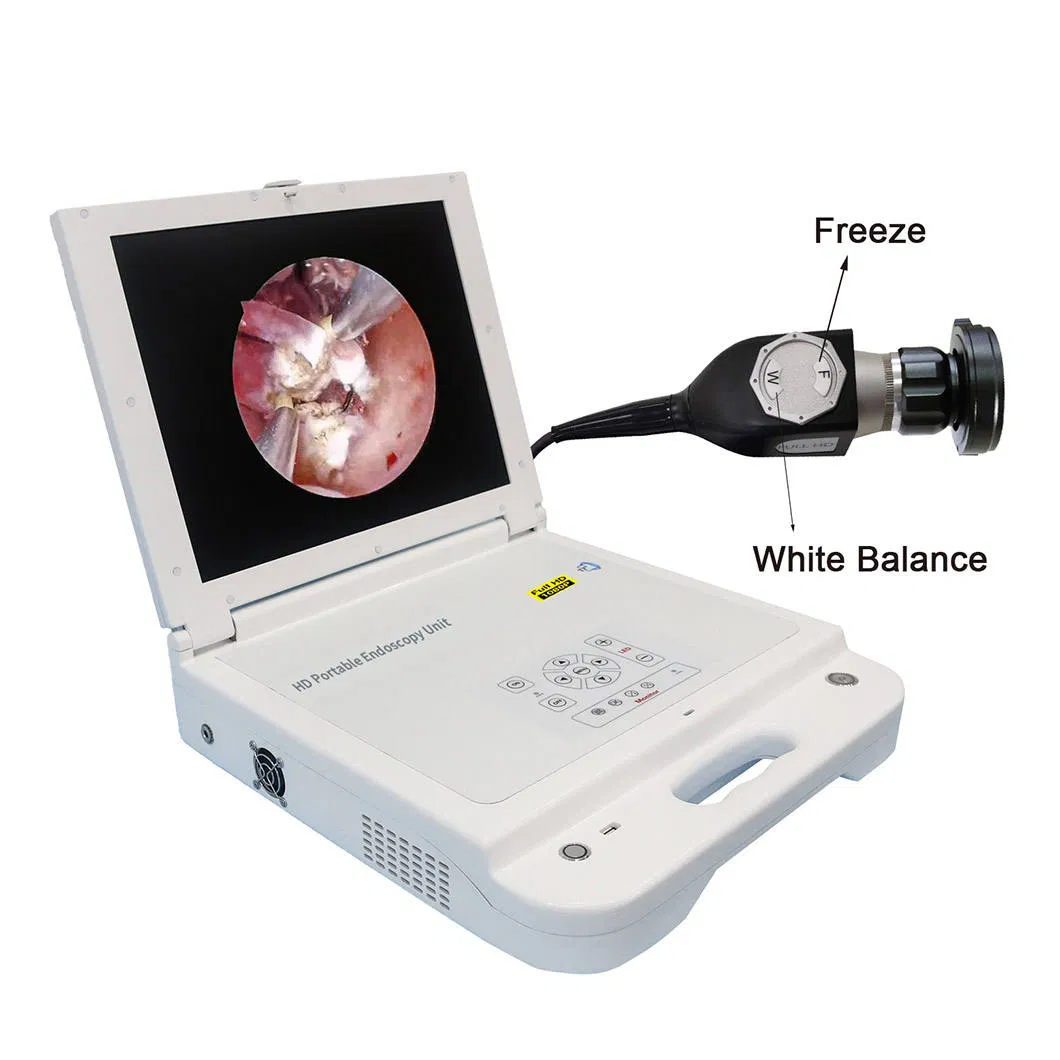

Intelligent Control: Camera head features Freeze and White Balance (WB) buttons.

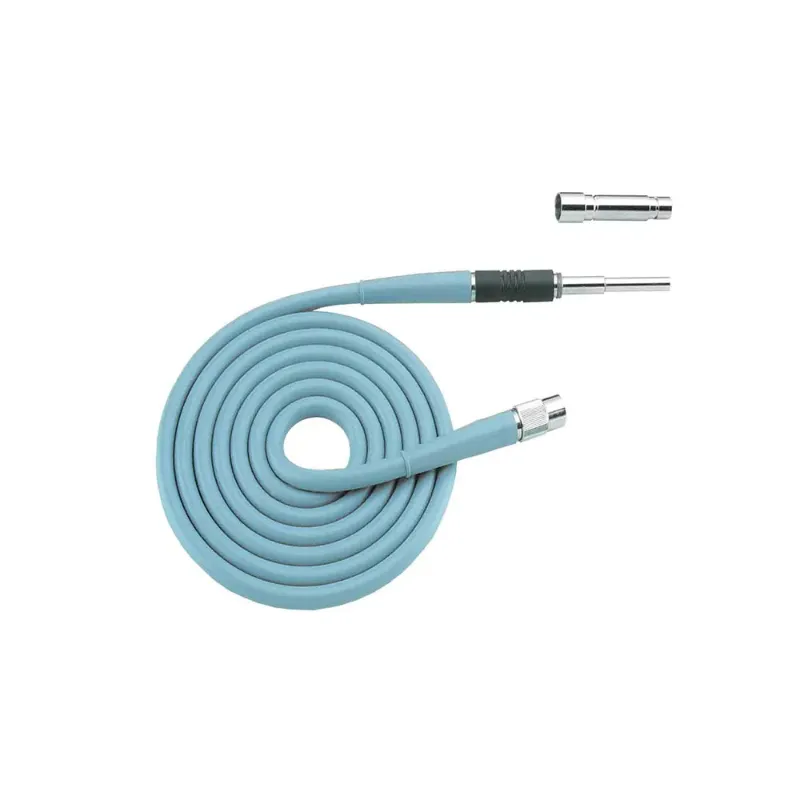

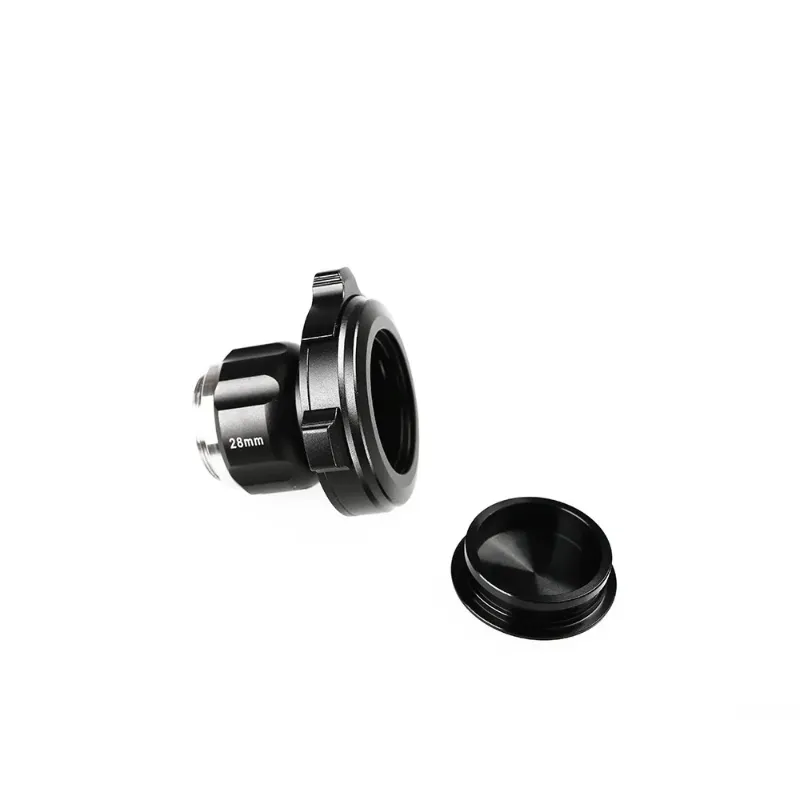

Customized Connector: Accepts fiber light guides ranging from 3mm to 10mm diameter.
High Durability: Stainless steel screws and double-shielded signal cables (tested for 50,000 bends).

🛠️

Product Material & Service

Our commitment to quality ensures long-term reliability:

Stainless Steel: Prevents rust and electrical shorts.
Anti-jamming Circuit: Uses brass baseboards and protection covers for stable performance.
High Brightness: Suitable for all rigid endoscope surgeries.
Professional Support: 3-year free warranty and lifetime maintenance.

📜

Certifications & Quality Control

Equipped with CE, FSC, and medical device registration certificates, we focus on delivering high-value medical products globally.

❓

Frequently Asked Questions

1. What components are included in this 4-in-1 system?

The JLD-G612 system integrates a 1000-line HD camera, an LED cold light source, a 17-inch medical-grade LCD monitor, and a built-in HD video recorder.

2. Is the video recording quality professional?

Yes, the system supports HD video recording in MP4 format, making it ideal for medical documentation and surgical reviews.

3. Can I use this camera with my existing rigid endoscopes?

Absolutely. The customized light source connector accepts fiber light guides from 3mm to 10mm in diameter, making it compatible with almost all rigid endoscopes.

4. How portable is the equipment?

The system is specifically designed for portability and comes with a dedicated suitcase, allowing for easy transportation between clinical rooms or facilities.

5. What is the warranty and after-sales service policy?

We offer a 3-year free warranty and lifetime maintenance. Technical inquiries are typically addressed within 24 hours by our experienced engineering team.

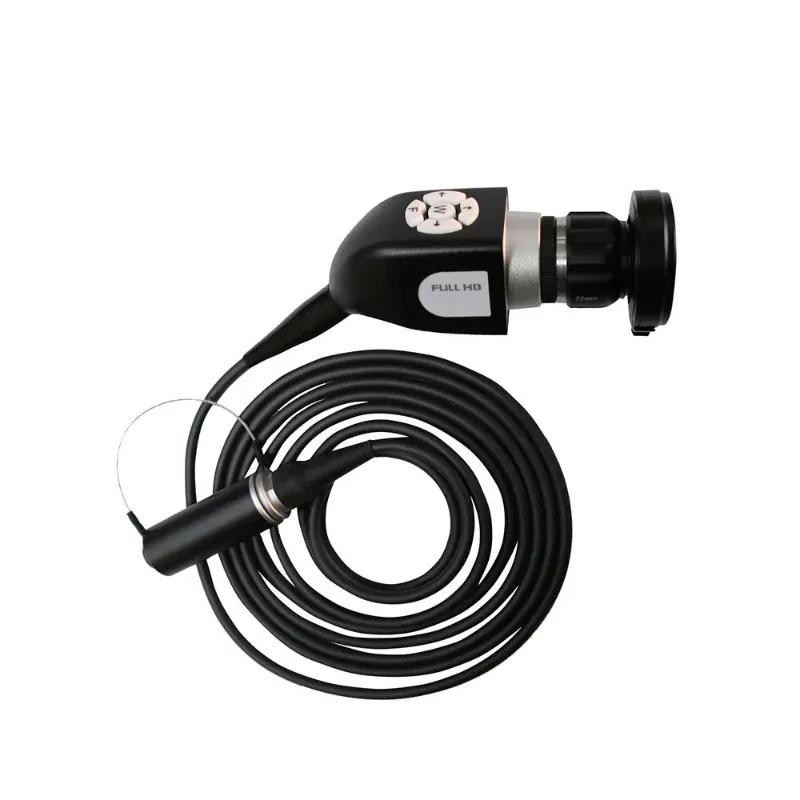

6. Does the camera head offer controls for the surgeon?

Yes, the ergonomic camera head is equipped with integrated buttons for Image Freeze and White Balance (WB) for convenient intraoperative adjustments.
