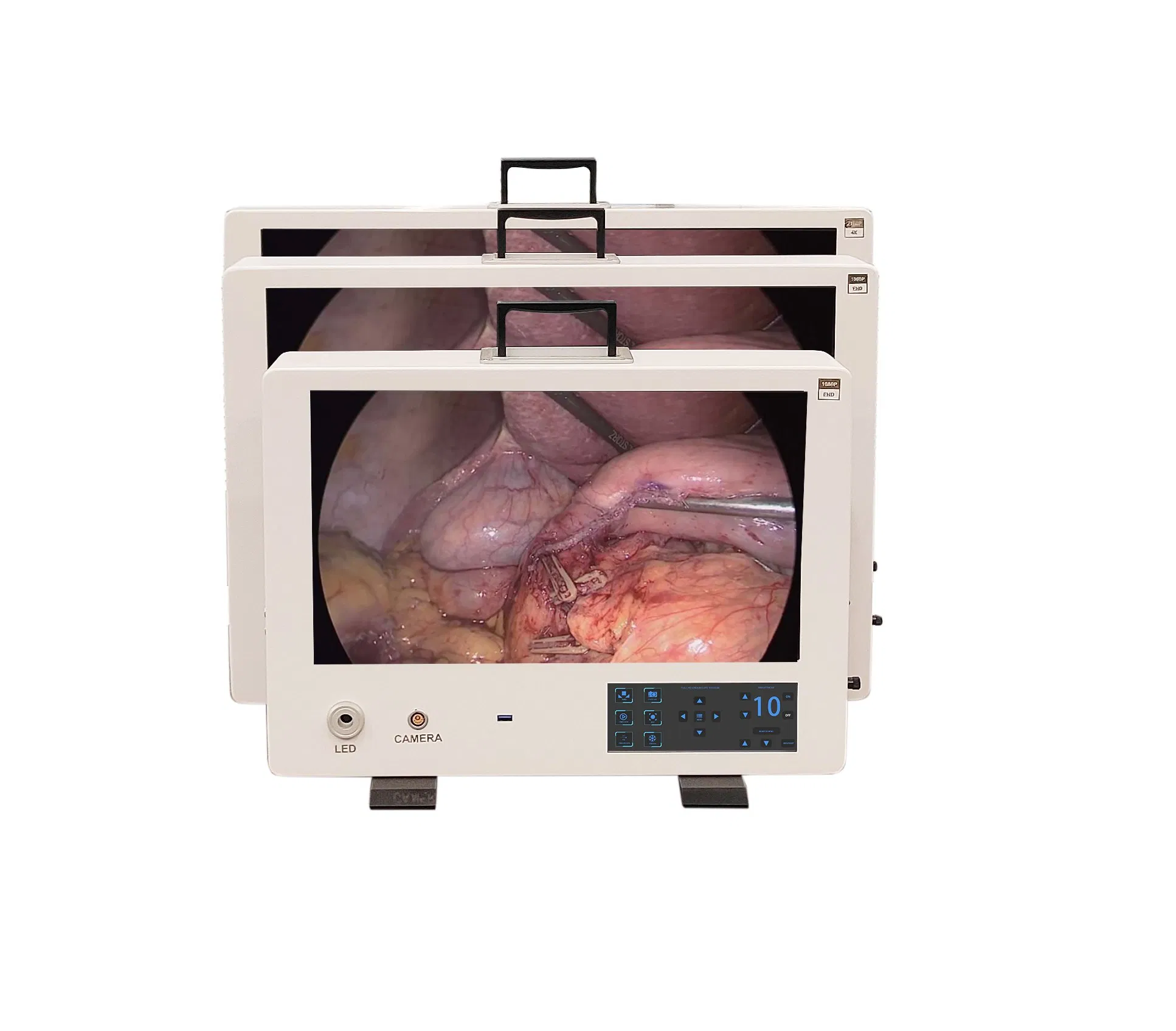

Advanced HD Endoscopy Camera System for Urology Applications

Customization: Available
Instrument Classification: Classi
Warranty: 2 Years

Product Description

Basic Information

Model NO.
Aurora
Power Source
Electric
Quality Certification
ISO
After-Sale Service
Free Spare Parts

Product Description

1920*1080P Full HD Portable Endoscope Camera

The Aurora Telepack is a portable, fully integrated FHD endoscopy camera system designed to streamline and enhance endoscopic procedures. Combining a camera head, processor, cold LED light source, and integrated FHD monitor, this all-in-one system delivers high-quality imaging for optimal performance in various medical disciplines.

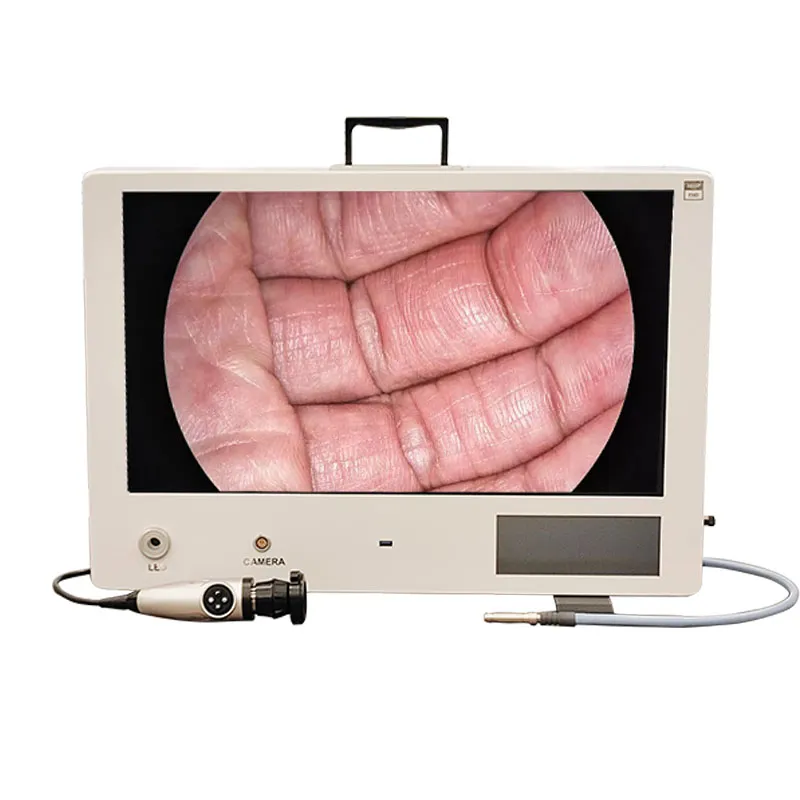

HD Endoscopy Camera System

Key Features

High-Resolution Sensor: 1/1.8" Sony CMOS sensor, 2,100,000 pixels.
Multiple Outputs: 1x HDMI, 1x DVI, 1x SDI, 1x CVBS, 1x VGA, 2x USB, and Network.
Output Resolution: Full HD 1920*1080/60FPS with SNR > 56dB.
Recording: Supports built-in hard drive and USB recording.
10 Preset Modes: Laryngoscopy, otoscopy, neurosurgery, arthroscopy, urology, etc.
Waterproof Head: IPX8 rated, suitable for sterilization.
Integrated Monitor: 19-inch FHD monitor (optional 24/27/32-inch).
Light Source: Built-in 80W LED cold light source.

Clinical Applications

Laryngoscopy: Clear images for throat examinations.
Otoscopy: High-resolution imaging for ear exams.
Arthroscopy: Precise imaging for joint surgeries.
Urology: Suitable for urinary tract procedures.
Laparoscopy: High-quality visuals for abdominal surgeries.
PTED: Aids in spinal surgeries with clear imaging.
Medical Endoscope Application

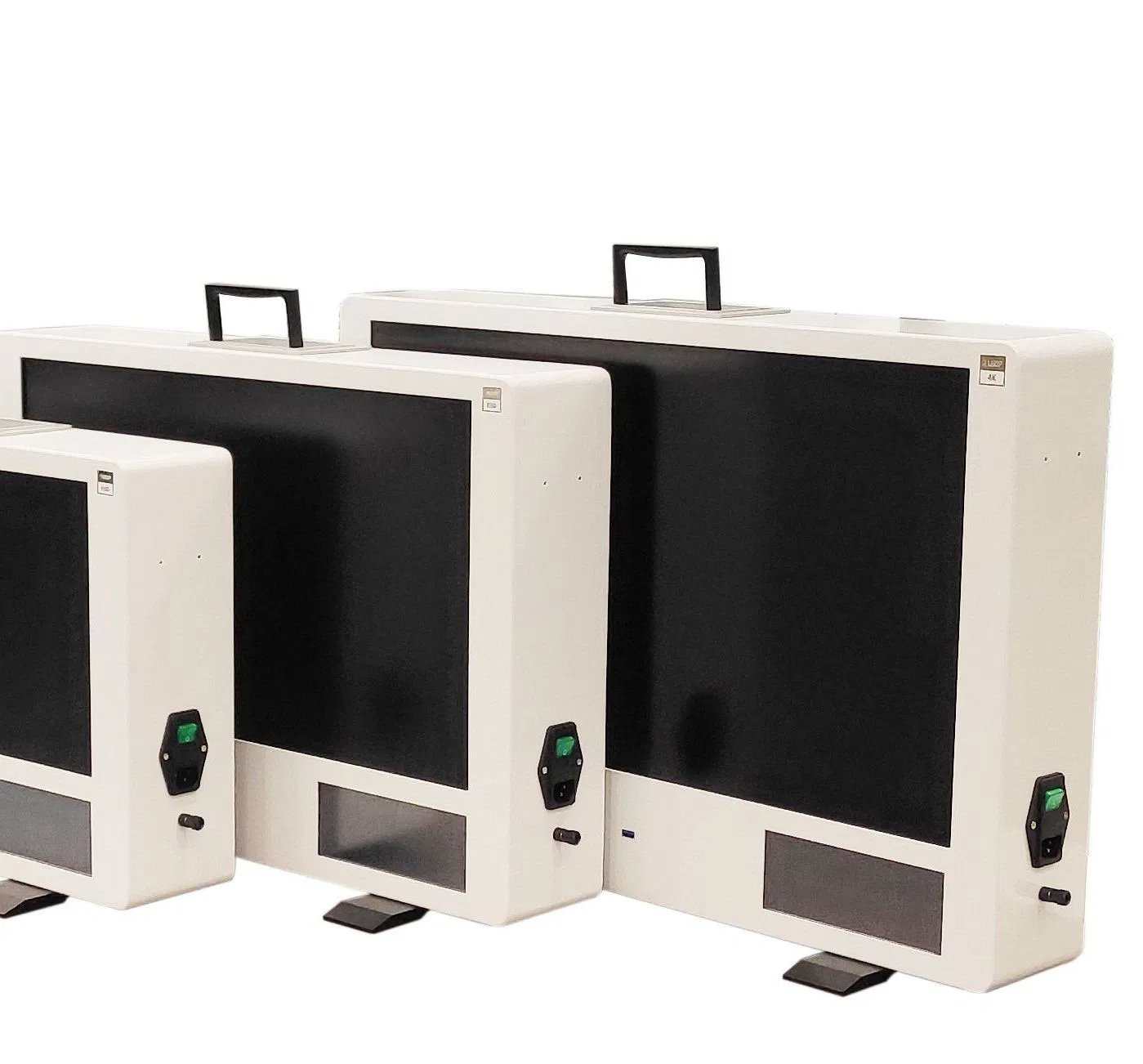

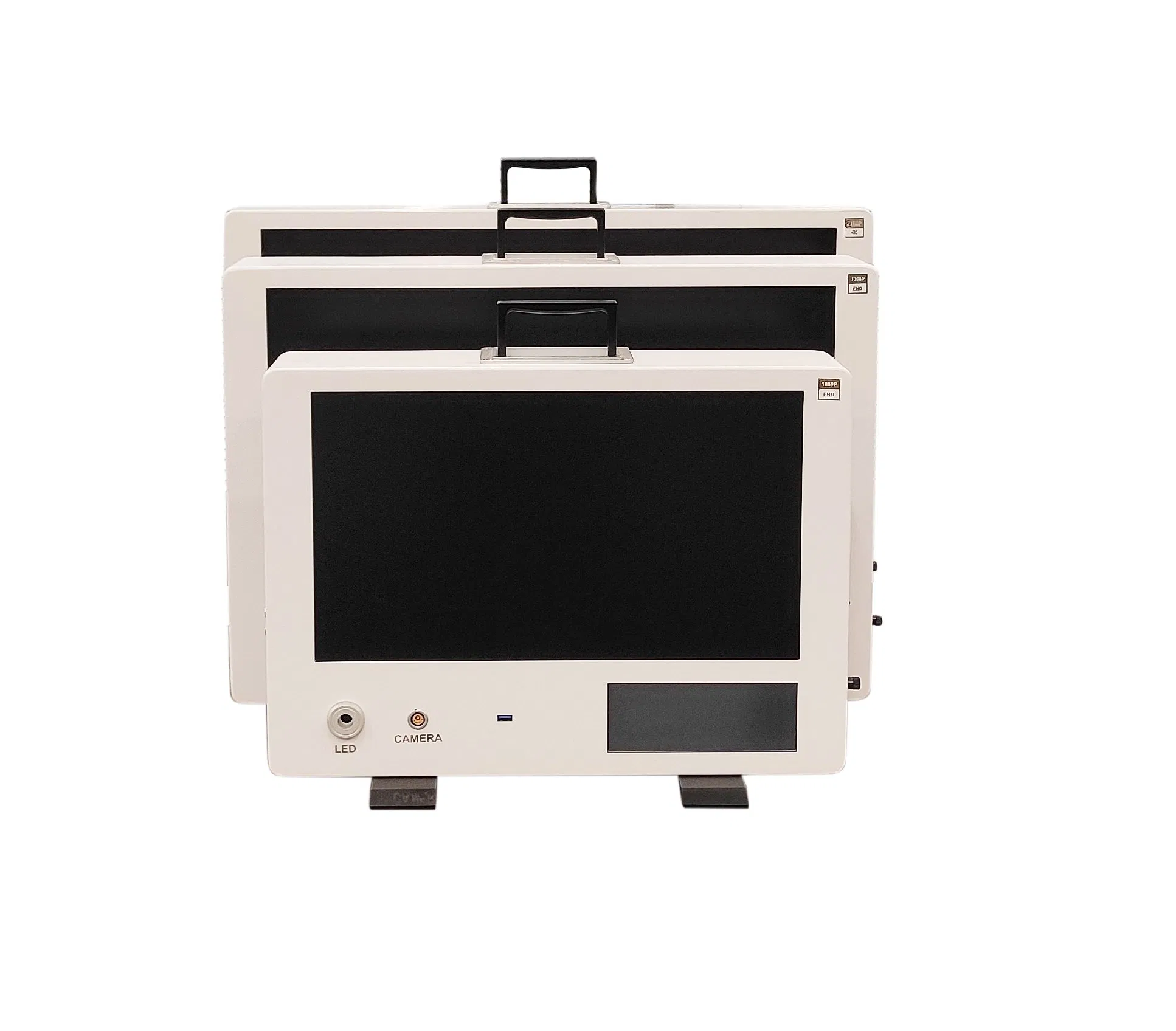

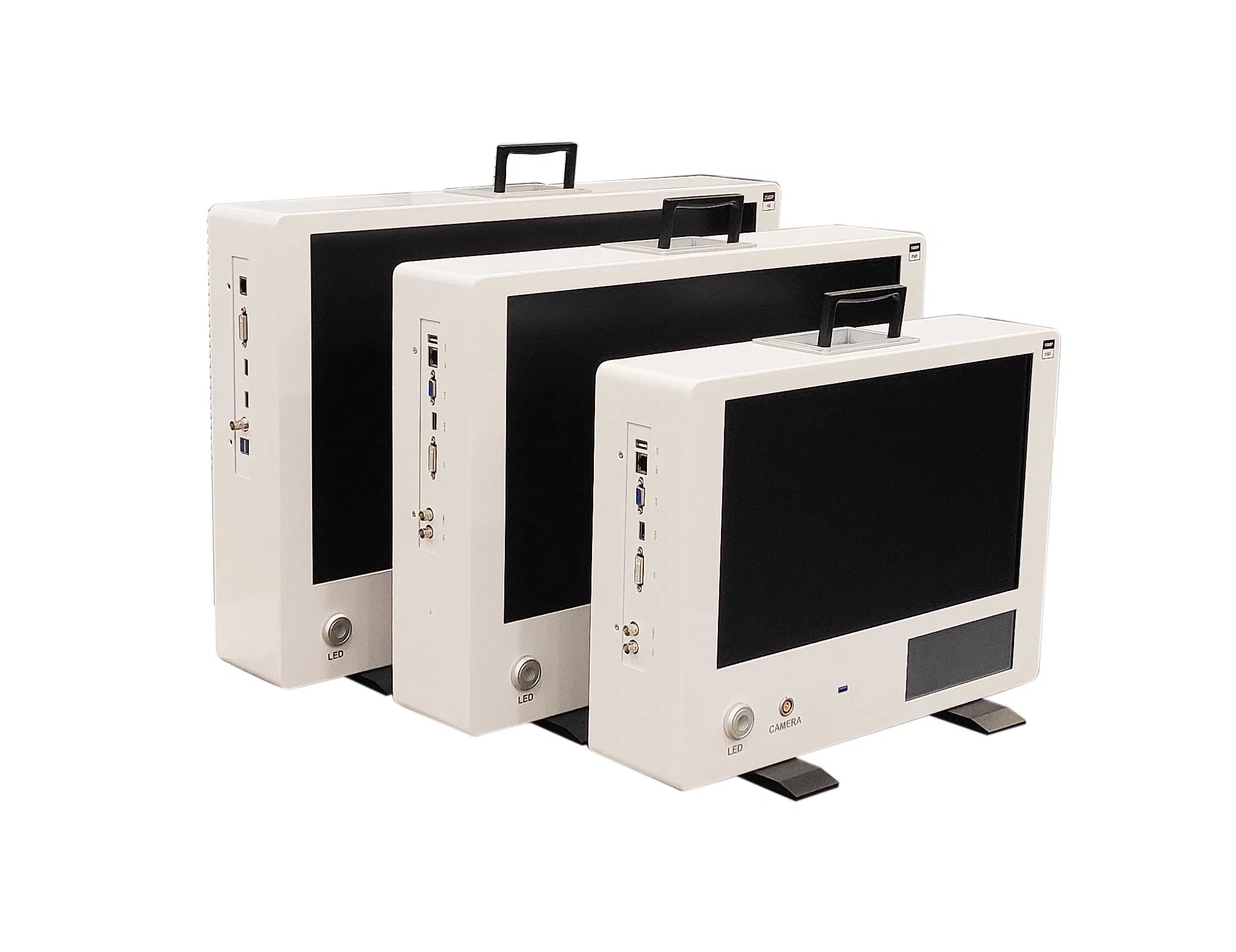

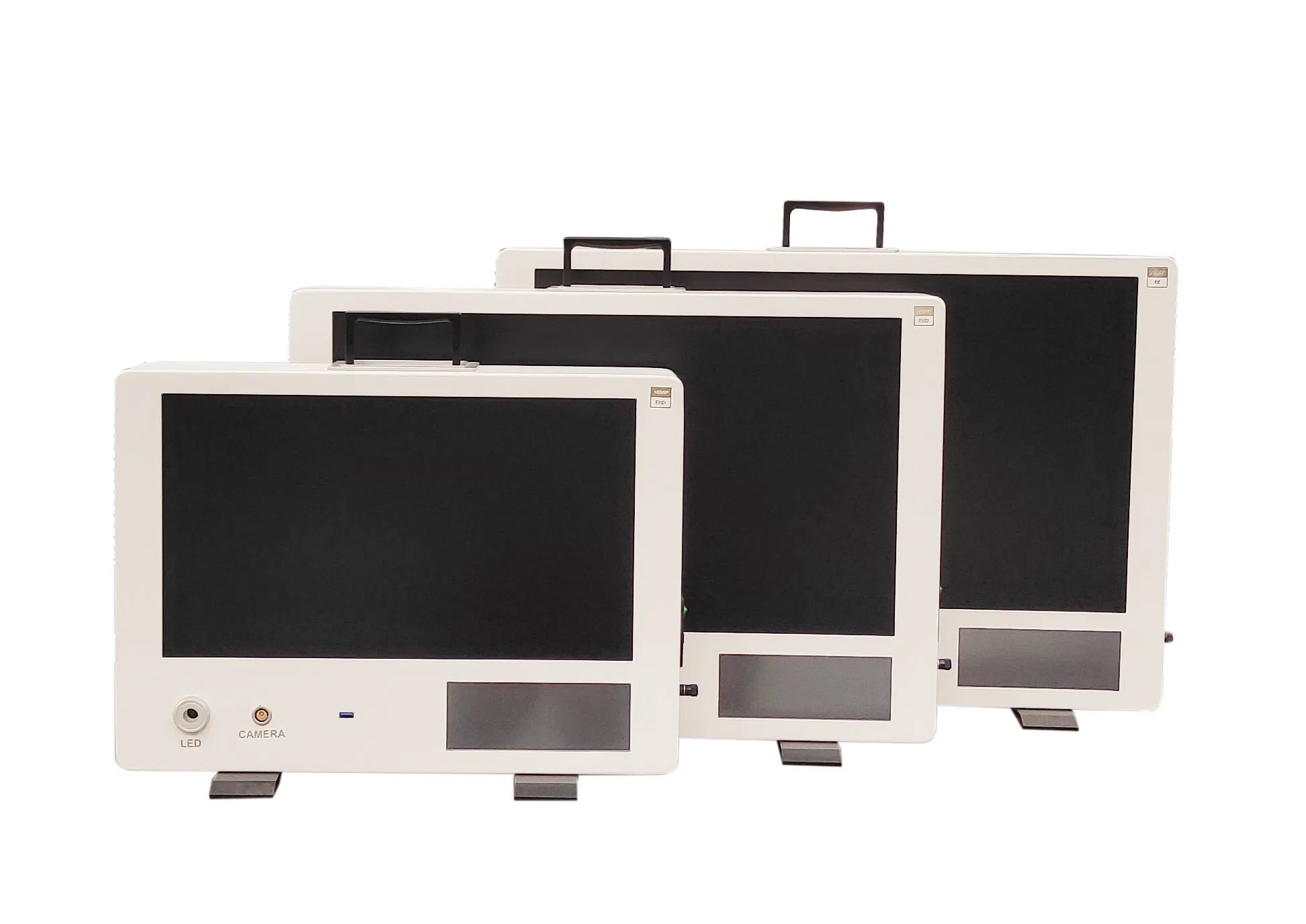

System Appearance

Technical Specifications

Product Name Endoscope Camera
Resolution 1920x1080 / 60fps
Waterproof (Head) IPX8
Functions AWB, Freeze, Capture, Record, Zoom
Screen Size 19 / 24 / 27 inch options
Light Source Integrated 80W LED

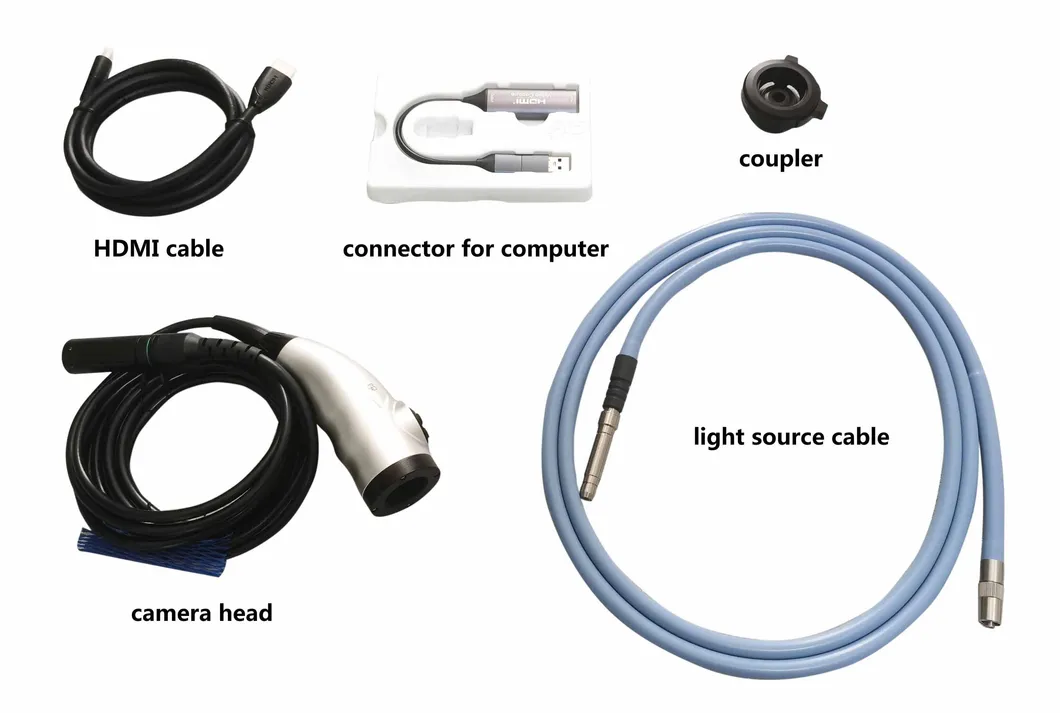

Standard Package

Camera Machine
Camera Head
Coupler F22
HDMI Cable
USB 32G
Light Source Cable
Capture for PC/Phone (Opt)
Zoom Coupler (Opt)

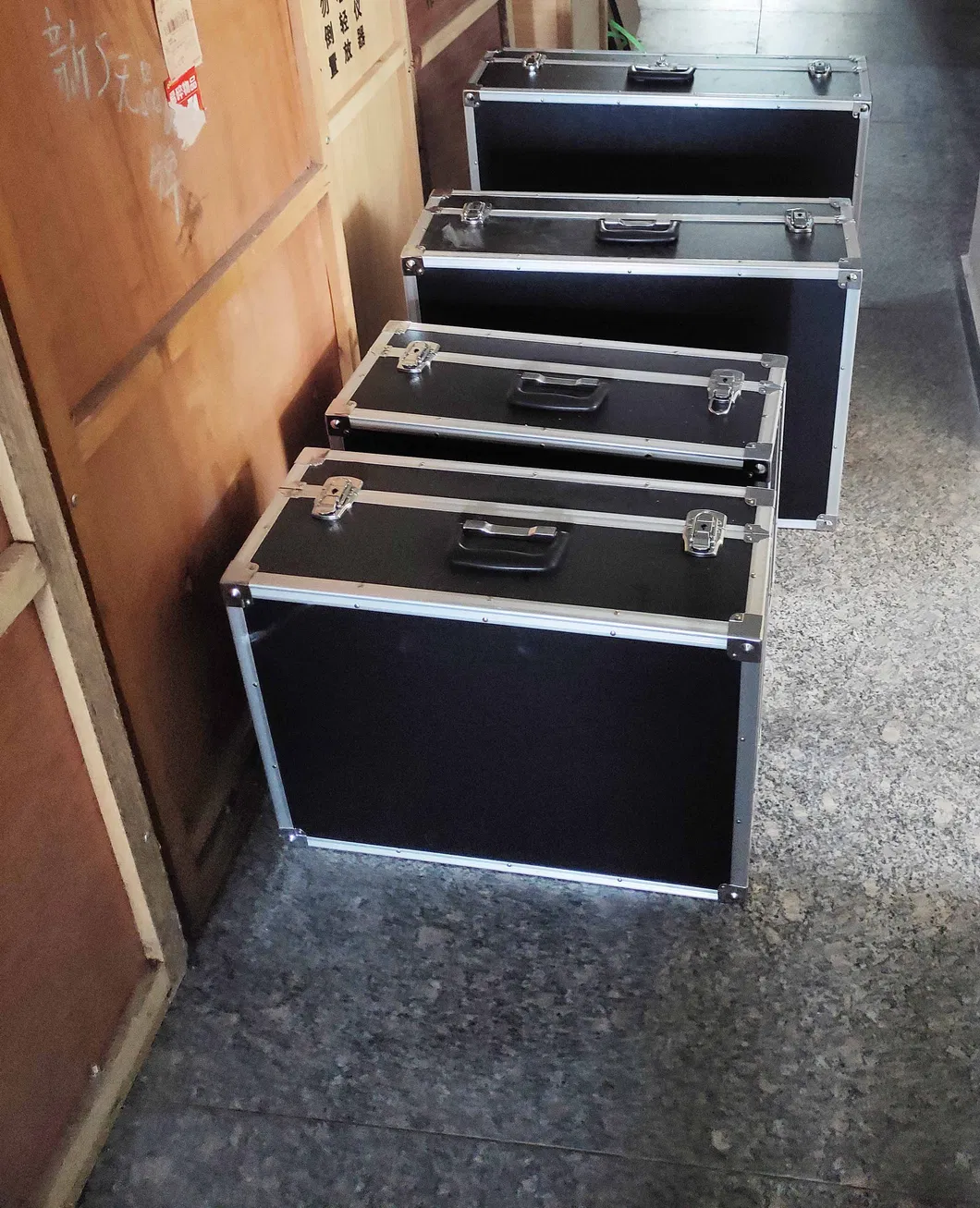

Packaging and Delivery

Manufacturing & R&D

As a professional supplier founded in 1996, we specialize in the R&D and manufacture of medical devices. Our facilities focus on producing high-quality endoscope systems, cameras, and ultrasound equipment. We operate under ISO 9001 and ISO 13485 standards, with products carrying CE certification for international markets.

Production Line

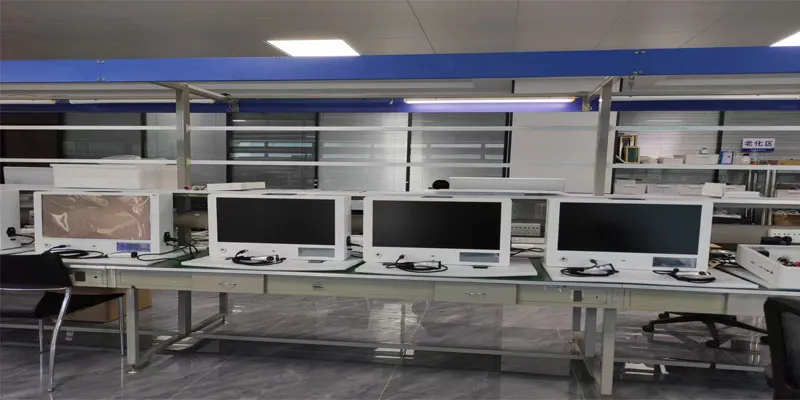

Quality Control
Medical Exhibition

Frequently Asked Questions

What is the image quality of this endoscopy camera?
The system provides Full HD 1920*1080P resolution at 60FPS using a high-quality Sony CMOS sensor for exceptional clarity.
Is the camera head waterproof?
Yes, the camera head is IPX8 rated, making it completely waterproof and suitable for standard medical sterilization processes.
Does the system support video recording?
Yes, the Aurora Telepack supports both built-in hard drive recording and external USB recording for convenient data management.
What medical procedures is this system suitable for?
It includes 10 preset modes for disciplines including Laryngoscopy, Otoscopy, Arthroscopy, Gynecology, Urology, and Laparoscopy.

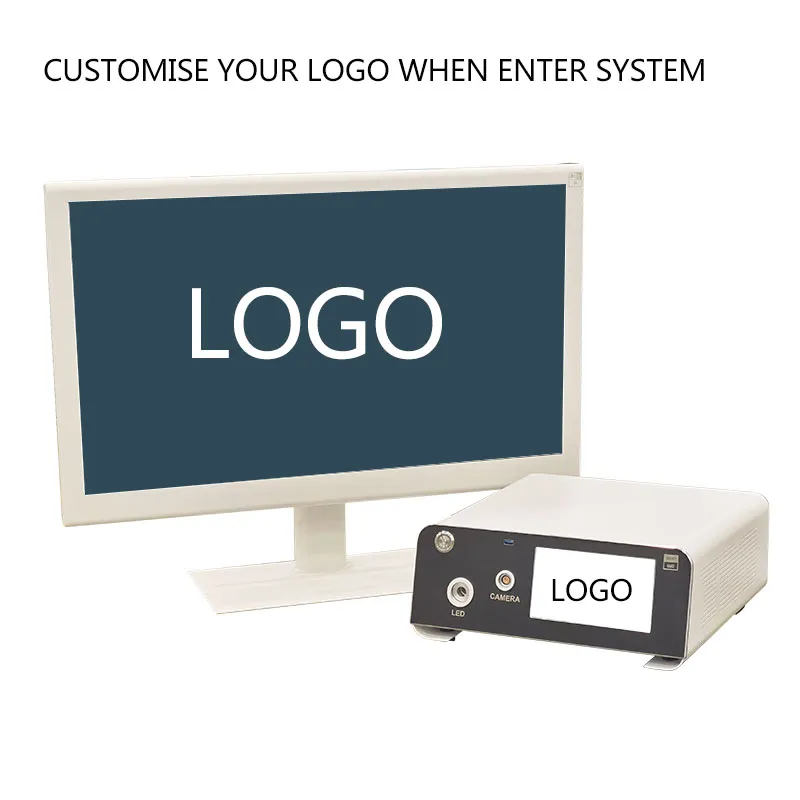

Can I customize the system with my own logo?
Yes, we provide professional OEM/ODM services, allowing for customized logos on the system interface and machine appearance.
What is included in the standard package?
The standard package includes the camera machine, camera head, F22 coupler, HDMI cable, 32GB USB drive, and light source cable.
