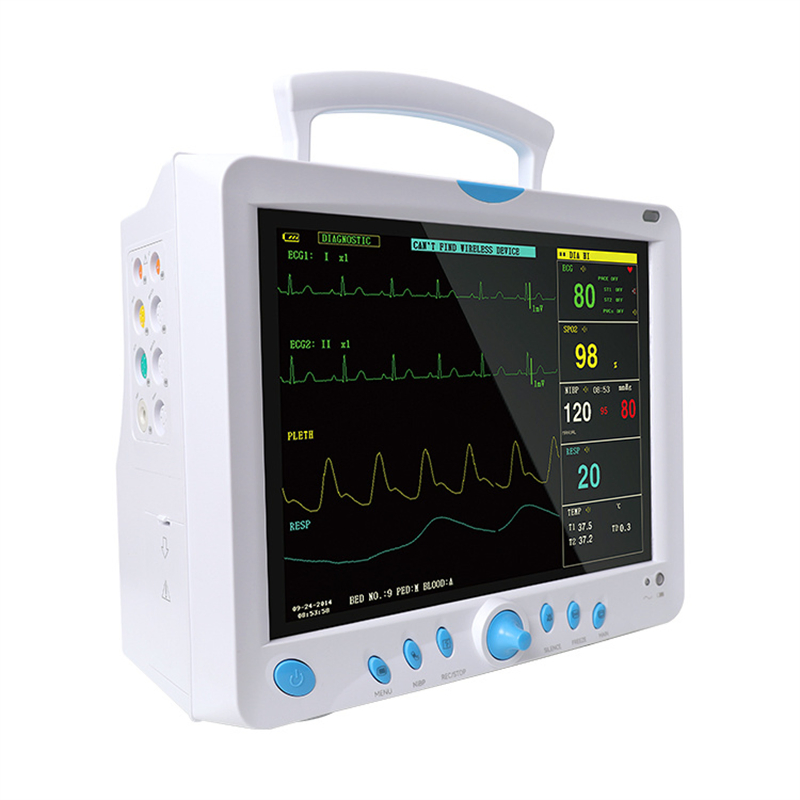

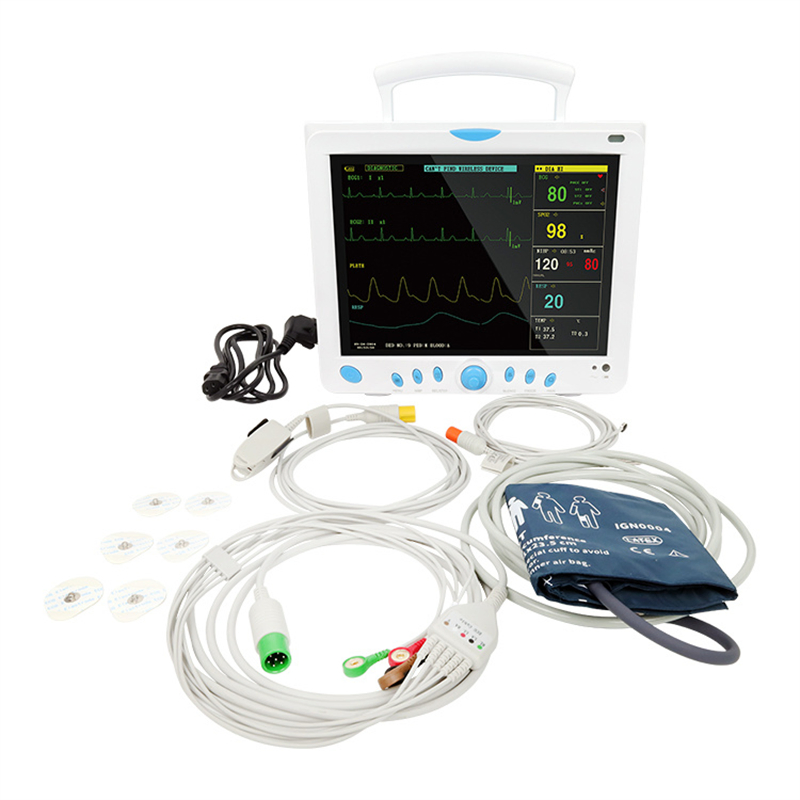

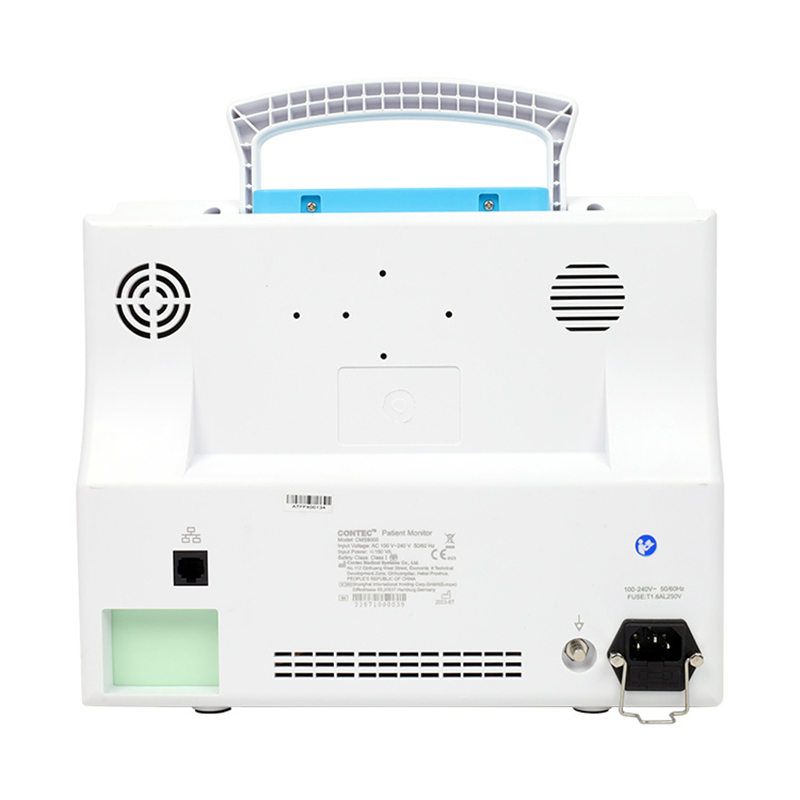

Advanced 12.1-Inch Hospital Patient Monitoring System for Professionals
Advanced 12.1-Inch Hospital Patient Monitoring System for Professionals
Advanced 12.1-Inch Hospital Patient Monitoring System for Professionals
Advanced 12.1-Inch Hospital Patient Monitoring System for Professionals
Advanced 12.1-Inch Hospital Patient Monitoring System for Professionals
1 / 5
Advanced 12.1-Inch Hospital Patient Monitoring System for Professionals
Advanced 12.1-Inch Hospital Patient Monitoring System for Professionals
Advanced 12.1-Inch Hospital Patient Monitoring System for Professionals
Advanced 12.1-Inch Hospital Patient Monitoring System for Professionals
Advanced 12.1-Inch Hospital Patient Monitoring System for Professionals

Advanced 12.1-Inch Hospital Patient Monitoring System for Professionals

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Patient Monitor
Send Inquiry

Product Description

📊 Basic Information
Model NO.
CMS9000
Certification
CE, ISO13485
Product Name
Multi-Parameter Portable Patient Monitor
Parameters
ECG, SpO2, NIBP, 2-Temp, Pr
Optional
2-IBP, Etco2, and Thermal Printer
Language
Multi-Language Support
Display
12.1" TFT Screen
Weight
Less Than 3.0 Kg
Power Supply
AC 100-240V, 50/60Hz
Specification
319 mm(L)*167 mm(W)*268mm(H)
🩺 Product Description

The CMS9000 is an advanced medical device designed to monitor critical parameters including ECG, RESP, SpO2, PR, NIBP, and dual-channel TEMP. It integrates a parameter measurement module, high-resolution display, and recorder into a single compact and portable unit. The built-in replaceable battery ensures continuous monitoring during patient transport.

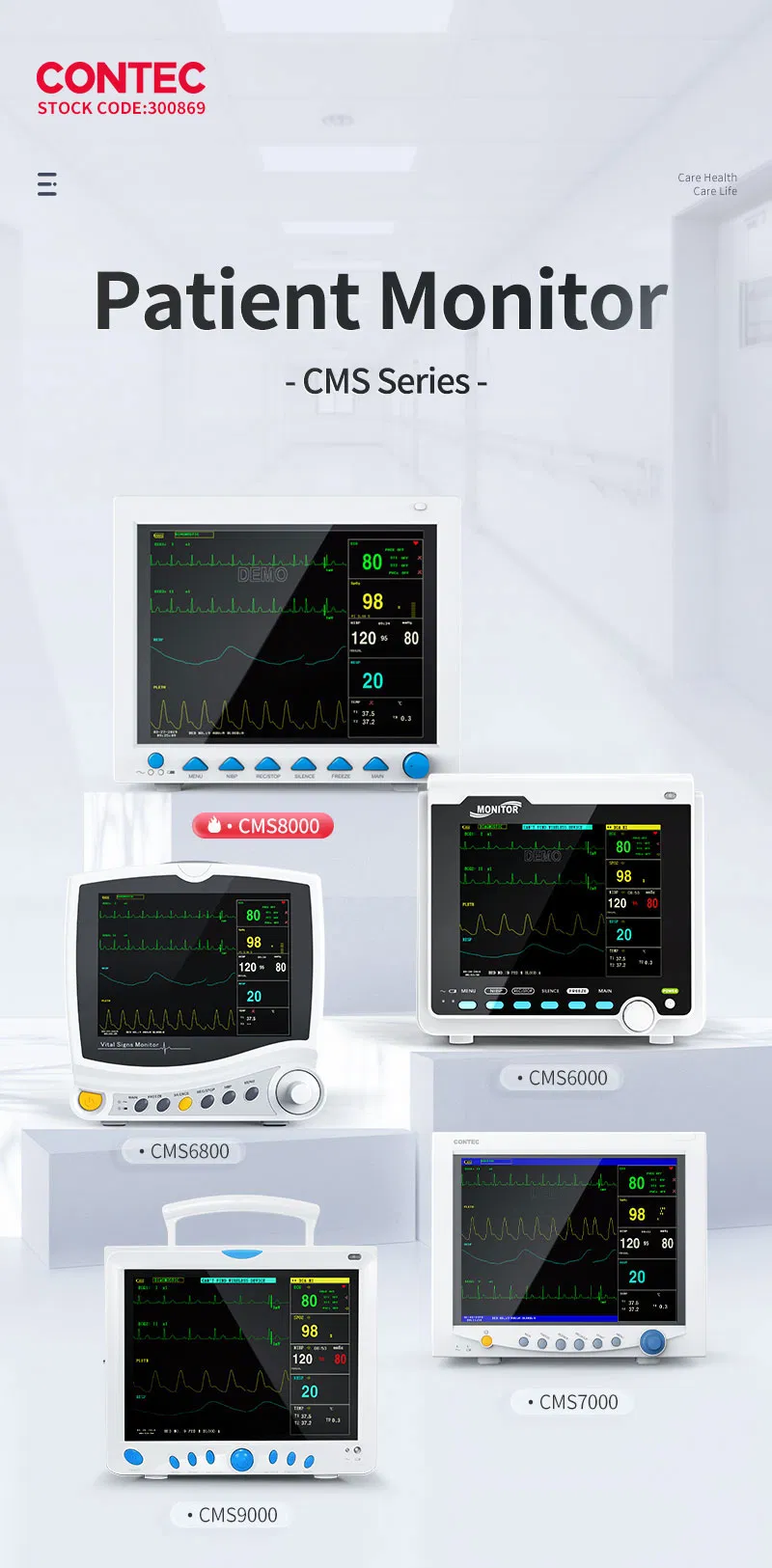

Patient Monitor View 1
Patient Monitor View 2

Key Features

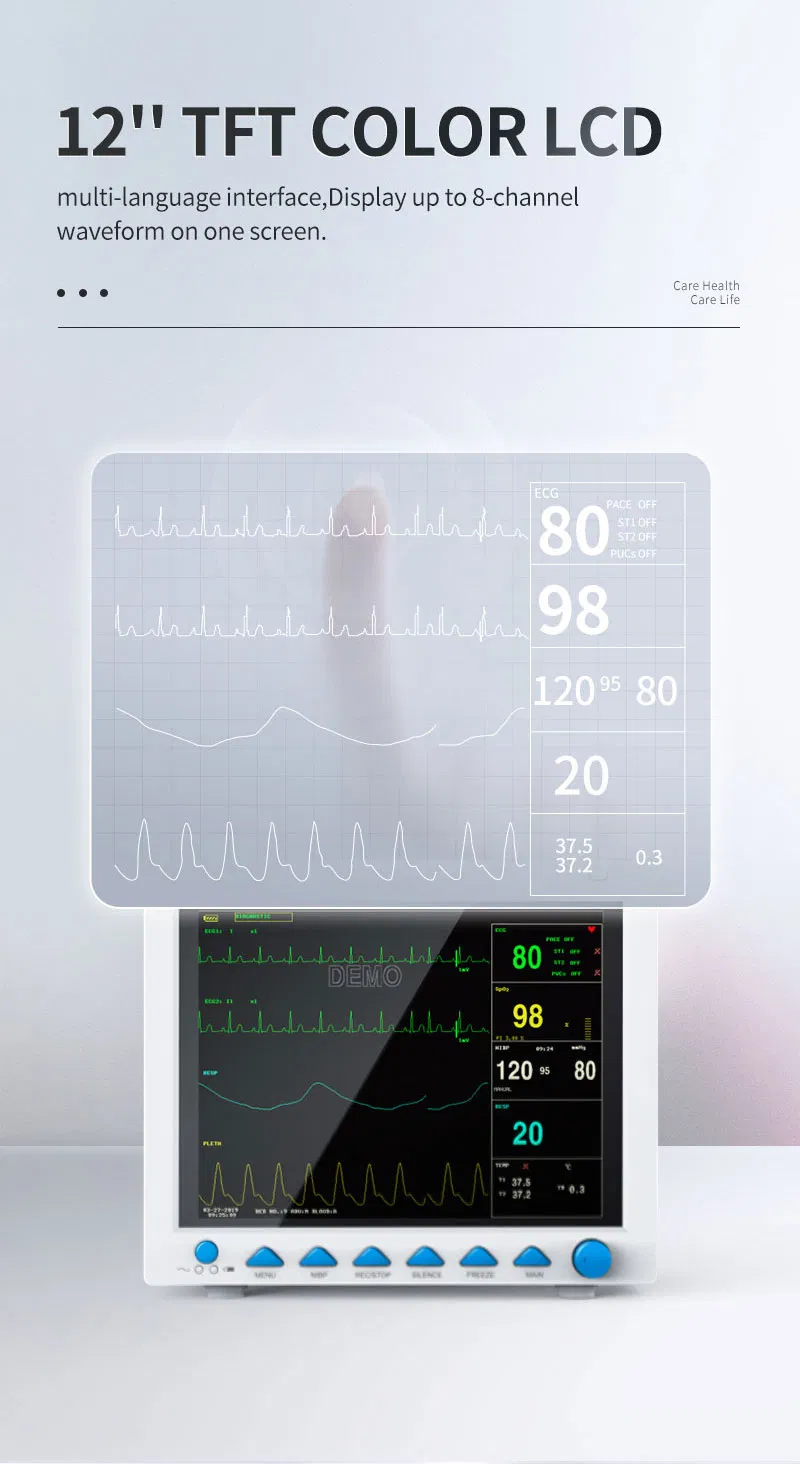

12.1'' TFT color LCD with multi-language interface.
Fanless design for quiet, energy-saving, and clean operation.
Universal application: suitable for adult, pediatric, and neonate patients.

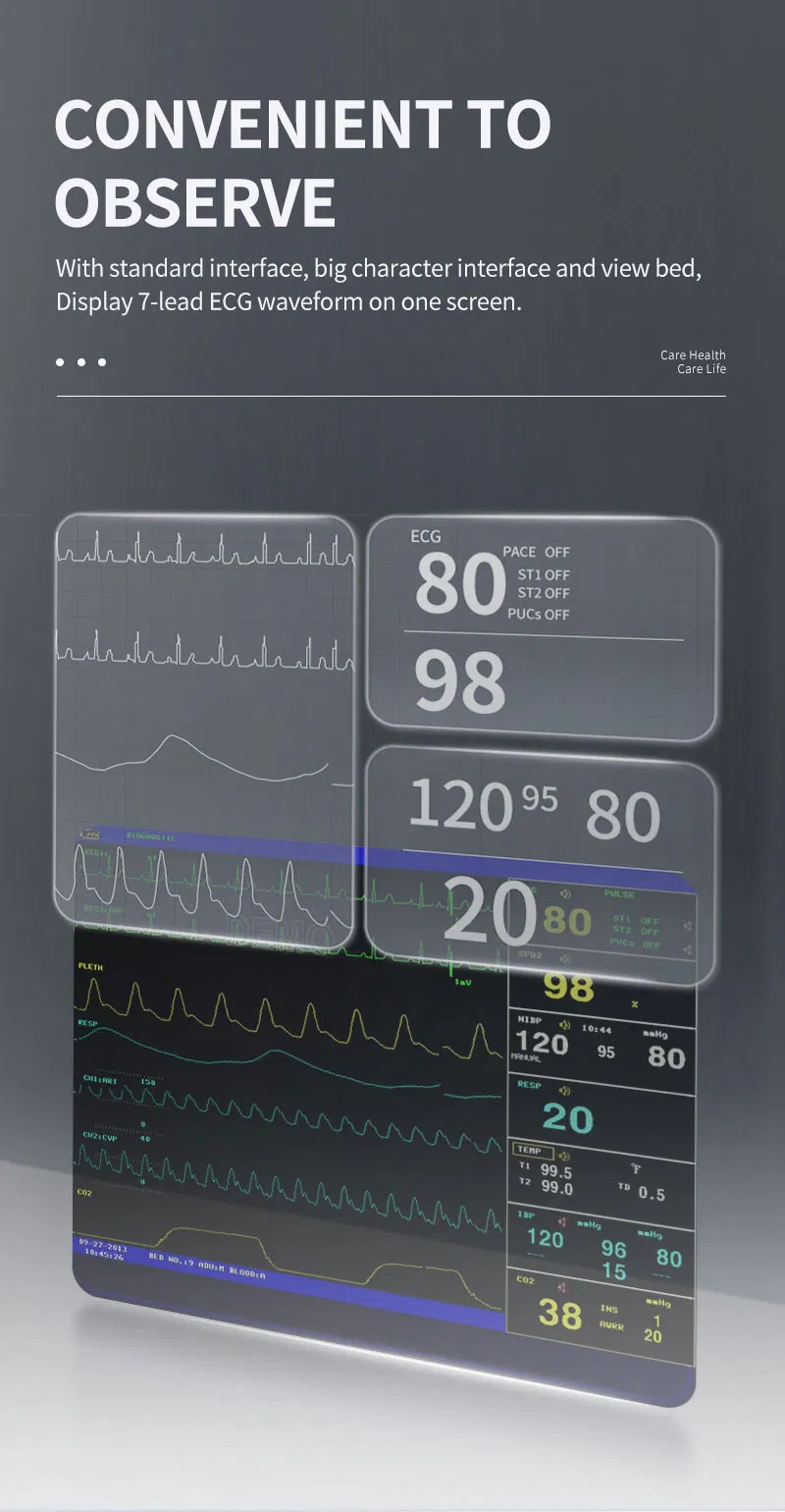

Standard interfaces: OxyCRG, trend charts, and big character views.
Displays up to 8-channel waveforms simultaneously.
Digital SpO2 technology with anti-ambient light interference.
Large storage: up to 4800-group NIBP data and 72 alarm events.
Built-in rechargeable lithium battery for uninterrupted monitoring.
Product Details 1
Product Details 2
Product Details 3
✅ Monitoring Functions
ECG
Heart rate (HR), Waveform, Arrhythmia & ST-segment analysis
RESP
Respiration rate (RR), Respiration waveform
SpO2
Pulse oxygen saturation, Plethysmogram (PLETH), Pulse rate (PR)
NIBP
Systolic (SYS), Diastolic (DIA), Mean pressure (MEAN)
TEMP
T1, T2, TD (Dual-channel)
Optional
CO2 (EtCO2, INSCO2), IBP (Dual-channel)
Function UI 1
Function UI 2

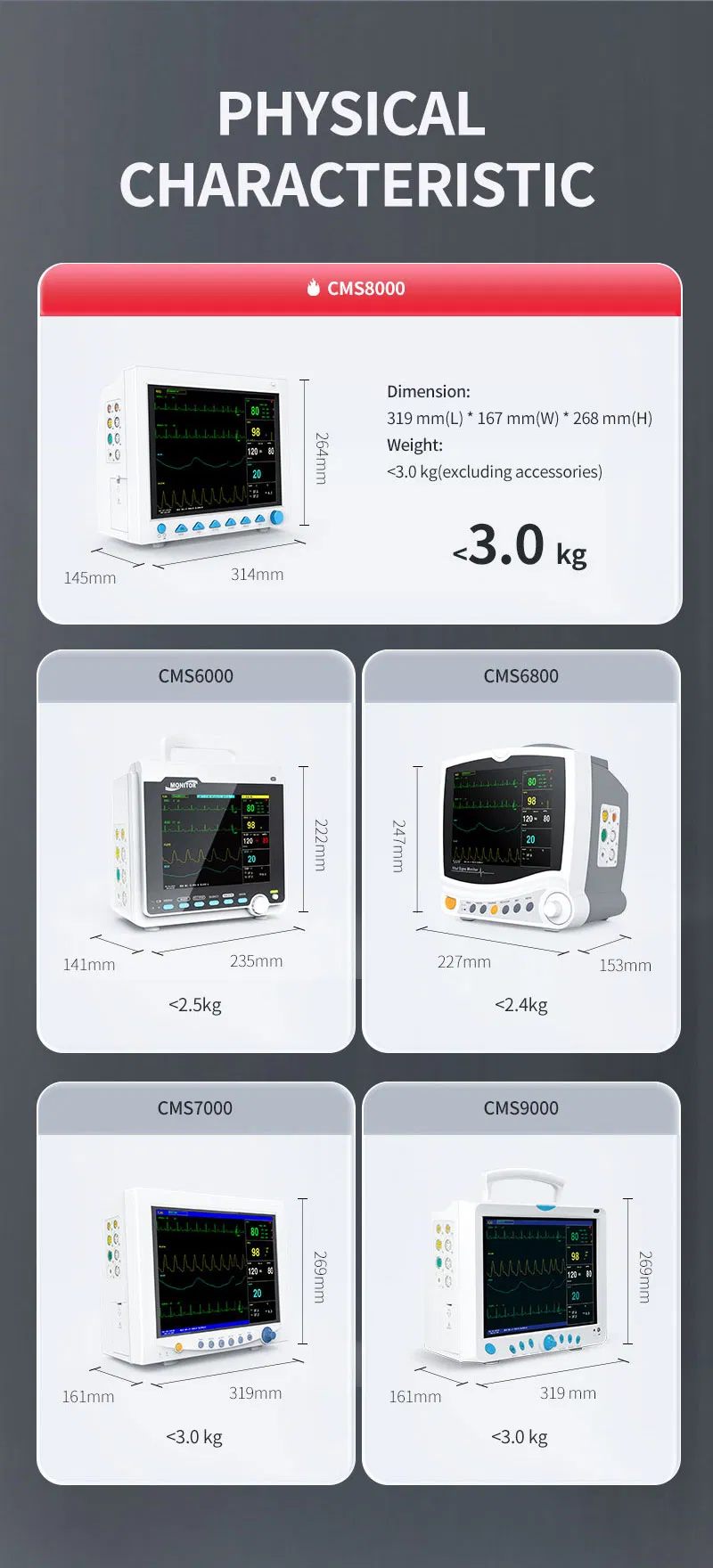

📐 Dimensions & Technical View

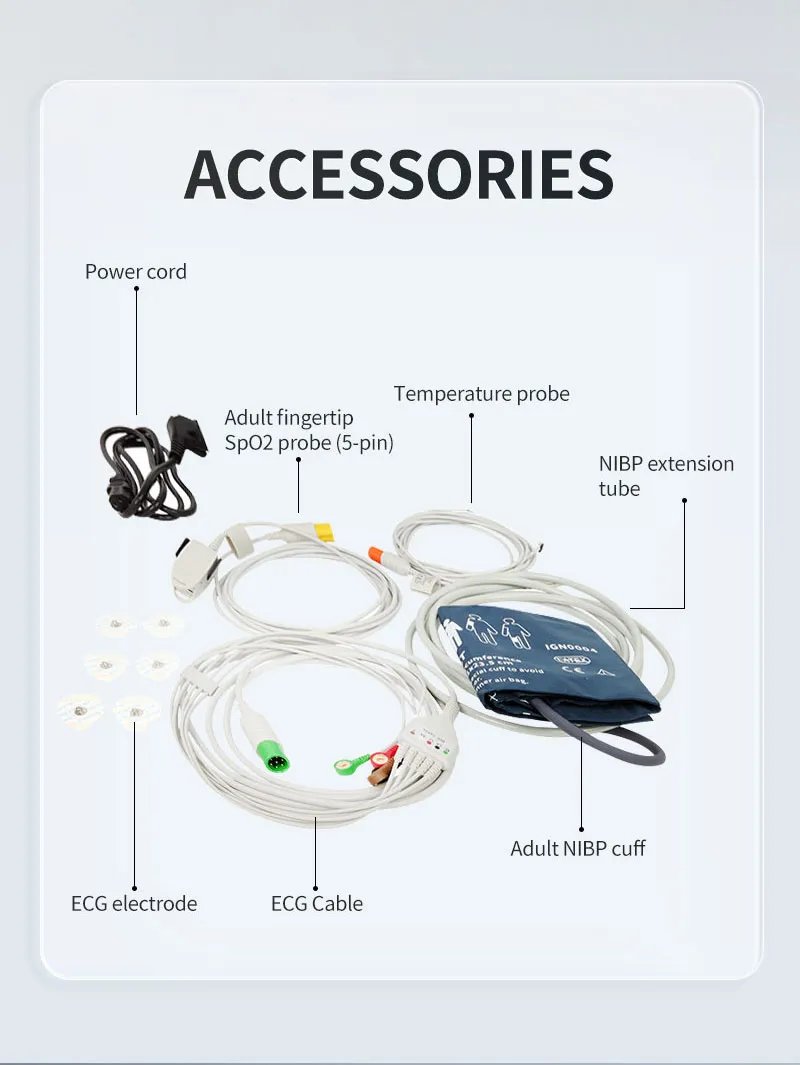

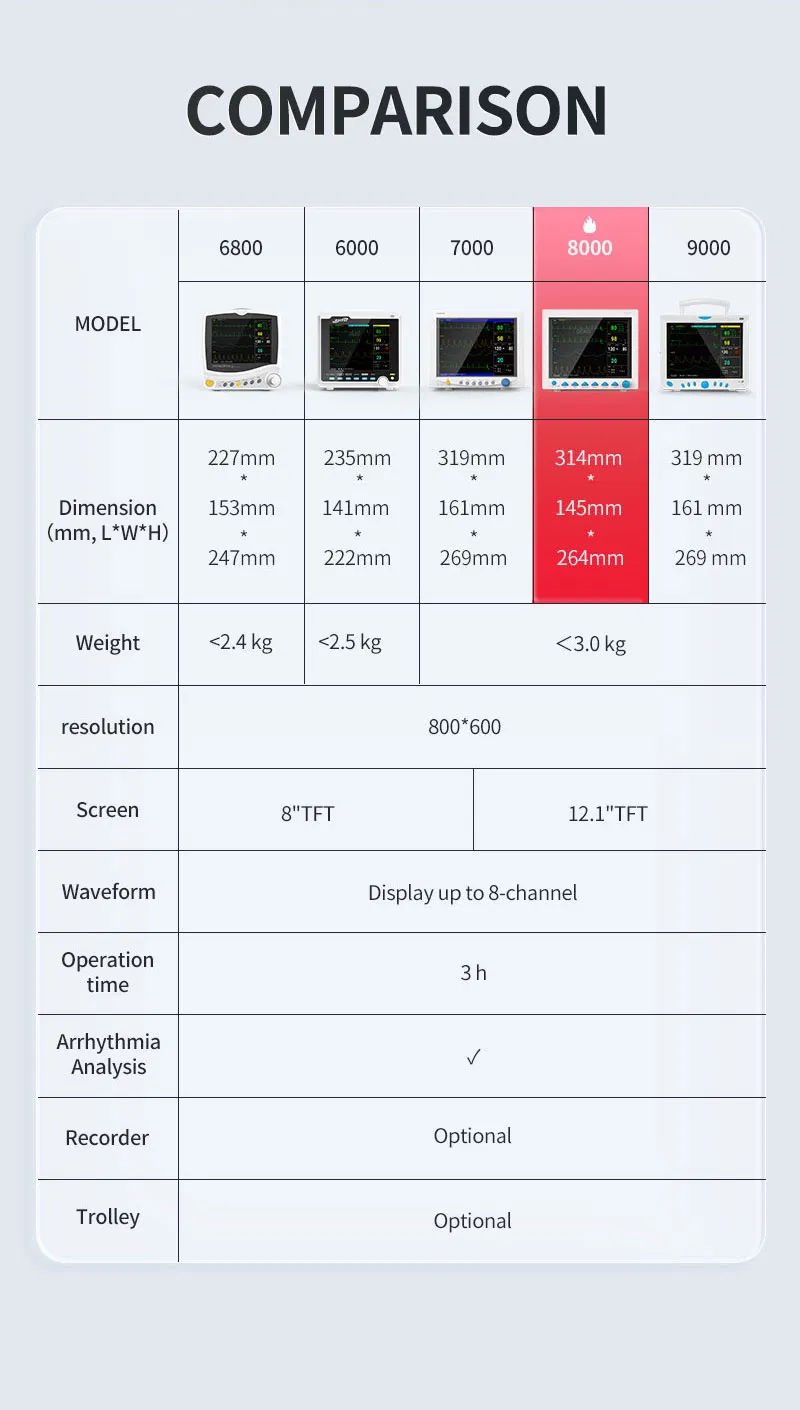

Technical Specifications Device Components Workflow Diagram
🏢 Facility & Quality Control
Facility 1

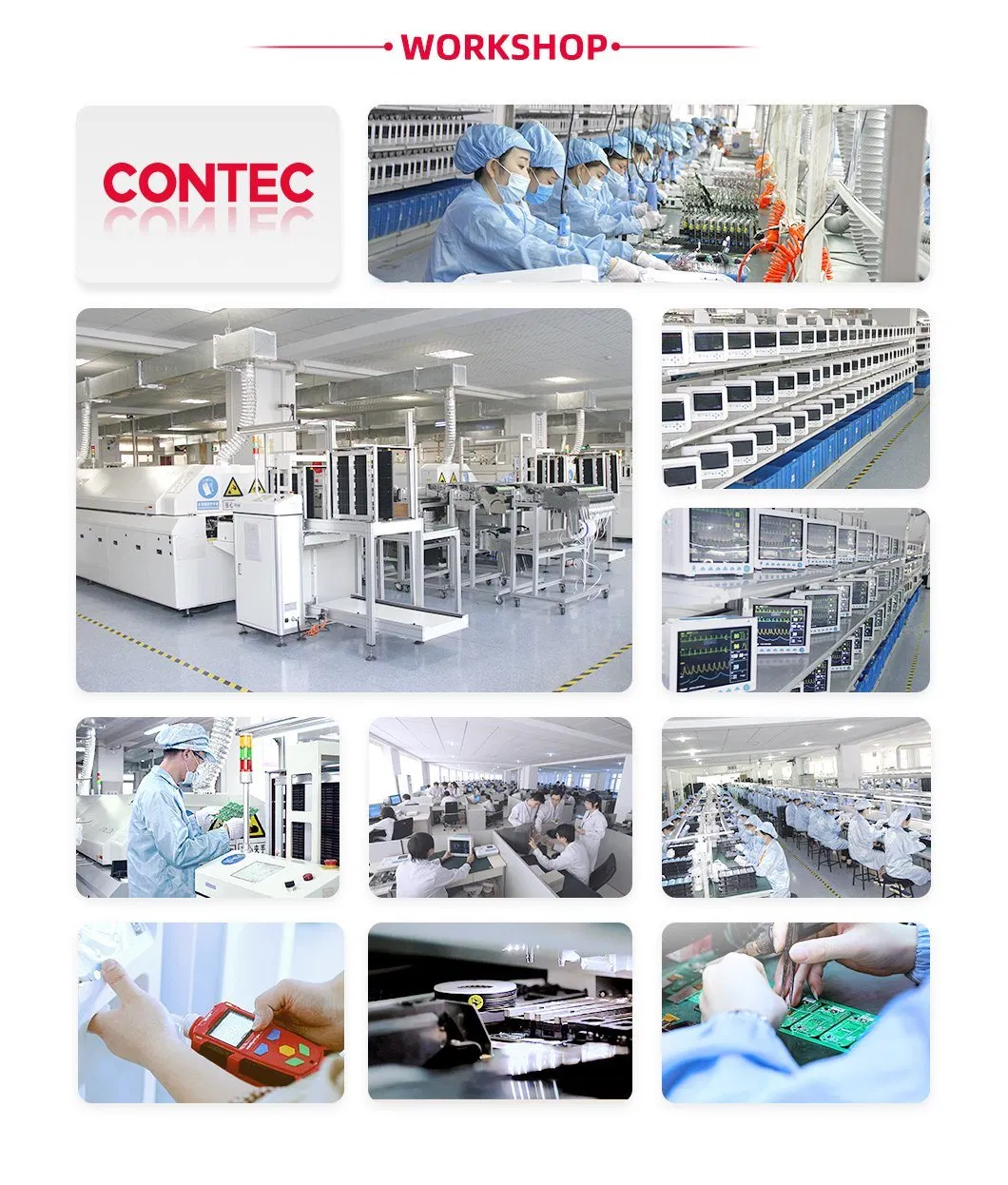

Facility 2
Quality Control
Production Line
Packaging
❓ Frequently Asked Questions
What are the standard monitoring parameters for CMS9000?
The standard parameters include ECG (Heart Rate), RESP (Respiration Rate), SpO2 (Pulse Oxygen Saturation), PR (Pulse Rate), NIBP (Non-invasive Blood Pressure), and dual-channel TEMP (Temperature).
Is this monitor suitable for neonates and children?
Yes, the CMS9000 is an all-round monitor designed for adult, pediatric, and neonate patients.
Can the device be used during patient movement?
Absolutely. Its compact, portable design and built-in replaceable lithium battery make it ideal for monitoring patients while they are being moved.
Does it support connectivity to a central monitoring system?

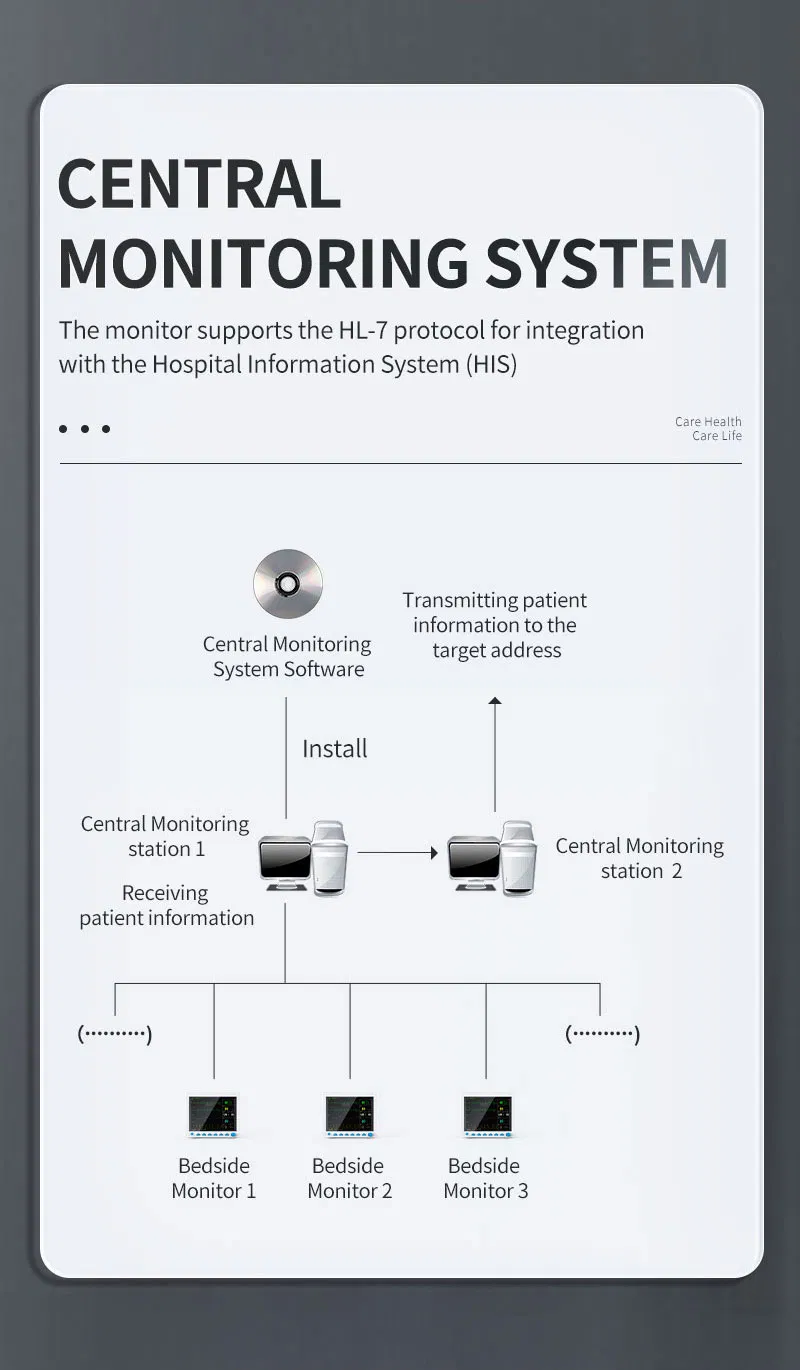

Yes, it can connect to a Central Monitoring System via either WiFi or a wired network mode.
What is the advantage of the fanless design?
The fanless design ensures quiet operation, reduces energy consumption, and prevents cross-infection by keeping the internal environment clean.
How many NIBP data groups can be stored?
The device provides extensive storage for up to 4800 groups of NIBP data for long-term review and analysis.
