📋 Basic Information
| Model NO. |
001 |
| Testing Service |
Electrical Testing, Flying Probe Tester, Functional Testing |
| Value-Added Services |
BOM Analysis, Conformal Coating, IC Programming |
| Technical Support |
Free DFM/DFA Check, BOM Analysis |
| Placement Precision |
±0.03mm / ±0.01mm (Chip) |
| Transport Package |
ESD Bag, Carton Box |
| Origin |
China |
| Production Capacity |
10,000 units/month |
📦 Product Description

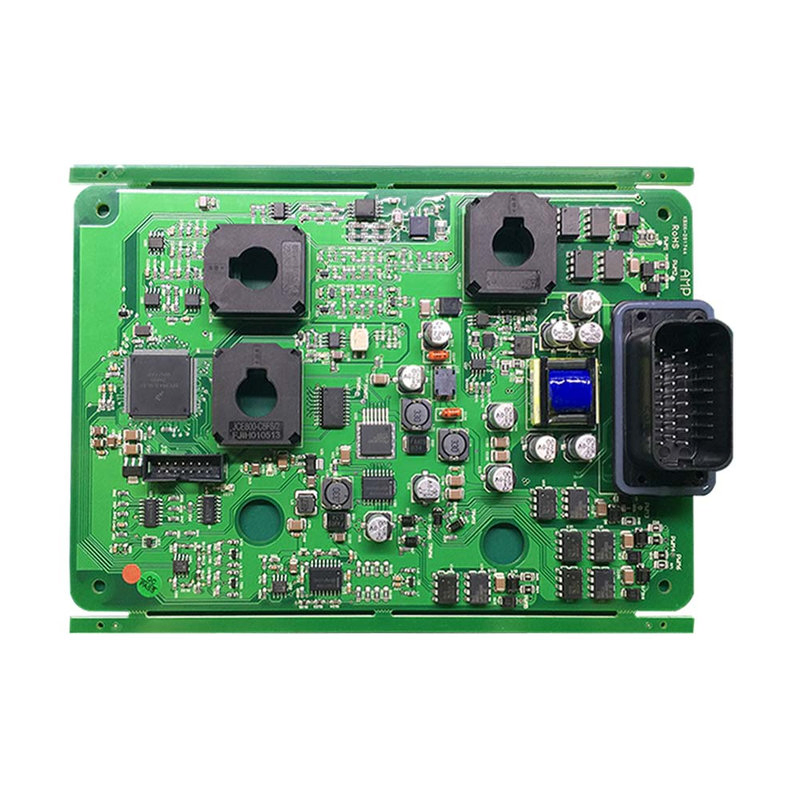

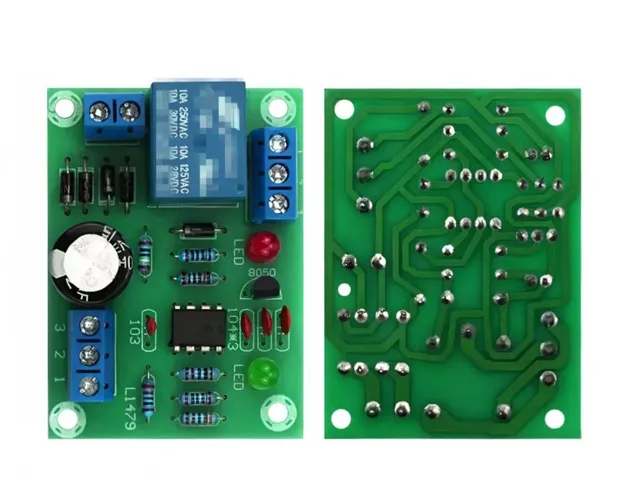

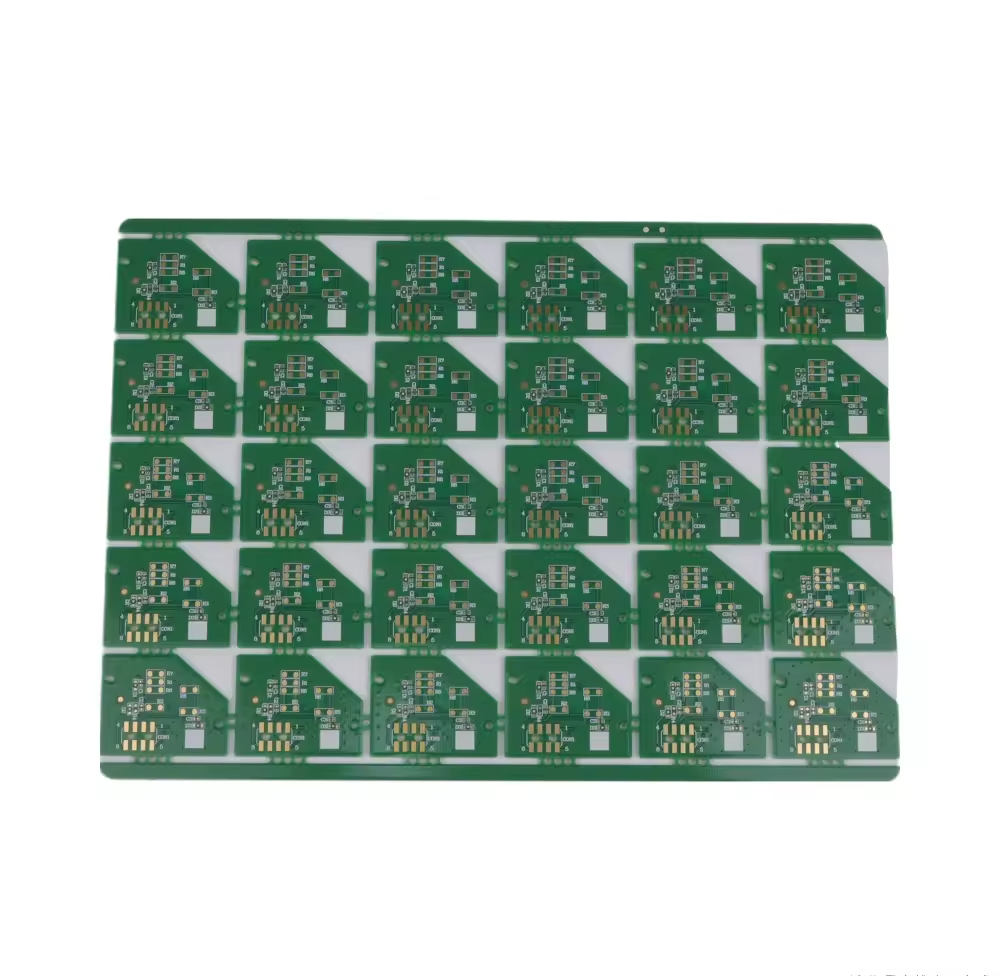

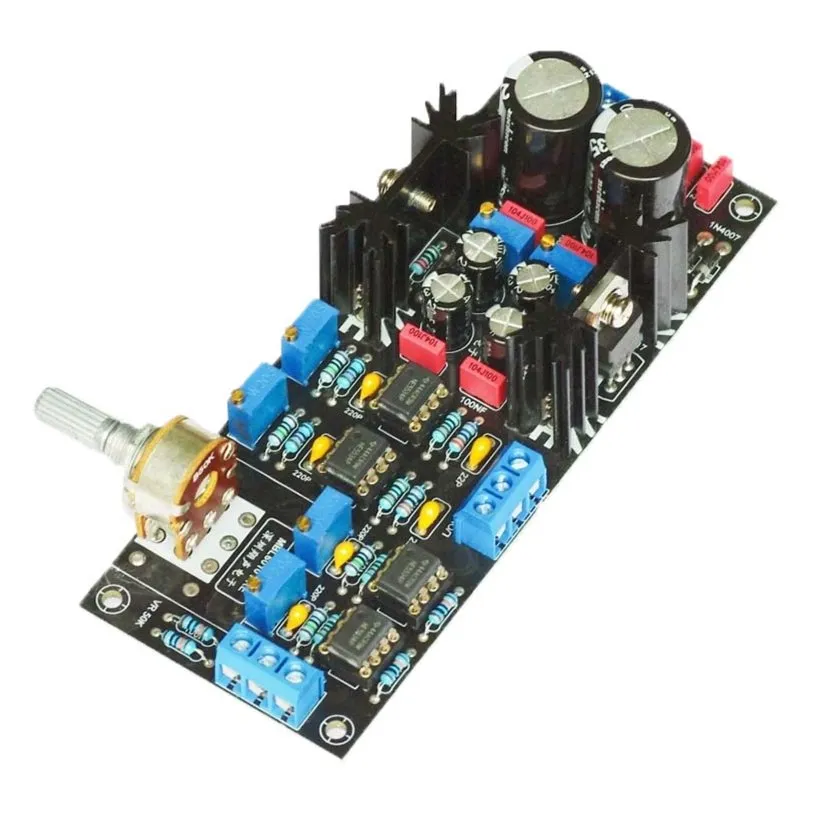

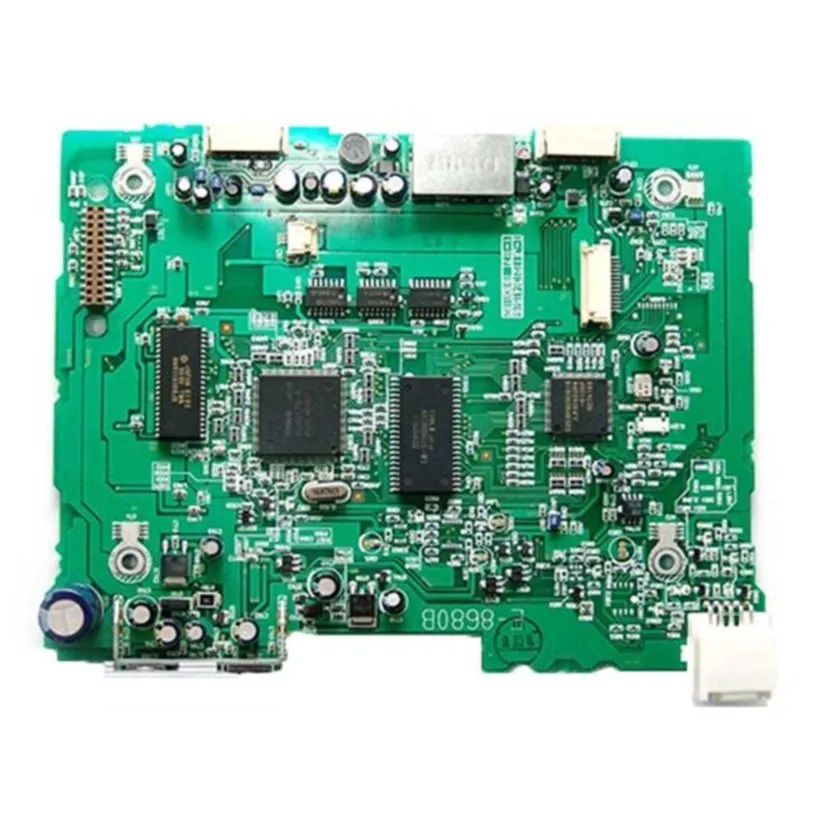

One-Stop PCB Assembly Solutions
⚙️ Technical Specification
| Turnkey Service |
PCB Design + PCB FAB + Component Sourcing + PCBA + Box Building + Packaging |
| Assembly Details |
15 SMT Lines + 4 DIP Lines; Dust-free & Anti-static Workshop |
| Assembly Capacity |
SMT: 30 Million points/day; DIP: 100,000 pieces/day (Scalable) |
| Technical Support |
DFX (DFM/DFA/DFT) Check, BOM Optimization, Alternative Component Suggestion |
| Quality Standards |
IPC-A-610 Class 2 / Class 3 (Medical Grade) |
| Inspection & Testing |
3D SPI + 3D AOI, X-ray, IQC/IPQC/FQC/OQC, Flying Probe, ICT, FCT, Burn-in Test |
| Assemble Methods |
SMT, THT & Hybrid, Single/Double-sided, POP, BGA Repair/Reball |
| Component Size |
Passive: 0201 (01005 support); Fine-pitch BGA, QFN, CSP, WLCSP |
| Minimum IC Pitch |
0.2mm (High Precision) |
| Certifications |
ISO 13485:2016 (Medical), IATF 16949, ISO 9001, UL, CE, RoHS |

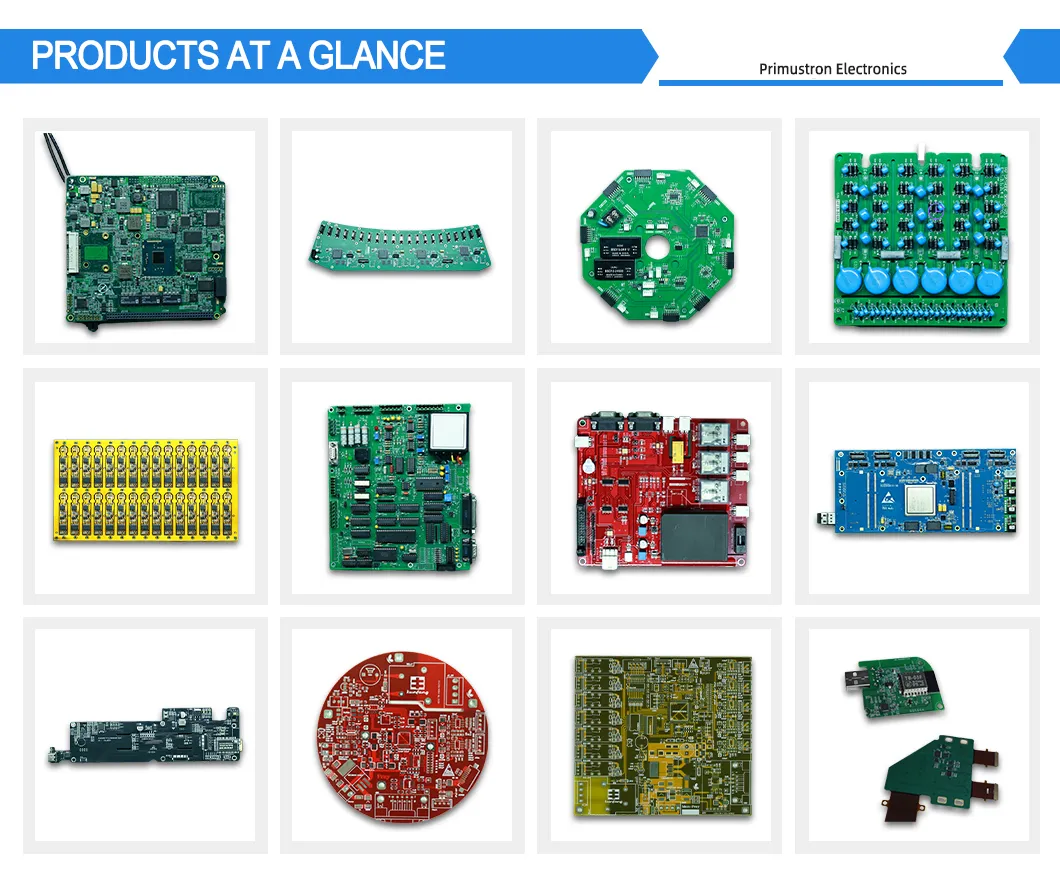

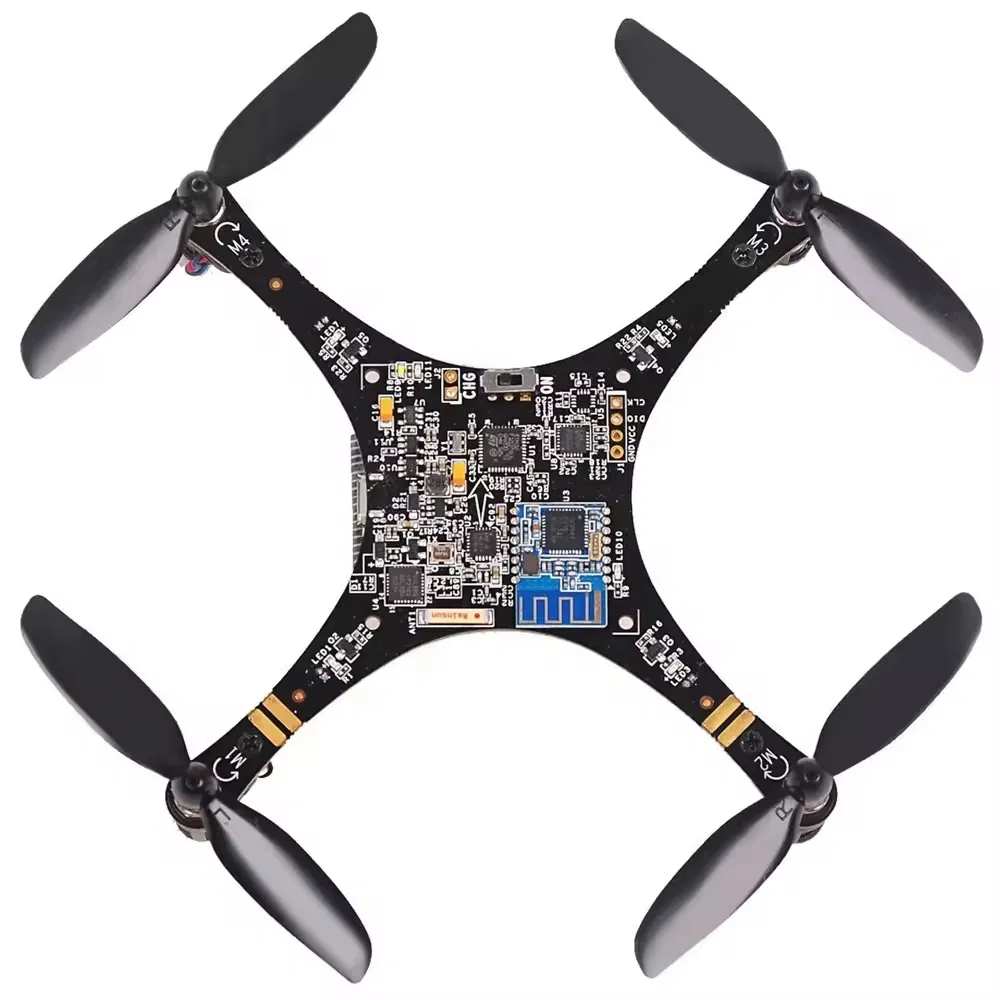

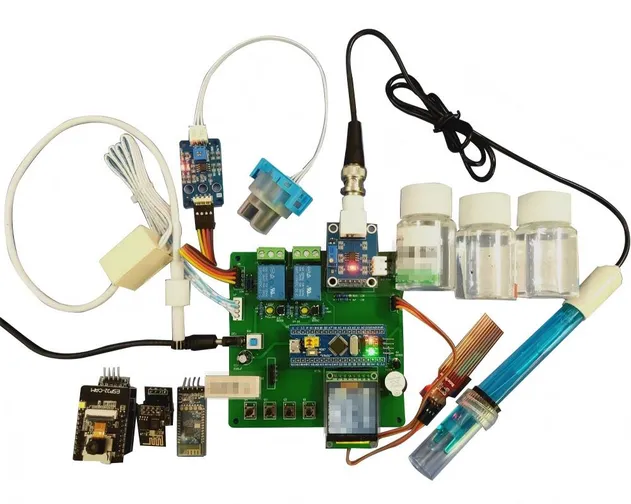

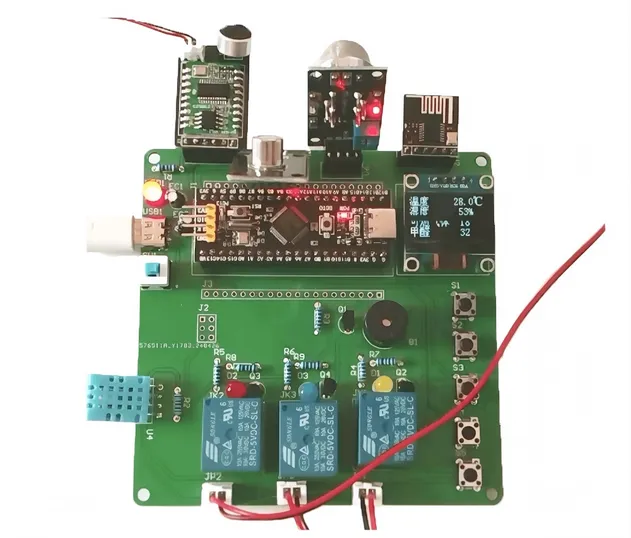

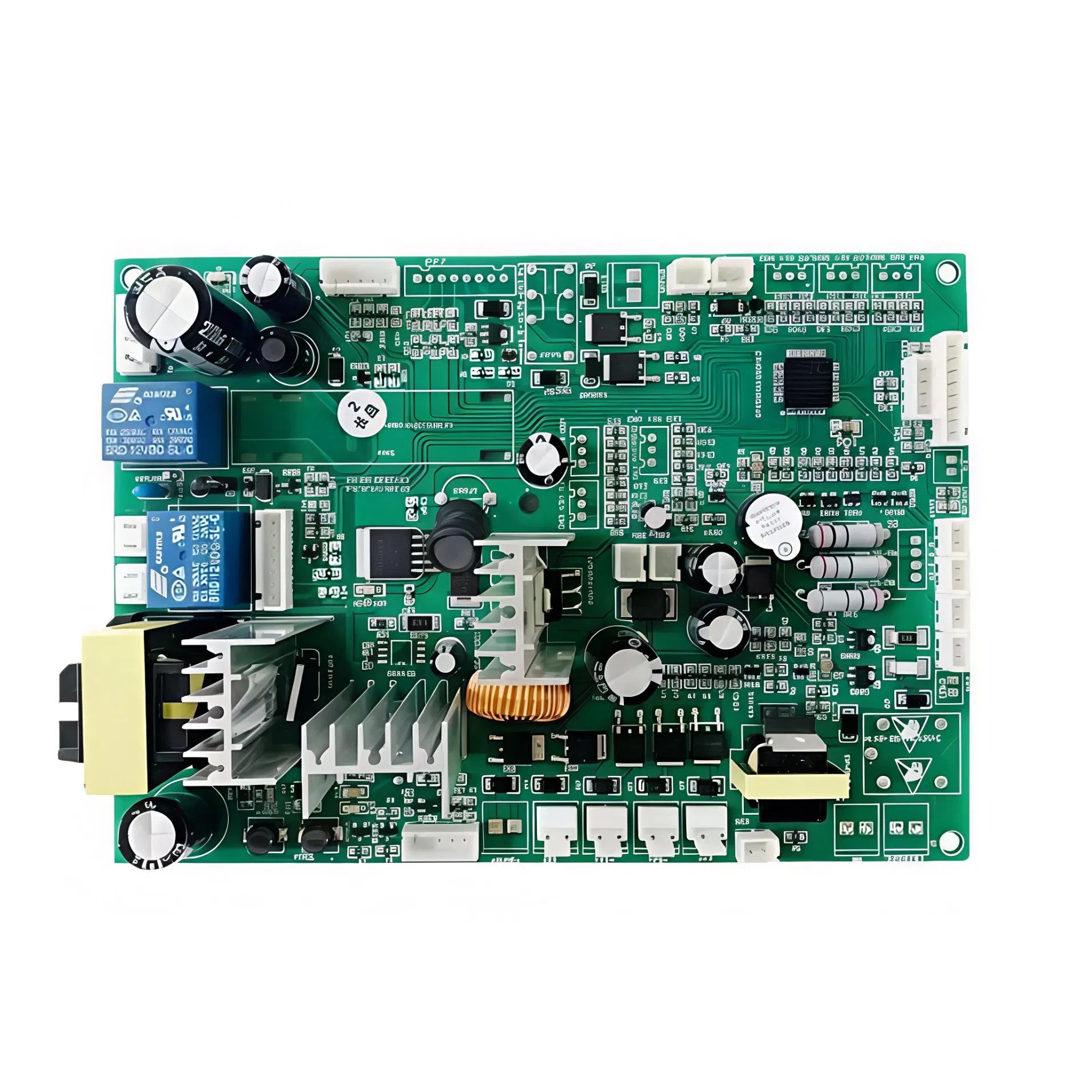

🔍 Products at a Glance
🏢 Company Profile
For over 20 years, we have dedicated ourselves to serving industries including medical devices, automotive electronics, new energy, rail transit, and many others. We provide end-to-end turnkey services, encompassing BOM sourcing (component procurement), product design solutions, SMT assembly, THT assembly, wire harness processing, conformal coating, box build assembly & testing, environmental stress screening, final packaging, and logistics delivery.
Our facilities include Class 10,000 cleanrooms, dedicated RoHS-compliant workshops, and specialized lines for small-batch trial production. The production base features world-class hardware, including Japanese high-speed mounters and German nitrogen reflow ovens. Additionally, we operate multiple fully automated lines for wire harness production, conformal coating and curing, as well as system assembly and testing.
Relying on superior product quality, we have empowered numerous industry leaders. Our PCBA products are successfully deployed in mission-critical applications such as spacecraft systems, naval electronics, medical facility equipment, and high-speed rail systems.
📜 Quality Certificates

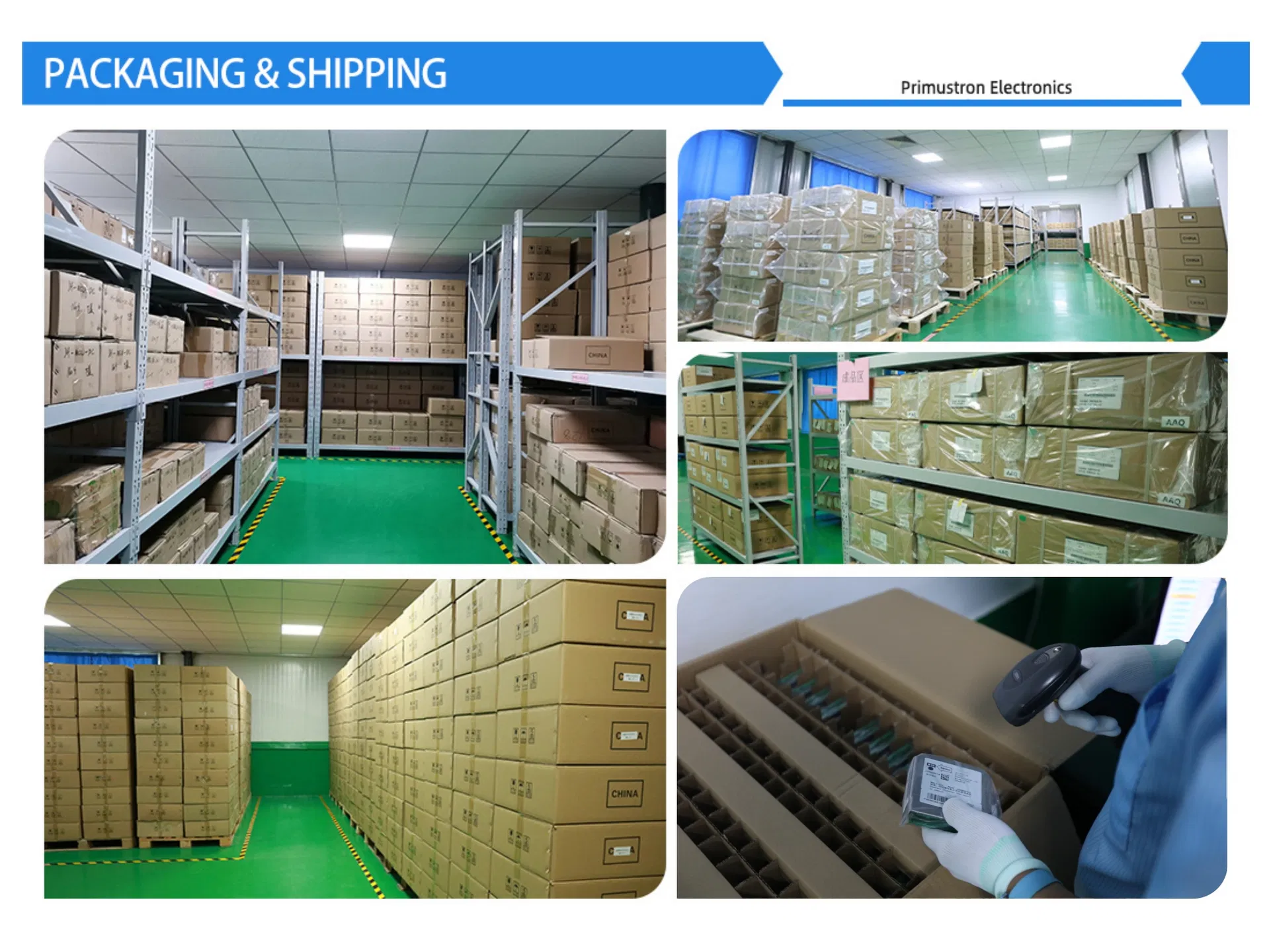

🚚 Packaging & Shipping
❓ Frequently Asked Questions
What industries do your PCBA services primarily target?
We specialize in medical devices, automotive electronics, rail transit, industrial controls, new energy products, network communications, and high-complexity precision instruments.
What information is required for a PCBA quotation?
To provide an accurate quote, we require the PCB Gerber files, a complete Bill of Materials (BOM), and any specific testing documents or requirements.
What is your Minimum Order Quantity (MOQ)?
We have no MOQ restrictions. We fully support both rapid prototyping and large-scale volume production.
Do you ensure confidentiality for design files?
Yes, we prioritize data security. We are willing to sign Non-Disclosure Agreements (NDA) and commit to strict confidentiality regarding all customer product information and design data.
What quality standards do you follow for assembly?
We adhere to IPC-A-610 Class 2 and Class 3 standards. Our facilities are certified under ISO 13485 (Medical), IATF 16949 (Automotive), and ISO 9001.
What testing services do you provide?
We offer a comprehensive range of tests including 3D SPI, 3D AOI, X-ray inspection, Flying Probe testing, ICT (In-Circuit Test), and FCT (Functional Circuit Test).
