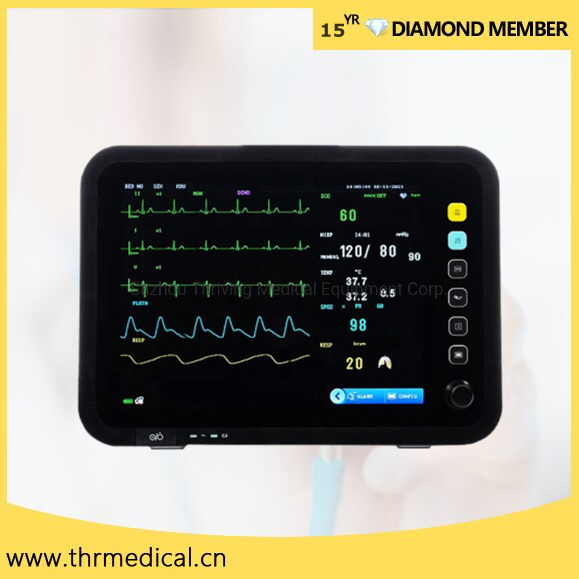

📊 Basic Information
| Model NO. | THR-VM12 |
| OEM Service | Available |

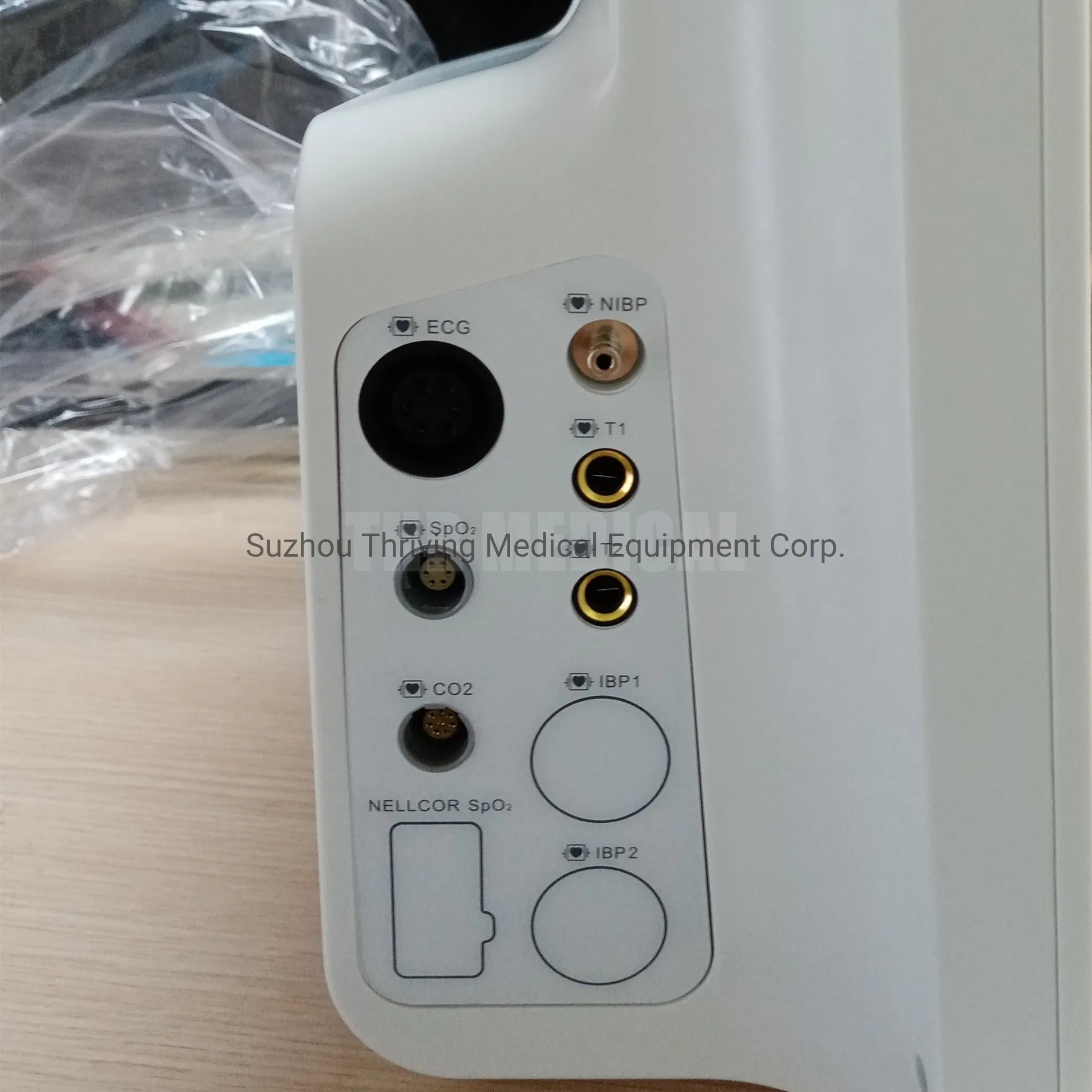

| Parameter | SpO2, NIBP, Resp, ECG, Temp, Pr |

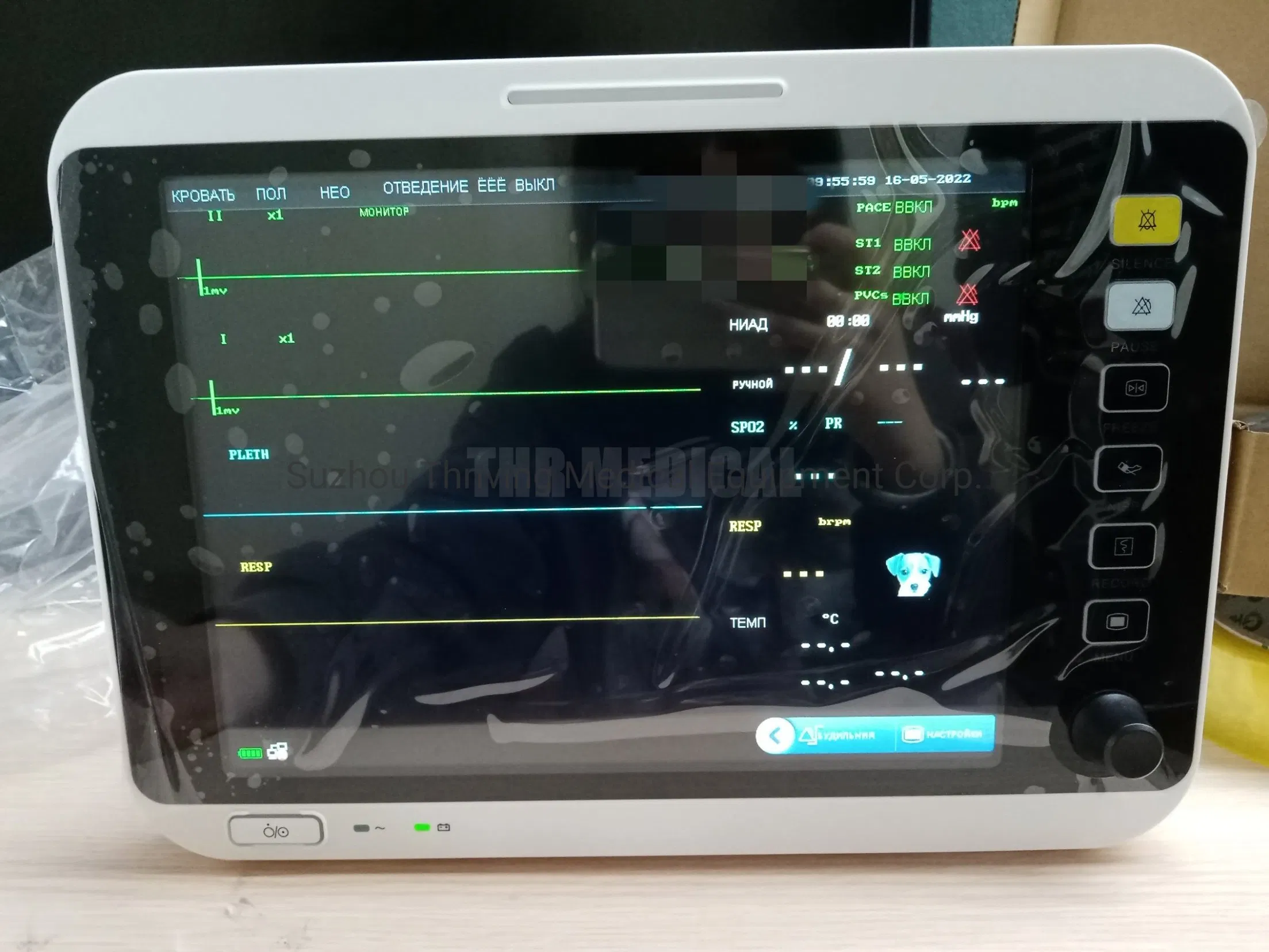

| Display Size | 12.1 Inch |
| Working Temp | 0 - 40 ℃ |
| Optional Parameter | Etco2, IBP, Bis, Co etc |
| Weight | 5kg |
| Package Size | 303mm*160mm*287mm |
| Specification | CE and ISO |
| Origin | China |
📋 Product Description

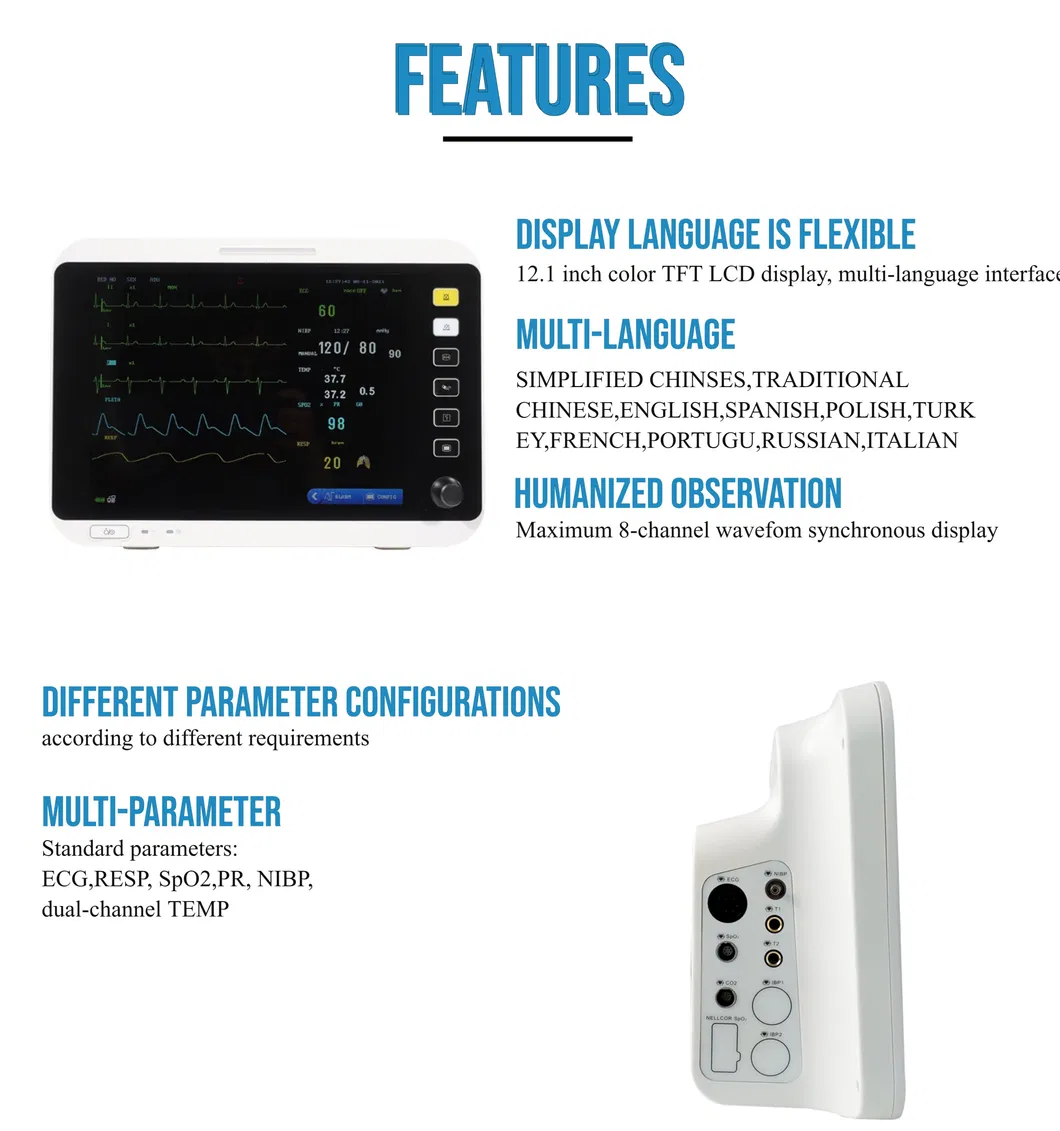

Size: 12 inch
Weight: 5kg

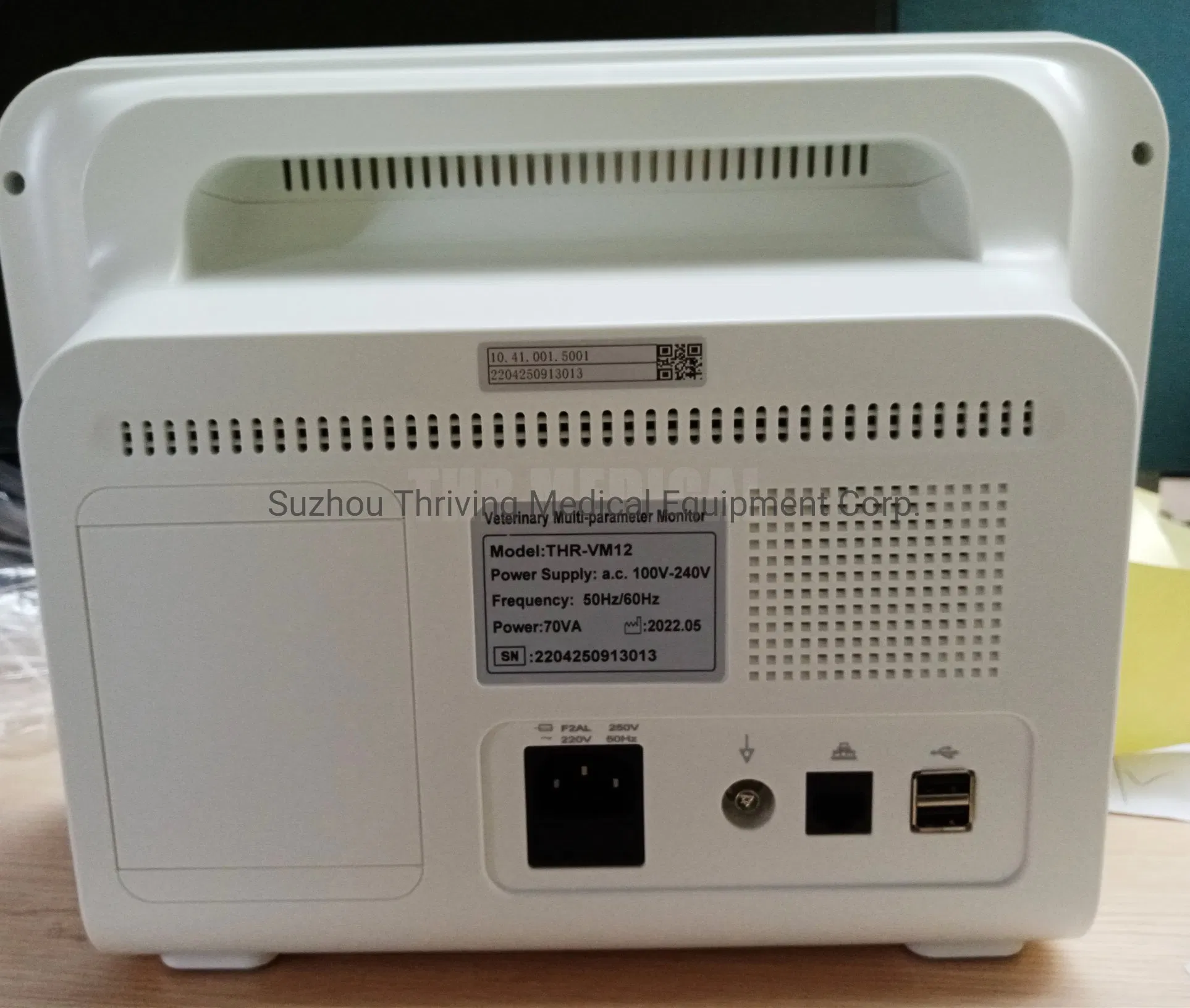

Power: 100-240v AC, 50/60Hz (Max 70VA)
Battery: 11.1V 2200mAh rechargeable lithium battery
Standard Configuration: SpO2, PR, NIBP, ECG, RESP, TEMP
Optional: 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer

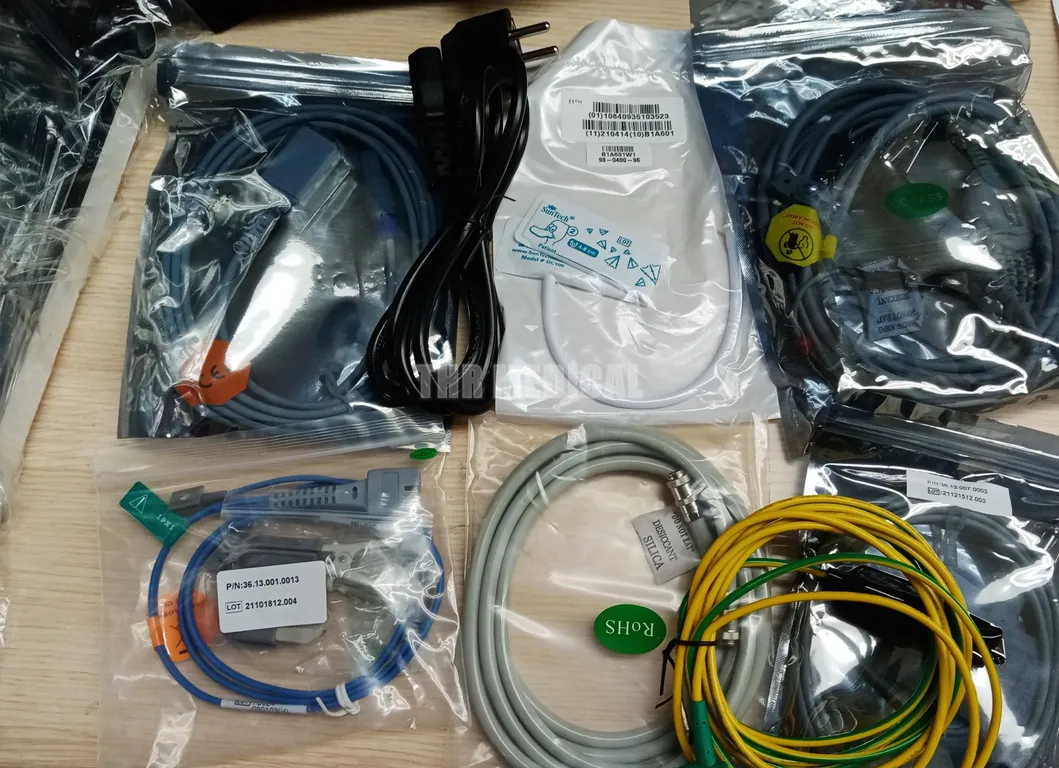

📦 Package Includes
1 x Monitoring Device
1 x Li-Battery
1 x Power & Earth wire
1 x User's Manual
1 x SpO2/PR Probe
1 x NIBP Cuff
1 x ECG cable
1 x Temperature probe
⚙️ Technical Specifications
| ECG Performance |
|---|
| Input | 3/5 wire ECG cable |
| Lead Section | I II III aVR, aVL, aVF, V |
| Heart Rate Range | 15-300bpm |
| Accuracy | ±1bpm or ±1% |
| NIBP (Non-Invasive Blood Pressure) |
|---|
| Test Method | Oscillometer |
| Patient Type | Adult, Pediatric and Neonate |
| Measurement | Systolic, Diastolic, Mean |
| SPO2 & Temperature |
|---|
| SPO2 Range | 0-100% (Accuracy ±2% between 70%-100%) |
| Pulse Rate | 20-300bpm |
| Temp Channels | 2 Channels (Rectal & Surface) |
| Temp Accuracy | ±0.1ºC |
💡 Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory with over 20 years of manufacturing experience. Customers are always welcome to inspect our facilities.
How do you guarantee product quality?
We provide a pre-production sample before mass production and conduct a 100% test and final inspection before every delivery.
What is the warranty period for your medical equipment?
We provide a standard 1-year warranty. During this period, manufacturing defects qualify for free spare parts. Technical service remains free even after the warranty expires.
Do you offer OEM custom services?
Yes, we offer professional OEM custom services for large quantity orders, supported by our extensive manufacturing experience.
What is the typical delivery time?
Standard delivery occurs within 5-30 days after receipt of payment. Large or customized orders may require slightly more time.
What are your accepted payment and delivery terms?
We accept various terms including FOB, CFR, CIF, and EXW. Payments can be made via T/T, L/C, Western Union, or Escrow in multiple currencies like USD and EUR.
