Fast Recovery Diodes Electronic Component High Frequency Rectifiers Semiconductor Devices Zk800A/3800V
Fast Recovery Diodes Electronic Component High Frequency Rectifiers Semiconductor Devices Zk800A/3800V
Fast Recovery Diodes Electronic Component High Frequency Rectifiers Semiconductor Devices Zk800A/3800V
Fast Recovery Diodes Electronic Component High Frequency Rectifiers Semiconductor Devices Zk800A/3800V
Fast Recovery Diodes Electronic Component High Frequency Rectifiers Semiconductor Devices Zk800A/3800V
1 / 5
Fast Recovery Diodes Electronic Component High Frequency Rectifiers Semiconductor Devices Zk800A/3800V
Fast Recovery Diodes Electronic Component High Frequency Rectifiers Semiconductor Devices Zk800A/3800V
Fast Recovery Diodes Electronic Component High Frequency Rectifiers Semiconductor Devices Zk800A/3800V
Fast Recovery Diodes Electronic Component High Frequency Rectifiers Semiconductor Devices Zk800A/3800V
Fast Recovery Diodes Electronic Component High Frequency Rectifiers Semiconductor Devices Zk800A/3800V

Fast Recovery Diodes Electronic Component High Frequency Rectifiers Semiconductor Devices Zk800A/3800V

Customization: Available
Application: Diode, High Frequency Rectifiers
Batch Number: 2023+
Send Inquiry

Product Description

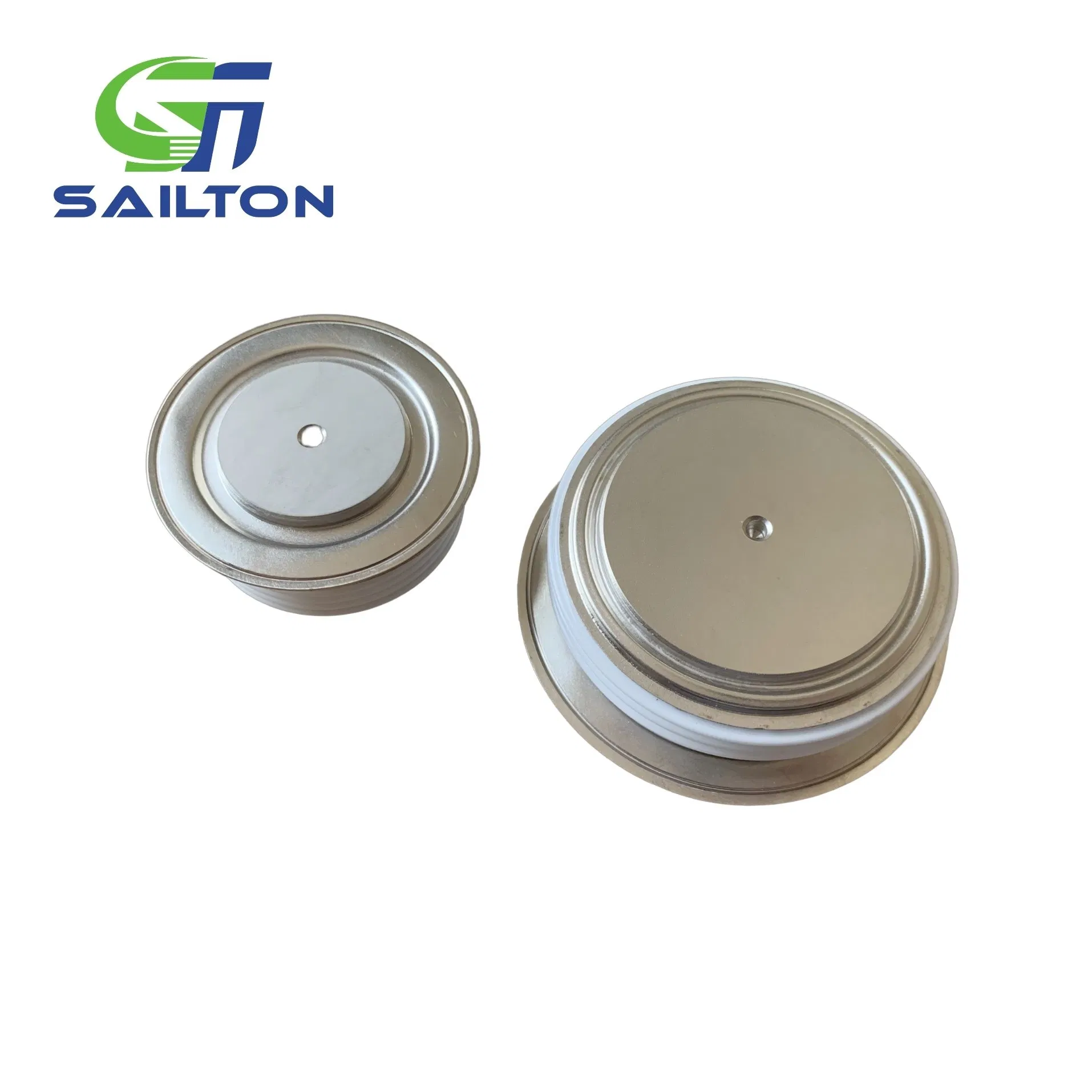

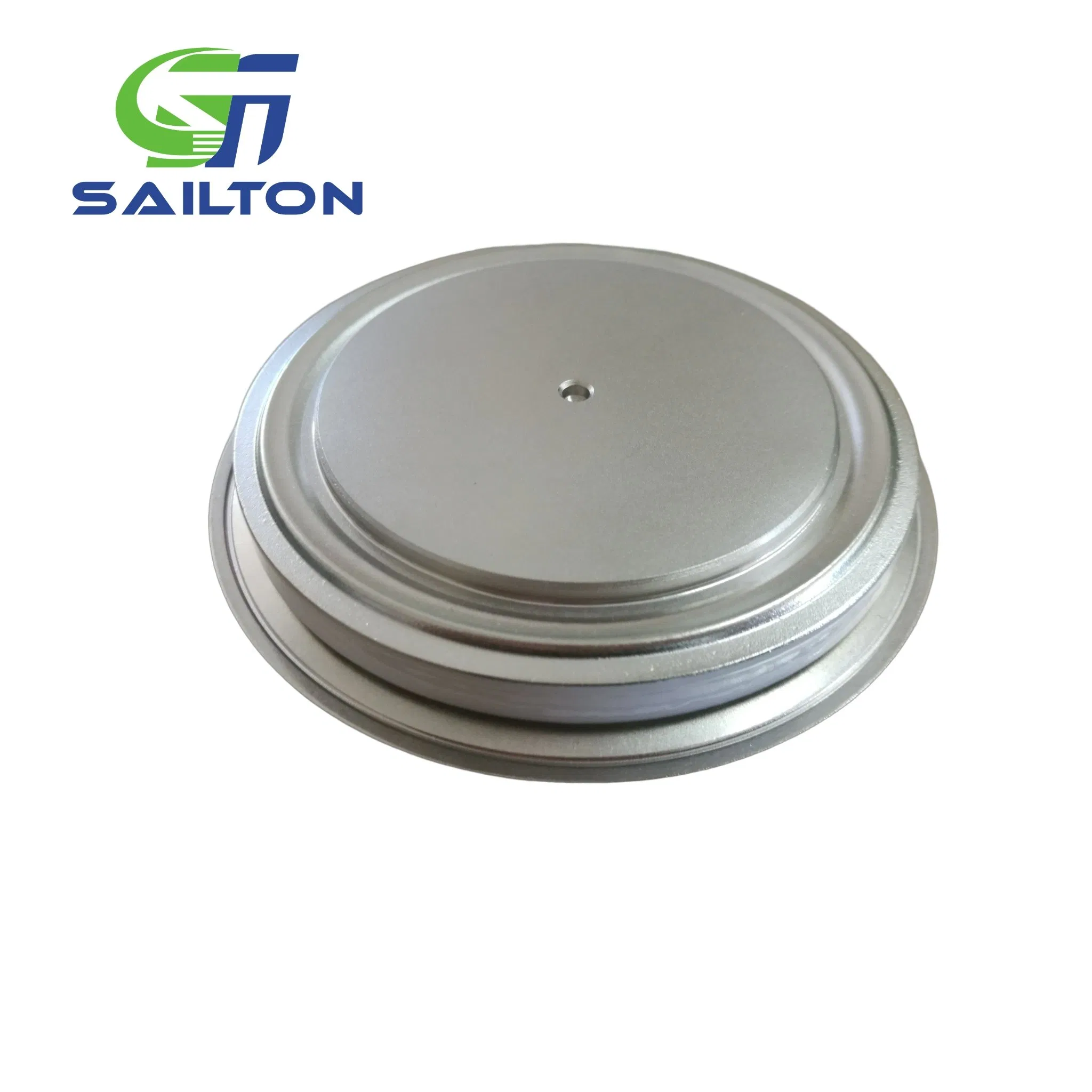

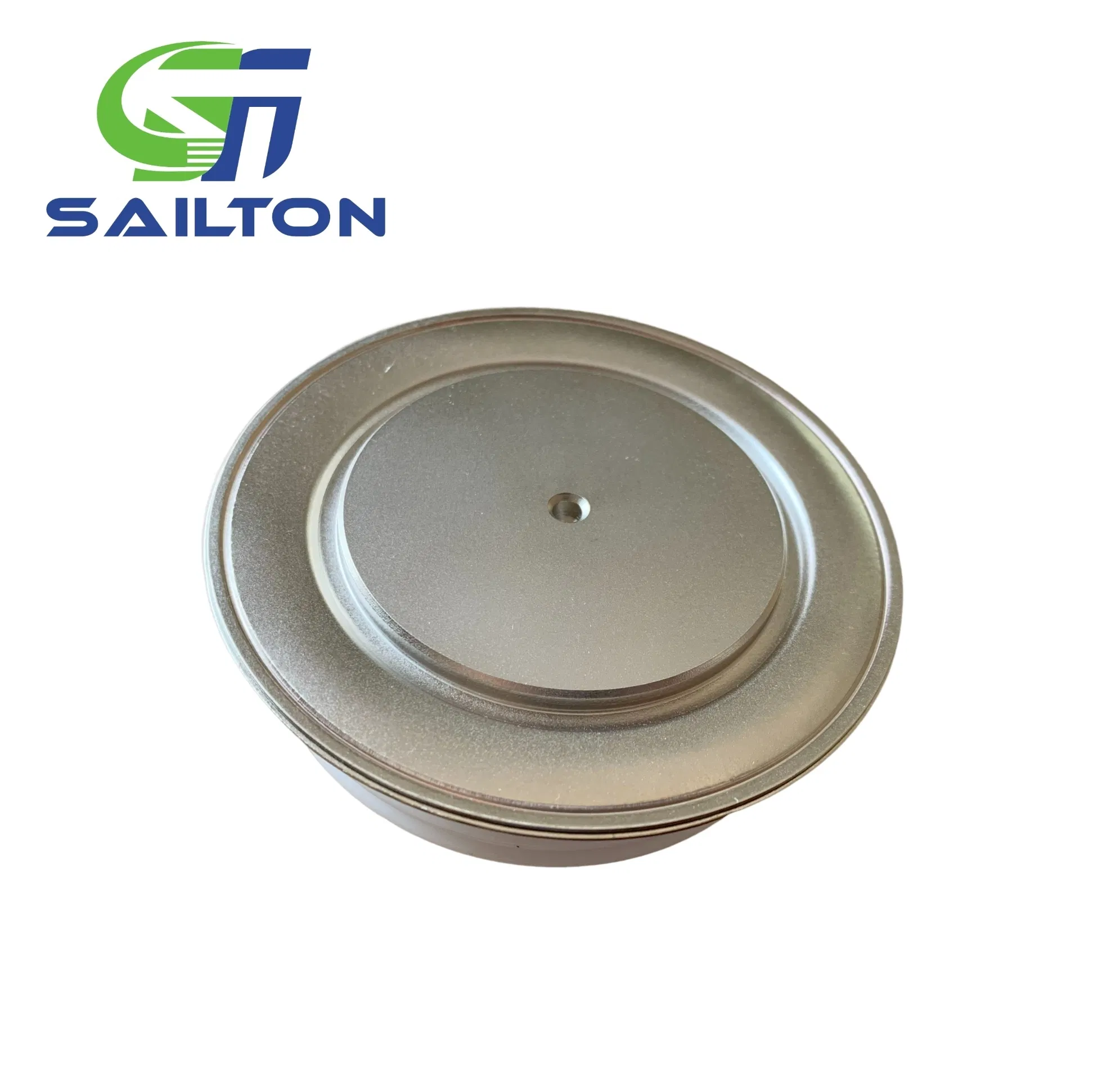

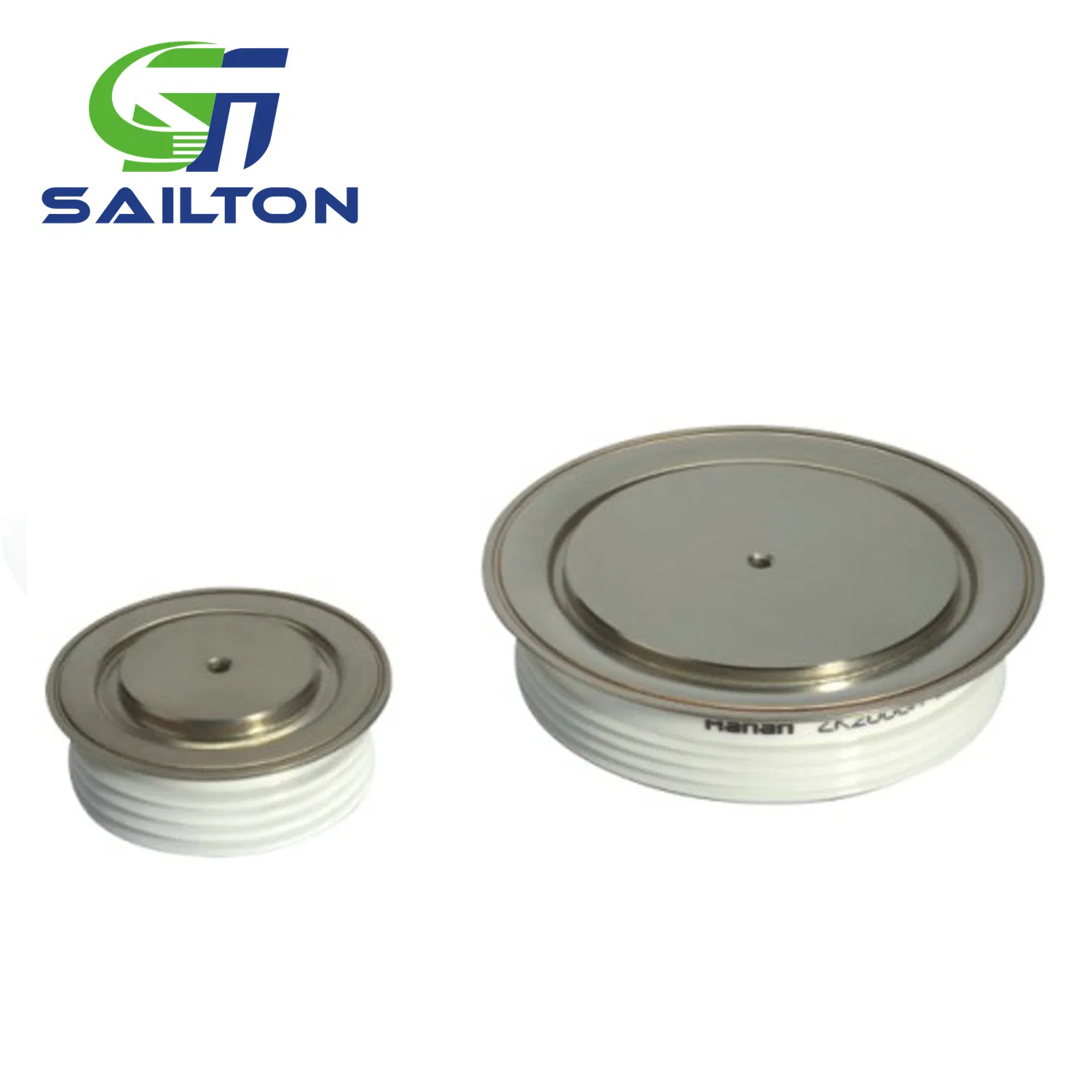

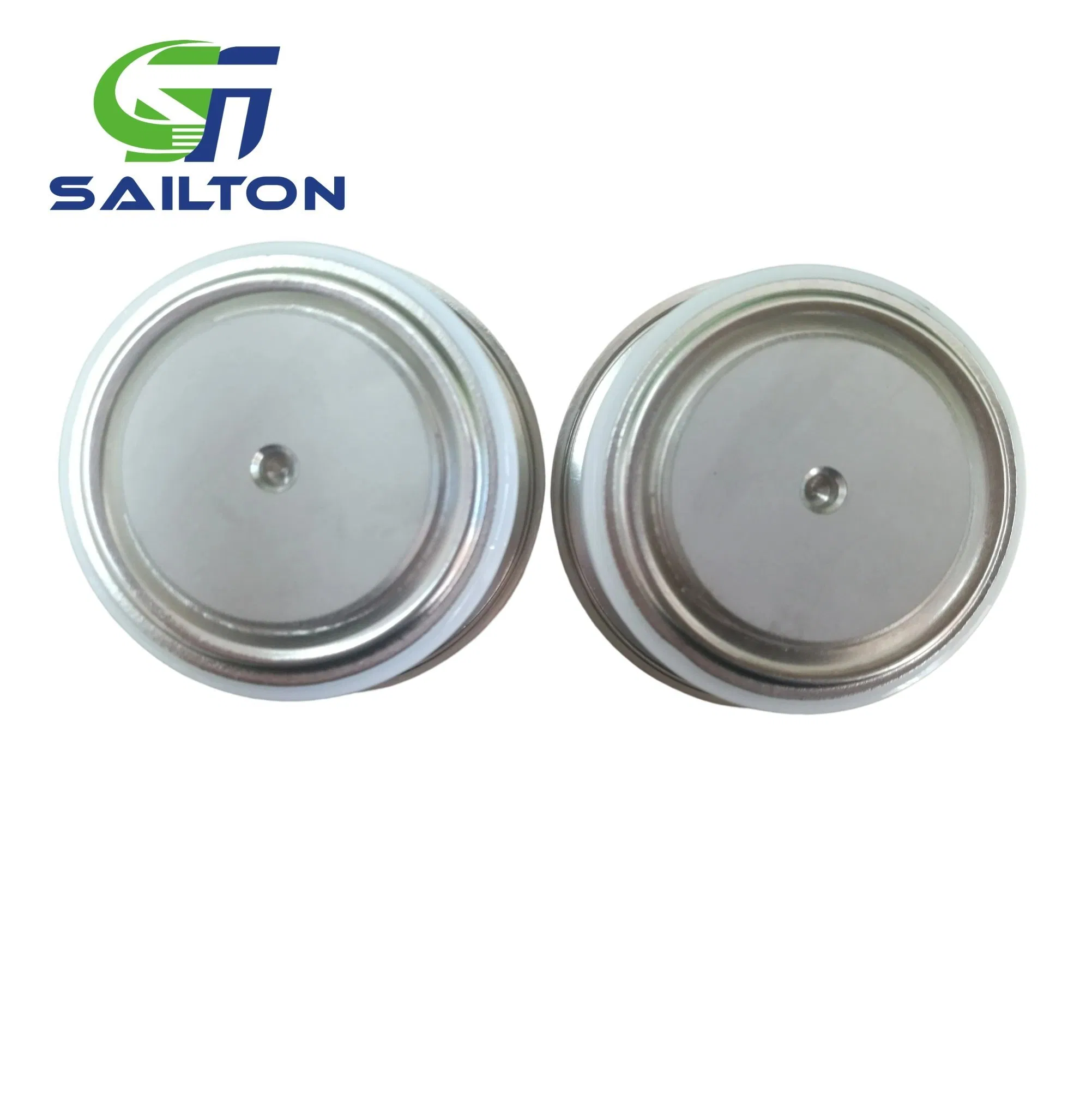

Fast Recovery Diodes Zk800A/3800V

We supply various shapes of fast recovery diodes that have a small reverse recovery time. Its maximum voltage is 4500V, the maximum current is 3000A.

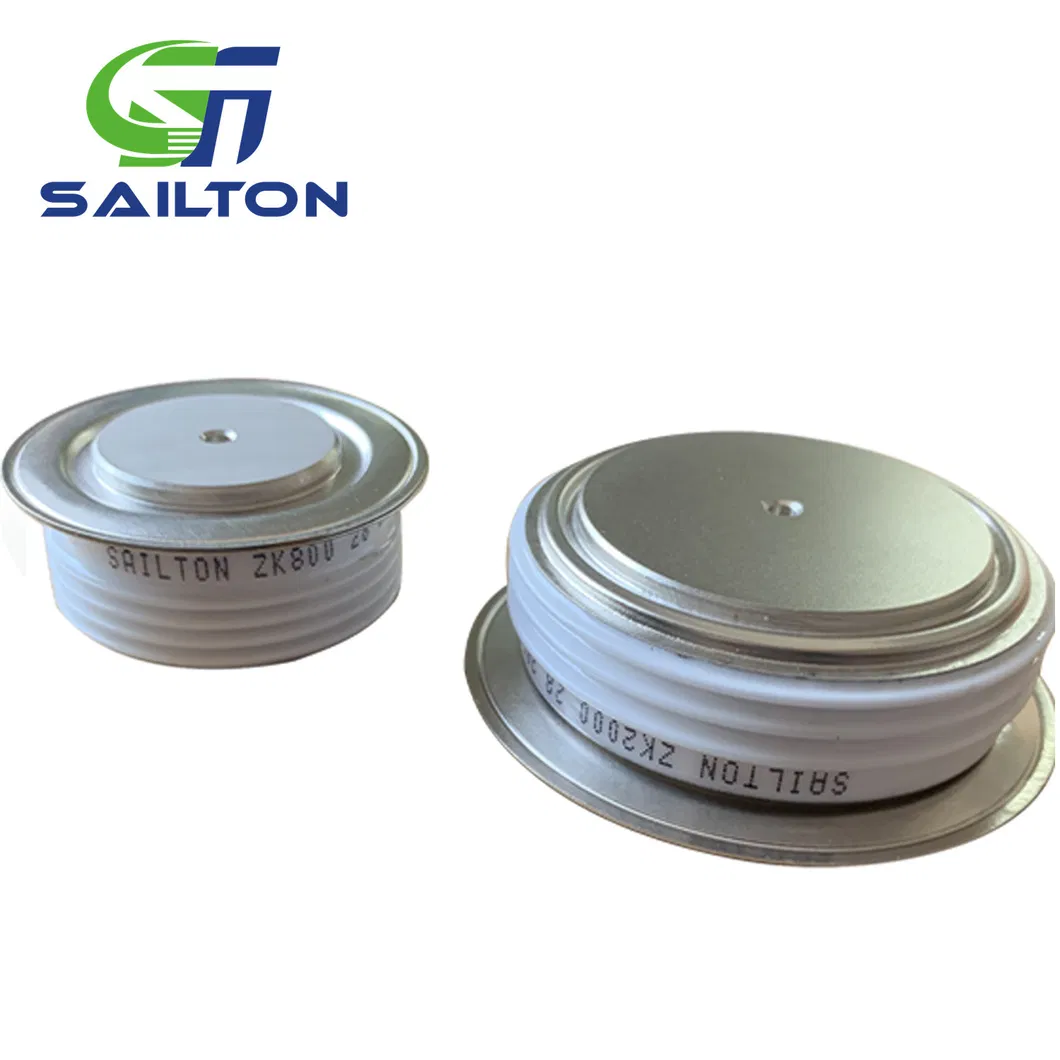

Fast Recovery Diodes
Our rectifier diode has a fast recovery diode, soft recovery diode, and standard recovery diode. With high quality and competitive performance, our fast recovery diodes are popularly used on induction heating furnaces and exported globally to markets including Germany, UK, Ukraine, Egypt, Brazil, and Turkey.

Basic Specifications

Model NO.
Zk800A/3800V
Technology
Optoelectronic Semiconductor
Material
Element Semiconductor
Package
Presser / Capsule
Cooling
Double-Side Cooling
Signal Processing
Analog Digital Composite
Type
N-Type Semiconductor
Chip Type
Silicon Controlled Chip
Installation
Parallel, Series
Operating Temp
-40 C (Min)
HS Code
8541300000
Origin
China

Key Features

⚡ Optimized for high-frequency rectifiers
🔄 Fast and soft recovery turn off
📉 Small reverse recovery charge
🛡️ Reverse voltage up to 4500V

Applications

⚙️ Motor control and drive
🔥 Inductive heating
🔋 UPS power supply
🏗️ Welding equipment & Choppers

Technical Datasheet

Part No. IF(AV) (A) VRRM (V) IFSM (A) I2t (A2S.103) VFO (V) rF (mΩ) trr (µs) Outline
ZK400/10-204001000-200045001011.050.6802.0D6
ZK600/10-207001000-2000110006050.950.5602.0D9
ZK1000/10-2012001000-20002000020001.000.3503.0D11
ZK800/25-338002500-330064002051.150.6904.0D9
ZK2000/25-3320002500-33003000045000.900.3505.0D13
ZK1500/36-4515003600-45002400028801.400.6508.0D13
ZK2000/36-4520003600-45002600033801.300.5008.5D15

Product & Factory Showcase

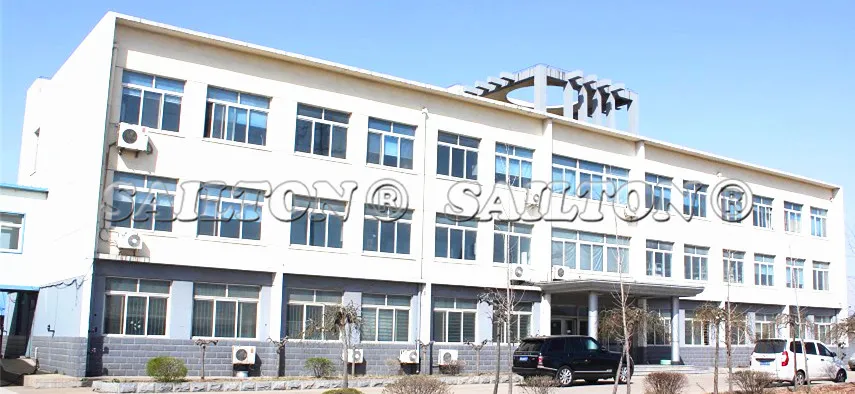

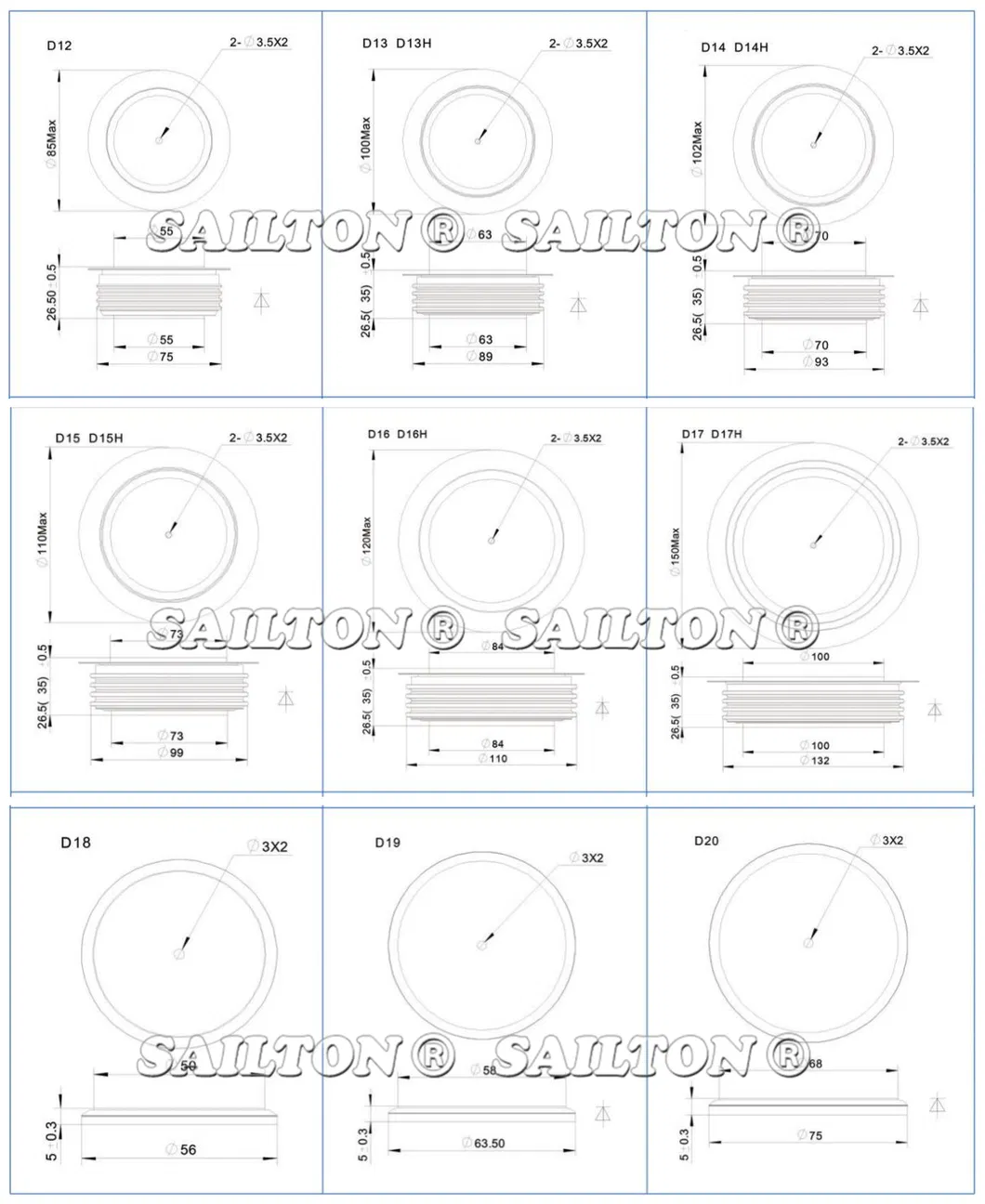

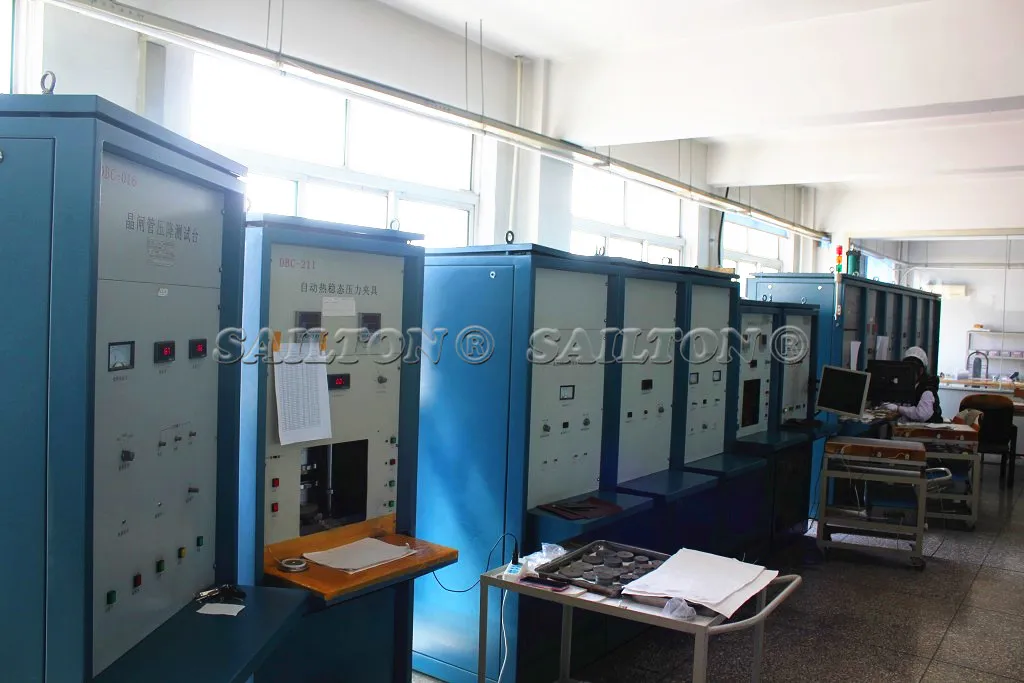

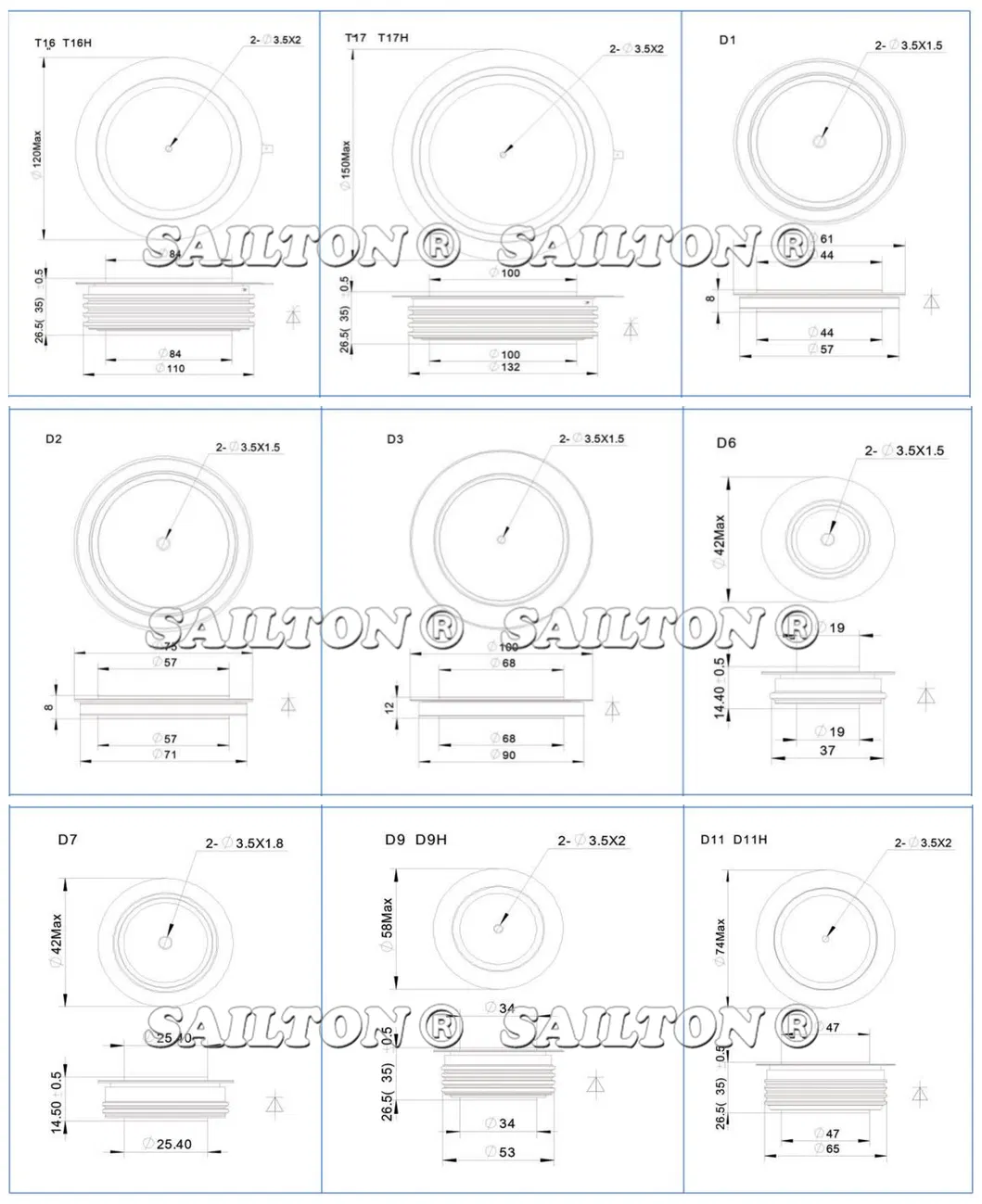

Component Detail Semiconductor Device Factory Overview

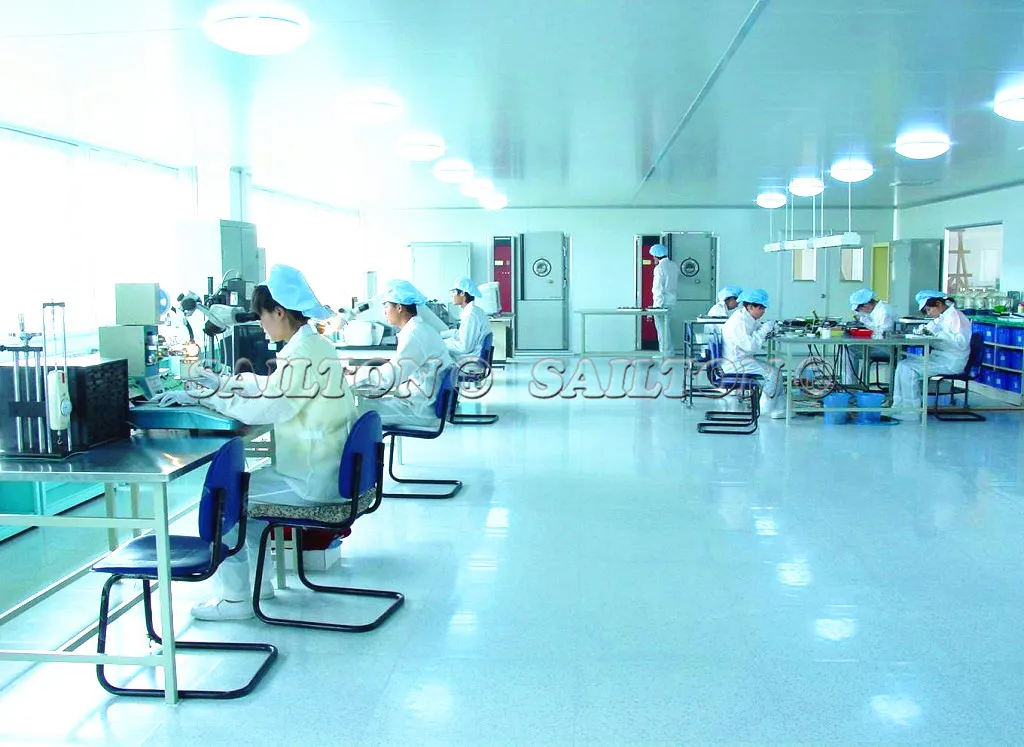

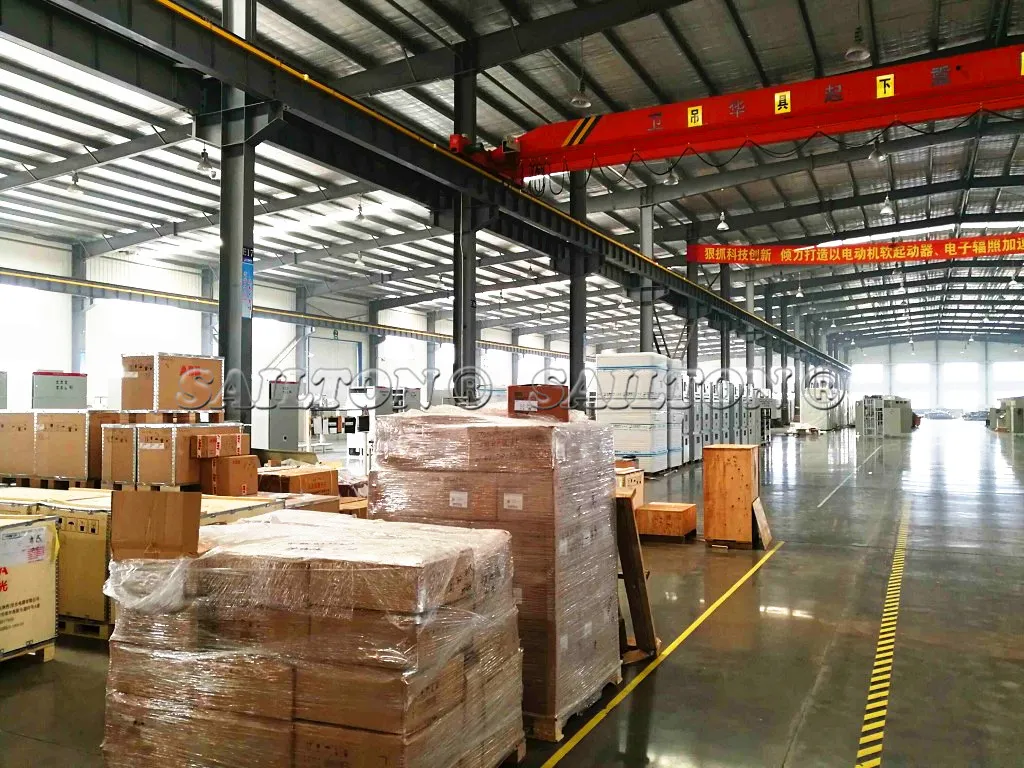

Production Line Testing Equipment Quality Control

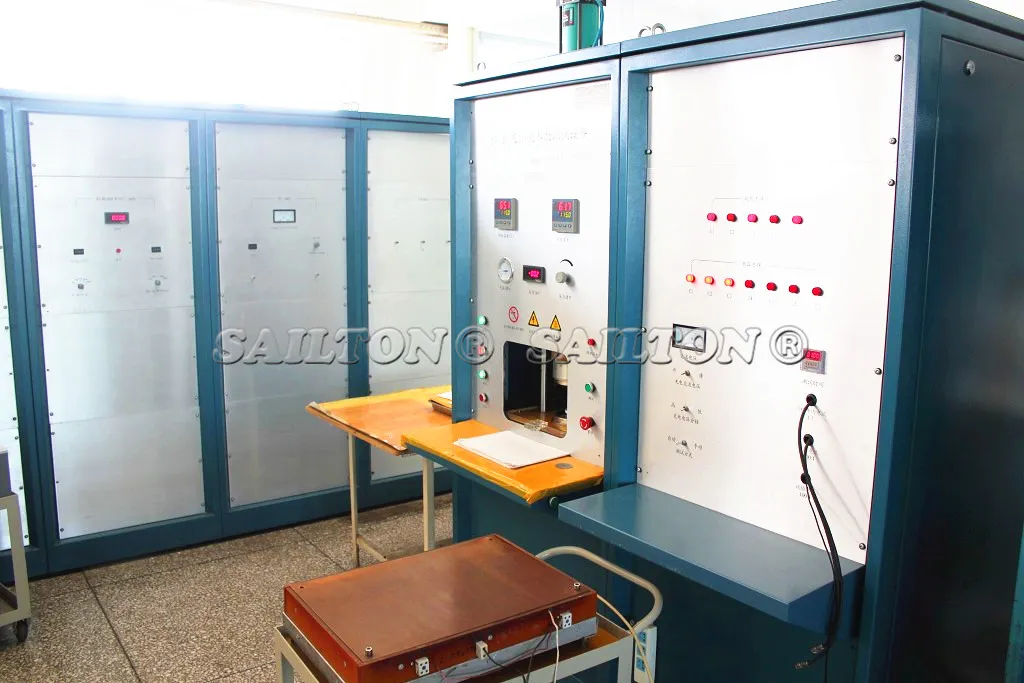

Facility Certificates

Frequently Asked Questions (FAQ)

❓ What is the maximum voltage and current for these diodes?
The fast recovery diodes can handle a maximum reverse voltage of up to 4500V and a maximum current of 3000A.
❓ What are the main applications for the Zk800A/3800V model?
These devices are primarily used in motor control drives, inductive heating furnaces, UPS power supplies, choppers, and welding equipment.
❓ What types of recovery characteristics are available?
We offer fast recovery, soft recovery, and standard recovery rectifier diodes to meet various circuit requirements.
❓ How are these semiconductor components cooled?
These diodes are designed for double-side cooling to ensure stable performance in high-power applications.
❓ What is the typical lead time for delivery?
Standard delivery for these components is typically within 3 days, subject to stock availability and order quantity.
❓ Are custom outline sizes available?
Yes, we provide standard code outline sizes as well as custom sizes to meet specific installation requirements.
