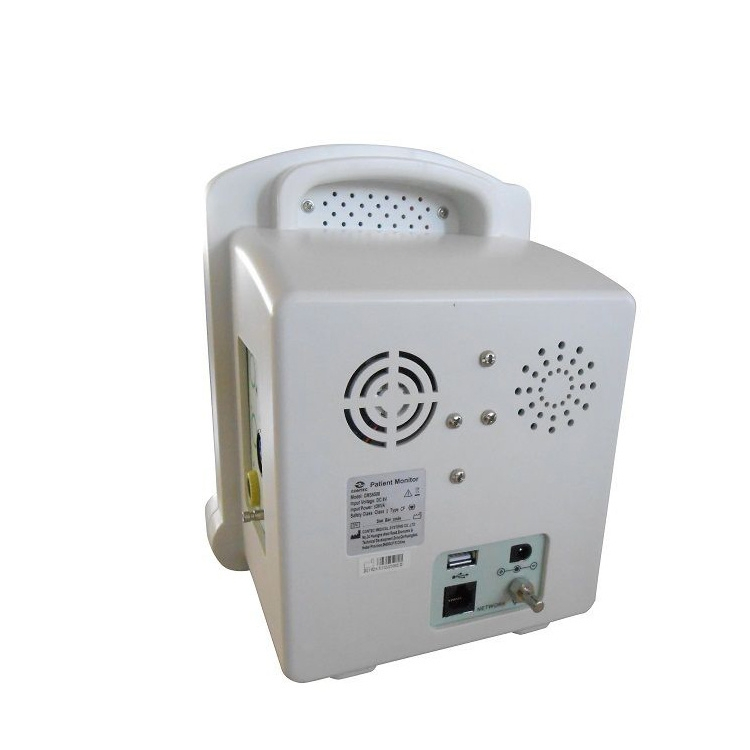

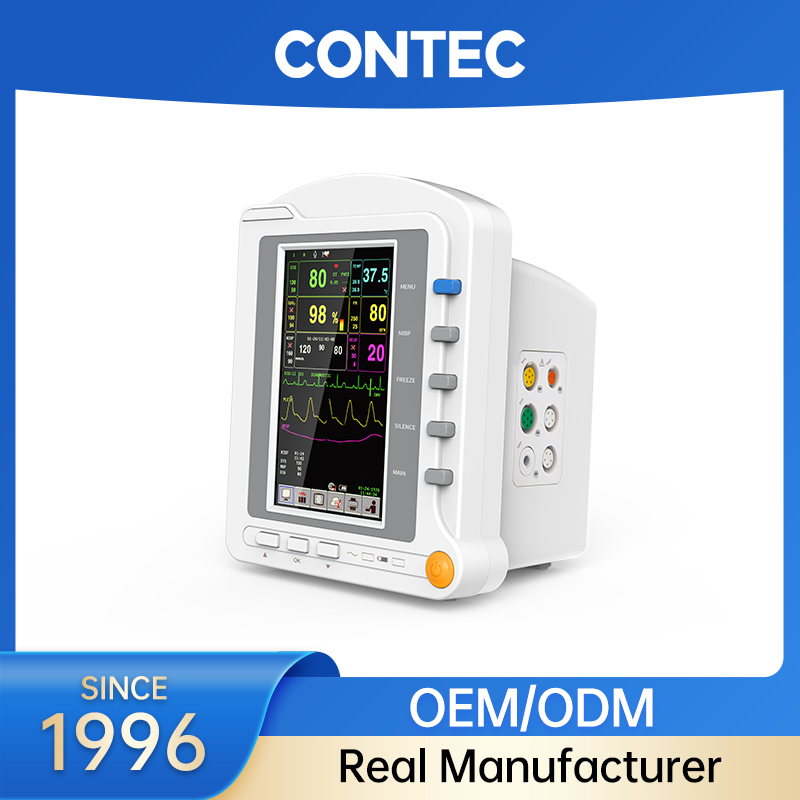

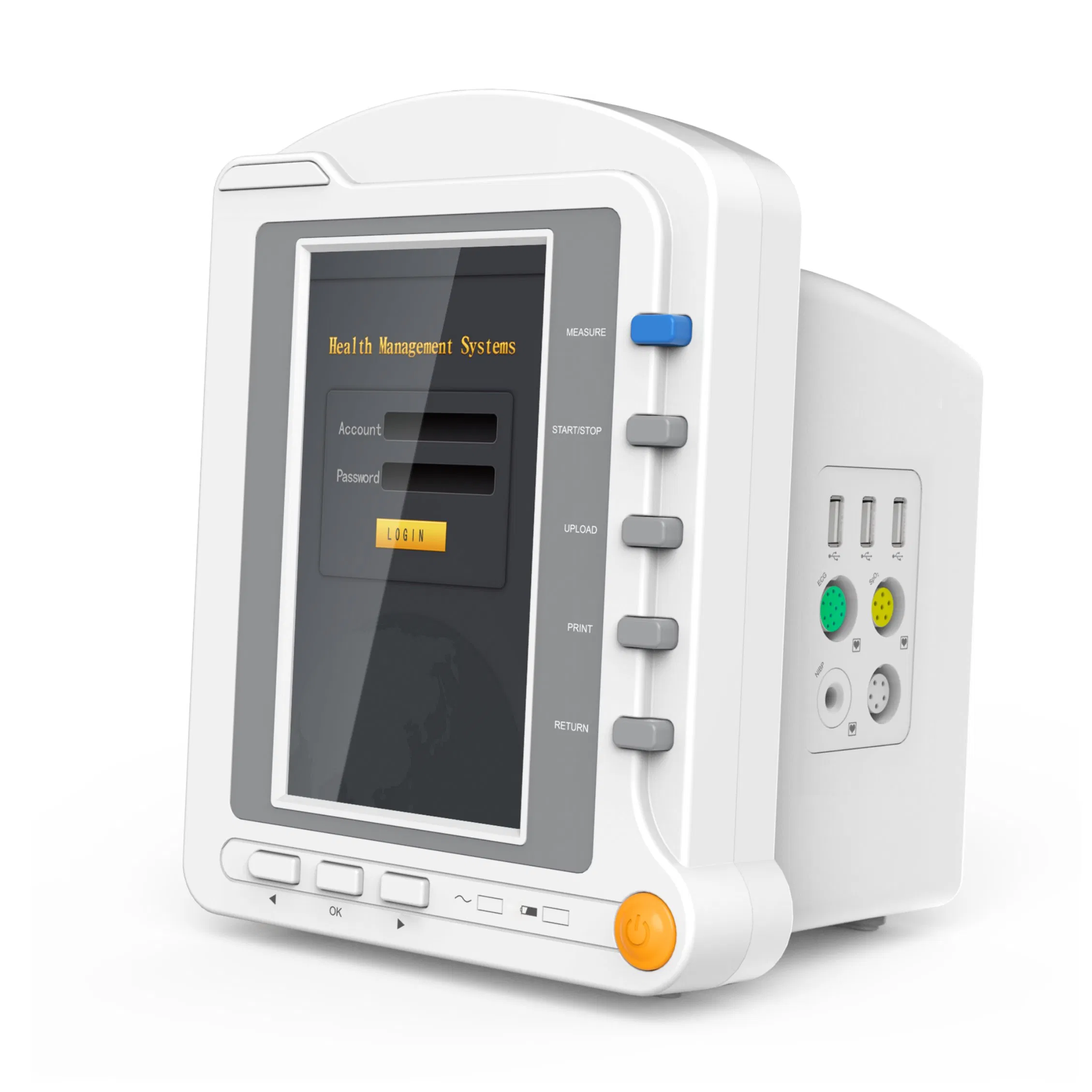

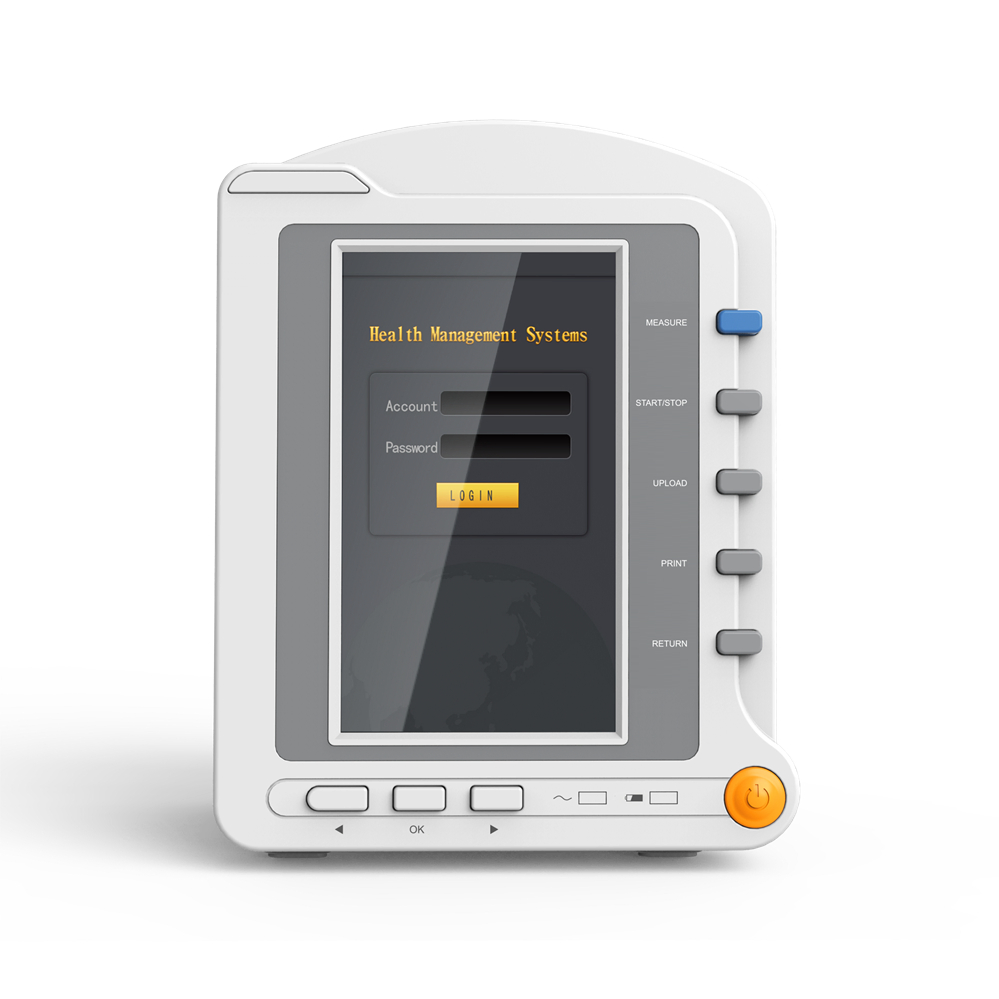

Portable Patient Monitoring System by Contec Cms6500 for Healthcare
Portable Patient Monitoring System by Contec Cms6500 for Healthcare
Portable Patient Monitoring System by Contec Cms6500 for Healthcare
Portable Patient Monitoring System by Contec Cms6500 for Healthcare
Portable Patient Monitoring System by Contec Cms6500 for Healthcare
1 / 5
Portable Patient Monitoring System by Contec Cms6500 for Healthcare
Portable Patient Monitoring System by Contec Cms6500 for Healthcare
Portable Patient Monitoring System by Contec Cms6500 for Healthcare
Portable Patient Monitoring System by Contec Cms6500 for Healthcare
Portable Patient Monitoring System by Contec Cms6500 for Healthcare

Portable Patient Monitoring System by Contec Cms6500 for Healthcare

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Patient Monitor
Send Inquiry

Product Description

📊

Basic Information

Model NO.
CMS6500
Certification
CE, ISO13485
Group
Middle-aged and Old
OEM/ODM
Yes
Instrument Classification
Class II
Warranty
1 Year
Material
Plastic
Product Name
Patient Monitor
Display
7'' Color TFT LCD
Hr Range
15 ~ 300 Bpm
ECG Lead Mode
3-Lead or 5-Lead
Multi-Parameter
ECG, SpO2, Pulse Rate, NIBP
Specification
190 mm(L)*162 mm(W)*240 mm(H)
💡

Product Description

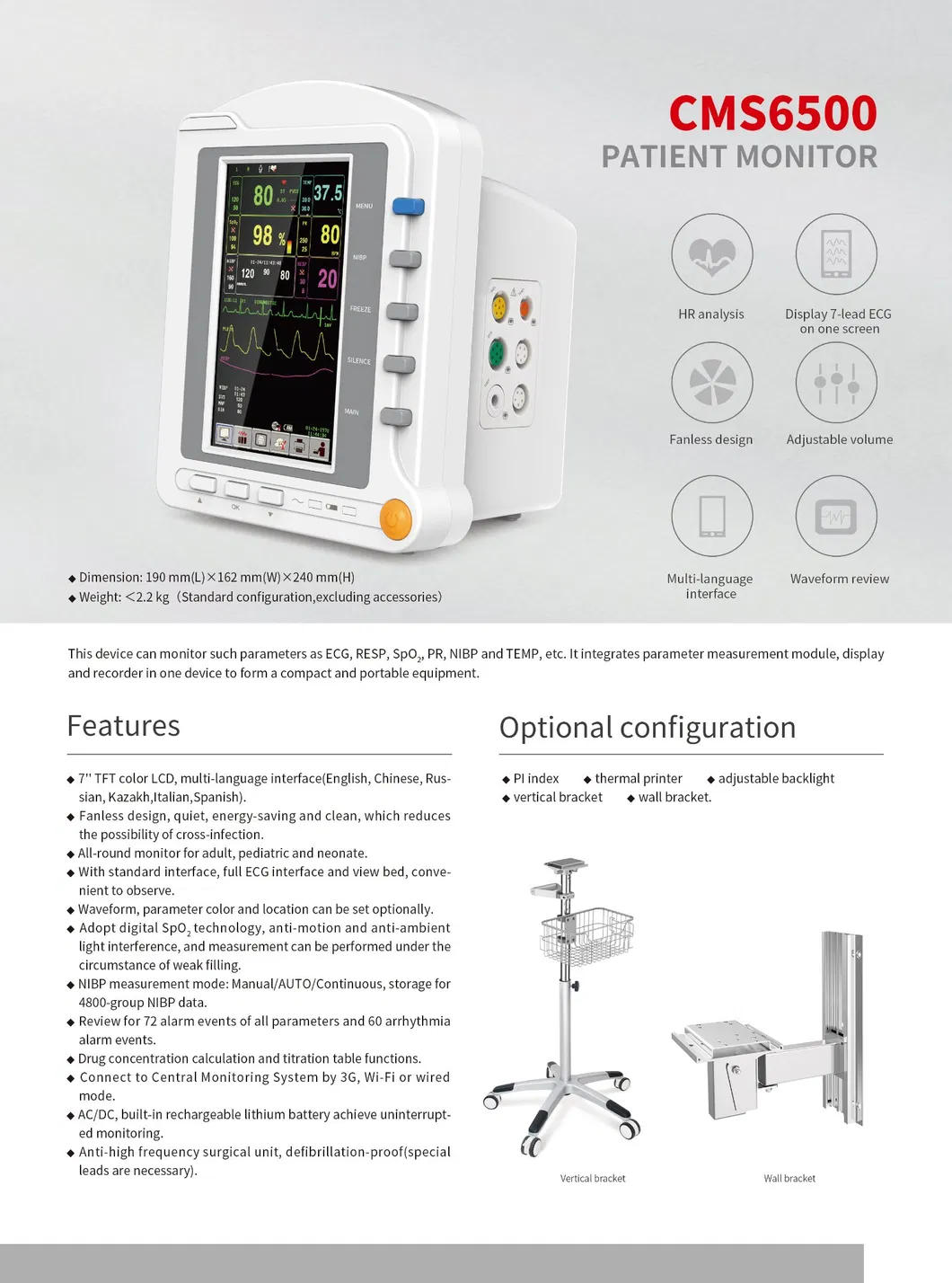

Portable Patient Monitoring System

Introduction:
The Portable Medical Patient Monitor with Touch Screen CMS6500 is a versatile solution for healthcare professionals. To ensure monitoring quality and reduce operation risk, it adopts full-isolation (floating), ECG defibrillation-proof protection, ECG anti-high frequency surgical unit, and NIBP dual-overpressure protection.

⭐

Key Features

  • 7'' high-resolution color TFT LCD with touch screen for simple operation.
  • Applicable for adult, pediatric, and neonatal all-round monitoring.
  • Optional waveform and data display settings.
  • 72-hour trend data storage and 40-second holographic waveform review.
  • Digital SpO2 technology with strong anti-interference capability.
  • NIBP storage for up to 400 data entries.
  • Wireless and wired network connection for central station integration.
  • Built-in rechargeable battery for uninterrupted monitoring.
ECGLead mode: 3-lead or 5-lead; Gain: 2.5mm/mV to 20mm/mV; Scan speed: 12.5mm/s to 50 mm/s.
HRRange: 15~350 bpm; Accuracy: ±1 % or ±1 bpm; Arrhythmia analysis & Pacemaker supported.
RESPMethod: R-F(RA-LL) Impedance; Range: 0~150 rpm; Apnea alarm: 10~40s.
NIBPMethod: Oscillometry; Mode: Manual/AUTO/Continuous; Over-pressure protection for Adult/Pediatric/Neonatal.
SpO2Measurement range: 0 ~ 100%; Accuracy: 70%~100%: ±2%.
PRMeasurement range: 30 ~ 250 bpm; Accuracy: ±2 bpm or ±2%.
📦

Standard Accessories

  • Adult fingertip SpO2 probe & Extension cable

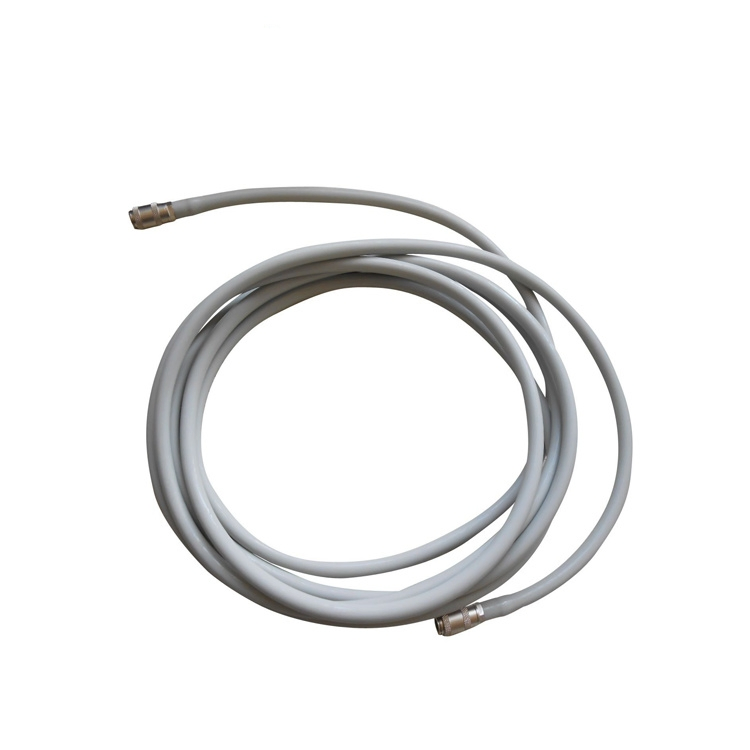

  • Adult NIBP cuff & Extension tube
  • ECG lead cable & Electrodes
  • Temperature probe
  • Power cord & Adapter
  • User Manual
🖼️

Visual Display

Monitoring System Detail 1
Monitoring System Detail 2
Monitoring System Detail 3
Monitoring System Detail 4
Monitoring System Detail 5
Monitoring System Detail 6
❓

Frequently Asked Questions

What parameters does the CMS6500 monitor?
The device provides standard monitoring for ECG, RESP (Respiration), NIBP (Non-invasive Blood Pressure), SpO2 (Oxygen Saturation), TEMP (Temperature), and PR (Pulse Rate).
Is this monitor suitable for all patient types?
Yes, the CMS6500 is designed to be applicable for adult, pediatric, and neonatal patients for all-round medical monitoring.
How long can the device store trend data?
The monitor supports the storage of up to 72 hours of trend data and allows for the review of 40-second holographic waveforms.
Does the monitor support touch screen operation?
Yes, it features a 7-inch color TFT LCD with a touch screen interface, making operation simple and providing quick shortcuts.
Can the device be integrated into a hospital network?
Absolutely. It supports both wireless and wired network connection modes for connecting with central stations or other bed observation systems.
Is there a battery for mobile use?
Yes, the CMS6500 includes a built-in rechargeable battery to ensure uninterrupted monitoring during transport or power outages.
